Square D

NQ30L1C - Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC

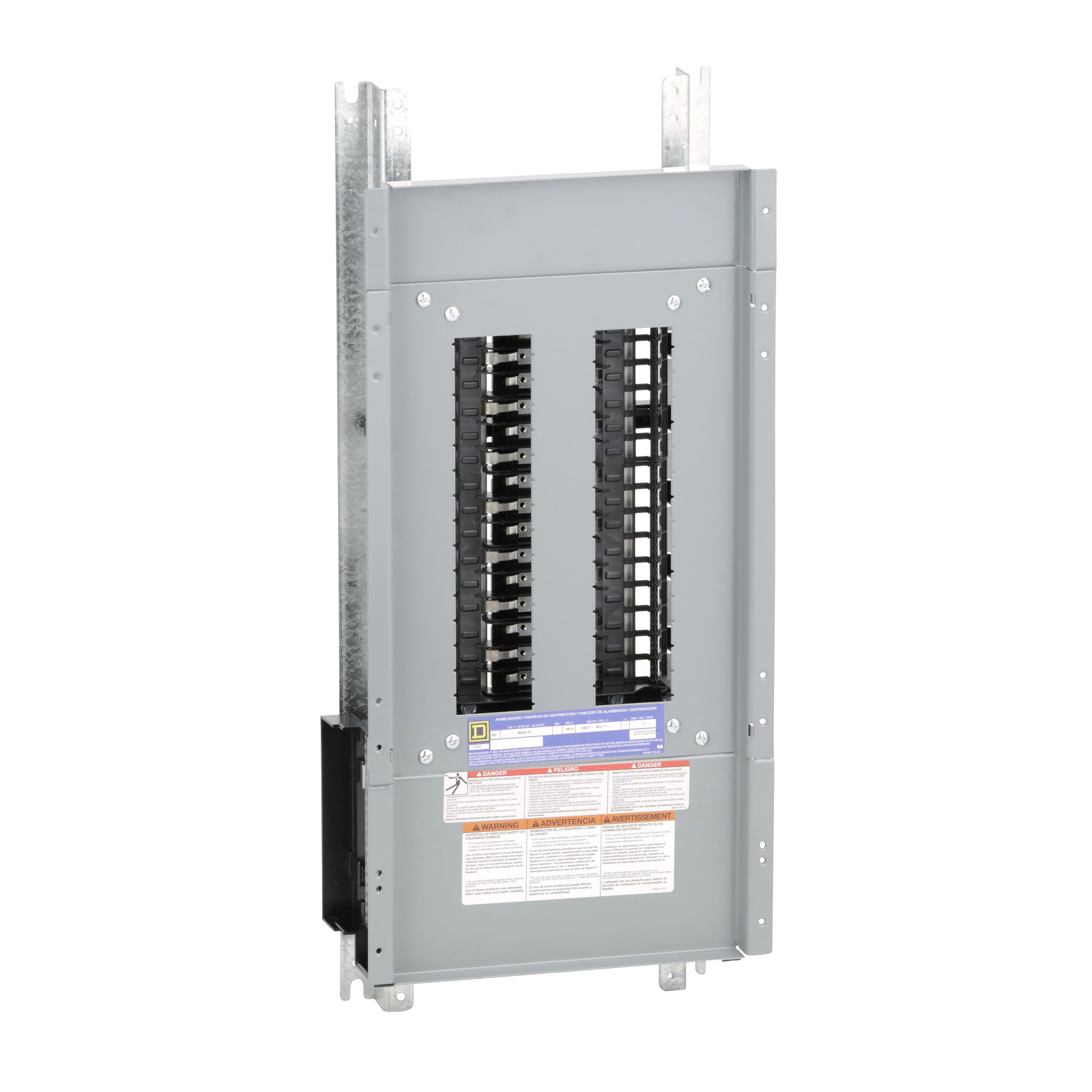

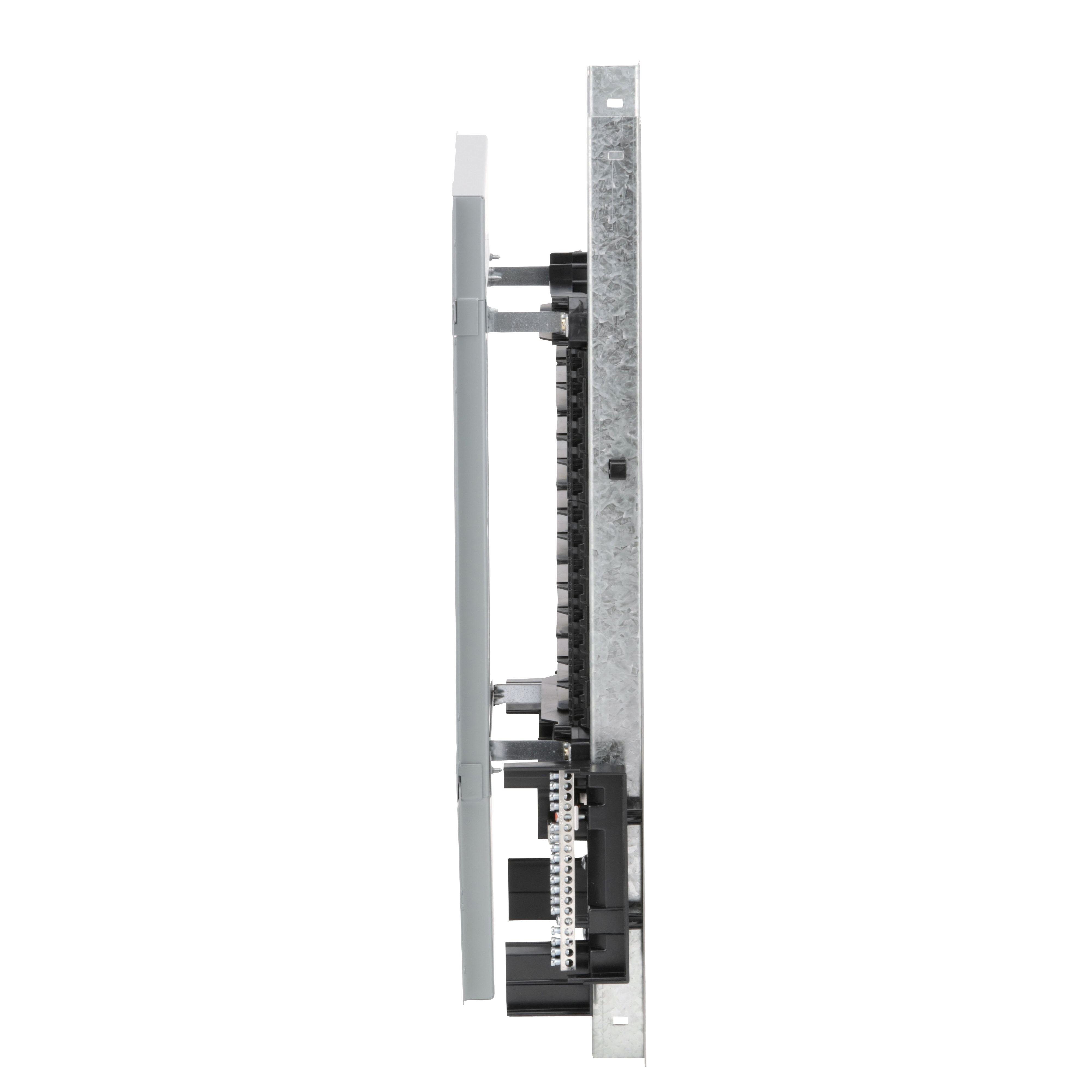

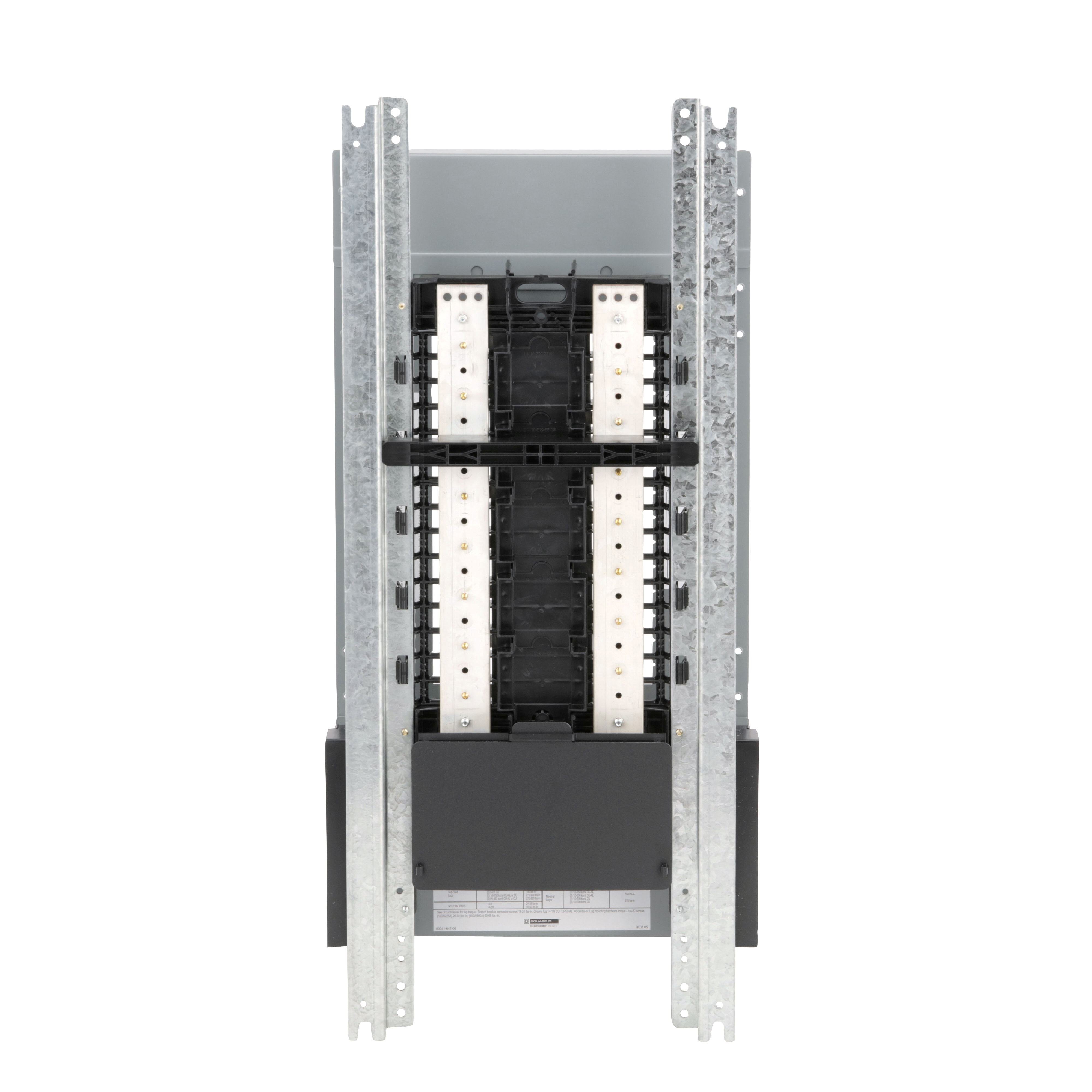

Picture of NQ30L1C - Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC Picture of NQ30L1C - Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
Picture of NQ30L1C - Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC Picture of NQ30L1C - Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
Picture of NQ30L1C - Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC Picture of NQ30L1C - Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
Picture of NQ30L1C - Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC Picture of NQ30L1C - Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
Square D

NQ30L1C - Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC

Item Code: 624516
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NQ30L1C

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for nonlinear loads. NQ Panelboards are convertible from main lug to main breaker. Interior has a maximum voltage rating of 240 VAC and 48 VDC. This NQ Panelboard interior has a main lug and is rated at 100 A single phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 3 wire system with 30 circuits and has a copper bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. This interior provides protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Interior is 27 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.

Specifications

Weight

16.35lb

Height

27mm

Width

13.77mm

Length

31.59mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/NQ30L1C/NQ30L1C.spin

AD All Features

Ready to install interior assembly

AD Alternative Part Number

9889485

AD Application

For lighting and distribution applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901507925

AD Gtin

00785901507925

AD IDEA Index ID

9889485

AD Invoice Description

INTERIOR PANELBOARD 240/48VAC/VDC 100A

AD Item Features 01

Ready to install interior assembly

AD Item Features 02

Available as main lug or main breaker

AD Item Features 03

Interiors accept QO(VH) plug in and QOB(VH) bolt on circuit breakers

AD Item Features 04

Interiors are field convertible to top or bottom feed

AD Item Features 05

Modular construction accepts field installable accessories

AD Keywords

NQ30L1C NQ Series 1-Phase Panelboard Interior, 240 V AC/48 V DC, 100 A, 30 Spaces, 100000 A SCCR ; Schneider Electric ; Square D ; NQ30L1C ; NQ30L1C ; 785901507925 ; Panelboard Interiors

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

31.5900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

16.3500

AD Package Weight UOM

LB

AD Package Width

13.7700

AD Package Width UOM

IN

AD Part Number Keywords

NQ30L1C ; 9889485 ; 785901507925 ; 78590150792 ; 00785901507925 ; 0785901507925

AD Video Links

https://www.youtube.com/embed/eviOlXT8Qmg

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Type

Spec 10 Attribute Value

1-Phase

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute Value

240 V AC/48 V DC

Spec 12 Attribute

Wiring Configuration

Spec 12 Attribute Value

3-Wire

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

HD/HG/HJ/HL

Spec 3 Attribute

Bus Material

Spec 3 Attribute Value

Silver Plated Copper

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

20 in W x 5-3/4 in D x 27 in H

Spec 5 Attribute

Housing Material

Spec 5 Attribute Value

Copper

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

Number of Spaces

Spec 7 Attribute Value

30

Spec 8 Attribute

Series

Spec 8 Attribute Value

NQ Series

Spec 9 Attribute

Short Circuit Current Rating

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

100000
