Square D

NQ42L4C - Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC

Category Main Lug Plug-In Lighting Panelboard Interiors

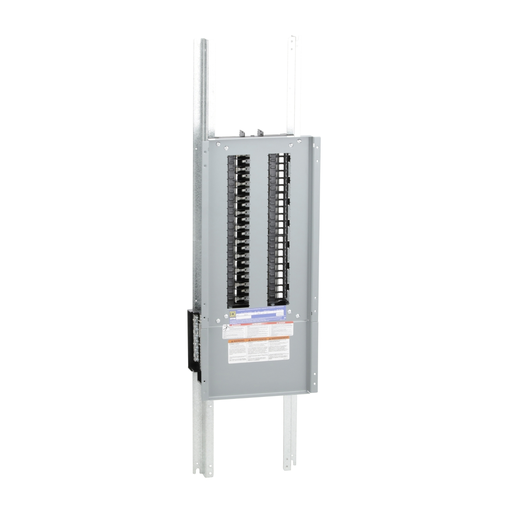

Picture of NQ42L4C - Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC Picture of NQ42L4C - Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
Picture of NQ42L4C - Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC Picture of NQ42L4C - Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
Picture of NQ42L4C - Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC Picture of NQ42L4C - Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC
Square D

NQ42L4C - Panelboard interior, NQ, main lugs, 400A, Cu bus, 42 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC

Item Code: 621231
Category Main Lug Plug-In Lighting Panelboard Interiors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NQ42L4C

Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Watch video
Call for Availability
Add to Favorites
Compare

Description

NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for nonlinear loads. NQ Panelboards are convertible from main lug to main breaker. Interior has a maximum voltage rating of 240 VAC and 48 VDC. This NQ Panelboard interior has a main lug and is rated at 400 A single phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 3 wire system with 42 circuits and has a copper bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. This interior provides protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Interior is 45 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.

Specifications

Weight

25.56lb

Height

45mm

Width

13.96mm

Length

49.65mm

Amperage Rating

400 A

Brand

Square D

Breaker Type

QHB/QOB-VH/QOB

Bus Material

Silver Plated Copper

Category

MAIN LUG PLUG-IN LIGHTING PANELBOARD INTERIORS

Dimensions

20 in W x 5-3/4 in D x 50 in H

Enclosure Type

NEMA 1

Housing Material

Copper

Mounting Type

Panel

Number of Spaces

42

Series

NQ Series

Short Circuit Current Rating

100000 A

Type

1-Phase

Voltage Rating

240 V AC/48 V DC

Wiring Configuration

3-Wire
