Square D™

NQ430L2C14 - Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC, 14in W

Category Miscellaneous

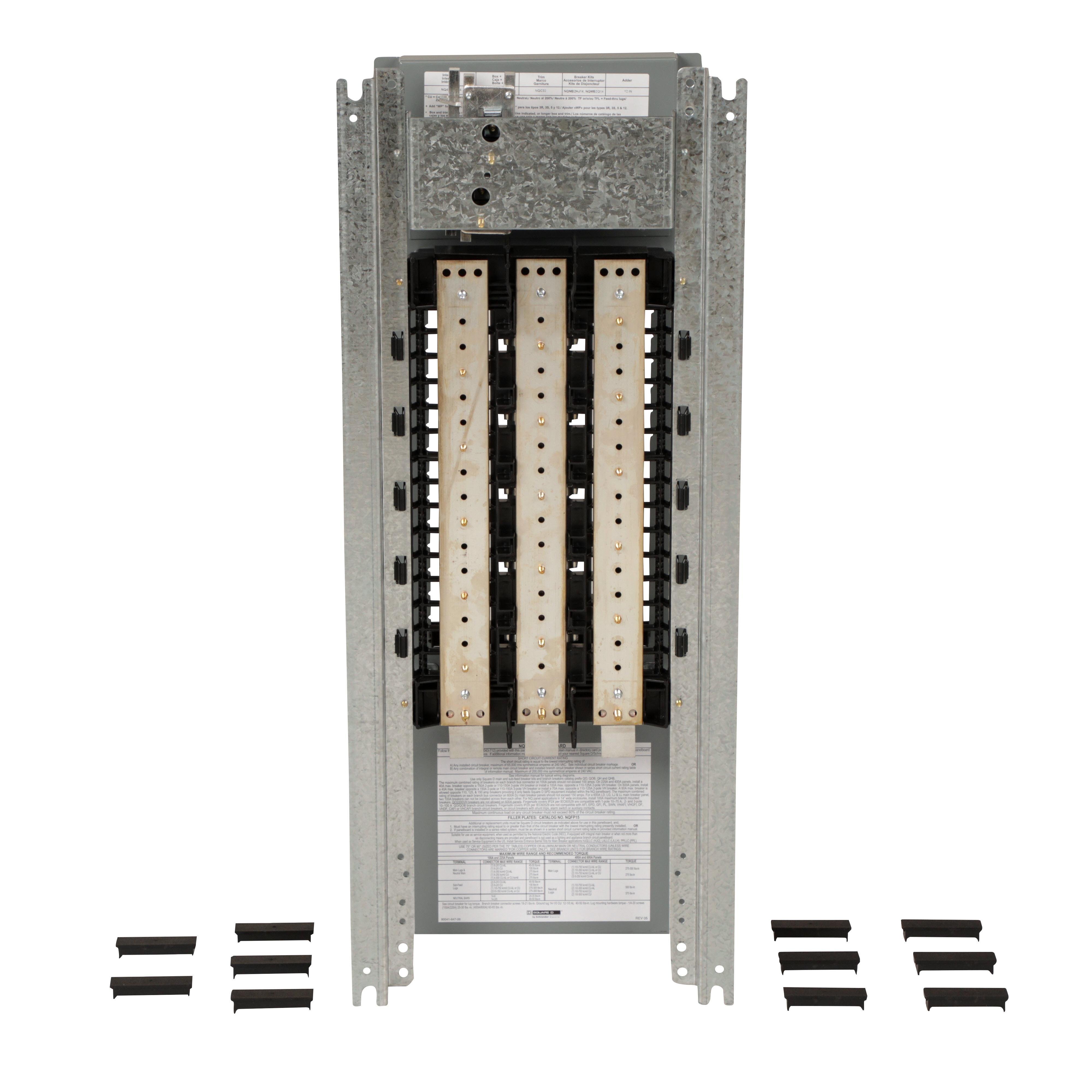

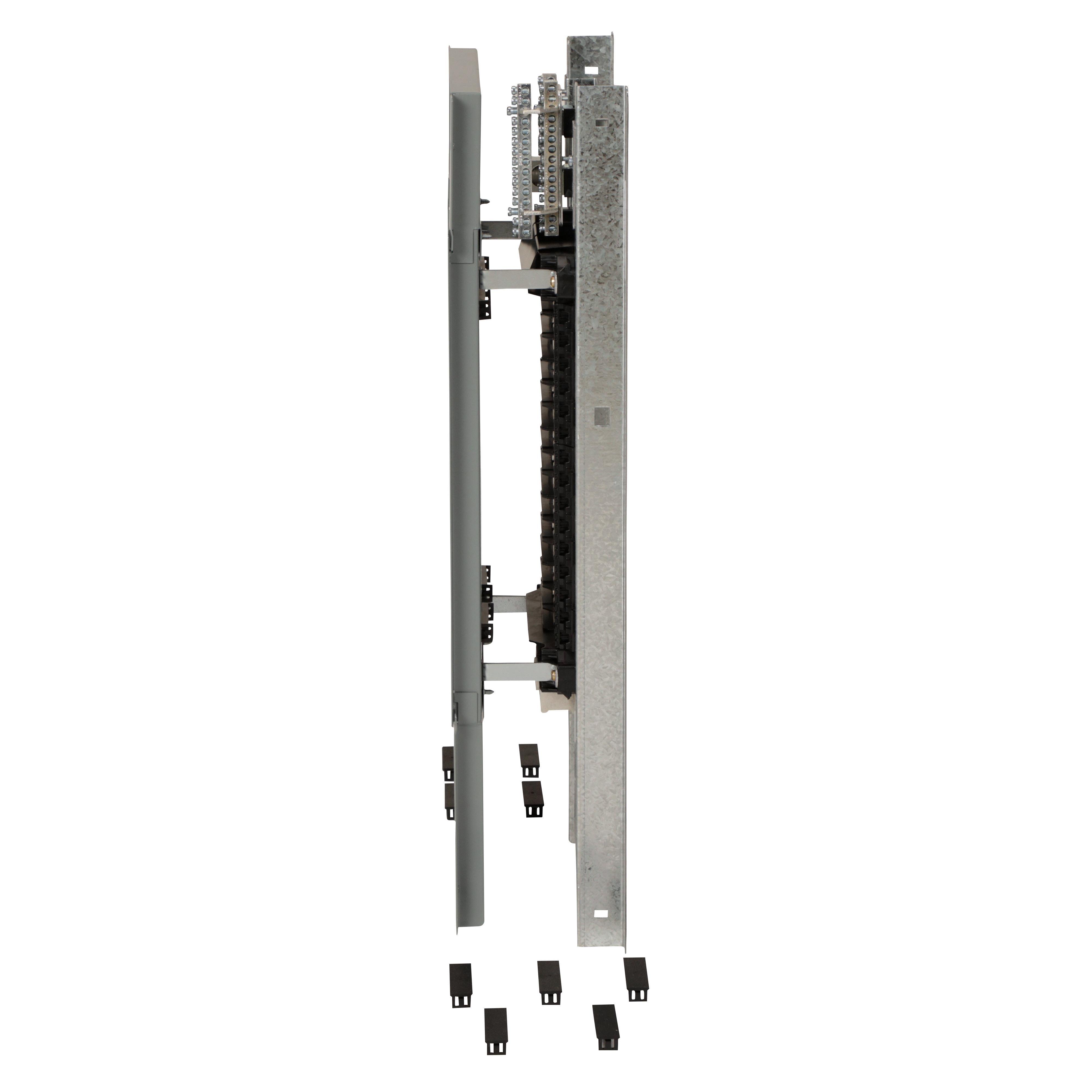

Picture of NQ430L2C14 - Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC, 14in W Picture of NQ430L2C14 - Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC, 14in W
Picture of NQ430L2C14 - Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC, 14in W Picture of NQ430L2C14 - Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC, 14in W
Picture of NQ430L2C14 - Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC, 14in W Picture of NQ430L2C14 - Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC, 14in W
Picture of NQ430L2C14 - Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC, 14in W Picture of NQ430L2C14 - Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC, 14in W
Square D™

NQ430L2C14 - Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC, 14in W

Item Code: 1040018
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NQ430L2C14

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

NQ Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NQ Panelboards are versatile panelboards that feature a wide selection of bolt-on and plug-on branch circuit breakers, integral main circuit breakers, branch mounted SPDs, and a wide variety of ready to install accessory kits. The interiors are field convertible to support top or bottom feed. This main lugs interior is rated 225A for 240VAC and 48VDC, has a plated copper bus, and 30 pole spaces for 14 inch wide panelboard. NQ Panelboards are convertible from main lugs to main circuit breaker. NQ Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NQ Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NQ panelboard interior is UL listed for applications in the USA and Canada. Interior accepts QOB, QOBVH and QHB bolt-on and QO, QOVH and QH plug-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. NQ Panelboard interiors are available with plated aluminum or copper bus. 100A branch circuit breakers may be installed on both sides of NQ Panelboard interiors.

Specifications

Weight

17.96

Width

13.49

Length

30.95

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/NQ430L2C14/NQ430L2C14.spin

AD All Features

Ready to install interior assembly

AD Alternative Part Number

10865932

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901688716

AD Gtin

00785901688716

AD IDEA Index ID

10865932

AD Invoice Description

INTERIOR PANELBOARD 240VAC 48VDC 225A

AD Item Features 01

Ready to install interior assembly

AD Item Features 02

Field convertible to top or bottom feed

AD Item Features 03

Available as main lug or main breaker

AD Item Features 04

Interiors accept QO(VH) plug in and QOB(VH) bolt on circuit breakers

AD Keywords

NQ430L2C14 3-Phase Panelboard Interior, 240 VAC, 48 VDC, 225 A, 30 Spaces ; Schneider Electric ; Square D ; NQ430L2C14 ; NQ430L2C14 ; 785901688716 ; Panelboard Interiors

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

30.9500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

17.9600

AD Package Weight UOM

LB

AD Package Width

13.4900

AD Package Width UOM

IN

AD Part Number Keywords

NQ430L2C14 ; 10865932 ; 785901688716 ; 78590168871 ; 00785901688716 ; 0785901688716

AD Video Links

https://www.youtube.com/embed/eviOlXT8Qmg

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

225

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute Value

240 V AC/48 V DC

Spec 11 Attribute

Wiring Configuration

Spec 11 Attribute Value

4-Wire

Spec 2 Attribute

Bus Material

Spec 2 Attribute Value

Tin Plated Copper

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

32 in H x 14 in W x 5-3/4 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

Housing Material

Spec 5 Attribute Value

Copper

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

Number of Spaces

Spec 7 Attribute Value

30

Spec 8 Attribute

Series

Spec 8 Attribute Value

NQ Series

Spec 9 Attribute

Type

Spec 9 Attribute Value

3-Phase
