Square D

NQ454L6C - Panelboard interior, NQ, main lugs, 600A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

Category Miscellaneous

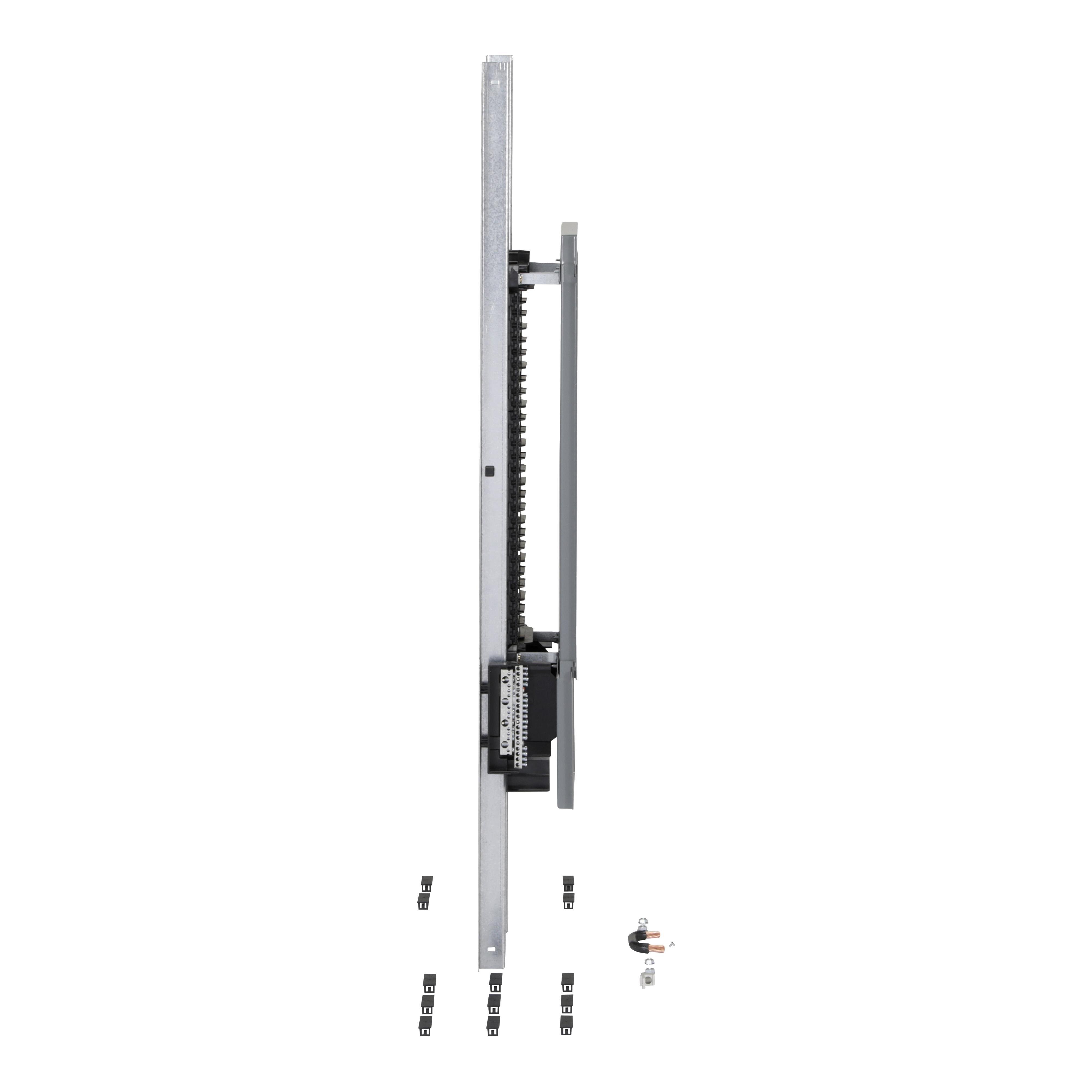

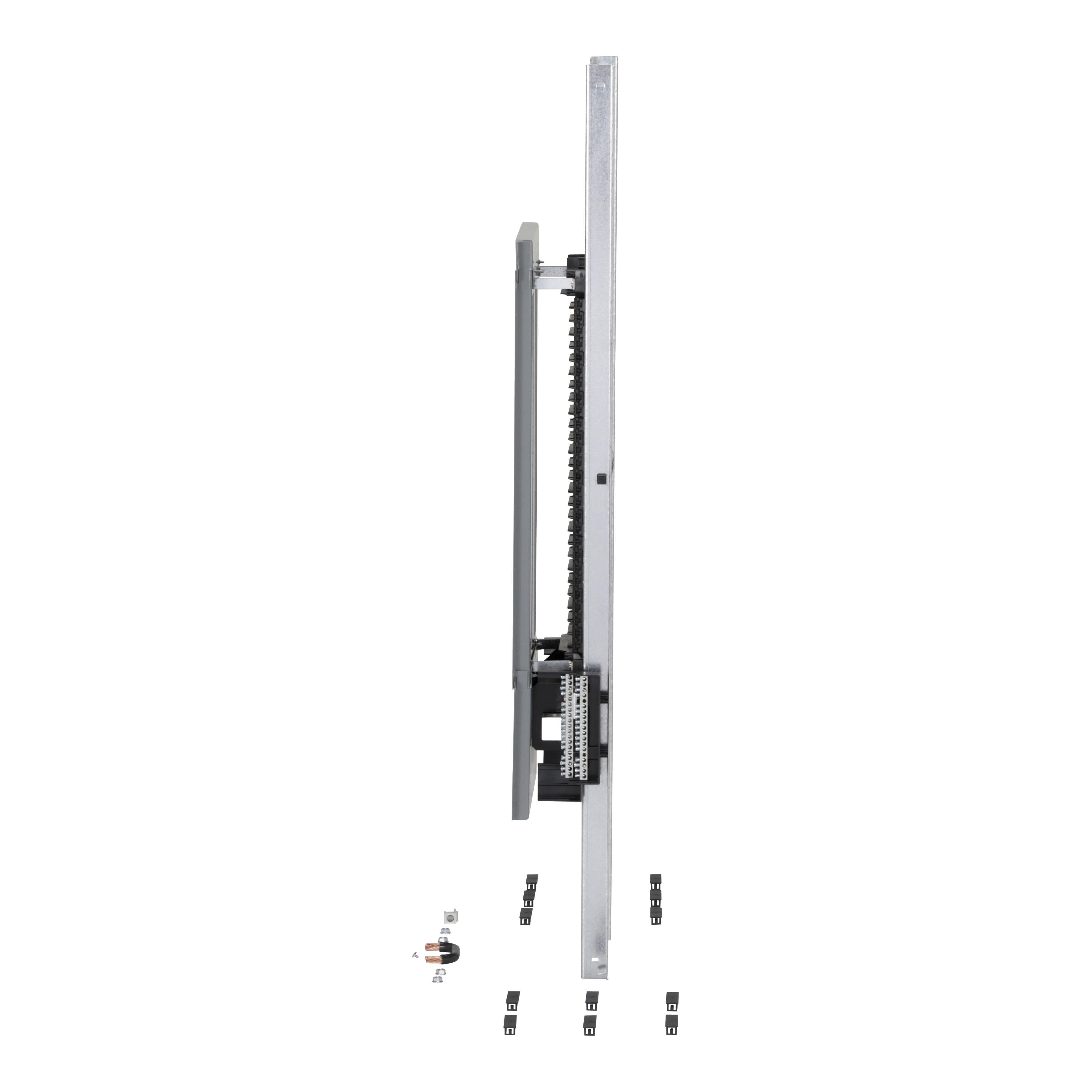

Picture of NQ454L6C - Panelboard interior, NQ, main lugs, 600A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC Picture of NQ454L6C - Panelboard interior, NQ, main lugs, 600A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Picture of NQ454L6C - Panelboard interior, NQ, main lugs, 600A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC Picture of NQ454L6C - Panelboard interior, NQ, main lugs, 600A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Picture of NQ454L6C - Panelboard interior, NQ, main lugs, 600A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC Picture of NQ454L6C - Panelboard interior, NQ, main lugs, 600A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
Square D

NQ454L6C - Panelboard interior, NQ, main lugs, 600A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

Item Code: 1123506
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NQ454L6C

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

NQ Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NQ Panelboards are versatile panelboards that feature a wide selection of bolt-on and plug-on branch circuit breakers, integral main circuit breakers, branch mounted SPDs, and a wide variety of ready to install accessory kits. The interiors are field convertible to support top or bottom feed. This main lugs interior is rated 600A for 240VAC and 48VDC, has a plated copper bus, and 54 pole spaces. NQ Panelboards are convertible from main lugs to main circuit breaker. NQ Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NQ Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NQ panelboard interior is UL listed for applications in the USA and Canada. Interior accepts QOB, QOBVH and QHB bolt-on and QO, QOVH and QH plug-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. NQ Panelboard interiors are available with plated aluminum or copper bus. 100A branch circuit breakers may be installed on both sides of NQ Panelboard interiors.

Specifications

Weight

34.1

Height

4.5

Width

14.08

Length

55.46

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/NQ454L4C/NQ454L4C.spin

AD All Features

Ready to install interior assembly

AD Alternative Part Number

14892213

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901988526

AD IDEA Index ID

14892213

AD Invoice Description

INTERIOR PANELBOARD 240 VAC/48 VDC 600A

AD Item Features 01

Ready to install interior assembly

AD Item Features 02

Interiors accept QO(VH) plug in and QOB(VH) bolt on circuit breakers

AD Item Features 03

Top- or bottom-feed interiors accept plug-on or bolt-on branch circuit breakers

AD Keywords

NQ454L6C 3-Phase Main Lug Panelboard Interior, 240 V AC/48 V DC, 600 A, 10/22/65 kA Interrupt, 54 Spaces ; Schneider Electric ; Square D ; NQ454L6C ; NQ454L6C ; 785901988526 ; Panelboard Interiors

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.5000

AD Package Height UOM

IN

AD Package Length

55.4600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2989.4400

AD Package Volume UOM

cu-in

AD Package Weight

34.1000

AD Package Weight UOM

LB

AD Package Width

14.0800

AD Package Width UOM

IN

AD Part Number Keywords

NQ454L6C ; 14892213 ; 785901988526 ; 78590198852 ; 0785901988526

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

600

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

QHB/QOB-VH/QOB

Spec 3 Attribute

Bus Material

Spec 3 Attribute Value

Copper

Spec 4 Attribute

Interrupt Rating

Spec 4 Attribute UOM

KA

Spec 4 Attribute Value

10/22/1965

Spec 5 Attribute

Number of Spaces

Spec 5 Attribute Value

54

Spec 6 Attribute

Type

Spec 6 Attribute Value

3-Phase Main Lug

Spec 7 Attribute

Voltage Rating

Spec 7 Attribute Value

240 V AC/48 V DC

Spec 8 Attribute

Wiring Configuration

Spec 8 Attribute Value

4-Wire 1/0 AWG to 750 kcmil
