Square D

NQB544 - Panelboard enclosure box, NQ, Type 1, 14in W x 44in H x 5.75in D

Category Miscellaneous

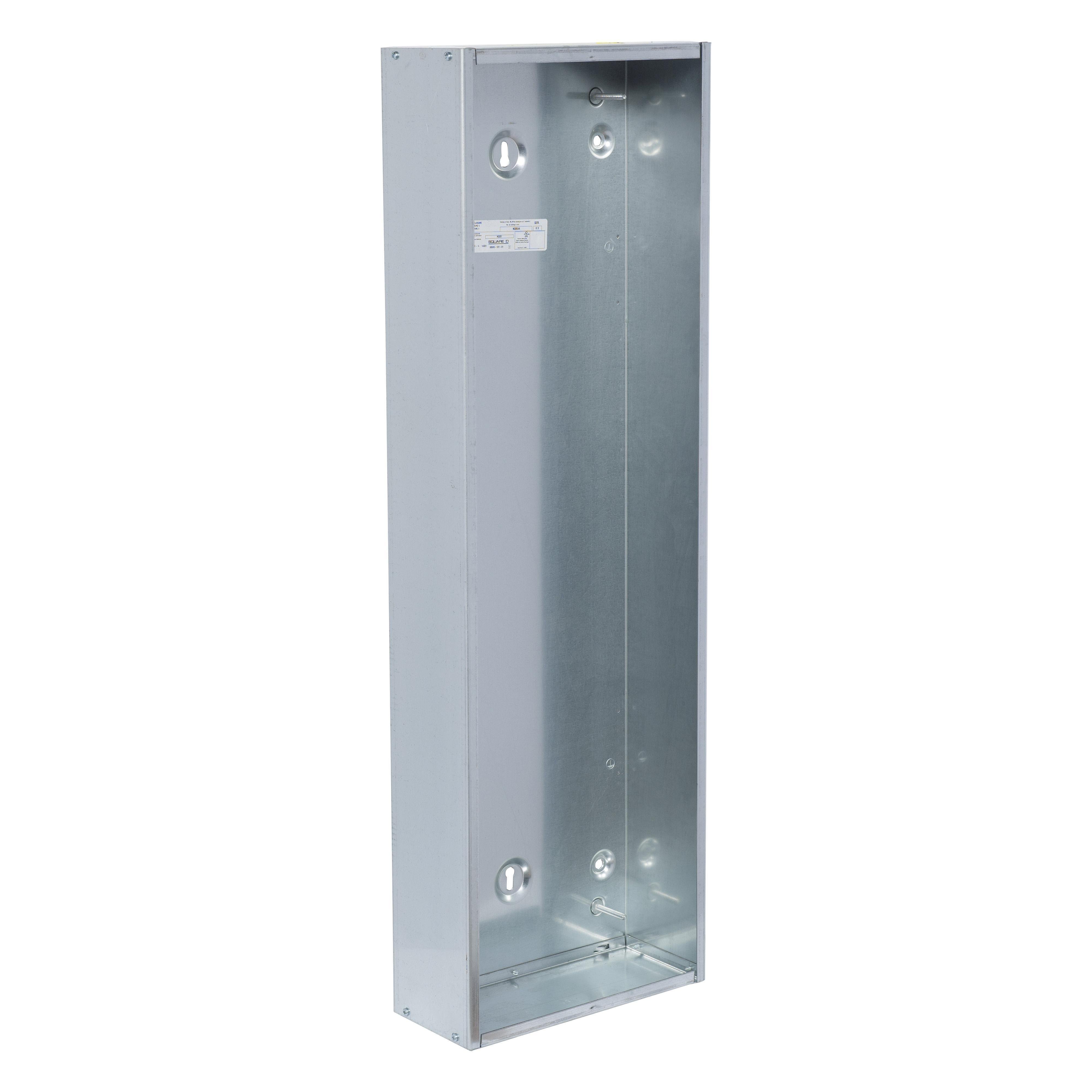

Picture of NQB544 - Panelboard enclosure box, NQ, Type 1, 14in W x 44in H x 5.75in D
Square D

NQB544 - Panelboard enclosure box, NQ, Type 1, 14in W x 44in H x 5.75in D

Item Code: 33074
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NQB544

Document
Document
Call for Availability
Add to Favorites
Compare

Description

NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure box is rated as a Type 1 with one blank end wall and one end wall with knockouts for common conduit sizes. The enclosure dimensions are 14 inch width x 44 inch height x 5.75 inch depth. NQ and NF enclosures are UL listed for use in the USA and Canada. The end walls of NF and NQ enclosures are removable to simplify field modification to support the widest range of electrical conduit connections. NC trim fronts for interiors rated up to 250A may be screwed directly to the deadfront of the NF or NQ panelboard. NC trim fronts for interiors rated 400A or greater are vented and designed to be screwed directly to the Type 1, 2 enclosure of the NF or NQ panelboard. MHxxWP enclosures provide Type 3R/5/12 protection to NF and NQ Panelboards, and are supplied with removable blank end walls. MHxxBE and MHxxD9 Type 1 enclosures are supplied with removable blank end walls at both ends. MHxx enclosures have one blank end wall and one end wall with knockouts for common conduit sizes.

Specifications

Weight

22.95

Height

6.2

Width

13.96

Length

43.6

AD All Features

Modular construction allows for easy assembly or modification

AD Alternative Part Number

8154895

AD Application

For use with JDL, JGL, JJL, JLL, QBL, QDL, QGL and QJL circuit breaker

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Instruction/Installation Manual

AD EAN

0785901027898

AD Gtin

00785901027898

AD IDEA Index ID

8154895

AD Invoice Description

ENCLOSURE PANELBOARD NEMA 1 14IN 5-3/4IN

AD Item Features 01

Modular construction allows for easy assembly or modification

AD Item Features 02

Accessories and replacement parts allow design flexibility and maximizes job productivity

AD Item Features 03

Type 1, 2, 3R/5/12 available ready to install from distributor inventory

AD Keywords

NQB544 Panelboard Enclosure, NEMA 1, 14 in W x 5-3/4 in D ; Schneider Electric ; Square D ; NQB544 ; NQB544 ; 785901027898 ; Panelboard Enclosures

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.2000

AD Package Height UOM

IN

AD Package Length

43.6000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

3846.4800

AD Package Volume UOM

cu-in

AD Package Weight

22.9500

AD Package Weight UOM

LB

AD Package Width

13.9600

AD Package Width UOM

IN

AD Part Number Keywords

NQB544 ; 8154895 ; 785901027898 ; 78590102789 ; 00785901027898 ; 0785901027898

Brand

Square D

Spec 1 Attribute

Color

Spec 1 Attribute Value

Gray

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

5/3/2004

Spec 3 Attribute

NEMA Rating

Spec 3 Attribute Value

NEMA 1

Spec 4 Attribute

Width

Spec 4 Attribute UOM

IN

Spec 4 Attribute Value

14
