Schneider Electric

NSYTRR24 - Terminal block, Linergy TR, spring type, feed through, 4 points, 2.5mm², grey, set of 50

Category Terminal Blocks & Accessories

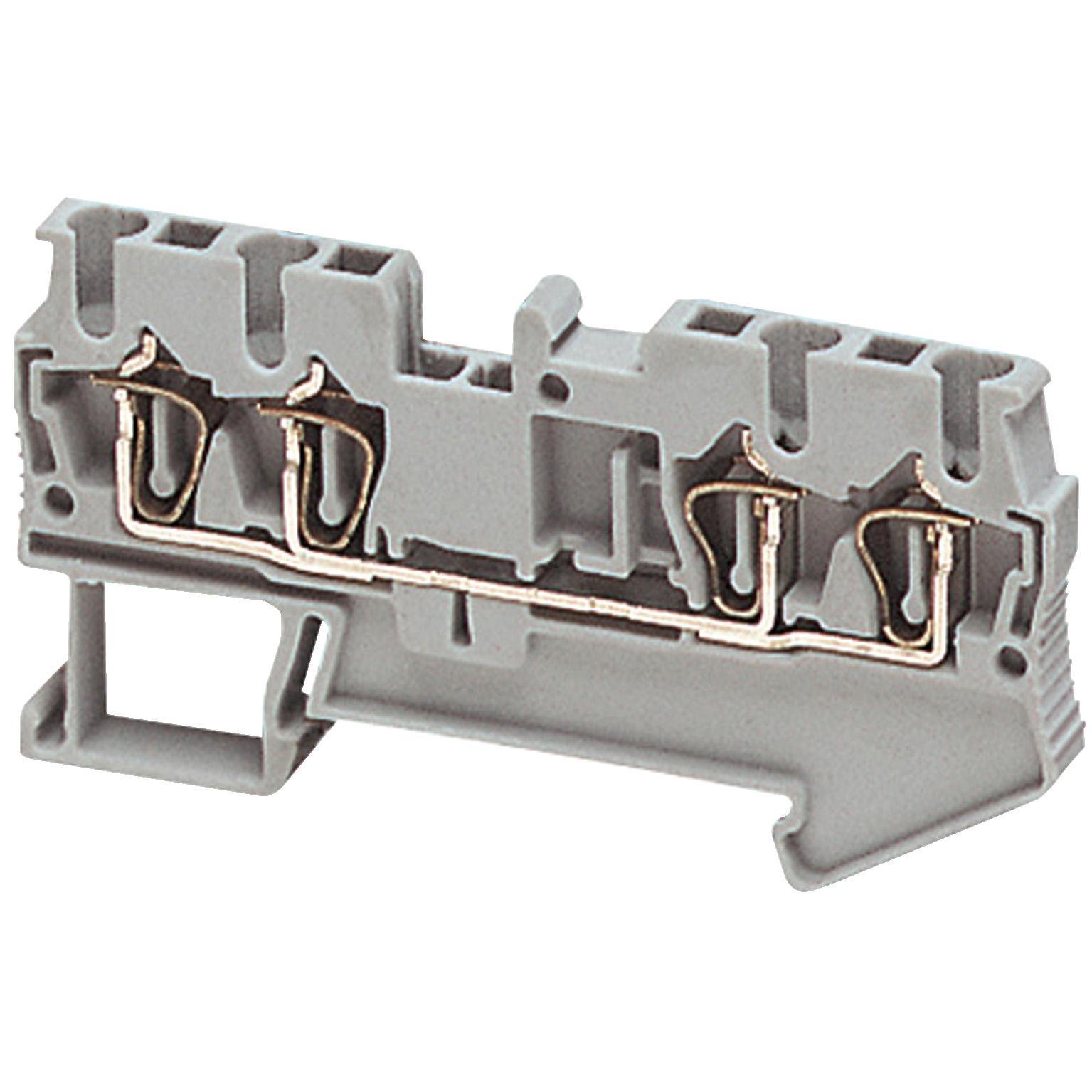

Picture of NSYTRR24 - Terminal block, Linergy TR, spring type, feed through, 4 points, 2.5mm², grey, set of 50
Schneider Electric

NSYTRR24 - Terminal block, Linergy TR, spring type, feed through, 4 points, 2.5mm², grey, set of 50

Item Code: 1002872
Category Terminal Blocks & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NSYTRR24

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 192A conforming to EN/IEC 60947-7-1 and 192A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Specifications

Weight

0.02lb

Height

36.5mm

Width

1.36mm

Length

2.85mm

AD Application

For Prisma G/Prisma P/Prisma PH panel building system, Prisma pack wall-mounting enclosure, spacial enclosure, Kaedra weatherproof enclosure, Pragma modular enclosure and TeSys™ motor controls

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Includes

(4) Test Point

AD Invoice Description

BLOCK TERM FEED-THRU 800V 28A 1 CLIP GRA

AD Item Features 01

It belongs to linergy passthrough terminal block with 2.5 mm sq nominal cross section

AD Item Features 02

Mounting by clip-on and sideways connection by single-level 1x1 screw terminals

AD Item Features 03

Facilitates storage by avoiding mixing cable ends of different sizes

AD Item Features 04

Identifies the cross section of cable ends it contains

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.8500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0200

AD Package Weight UOM

LB

AD Package Width

1.3600

AD Package Width UOM

IN

Brand

Schneider Electric

Category

Terminal Blocks & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

28

Spec 10 Attribute

Terminal Size

Spec 10 Attribute UOM

sq-mm

Spec 10 Attribute Value

2.5

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Pass Through

Spec 12 Attribute

Type

Spec 12 Attribute Value

1-Level 4-Terminal

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V

Spec 13 Attribute Value

800

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

28 to 12 AWG Solid/Stranded

Spec 15 Attribute

Wire Strip Length

Spec 15 Attribute UOM

IN

Spec 15 Attribute Value

0.39

Spec 2 Attribute

Color

Spec 2 Attribute Value

Gray

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Spring Terminal

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

2.83 in L x 0.2 in W x 1.44 in H

Spec 5 Attribute

Material

Spec 5 Attribute Value

Polyamide 6.6

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

DIN Rail

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

Series

Spec 8 Attribute Value

NSYTRR

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

-40 To 266
