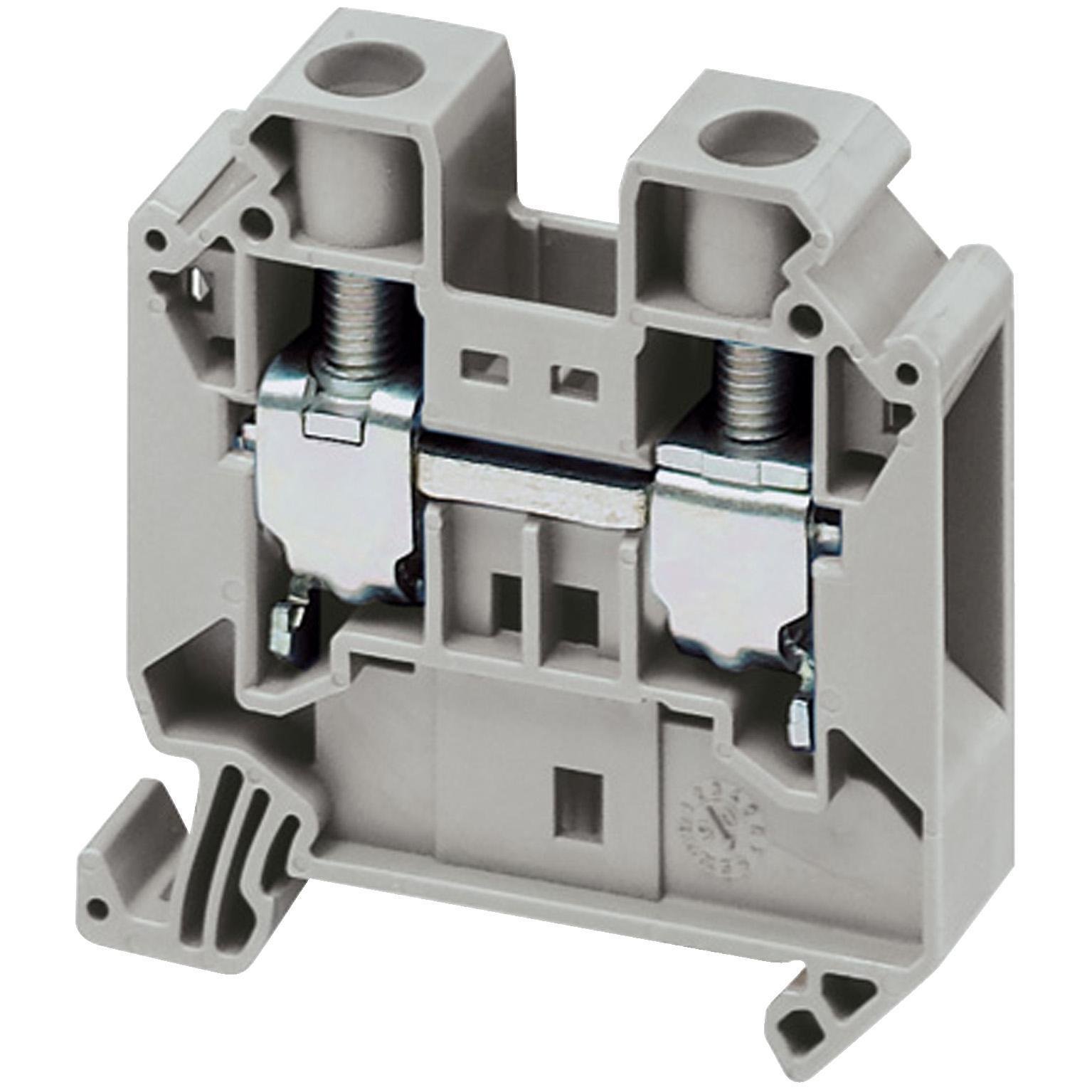

NSYTRV162 - Terminal block, Linergy TR, grey, 16mm², passthrough, 2 points, set of 10
Description
Specifications
0.06
2.15
2.15
It belongs to linergy passthrough terminal block with 16 mm sq nominal cross section
8063082
Distribution, Construction, Bottling, Material Handling, Harsh Environment, Automotive, Conveyance Line, Complex and Special Machine, Industrial Market and Assembly Line Application
Schneider Electric
USA
TR
RoHS
Specification Sheet
3606480532122
03606480532122
8063082
BLOCK TERM 600VAC 85A 16 TO 4AWG 1 SCR
It belongs to linergy passthrough terminal block with 16 mm sq nominal cross section
Facilitates storage by avoiding mixing cable ends of different sizes
Identifies the cross section of cable ends it contains
Linergy NSYTRV162 TRV 1-Level 2-Point Feed Through Terminal Block, 600 V AC, 85 A, 16 to 4 AWG Wire, 1 Poles, Clip-Fit Mount ; Schneider Electric ; Schneider Electric ; NSYTRV162 ; 785901860440 ; Feed-Thru Blocks, Standard
Schneider Electric
IN
2.1500
IN
1
0.0600
LB
2.1500
IN
NSYTRV162 ; 8063082 ; 785901860440 ; 78590186044 ; 03606480532122 ; 3606480532122
Square D
Amperage Rating
A
85
Terminal Size
sq-mm
16
Terminal Type
Screw
Torque Rating
N-m
2.5 to 3
Type
1-Level 2-Point Feed Through
Voltage Rating
V AC
600
Wire Size
AWG
16 to 4
Wire Strip Length
IN
0.55
Color
Gray
Connection Type
Screw
Dimensions
2.19 in L x 0.48 in W x 2.17 in H
Material
Polyamide 6.6
Mounting Type
Clip-Fit
Number Of Poles
1
Series
TRV
Temperature Rating
deg F
-40 To 266
