Schneider Electric

NSYTRV42 - Linergy terminal blocks, screw terminal, feed through, 2 points, 4 mm wide, grey

Category Terminal Blocks & Accessories

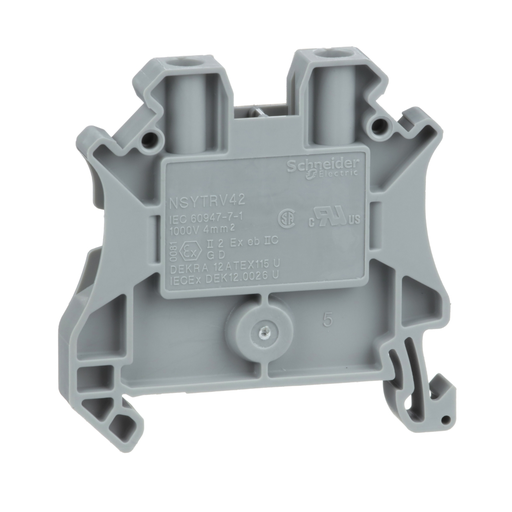

Picture of NSYTRV42 - Linergy terminal blocks, screw terminal, feed through, 2 points, 4 mm wide, grey
Schneider Electric

NSYTRV42 - Linergy terminal blocks, screw terminal, feed through, 2 points, 4 mm wide, grey

Item Code: 875665
Category Terminal Blocks & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NSYTRV42

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Linergy terminal blocks offer three terminal block technologies. The traditional screw connection, the spring clamp connection, and the new pushin connection. The industrial control, machine tool, packaging, material hadling, HVAC, textile, hoisting, water, marine, critiical power, elevator industries and many more use these terminal blocks for their connection requirements. These terminal blocks are designed for fast and easy installation. A wide variety of accessories are availble for these blocks to make your total installation easier. Linergy terminal blocks meet international standards, including UL Component Recognition and CSA certification. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Specifications

Weight

0.02lb

Height

47.5mm

Width

1.79mm

Length

1.87mm

AD Application

Linergy and Spacial Enclosures Application

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

BLOCK TERM 600/690/1000VAC 32A CLIP GRA

AD Item Features 01

It belongs to linergy passthrough terminal block with 4 mm sq nominal cross section

AD Item Features 02

Mounting by clip-on and sideways connection by single-level 1x1 screw terminals

AD Item Features 03

Facilitates storage by avoiding mixing cable ends of different sizes

AD Item Features 04

Identifies the cross section of cable ends it contains

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.8700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0200

AD Package Weight UOM

LB

AD Package Width

1.7900

AD Package Width UOM

IN

Brand

Square D

Category

Terminal Blocks & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

32

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Screw

Spec 11 Attribute

Torque Rating

Spec 11 Attribute UOM

N-m

Spec 11 Attribute Value

0.6 to 0.8

Spec 12 Attribute

Type

Spec 12 Attribute Value

Feed Through

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

600/690/1000

Spec 14 Attribute

Wire Strip Length

Spec 14 Attribute UOM

IN

Spec 14 Attribute Value

0.35

Spec 2 Attribute

Color

Spec 2 Attribute Value

Gray

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Terminal Screw

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

1.8 in L x 0.24 in W x 1.87 in H

Spec 5 Attribute

Material

Spec 5 Attribute Value

Polyamide 6.6

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

DIN Rail

Spec 7 Attribute

Series

Spec 7 Attribute Value

TRV

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg C

Spec 8 Attribute Value

-40 To 130

Spec 9 Attribute

Terminal Size

Spec 9 Attribute UOM

sq-mm

Spec 9 Attribute Value

4
