NSYTRV62 - Terminal block, Linergy TR, grey, 70mm², passthrough, 2 points, set of 10

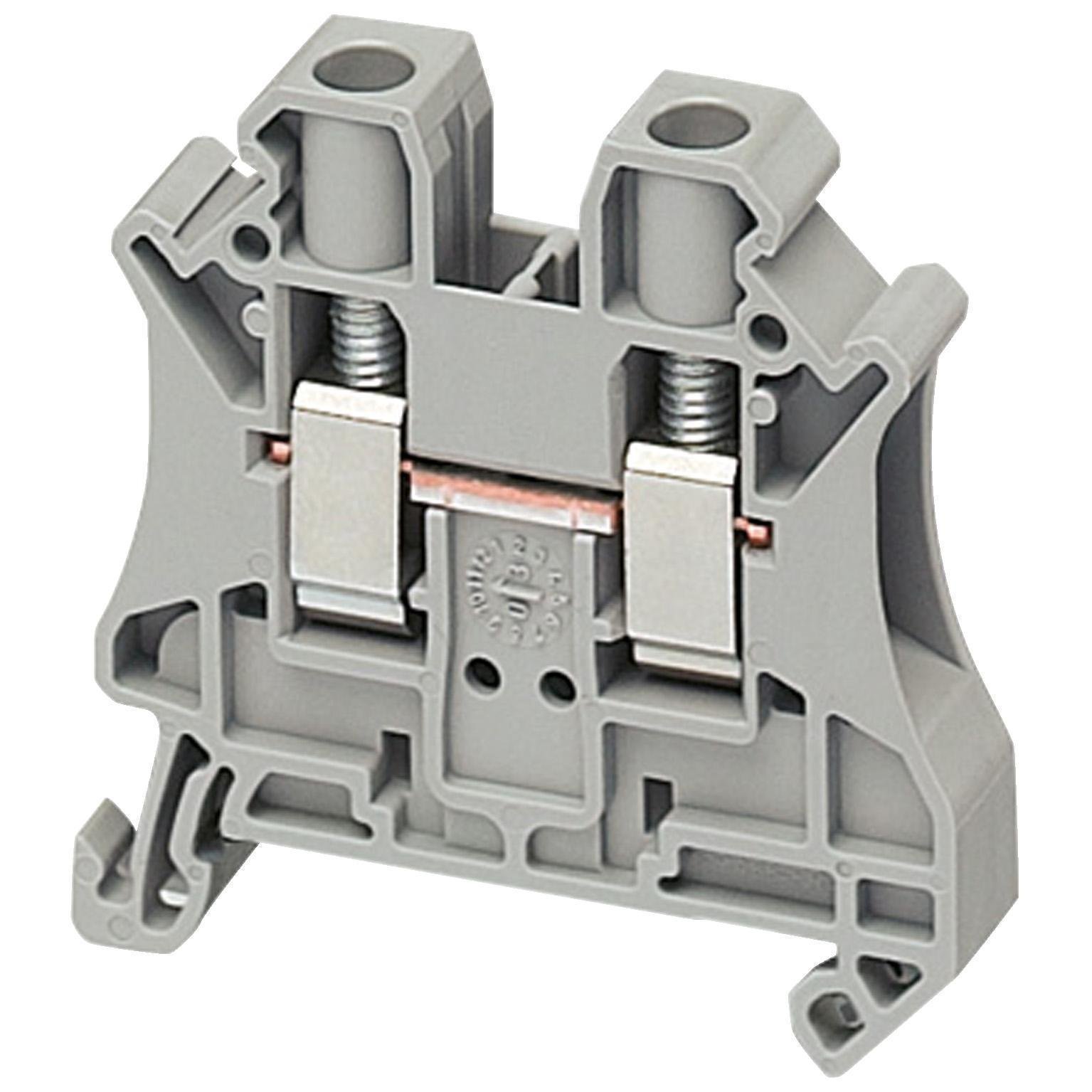

Picture of NSYTRV62 - Terminal block, Linergy TR, grey, 70mm², passthrough, 2 points, set of 10

NSYTRV62 - Terminal block, Linergy TR, grey, 70mm², passthrough, 2 points, set of 10

Item Code: 910299
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NSYTRV62
Call for Availability
Compare

Description

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 6 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX E

Specifications

Weight

0.03

Width

1.83

Length

1.87

Amperage Rating

41 A

Brand

Square D

Category

Terminal Blocks & Accessories

Color

Gray

Connection Type

Terminal Screw

Dimensions

1.8 in L x 0.32 in W x 1.87 in H

Material

Polyamide 6.6

Mounting Type

DIN Rail

Series

TRV

Temperature Rating

-40 to 130 deg c

Terminal Size

6 sq-mm

Terminal Type

Screw

Torque Rating

1.5 to 1.8 N-m

Type

Feed Through

Voltage Rating

600/690/1000 V AC

Wire Strip Length

0.39 in

NSYTRV62 - Terminal block, Linergy TR, grey, 70mm², passthrough, 2 points, set of 10

Picture of NSYTRV62 - Terminal block, Linergy TR, grey, 70mm², passthrough, 2 points, set of 10

NSYTRV62 - Terminal block, Linergy TR, grey, 70mm², passthrough, 2 points, set of 10

Item Code: 910299
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NSYTRV62
Call for Availability
Compare

Description

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 6 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX E

Specifications

Weight

0.03

Width

1.83

Length

1.87

Amperage Rating

41 A

Brand

Square D

Category

Terminal Blocks & Accessories

Color

Gray

Connection Type

Terminal Screw

Dimensions

1.8 in L x 0.32 in W x 1.87 in H

Material

Polyamide 6.6

Mounting Type

DIN Rail

Series

TRV

Temperature Rating

-40 to 130 deg c

Terminal Size

6 sq-mm

Terminal Type

Screw

Torque Rating

1.5 to 1.8 N-m

Type

Feed Through

Voltage Rating

600/690/1000 V AC

Wire Strip Length

0.39 in
