Square D

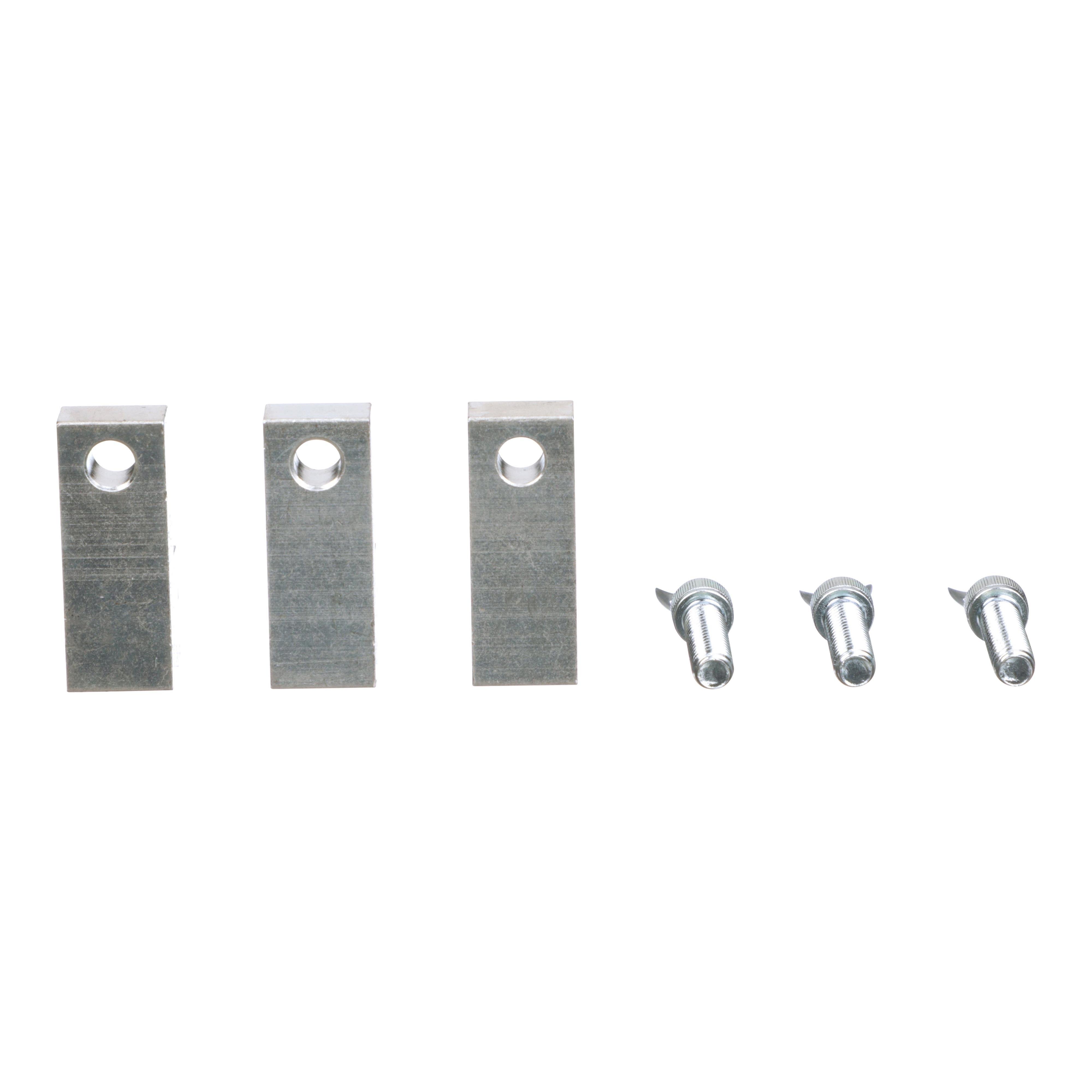

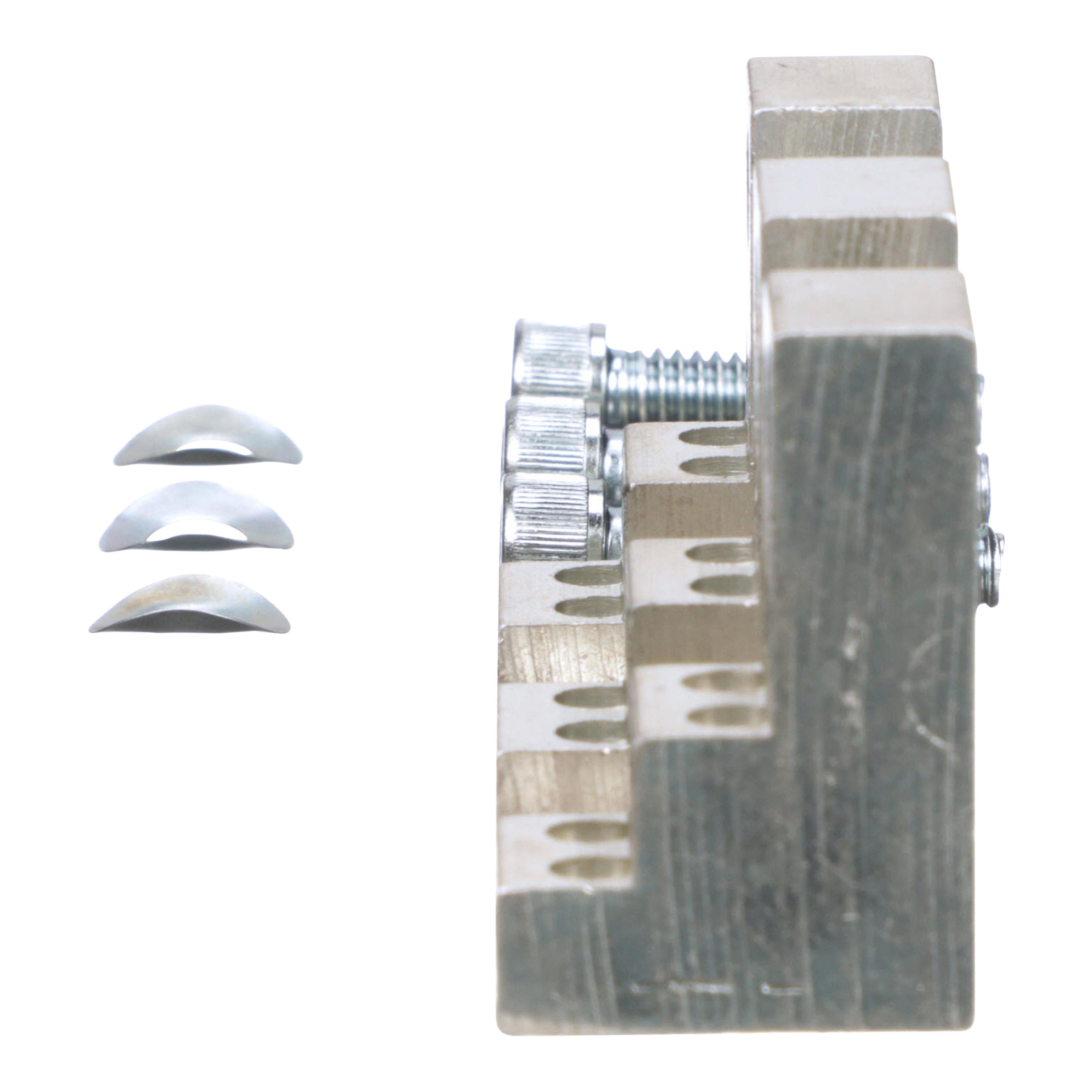

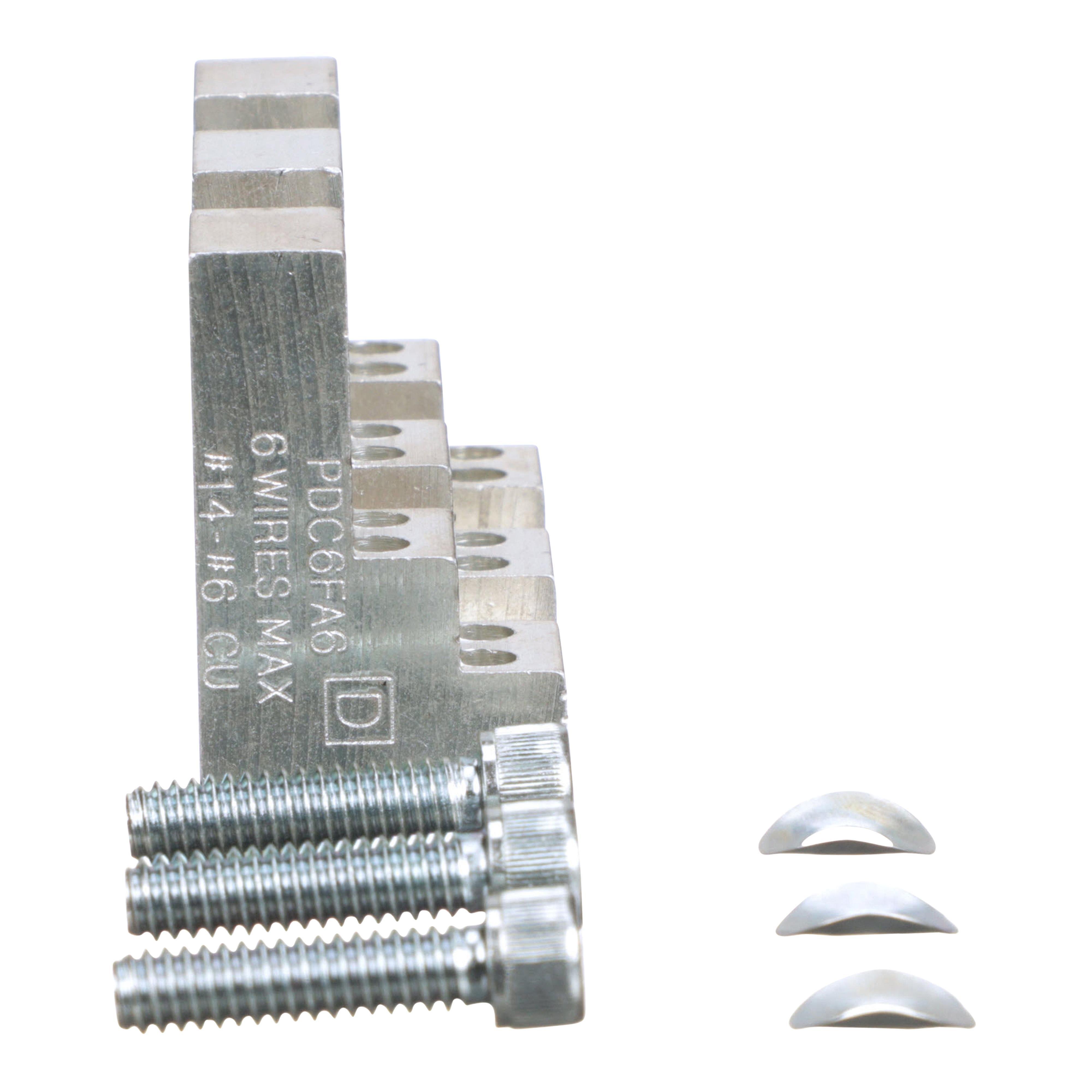

PDC6FA6 - Circuit breaker accessory, FA/FH/FC, connector, power distribution, 15A to 100A, qty 3

Category Miscellaneous
Picture of PDC6FA6 - Circuit breaker accessory, FA/FH/FC, connector, power distribution, 15A to 100A, qty 3 Picture of PDC6FA6 - Circuit breaker accessory, FA/FH/FC, connector, power distribution, 15A to 100A, qty 3
Picture of PDC6FA6 - Circuit breaker accessory, FA/FH/FC, connector, power distribution, 15A to 100A, qty 3 Picture of PDC6FA6 - Circuit breaker accessory, FA/FH/FC, connector, power distribution, 15A to 100A, qty 3
Picture of PDC6FA6 - Circuit breaker accessory, FA/FH/FC, connector, power distribution, 15A to 100A, qty 3 Picture of PDC6FA6 - Circuit breaker accessory, FA/FH/FC, connector, power distribution, 15A to 100A, qty 3
Picture of PDC6FA6 - Circuit breaker accessory, FA/FH/FC, connector, power distribution, 15A to 100A, qty 3 Picture of PDC6FA6 - Circuit breaker accessory, FA/FH/FC, connector, power distribution, 15A to 100A, qty 3
Square D

PDC6FA6 - Circuit breaker accessory, FA/FH/FC, connector, power distribution, 15A to 100A, qty 3

Item Code: 587155
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref PDC6FA6

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Thermal-magnetic molded case circuit breakers are the most common overcurrent protection devices. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. Thermal-magnetic circuit breakers use bimetals and electromagnetic assemblies to provide overcurrent protection. Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads. For higher level (short circuit) overcurrents, instantaneous trip characteristics allow molded case circuit breakers to interrupt with no intentional delay. This power distribution connector for FAL/FHL/FCL breakers have a rated currrent of 15-100A. This product complys with CSA & UL standards.

Specifications

Weight

0.23

Height

5

Width

0.69

Length

5.94

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/PDC6FA6/PDC6FA6.spin

AD Alternative Part Number

8056646

AD Application

For multiple load connections on one circuit breaker, heating, cooling equipment and industrial applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901848165

AD Gtin

00785901848165

AD IDEA Index ID

8056646

AD Invoice Description

KIT CONNECTOR DISTRIBUTION PWR 3-PC FHL

AD Item Features 01

Flexible and simple offer, with proven performance

AD Item Features 02

Available in 2-3-4 pole design from 240-3000A at up to 600 Vac

AD Item Features 03

A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility

AD Item Features 04

Easy to install, extremely versatile, a wide variety of terminal options

AD Item Features 05

Available in Unit mount (lug-lug, rear, bus bar), I-line or Drawout constructions

AD Keywords

PowerPact PDC6FA6 3-Piece Power Distribution Connector Kit, For Use With 100 A FAL, FHL, FCL Frame Circuit Breaker, 14 to 6 AWG Wire, Aluminum ; Schneider Electric ; Square D ; PDC6FA6 ; PDC6FA6 ; 785901848165 ; Power Distribution Block Accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.0000

AD Package Height UOM

IN

AD Package Length

5.9400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

21.0000

AD Package Volume UOM

cu-in

AD Package Weight

0.2300

AD Package Weight UOM

LB

AD Package Width

0.6900

AD Package Width UOM

IN

AD Part Number Keywords

PDC6FA6 ; 8056646 ; 785901848165 ; 78590184816 ; 00785901848165 ; 0785901848165

AD Video Links

https://www.youtube.com/embed/eoDTK_hod_s

Brand

Square D

Spec 1 Attribute

Finish

Spec 1 Attribute Value

TiN Coated

Spec 2 Attribute

Material

Spec 2 Attribute Value

Aluminum

Spec 3 Attribute

Specifications

Spec 3 Attribute Value

14 to 6 AWG Wire

Spec 4 Attribute

Suitable For Use With

Spec 4 Attribute Value

100 A FAL, FHL, FCL Frame Circuit Breaker

Spec 5 Attribute

Type

Spec 5 Attribute Value

3-Piece
