Square D

PDC6HD6 - Circuit breaker accessory, PowerPacT H, connector, power distribution, 15A to 150A, qty 3

Category Circuit Breaker Accessories

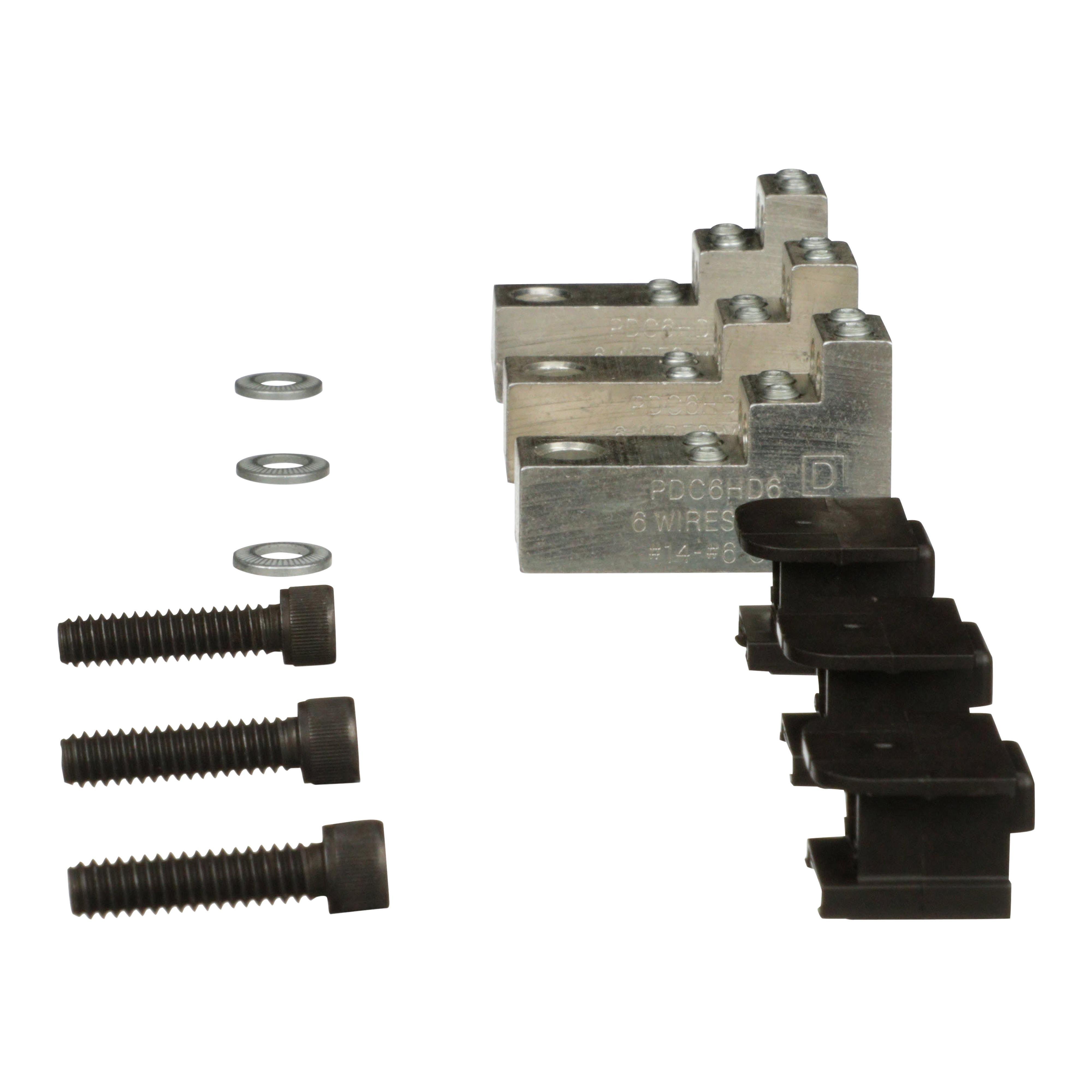

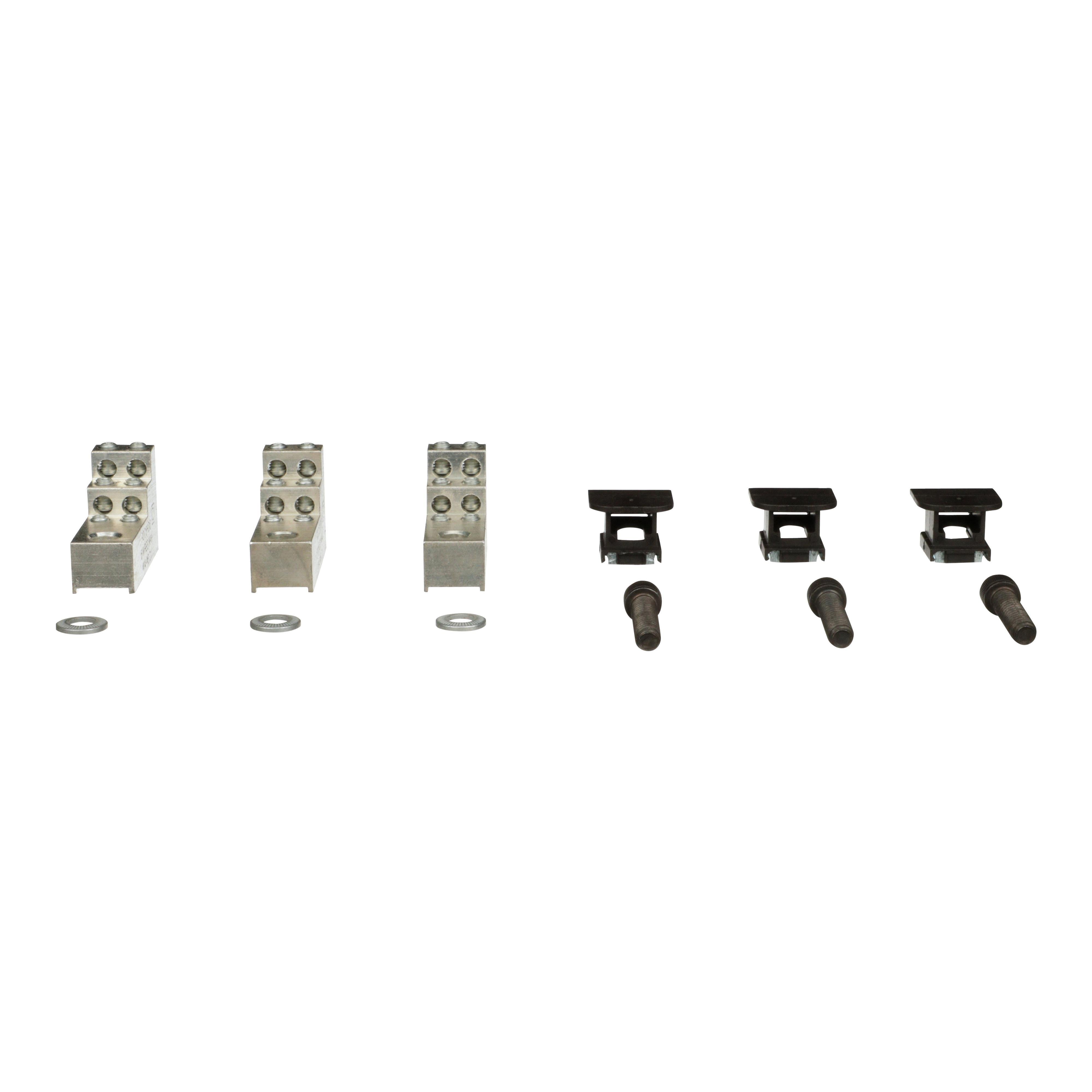

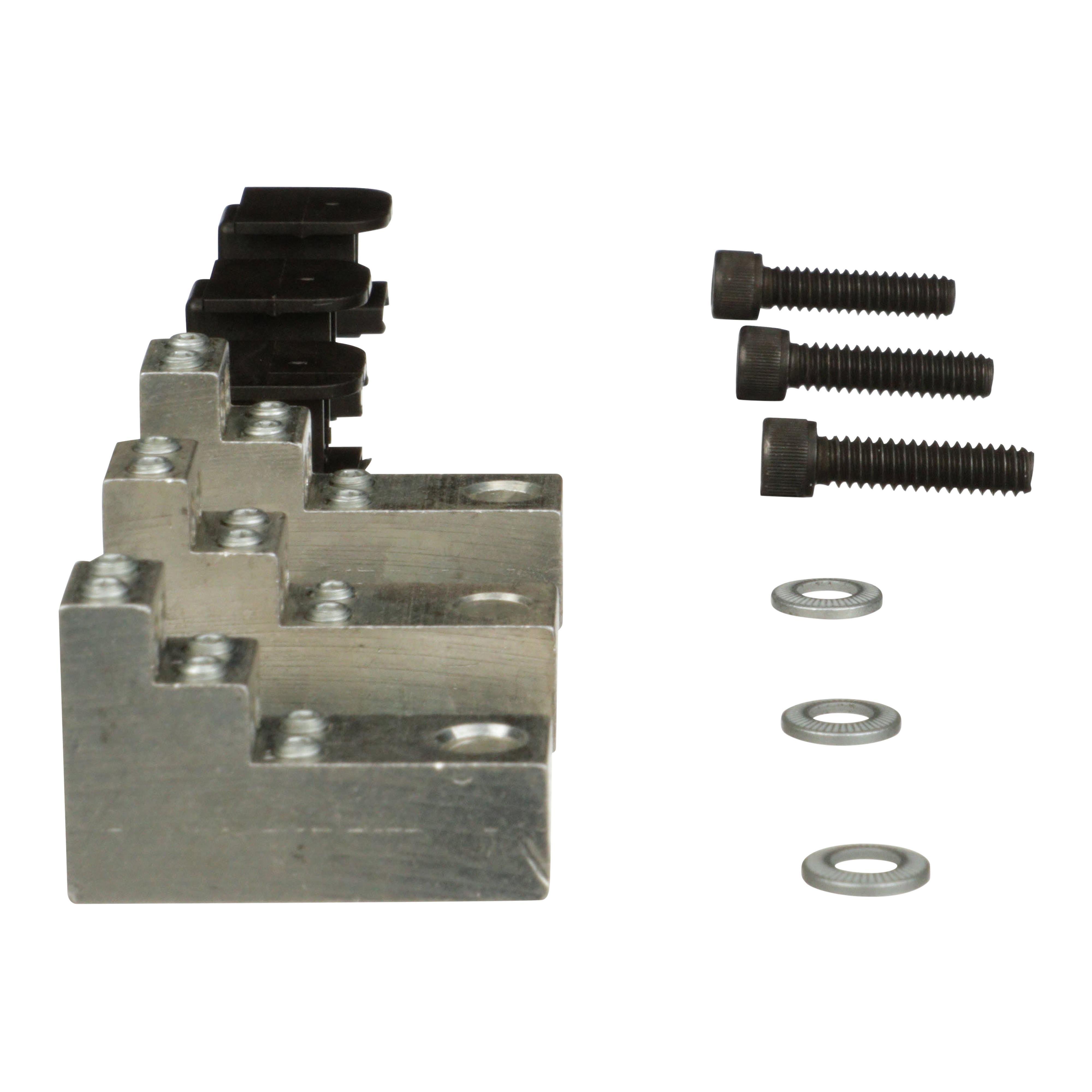

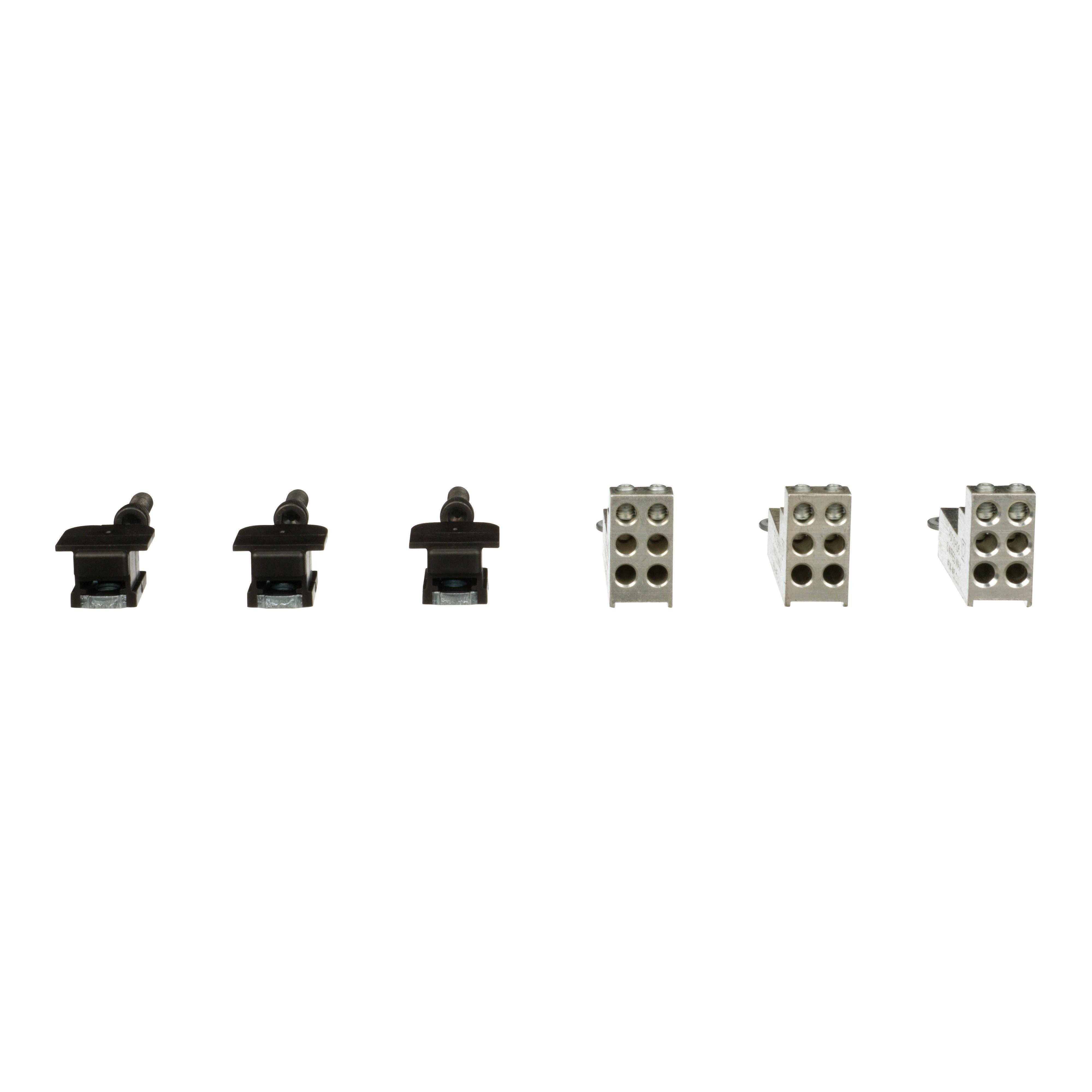

Picture of PDC6HD6 - Circuit breaker accessory, PowerPacT H, connector, power distribution, 15A to 150A, qty 3 Picture of PDC6HD6 - Circuit breaker accessory, PowerPacT H, connector, power distribution, 15A to 150A, qty 3
Picture of PDC6HD6 - Circuit breaker accessory, PowerPacT H, connector, power distribution, 15A to 150A, qty 3 Picture of PDC6HD6 - Circuit breaker accessory, PowerPacT H, connector, power distribution, 15A to 150A, qty 3
Picture of PDC6HD6 - Circuit breaker accessory, PowerPacT H, connector, power distribution, 15A to 150A, qty 3 Picture of PDC6HD6 - Circuit breaker accessory, PowerPacT H, connector, power distribution, 15A to 150A, qty 3
Picture of PDC6HD6 - Circuit breaker accessory, PowerPacT H, connector, power distribution, 15A to 150A, qty 3 Picture of PDC6HD6 - Circuit breaker accessory, PowerPacT H, connector, power distribution, 15A to 150A, qty 3
Picture of PDC6HD6 - Circuit breaker accessory, PowerPacT H, connector, power distribution, 15A to 150A, qty 3 Picture of PDC6HD6 - Circuit breaker accessory, PowerPacT H, connector, power distribution, 15A to 150A, qty 3
Square D

PDC6HD6 - Circuit breaker accessory, PowerPacT H, connector, power distribution, 15A to 150A, qty 3

Item Code: 889011
Category Circuit Breaker Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref PDC6HD6

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT J-Frame accessory circuits exit the circuit breaker using one to three secondary disconnecting blocks (nine wires each). Circuit breaker connection wires for the options installed with trip unit exit through the automatic secondary disconnecting blocks. These are made up of A moving part connected to the circuit breaker through a support (one support per circuit breaker), A fixed part mounted on the plug-in base, equipped with connectors for wire up to 14 AWG (2.5 mm2). The PowerPacT Advantage. Proven Performance, Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications. Smart, Integrated metering options provide a cost-effective solution to reduce energy consumption, optimize energy costs, and improve energy availability for your facilities. Flexible, Full range of thermal-magnetic and electronic trip molded case circuit breakers from 15 A to 3000 A, delivering the ratings, configurations, and operators for your unique applications. Simple, Common catalog numbers, standardized ratings, and a full range of field-installable accessories make product selection, installation and maintenance easier than ever. Common Design Features, Mounting holes, door trim, and handle accessories Power Distribution Connectors The power distribution connectors (PDC) can be used for multiple load wire connections on one circuit breaker. Use in place of standard distribution blocks to save space and time. Field installable kit includes tin-plated aluminum lug, connectors, and required mounting hardware. For use on load end of circuit breaker only. For use in UL 508 Industrial Control applications. For use in UL 1995/CSA C22.2 No. 236 heating and cooling equipment.

Specifications

Weight

0.33

Height

0.6

Width

2.97

Length

4.26

AD All Features

Commercially package and ready to be sold

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

FR

AD Includes

Tin-Plated Aluminum Lug, Connectors and Mounting Hardware

AD Invoice Description

KIT PWR DISTRIBUTION CONNECTOR 3-PC HG

AD Item Features 01

Commercially package and ready to be sold

AD Manufacturer (Description)

Schneider Electric

AD Package Height

0.6000

AD Package Height UOM

IN

AD Package Length

4.2600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

7.7400

AD Package Volume UOM

cu-in

AD Package Weight

0.3300

AD Package Weight UOM

LB

AD Package Width

2.9700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/4wUOBk4oUmk

Brand

Square D

Category

Circuit Breaker Accessories

Spec 1 Attribute

Finish

Spec 1 Attribute Value

TiN Coated

Spec 2 Attribute

Material

Spec 2 Attribute Value

Aluminum

Spec 3 Attribute

Specifications

Spec 3 Attribute Value

14 to 2 AWG Wire

Spec 4 Attribute

Suitable For Use With

Spec 4 Attribute Value

15/100 A HD, HG, HJ, HL Frame Circuit Breaker

Spec 5 Attribute

Type

Spec 5 Attribute Value

3-Piece
