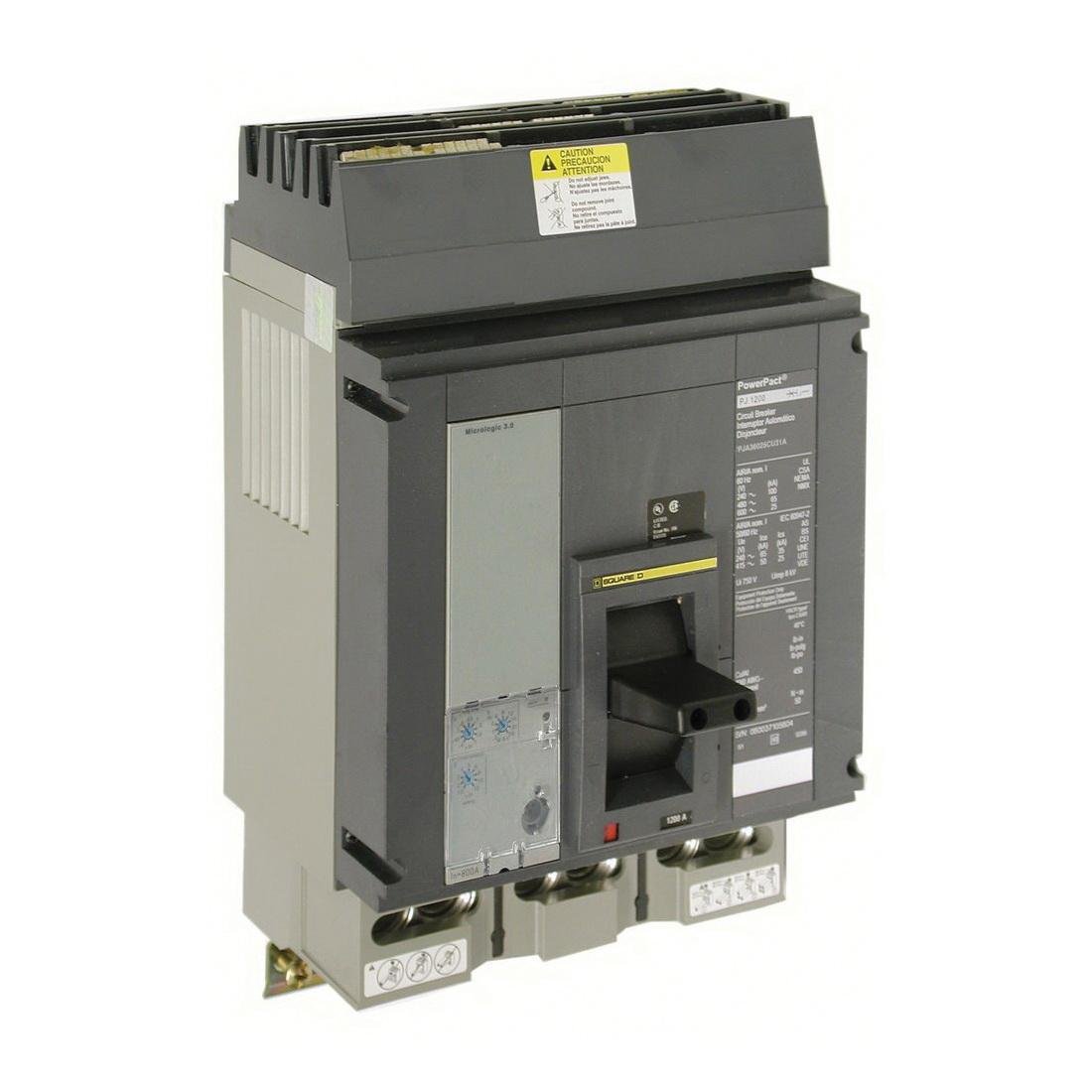

PGA36120U31A - Circuit breaker, PowerPacT P, 1200A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.0, 80%, ABC

Item Code: 1091692

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref PGA36120U31A

Document
Document
Document
Document

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

31.93

Width

11.52

Length

20.06

AD All Features

Common mounting holes, handle locations and trim dimensions for design standardization

AD Alternative Part Number

10003319

AD Application

Construction, Commercial Buildings, Oil and Gas, Marine, Industrial Buildings, Control and Monitoring, Water Wastewater, Healthcare Facilities, Data Centers and Educational Campuses Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901550945

AD Gtin

00785901550945

AD IDEA Index ID

10003319

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 1200A 3 P

AD Item Features 01

Common mounting holes, handle locations and trim dimensions for design standardization

AD Item Features 02

Common accessories across the range

AD Item Features 03

Used as main panel disconnect for control panel

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

AD Package Length

20.0600

AD Package Length UOM

AD Package Quantity

AD Package Weight

31.9300

AD Package Weight UOM

AD Package Width

11.5200

AD Package Width UOM

AD Part Number Keywords

PGA36120U31A ; 10003319 ; 785901550945 ; 78590155094 ; 00785901550945 ; 0785901550945

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

Spec 1 Attribute Value

1200

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

104

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

Spec 12 Attribute Value

100 to 1200

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Electronic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type PGA

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

3/0 AWG to 500 kcmil Al, 4 AWG Cu

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Load Lug/Plug-On

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

8.1 in L x 8.3 in W x 16.2 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA AB1

Spec 5 Attribute

Frame

Spec 5 Attribute Value

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Busbar

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value
