PGA36120U43A - Circuit breaker, PowerPacT P, 1200A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 5.0A, 80%, ABC

Category Miscellaneous

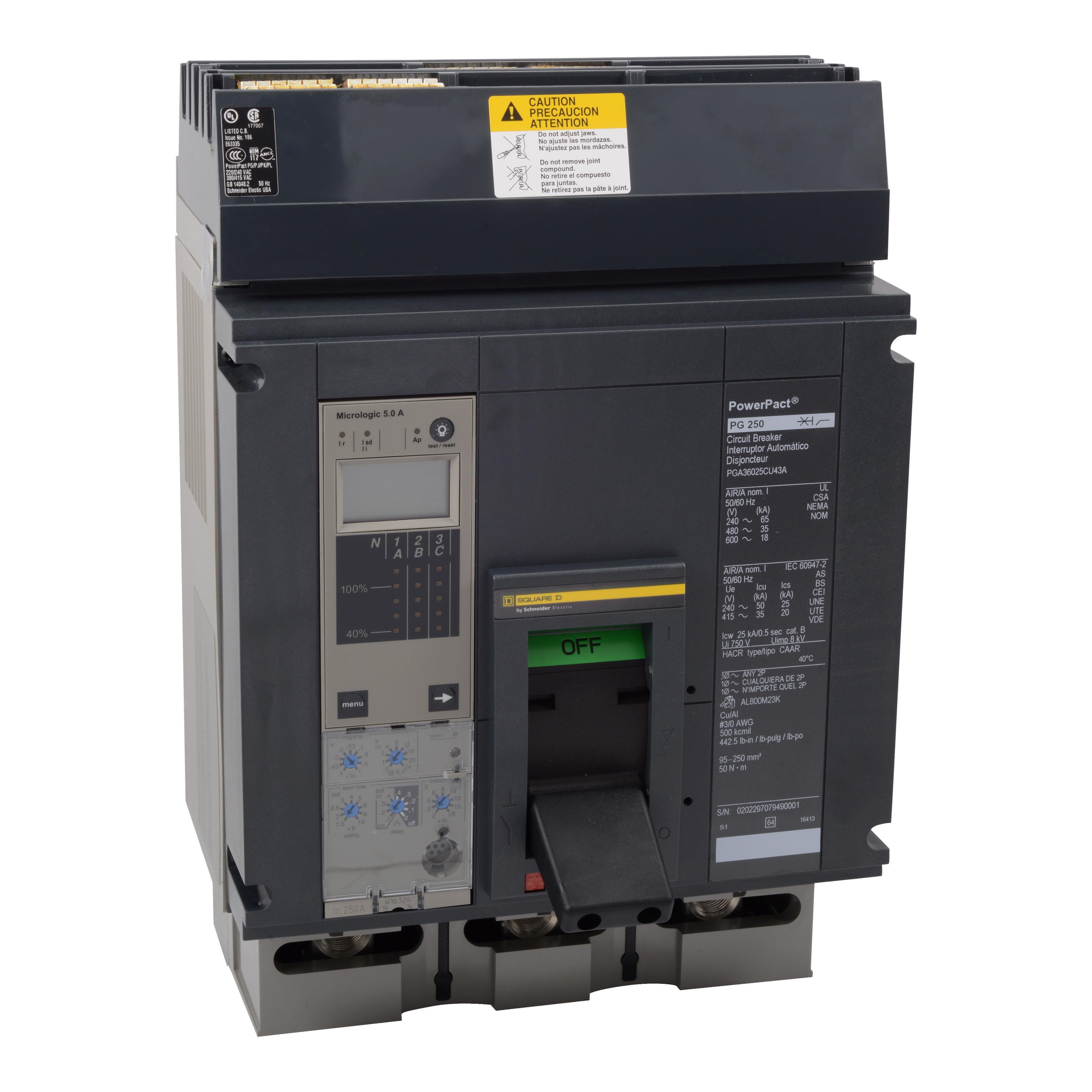

Picture of PGA36120U43A - Circuit breaker, PowerPacT P, 1200A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 5.0A, 80%, ABC
Square D™

PGA36120U43A - Circuit breaker, PowerPacT P, 1200A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 5.0A, 80%, ABC

Item Code: 1241505
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref PGA36120U43A

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 5.0A trip unit and an LSI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1200A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

31.92

Height

12.8

Width

8.19

Length

15.99

AD All Features

Available in 2, 3, 4 pole design

AD Alternative Part Number

10865132

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

IT

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901854418

AD Gtin

00785901854418

AD IDEA Index ID

10865132

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 1200A 3 P

AD Item Features 01

Available in 2, 3, 4 pole design

AD Item Features 02

Common mounting holes, handle locations and trim dimensions for design standardization

AD Item Features 03

Common accessories across the range

AD Item Features 04

Used as main panel disconnect for control panel

AD Manufacturer (Description)

Schneider Electric

AD Package Height

12.8000

AD Package Height UOM

IN

AD Package Length

15.9900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

860.5400

AD Package Volume UOM

cu-in

AD Package Weight

31.9200

AD Package Weight UOM

LB

AD Package Width

8.1900

AD Package Width UOM

IN

AD Part Number Keywords

PGA36120U43A ; 10865132 ; 785901854418 ; 78590185441 ; 00785901854418 ; 0785901854418

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

1200

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

-13 To 158

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

A

Spec 12 Attribute Value

1200

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Electronic

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

3/0 AWG to 500 kcmil Al/Cu

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

16.26 in H x 8.27 in W x 8.07 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA AB1

Spec 5 Attribute

Frame

Spec 5 Attribute Value

P

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

DIN Rail

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
