Square D

PK18GTAL - Load center accessory, QO/Homeline, ground bar kit, 18 terminals, with AWG 1-4/0 lug in aluminum or copper

Category Load Centers & Accessories

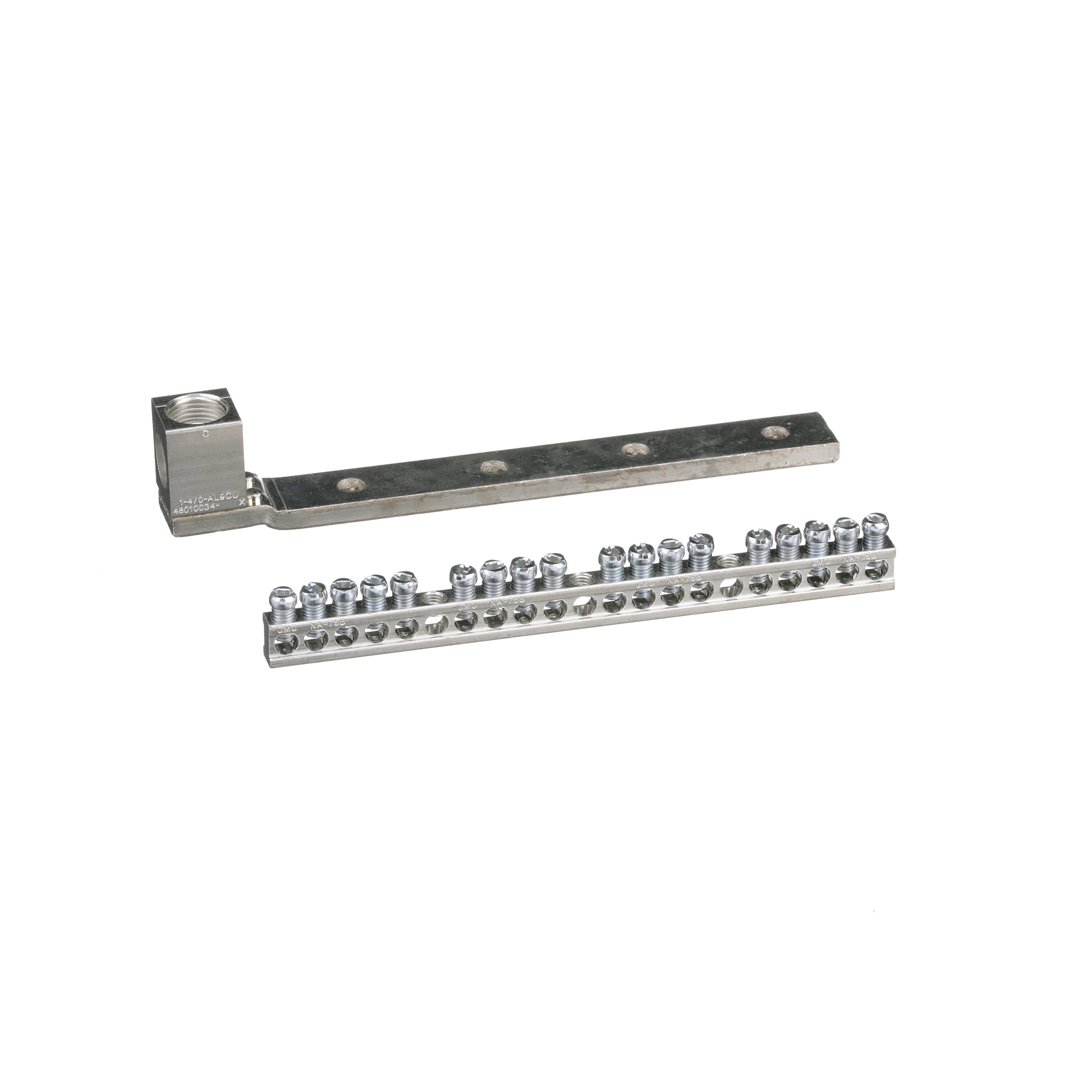

Picture of PK18GTAL - Load center accessory, QO/Homeline, ground bar kit, 18 terminals, with AWG 1-4/0 lug in aluminum or copper Picture of PK18GTAL - Load center accessory, QO/Homeline, ground bar kit, 18 terminals, with AWG 1-4/0 lug in aluminum or copper
Picture of PK18GTAL - Load center accessory, QO/Homeline, ground bar kit, 18 terminals, with AWG 1-4/0 lug in aluminum or copper Picture of PK18GTAL - Load center accessory, QO/Homeline, ground bar kit, 18 terminals, with AWG 1-4/0 lug in aluminum or copper
Square D

PK18GTAL - Load center accessory, QO/Homeline, ground bar kit, 18 terminals, with AWG 1-4/0 lug in aluminum or copper

Item Code: 47251
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref PK18GTAL

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO® Circuit Breaker Load Centers, PK18GTAL, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. All metering stacks are shipped from the factory with meter sockets and vertical bus bars pre-installed, and require a minimum of on site labour time to install the circuit breakers and main bus links. Provision to lock and seal the circuit breaker handles in the “off” position has been made for the convenience of utilities and electrical inspectors. This main tap box with 1200A rated main bus and main 1 phase service can provide (3) AWG 4-750 MCM or (4) AWG 4-600 MCM in aluminium or copper lug size. The unit comes in sizes of height 19 in, 23 in width and 9.55 in of depth. All meter stacks are designed for CSA Type A “cold metering” in which the individual sub-service breakers are connected on the line side of the meter sockets thereby protecting the meter and all electrical equipment installed subsequent to it.

Specifications

Weight

0.37lb

Height

1.3mm

Width

3.96mm

Length

8.42mm

Depth

0.31mm

AD All Features

Provides grounding point for all equipment grounding conductors

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

(2) Mounting Screw

AD Invoice Description

ASSEMBLY GND BAR 15.9IN 1 TO 4/0AWG 18

AD Item Features 01

Provides grounding point for all equipment grounding conductors

AD Item Features 02

Ensures safety by creating a low-resistance path for fault currents

AD Item Features 03

Allows future expansion for additional circuits

AD Item Features 04

Required for sub-panels to isolate neutral and ground

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.3000

AD Package Height UOM

IN

AD Package Length

8.4200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

7.5900

AD Package Volume UOM

cu-in

AD Package Weight

0.3700

AD Package Weight UOM

LB

AD Package Width

3.9600

AD Package Width UOM

IN

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

1 to 4/0

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

ALUMINUM/COPPER

Spec 3 Attribute

Length

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

15.9

Spec 4 Attribute

Number of Terminals

Spec 4 Attribute Value

18

Spec 5 Attribute

Suitable For Use With

Spec 5 Attribute Value

QO™ Load Center and Type PK Circuit Breaker
