Square D

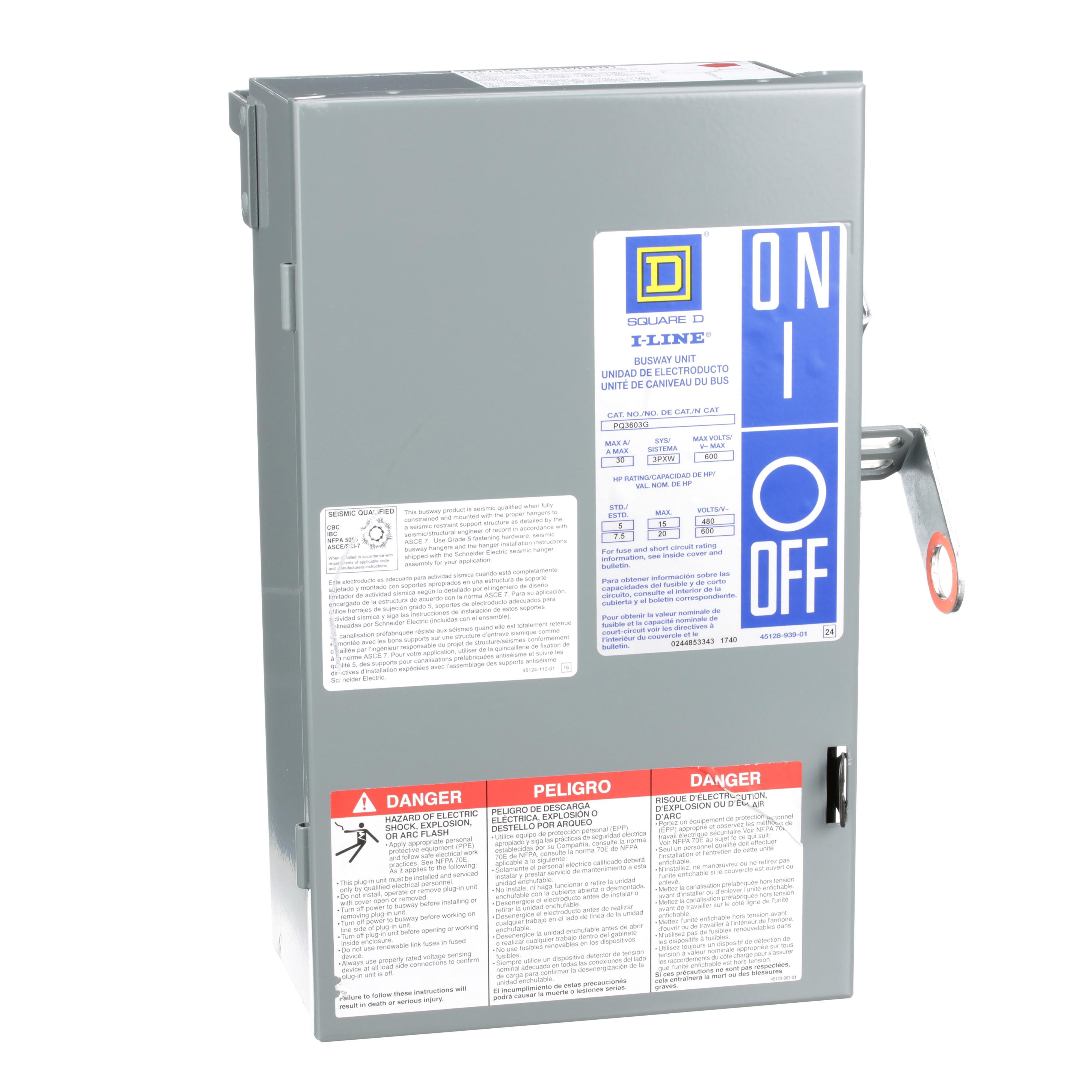

PQ3603G - Plug-in unit, I-Line Busway, fusible, 30A, 600VAC, 3 pole, 3 fuse + G, plug in connection

Category Miscellaneous
Picture of PQ3603G - Plug-in unit, I-Line Busway, fusible, 30A, 600VAC, 3 pole, 3 fuse + G, plug in connection
Square D

PQ3603G - Plug-in unit, I-Line Busway, fusible, 30A, 600VAC, 3 pole, 3 fuse + G, plug in connection

Item Code: 33132
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref PQ3603G

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This fusible plug-in unit is 30A, 600VAC max, 3 pole, and 3 fuse + G. This unit uses a plug in connection. This plug-in unit accepts H, K, J or R fuses. I-Line Busway plug in units are UL listed and CSA certified.

Specifications

Weight

13.32

Height

12.8

Width

6.34

Length

6.64

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/PQ3603G/PQ3603G.spin

AD Alternative Part Number

8110829

AD Application

Busway Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901263906

AD Gtin

00785901263906

AD IDEA Index ID

8110829

AD Invoice Description

UNIT PLUG-IN FSBL BUSWAY 240/600VAC 30A

AD Item Features 01

Part of a family of compatible straights, fittings, accessories, and plug-in units for flexible design choices

AD Item Features 02

Fusible plug in units available through 1200A

AD Item Features 03

Electronic trips and communication packages available for circuit breaker plug in units

AD Item Features 04

Reduced installation time with mounting hook alignment to opening

AD Keywords

I-Line II PQ3603G Type H Busway Fusible Plug-In Unit, 240/600 V AC, 30 A, 3 Wires, FS Frame, NEMA 1 Enclosure ; Schneider Electric ; Square D ; PQ3603G ; PQ3603G ; 785901263906 ; Busway Fusible Plug Units

AD Manufacturer (Description)

Schneider Electric

AD Package Height

12.8000

AD Package Height UOM

IN

AD Package Length

6.6400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

3386.2400

AD Package Volume UOM

cu-in

AD Package Weight

13.3200

AD Package Weight UOM

LB

AD Package Width

6.3400

AD Package Width UOM

IN

AD Part Number Keywords

PQ3603G ; 8110829 ; 785901263906 ; 78590126390 ; 00785901263906 ; 0785901263906

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

15 in L x 4-2/3 in W x 8-7/8 in H

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 1

Spec 3 Attribute

Frame

Spec 3 Attribute Value

FS

Spec 4 Attribute

Interrupt Rating

Spec 4 Attribute UOM

KA

Spec 4 Attribute Value

200

Spec 5 Attribute

Number Of Wires

Spec 5 Attribute Value

3

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

3

Spec 7 Attribute

Trip Amperage

Spec 7 Attribute UOM

A

Spec 7 Attribute Value

30

Spec 8 Attribute

Type

Spec 8 Attribute Value

Type H

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

240/600
