Square D

PQ3610G - Busway, I-Line, Fusible plug in unit, 100A, 600V, 3 pole, Class H fuse

Category Miscellaneous

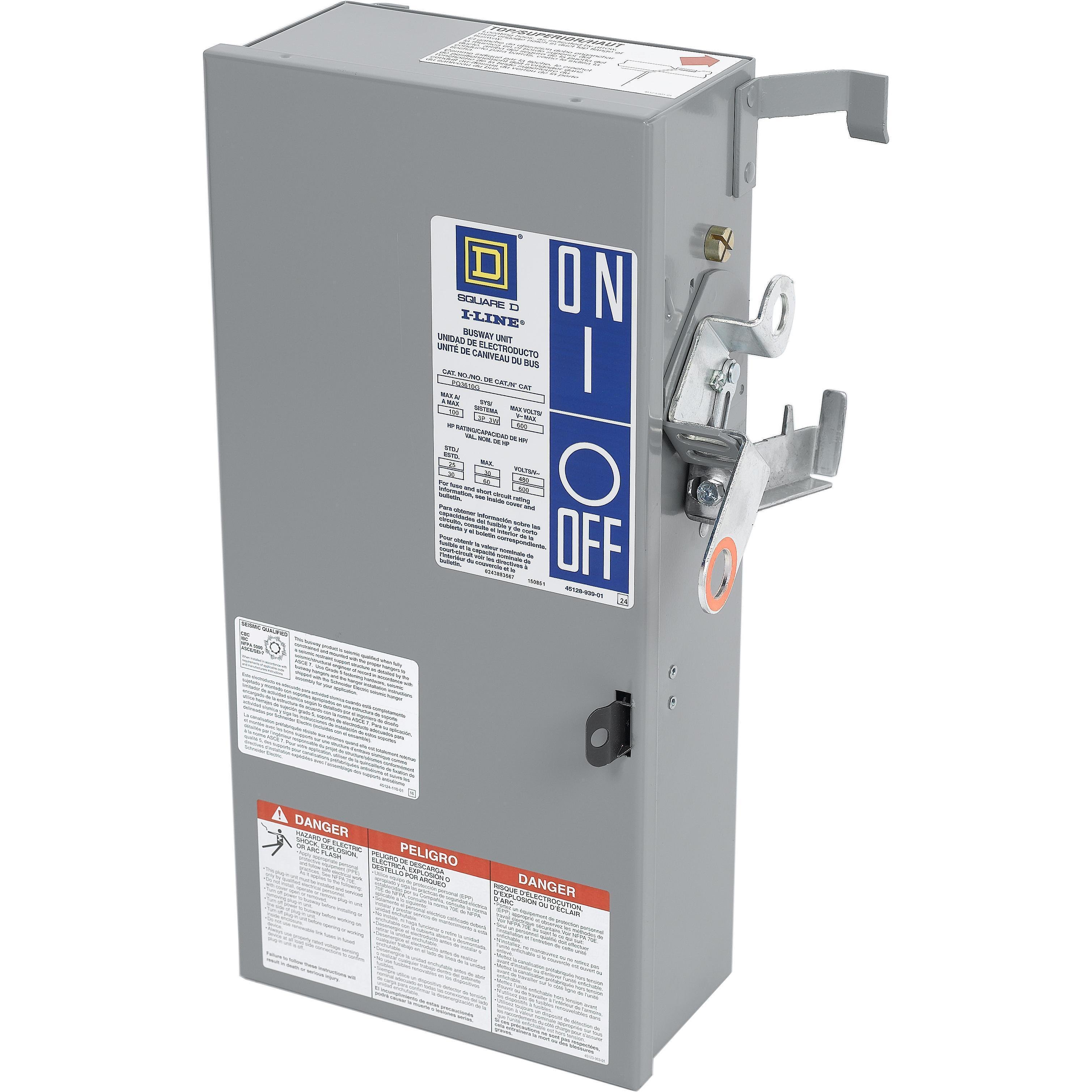

Picture of PQ3610G - Busway, I-Line, Fusible plug in unit, 100A, 600V, 3 pole, Class H fuse
Square D

PQ3610G - Busway, I-Line, Fusible plug in unit, 100A, 600V, 3 pole, Class H fuse

Item Code: 40789
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref PQ3610G

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This fusible plug-in unit is 100A, 600VAC max, 3 pole, and 3 fuse + G. This unit uses a plug in connection. This plug-in unit accepts H, K, J or R fuses. I-Line Busway plug in units are UL listed and CSA certified.

Specifications

Weight

17.47

Height

10.9

Width

13.08

Length

22.59

AD Alternative Part Number

8110843

AD Application

Busway Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901263920

AD Gtin

00785901263920

AD IDEA Index ID

8110843

AD Invoice Description

UNIT PLUG-IN FSBL BUSWAY 600VAC 100A

AD Item Features 01

Part of a family of compatible straights, fittings, accessories, and plug-in units for flexible design choices

AD Item Features 02

Fusible plug in units available through 1200A

AD Item Features 03

Electronic trips and communication packages available for circuit breaker plug in units

AD Item Features 04

Reduced installation time with mounting hook alignment to opening

AD Keywords

I-Line II PQ3610G Type H Busway Fusible Plug-In Unit, 600 V AC, 100 A, 3 Wires, FS Frame, NEMA 1 Enclosure ; Schneider Electric ; Square D ; PQ3610G ; PQ3610G ; 785901263920 ; Busway Fusible Plug Units

AD Manufacturer (Description)

Schneider Electric

AD Package Height

10.9000

AD Package Height UOM

IN

AD Package Length

22.5900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

3280.4600

AD Package Volume UOM

cu-in

AD Package Weight

17.4700

AD Package Weight UOM

LB

AD Package Width

13.0800

AD Package Width UOM

IN

AD Part Number Keywords

PQ3610G ; 8110843 ; 785901263920 ; 78590126392 ; 00785901263920 ; 0785901263920

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

19 in L x 4-2/3 in W x 8-7/8 in H

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 1

Spec 3 Attribute

Frame

Spec 3 Attribute Value

FS

Spec 4 Attribute

Interrupt Rating

Spec 4 Attribute UOM

KA

Spec 4 Attribute Value

200

Spec 5 Attribute

Number Of Wires

Spec 5 Attribute Value

3

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

3

Spec 7 Attribute

Trip Amperage

Spec 7 Attribute UOM

A

Spec 7 Attribute Value

100

Spec 8 Attribute

Type

Spec 8 Attribute Value

Type H

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

600
