Square D

PQ4603G - Busway, FS Plug-In 30A

Category Miscellaneous

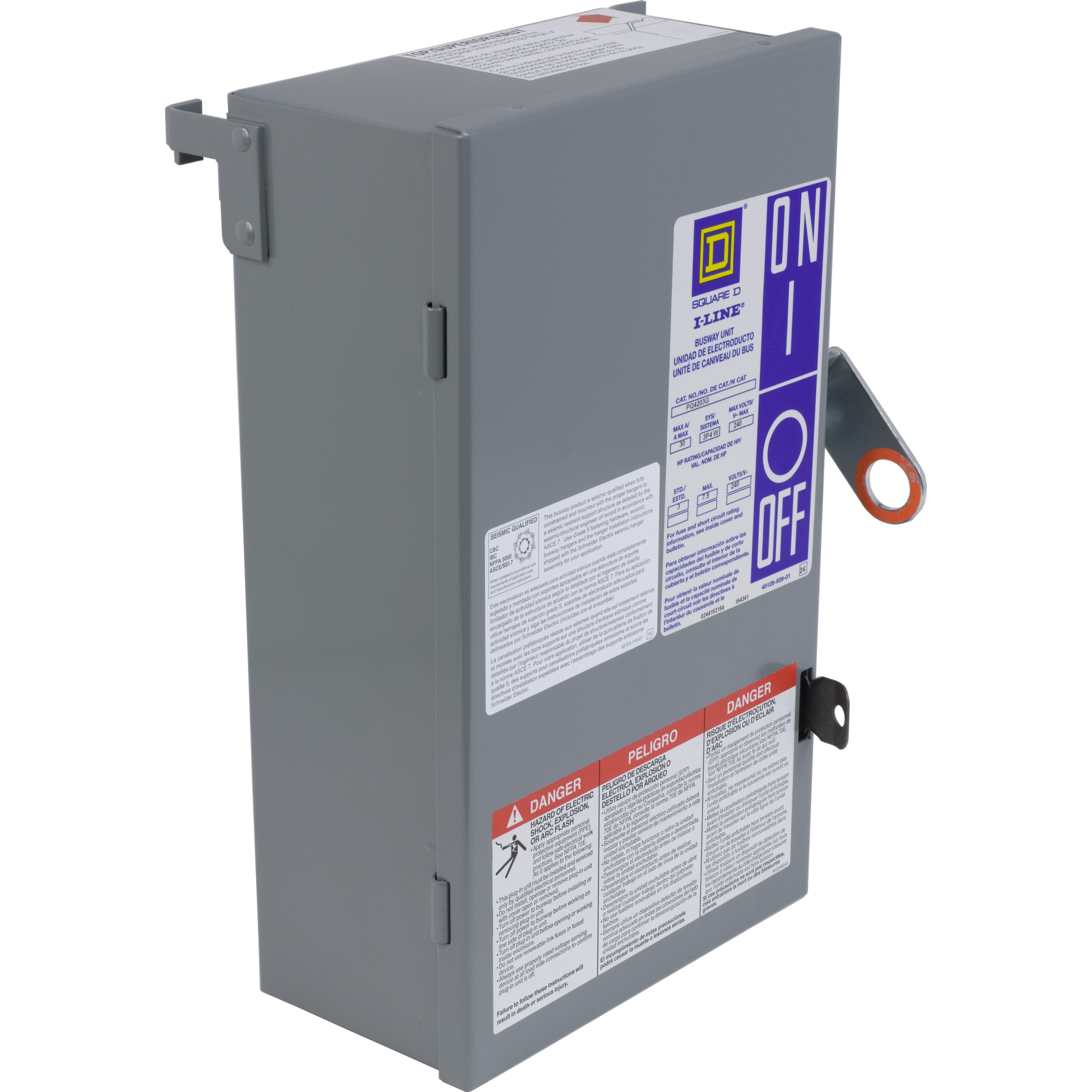

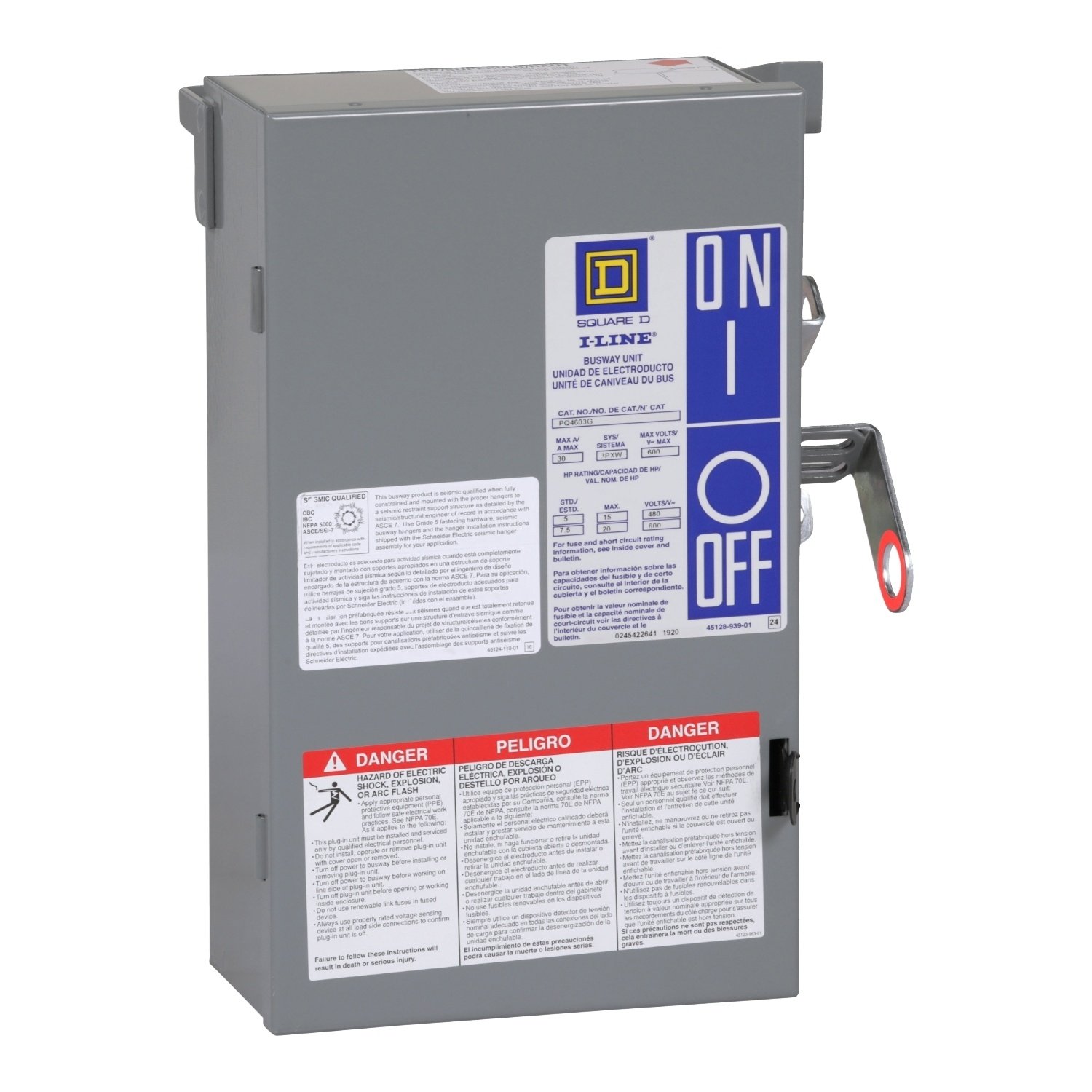

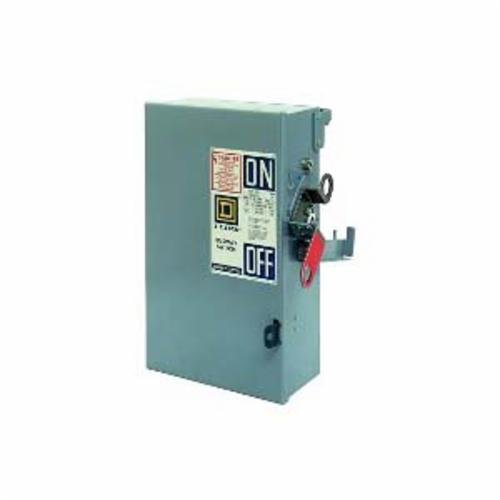

Picture of PQ4603G - Busway, FS Plug-In 30A Picture of PQ4603G - Busway, FS Plug-In 30A
Picture of PQ4603G - Busway, FS Plug-In 30A Picture of PQ4603G - Busway, FS Plug-In 30A
Picture of PQ4603G - Busway, FS Plug-In 30A Picture of PQ4603G - Busway, FS Plug-In 30A
Square D

PQ4603G - Busway, FS Plug-In 30A

Item Code: 33133
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref PQ4603G

Document
Call for Availability
Add to Favorites
Compare

Description

Square D I-Line Busway is broad range of busway products that are used to provide electrical distribution in your both commercial and industiral applications. I-Line™ electrical busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. These busways are consturcted in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. These busways are designed specifically to allow maximum flexibility, ease installation and offer electrical efficiency in the distribution of low power. This product is plug-in fusible unit that is rated at 30 A and has a maximum voltage of 600 V. This unit plugs in to a 4-pole busway, uses a class H fuse and UL and CSA Certified.

Specifications

Weight

13.77

Height

10.6

Width

12.2

Length

16.7

AD Application

Busway Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Catalog

AD Gtin

00785901309888

AD Invoice Description

UNIT PLUG-IN 600VAC 4 FS NEMA 1 3 200KA

AD Item Features 01

Compact and totally enclosed design makes it lightweight and easy to handle

AD Item Features 02

Easy and quick installation, get up to 75% savings in installation time

AD Item Features 03

Utilizes sandwich-type construction to provide superior voltage drop characteristics, even at low power factors

AD Item Features 04

Made of tough, durable and uniform polyester powder coat paint finish

AD Item Features 05

Plated to ensure low surface-to-surface contact resistance

AD Keywords

I-Line II PQ4603G Type H Fusible Plug-In Unit, 600 VAC, 4 Wires, FS Frame, NEMA 1 Enclosure ; Schneider Electric ; Square D ; PQ4603G ; 785901309888 ; Busway Fusible Plug Units

AD Manufacturer (Description)

Schneider Electric

AD Package Height

10.6000

AD Package Height UOM

IN

AD Package Length

16.7000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2159.6400

AD Package Volume UOM

cu-in

AD Package Weight

13.7700

AD Package Weight UOM

LB

AD Package Width

12.2000

AD Package Width UOM

IN

AD Part Number Keywords

PQ4603G ; 785901309888 ; 78590130988 ; 00785901309888

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

15 in L x 4-2/3 in W x 8-7/8 in H

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 1

Spec 3 Attribute

Frame

Spec 3 Attribute Value

FS

Spec 4 Attribute

Interrupt Rating

Spec 4 Attribute UOM

KA

Spec 4 Attribute Value

200

Spec 5 Attribute

Number Of Wires

Spec 5 Attribute Value

4

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

3

Spec 7 Attribute

Type

Spec 7 Attribute Value

Type H Fusible

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

600
