Square D

Q4L2400 - Circuit breaker, Q4, 400A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic

Category Miscellaneous

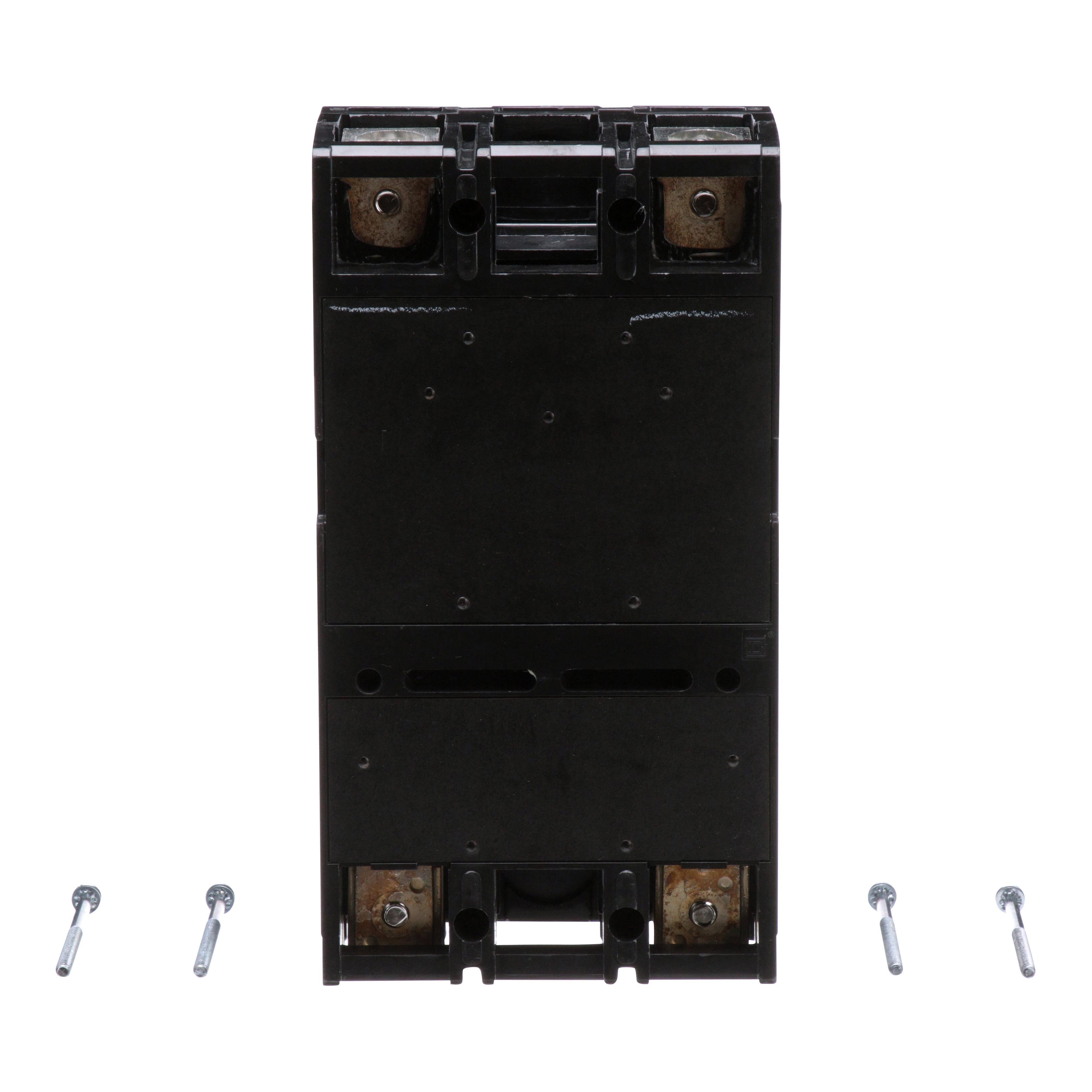

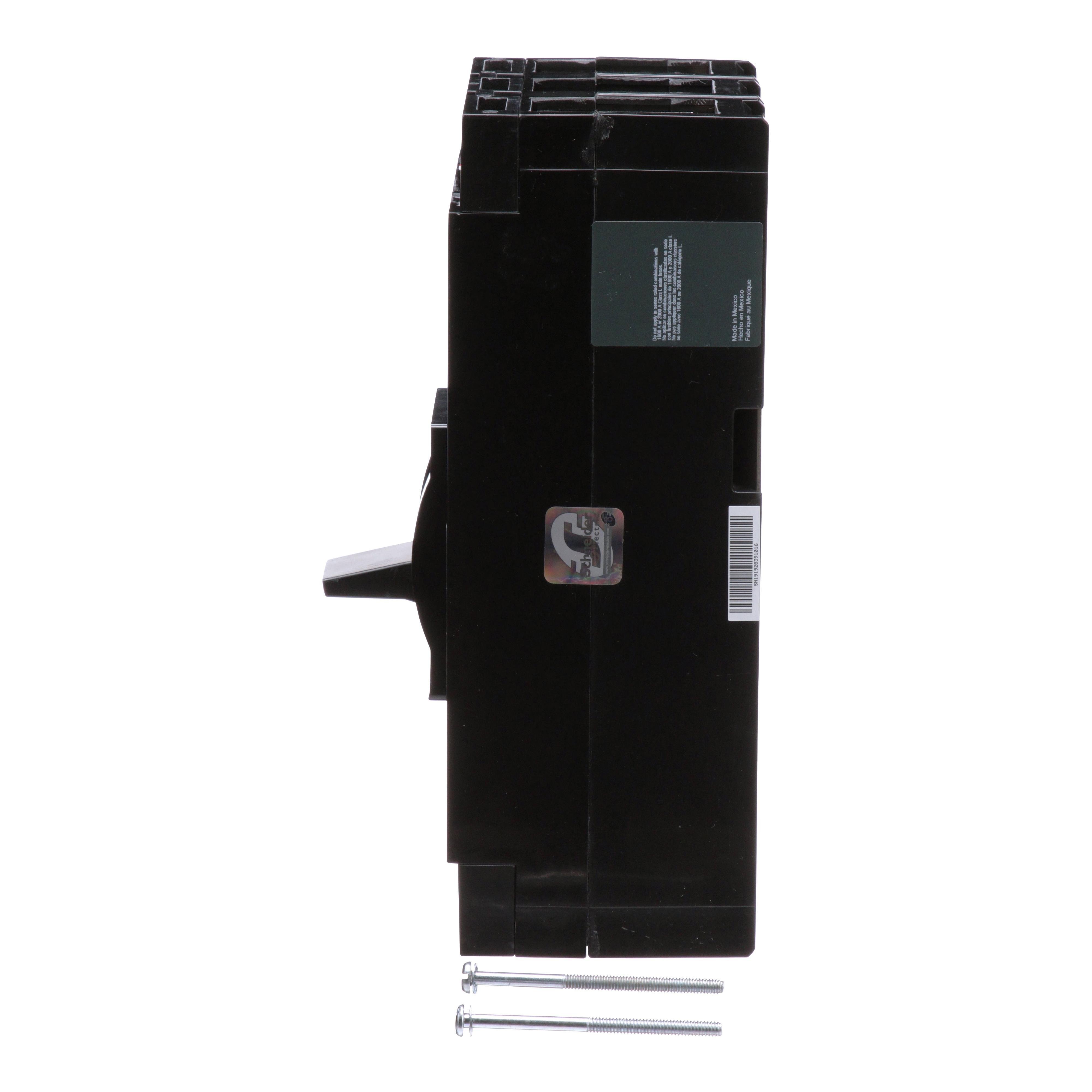

Picture of Q4L2400 - Circuit breaker, Q4, 400A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic Picture of Q4L2400 - Circuit breaker, Q4, 400A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic
Picture of Q4L2400 - Circuit breaker, Q4, 400A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic Picture of Q4L2400 - Circuit breaker, Q4, 400A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic
Picture of Q4L2400 - Circuit breaker, Q4, 400A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic Picture of Q4L2400 - Circuit breaker, Q4, 400A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic
Square D

Q4L2400 - Circuit breaker, Q4, 400A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic

Item Code: 33239
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref Q4L2400

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D Q4 molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. Q4 circuit breakers can be used for multiple applications such as construction, in commercial and industrial buildings, for control equipment panels for OEM commercial, and in mines. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D Q4 molded case circuit breaker is a 2 pole unit mount breaker, 400A and 240VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 25kA at 240VAC. All Q4 molded case circuit breakers have trip indication of the operating handle in the central position when the breaker is tripped. Q4 breakers are UL 489, CSA, IEC certified.

Specifications

Weight

14.52

Height

11.5

Width

11.31

Length

17.12

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/Q4L2400/Q4L2400.spin

AD All Features

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Alternative Part Number

8121611

AD Application

Industrial Enclosures, Panelboards, Switchboards, Busway Plug-In Units, Combination Starters and Motor Control Centers Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901649243

AD Gtin

00785901649243

AD IDEA Index ID

8121611

AD Invoice Description

BREAKER CKT CASE MLD 240VAC 400A 50/60HZ

AD Item Features 01

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Item Features 02

Flexible platform for various types of mounting and terminations

AD Item Features 03

Unit mount and I-Line construction available

AD Keywords

PowerPact Q4L2400 Molded Case Circuit Breaker, 240 V AC, 400 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; Q4L2400 ; Q4L2400 ; 785901649243 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

11.5000

AD Package Height UOM

IN

AD Package Length

17.1200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1860.9300

AD Package Volume UOM

cu-in

AD Package Weight

14.5200

AD Package Weight UOM

LB

AD Package Width

11.3100

AD Package Width UOM

IN

AD Part Number Keywords

Q4L2400 ; 8121611 ; 785901649243 ; 78590164924 ; 00785901649243 ; 0785901649243

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

400

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

40

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

400/2000/4000

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

240

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

(1) 1 AWG to 600 kcmil, (2) 1 AWG to 250 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

5.84 in L x 6 in W x 11 in H

Spec 4 Attribute

Frame

Spec 4 Attribute Value

Q4

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

25

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface/Unit

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

2

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
