Square D™

QBA32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, ABC

Category Miscellaneous

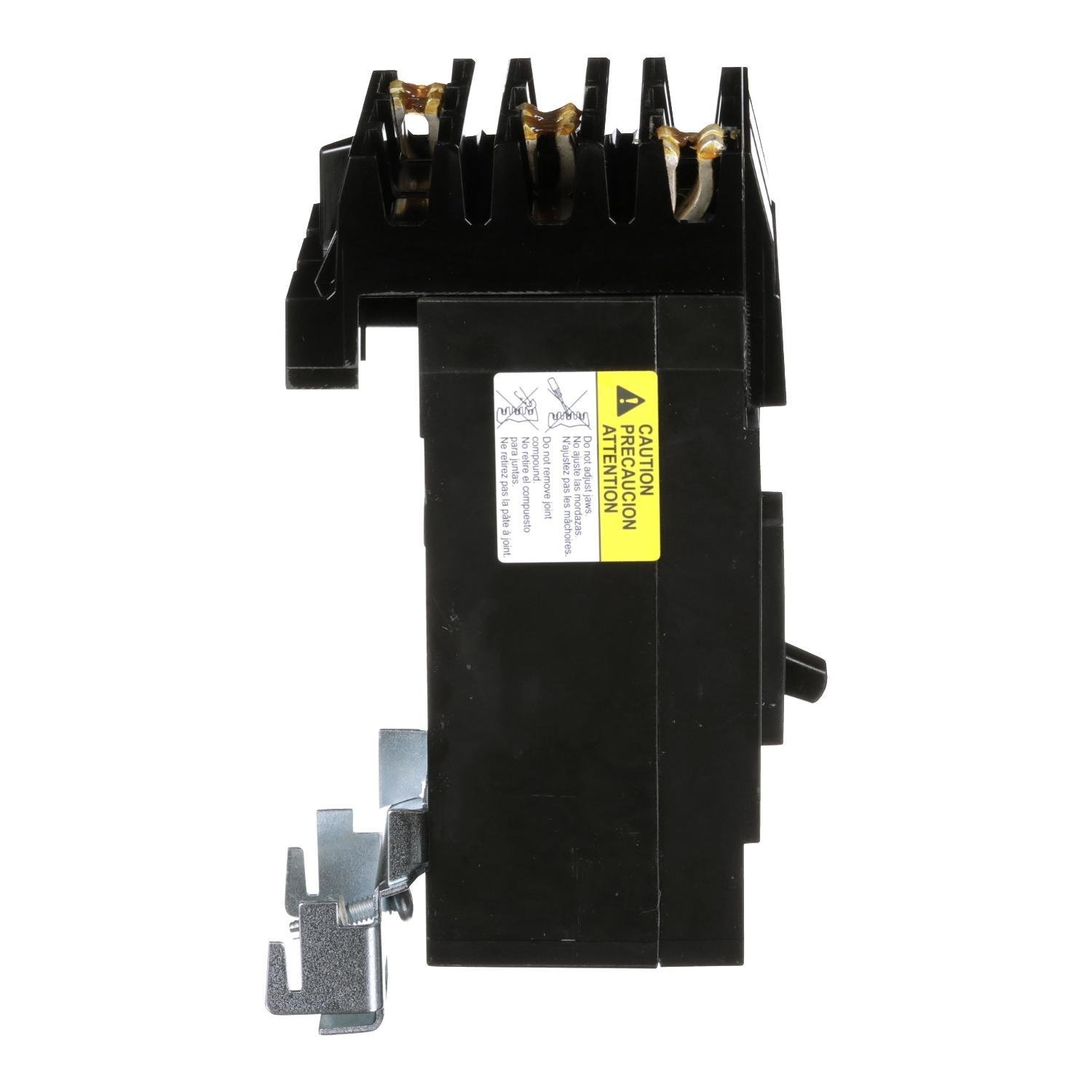

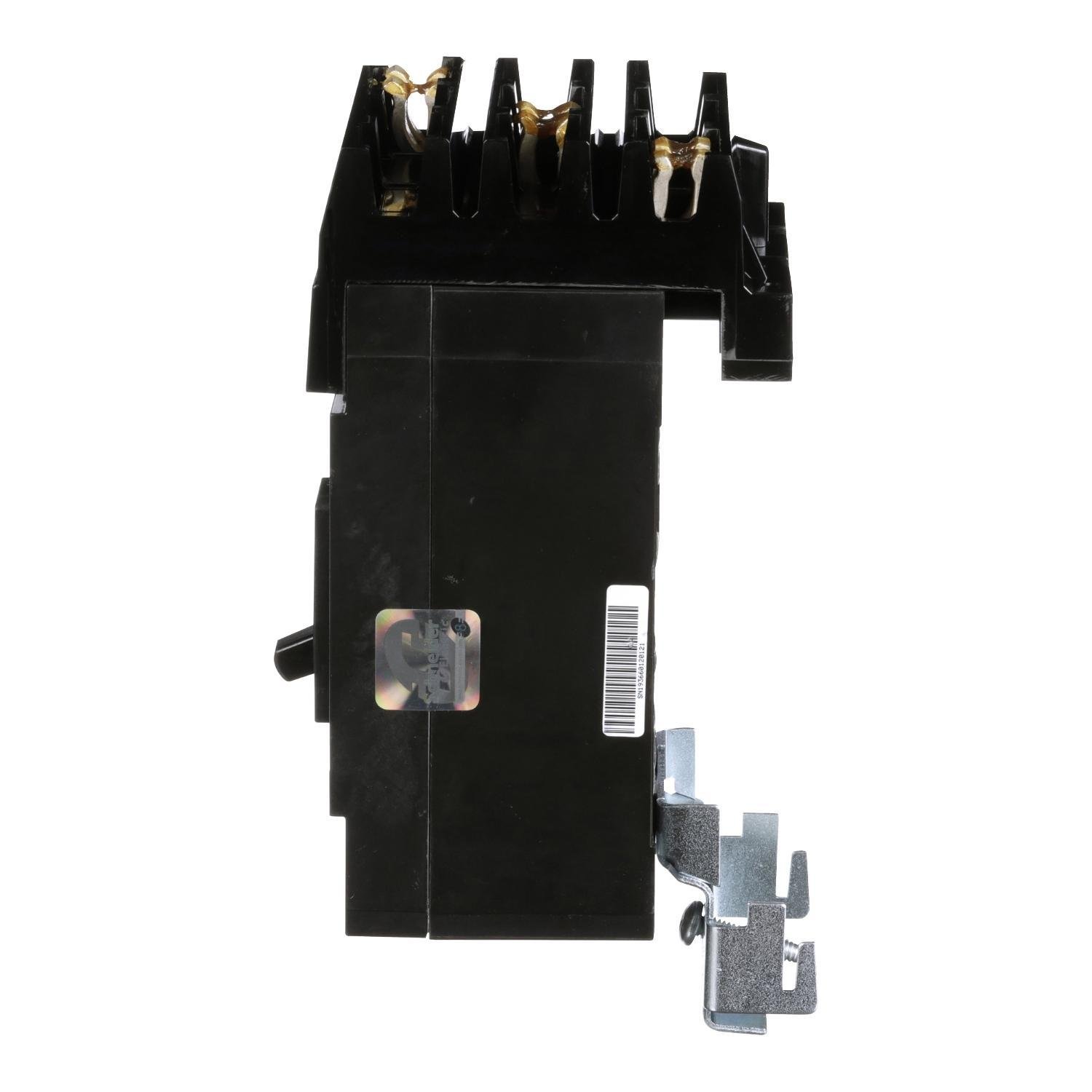

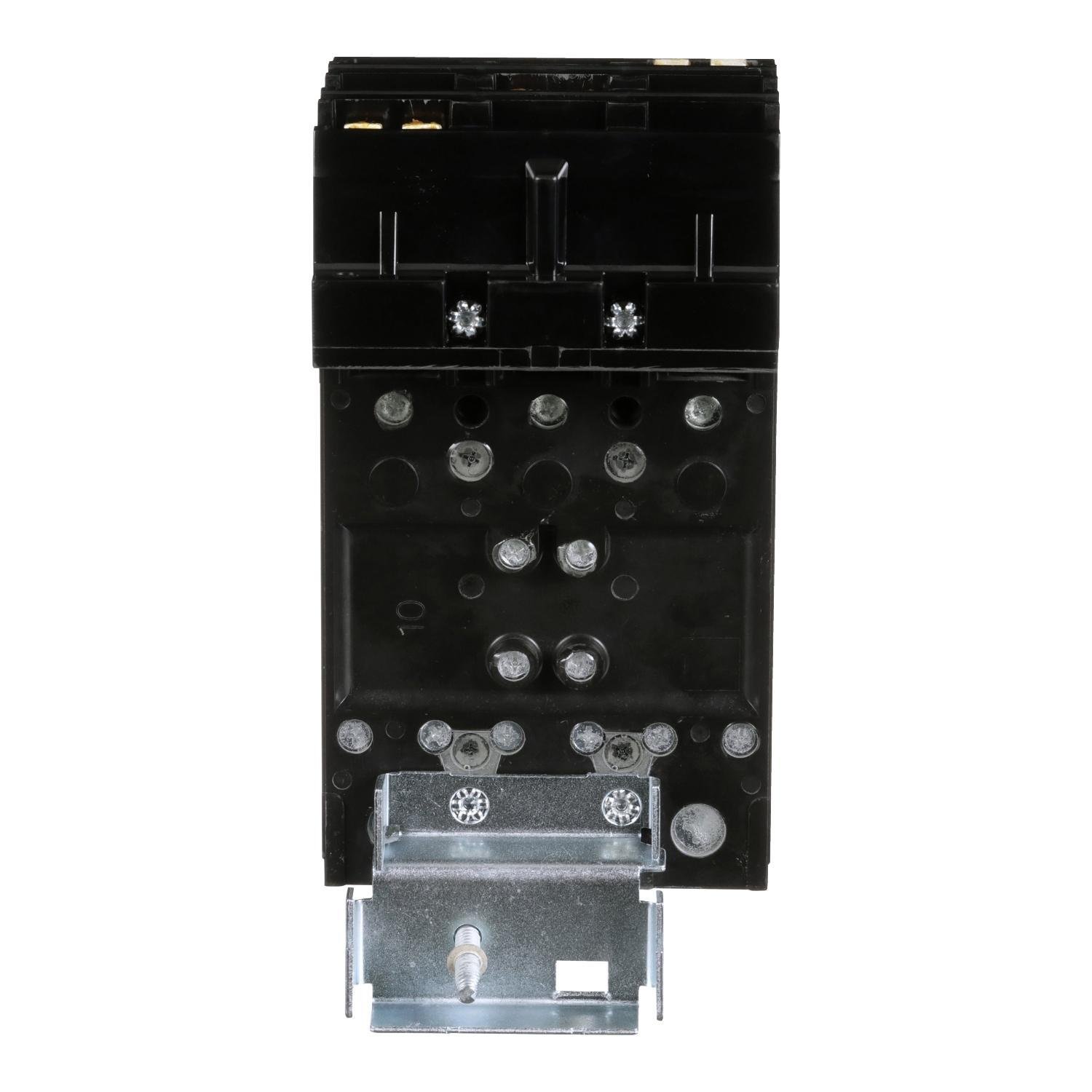

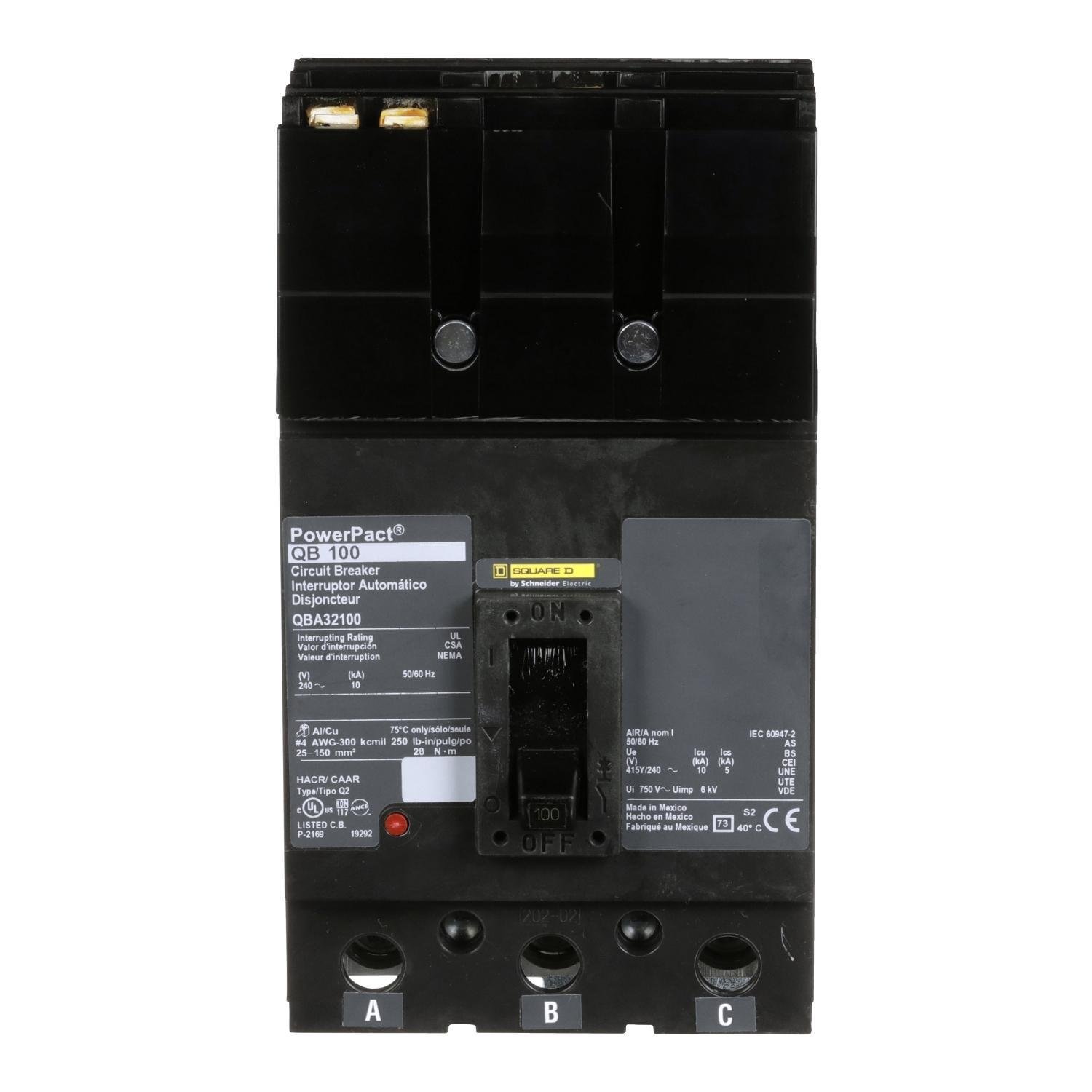

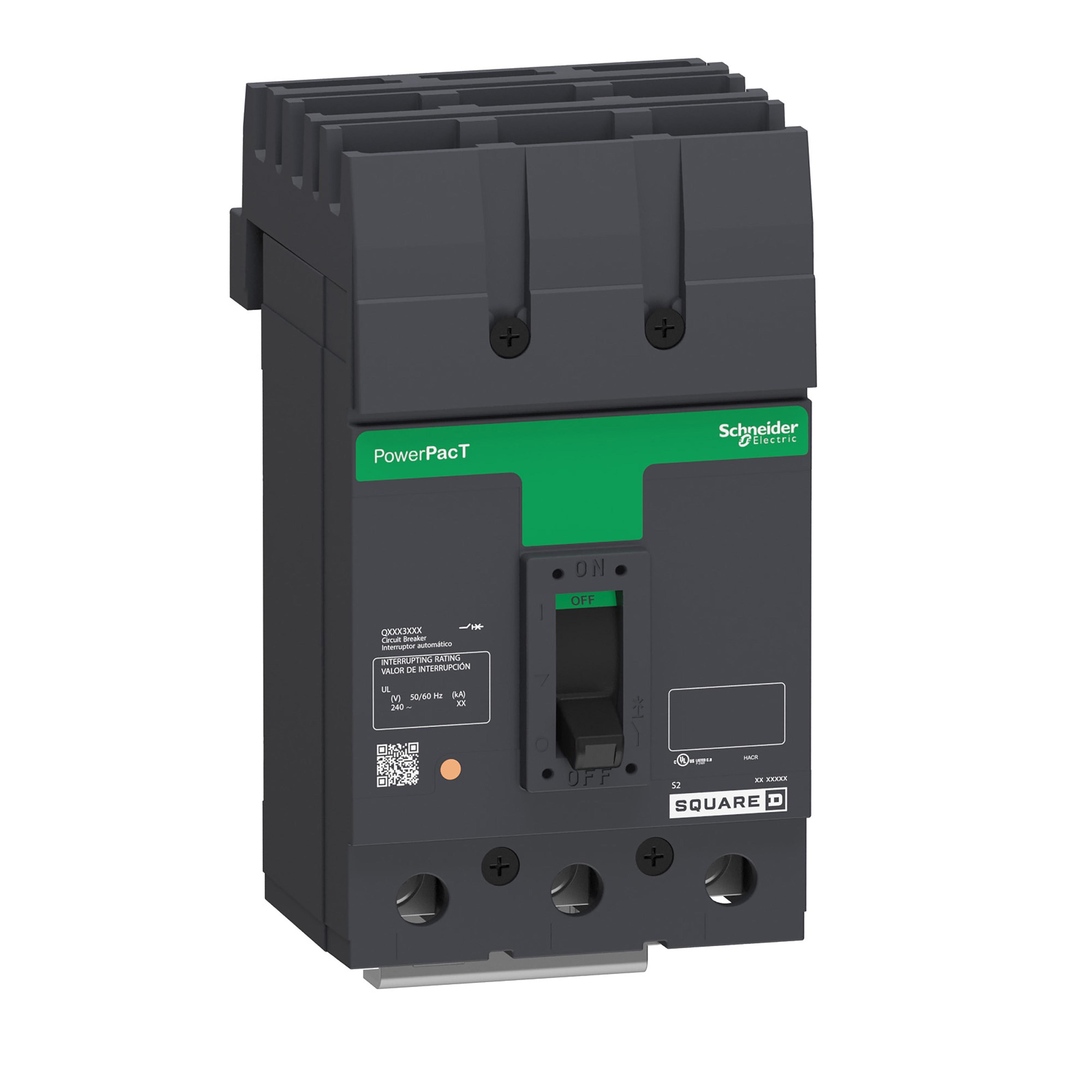

Picture of QBA32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, ABC Picture of QBA32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, ABC
Picture of QBA32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, ABC Picture of QBA32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, ABC
Picture of QBA32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, ABC Picture of QBA32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, ABC
Picture of QBA32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, ABC Picture of QBA32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, ABC
Picture of QBA32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, ABC Picture of QBA32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, ABC
Square D™

QBA32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 10kA, I-Line, thermal magnetic, 80%, ABC

Item Code: 1700069
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QBA32100

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 100A, 3 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Specifications

Weight

6.69

Height

6

Width

7.53

Length

12.29

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/qba32070/qba32070.spin

AD All Features

Available in 2 or 3 pole design

AD Alternative Part Number

8039782

AD Application

For providing overload, short circuit protection applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901412618

AD Gtin

00785901412618

AD IDEA Index ID

8039782

AD Invoice Description

BREAKER CKT CASE MLD 240VAC 100A 10KA

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Overcurrent protection and switching on AC systems

AD Item Features 03

Common accessories across the range

AD Item Features 04

Confidence and power reliability

AD Keywords

I-Line PowerPact Q QBA32100 Type QBA Molded Case Circuit Breaker, 240 V AC, 100 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; QBA32100 ; QBA32100 ; 785901412618 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.0000

AD Package Height UOM

IN

AD Package Length

12.2900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

562.5000

AD Package Volume UOM

cu-in

AD Package Weight

6.6900

AD Package Weight UOM

LB

AD Package Width

7.5300

AD Package Width UOM

IN

AD Part Number Keywords

QBA32100 ; 8039782 ; 785901412618 ; 78590141261 ; 00785901412618 ; 0785901412618

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

100/1200/2400

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type QBA

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

4 AWG to 300 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

I-Line™/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

4.5 in W x 3.93 in D x 6.47 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA AB1

Spec 5 Attribute

Frame

Spec 5 Attribute Value

B

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

10

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Plug-On

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
