Square D™

QBL32250 - Circuit breaker, PowerPacT Q, 250A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%

Category Miscellaneous

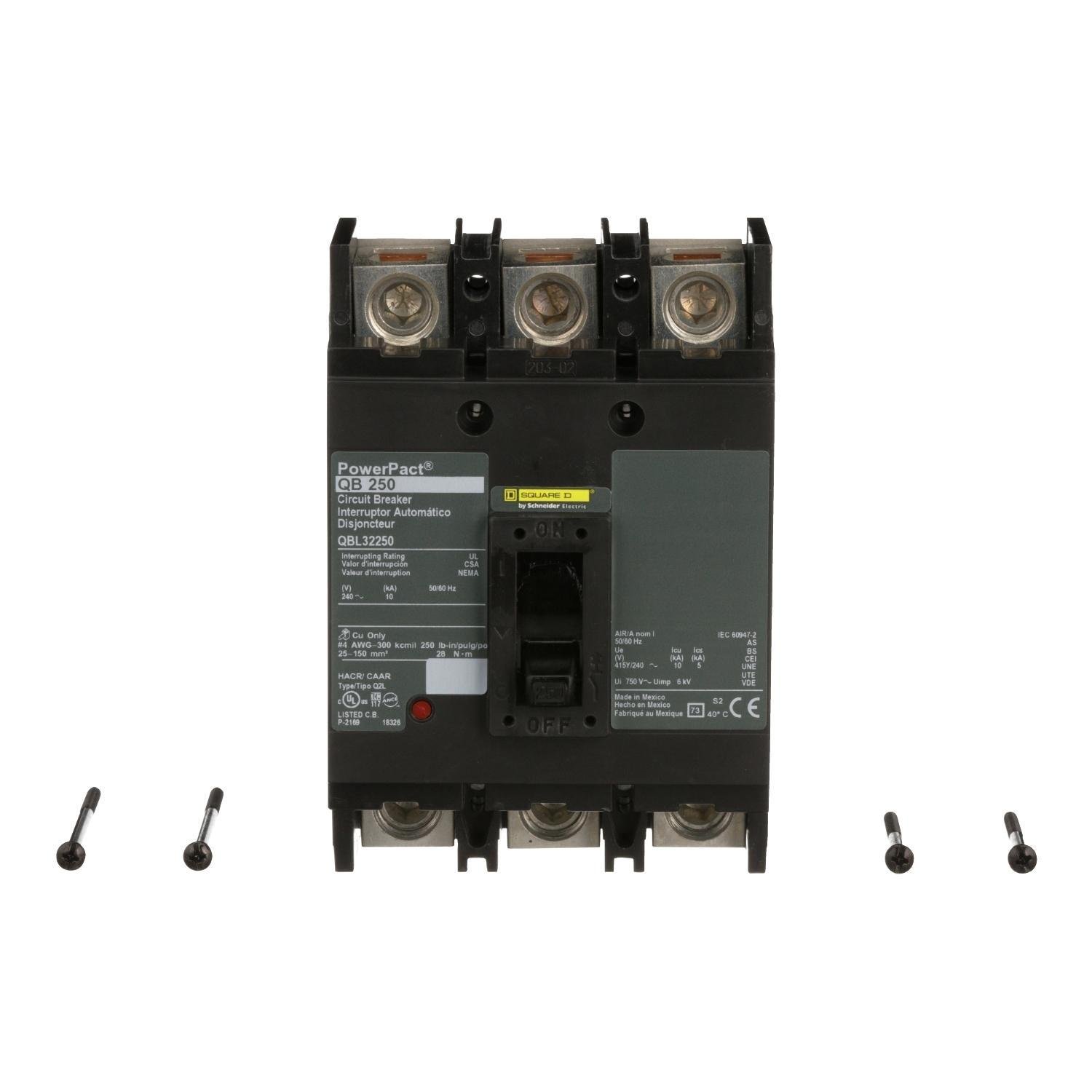

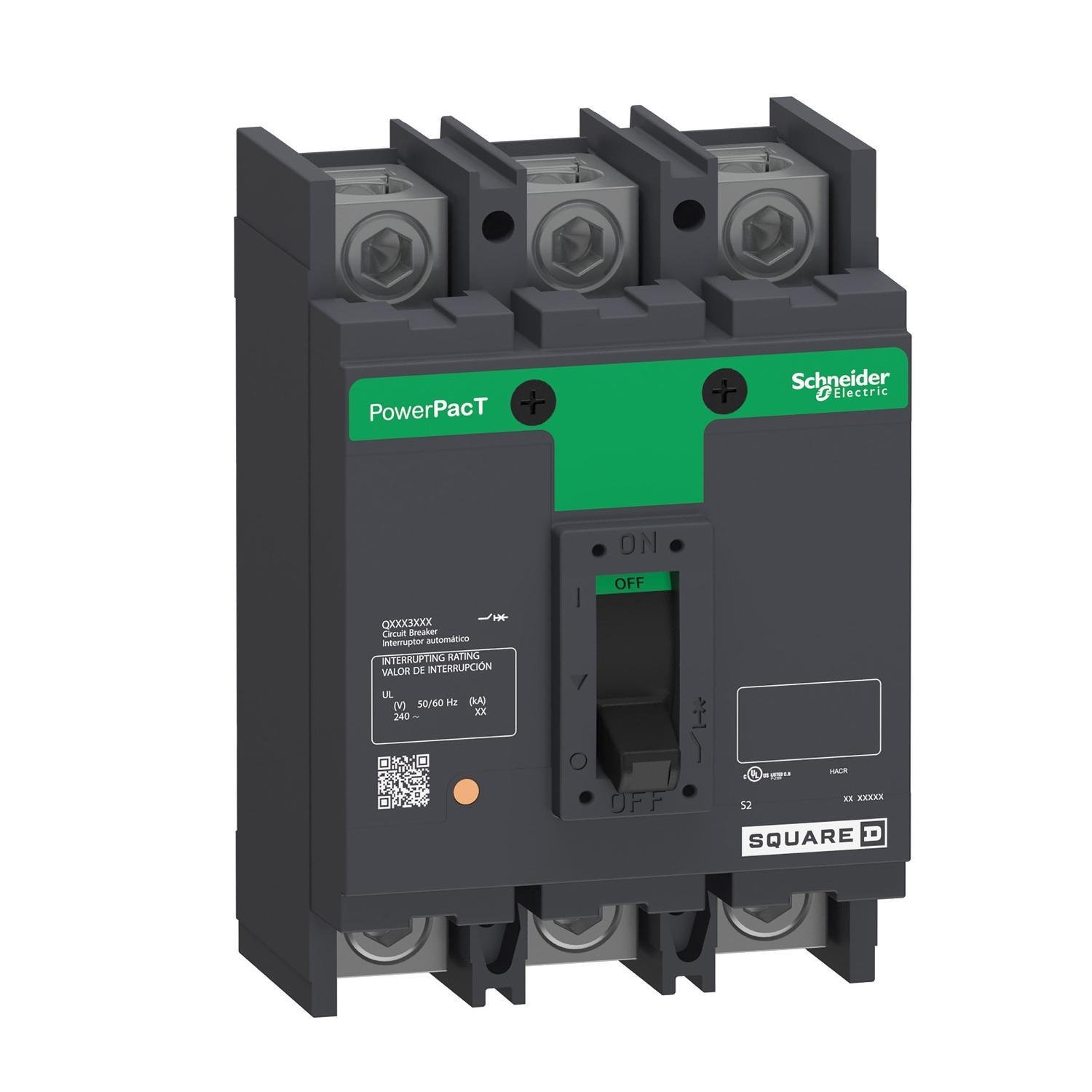

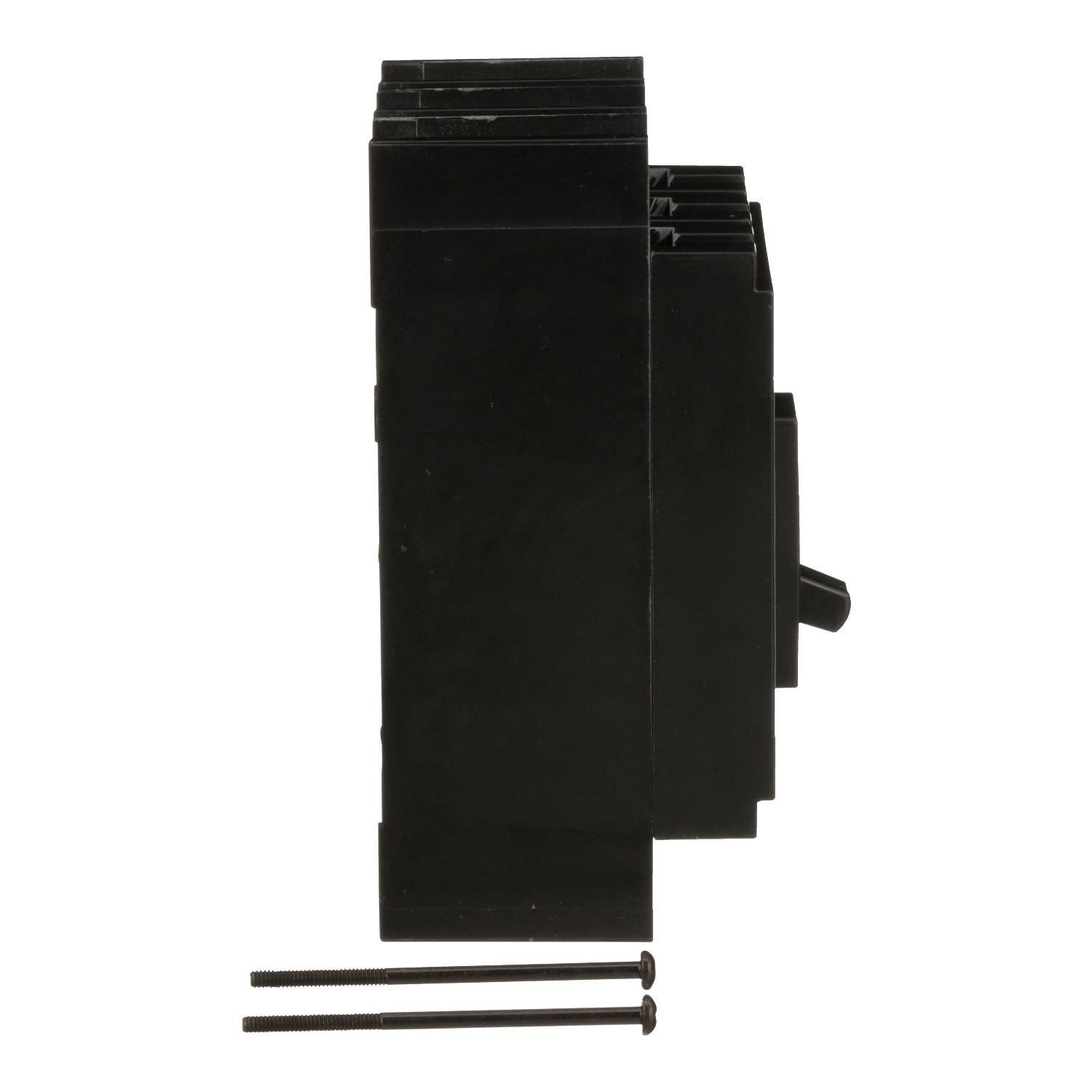

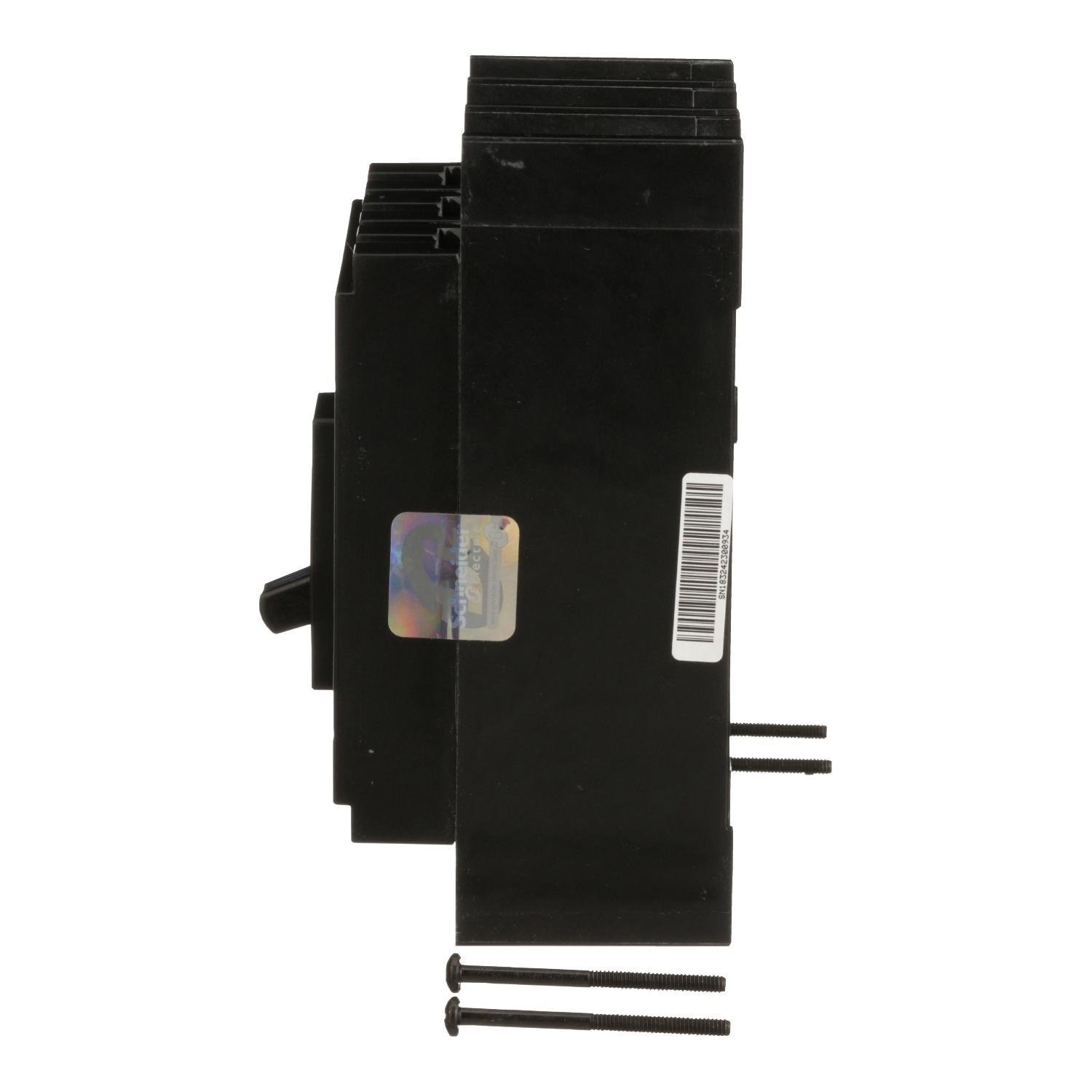

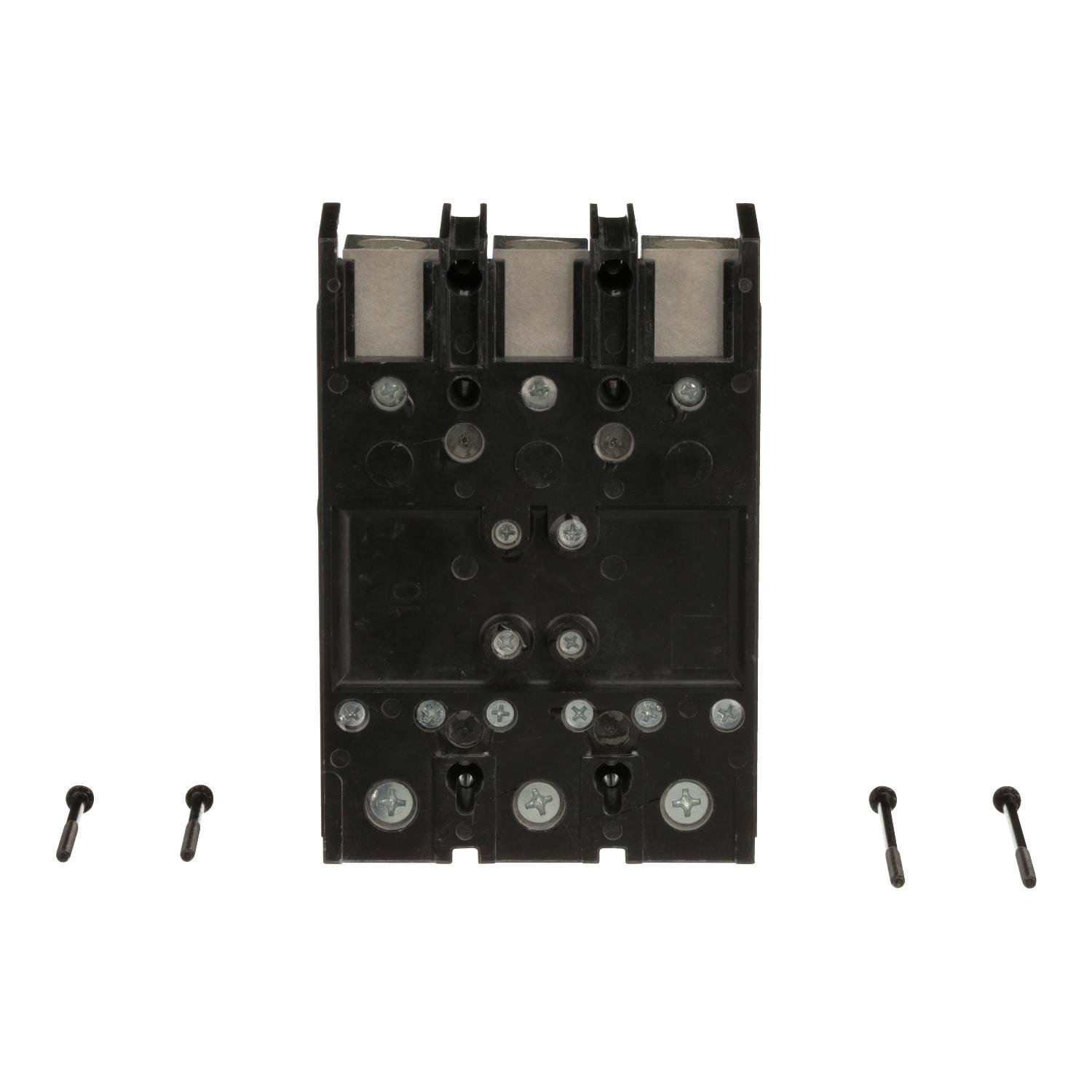

Picture of QBL32250 - Circuit breaker, PowerPacT Q, 250A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80% Picture of QBL32250 - Circuit breaker, PowerPacT Q, 250A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%
Picture of QBL32250 - Circuit breaker, PowerPacT Q, 250A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80% Picture of QBL32250 - Circuit breaker, PowerPacT Q, 250A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%
Picture of QBL32250 - Circuit breaker, PowerPacT Q, 250A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80% Picture of QBL32250 - Circuit breaker, PowerPacT Q, 250A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%
Picture of QBL32250 - Circuit breaker, PowerPacT Q, 250A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80% Picture of QBL32250 - Circuit breaker, PowerPacT Q, 250A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%
Picture of QBL32250 - Circuit breaker, PowerPacT Q, 250A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80% Picture of QBL32250 - Circuit breaker, PowerPacT Q, 250A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%
Square D™

QBL32250 - Circuit breaker, PowerPacT Q, 250A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%

Item Code: 1806279
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QBL32250

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 250A, 3 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Specifications

Weight

4.73

Width

6.04

Length

9.71

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/qbl32070/qbl32070.spin

AD All Features

Available in 2 or 3 pole design

AD Alternative Part Number

8083461

AD Application

Switching On AC System, Overload and Short Circuit Protection Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901907237

AD Gtin

00785901907237

AD IDEA Index ID

8083461

AD Invoice Description

BREAKER CKT CASE MLD 240VAC 250A 10KA

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Common accessories across the range

AD Item Features 03

Confidence and power reliability

AD Keywords

PowerPact Q QBL32250 Molded Case Circuit Breaker, 240 V AC, 250 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; QBL32250 ; QBL32250 ; 785901907237 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

9.7100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

4.7300

AD Package Weight UOM

LB

AD Package Width

6.0400

AD Package Width UOM

IN

AD Part Number Keywords

QBL32250 ; 8083461 ; 785901907237 ; 78590190723 ; 00785901907237 ; 0785901907237

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

250

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-13 To 158

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

1200 to 2400

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

240

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

4 AWG to 300 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

3.93 in L x 4.5 in W x 6.47 in H

Spec 4 Attribute

Frame

Spec 4 Attribute Value

Q

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

10

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Unit

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
