Square D

QBP22100TM - Circuit breaker, PowerPacT Q, 100A, 2 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, bottom of panel

Category Thermal Magnetic Trip Molded Case Circuit Breakers

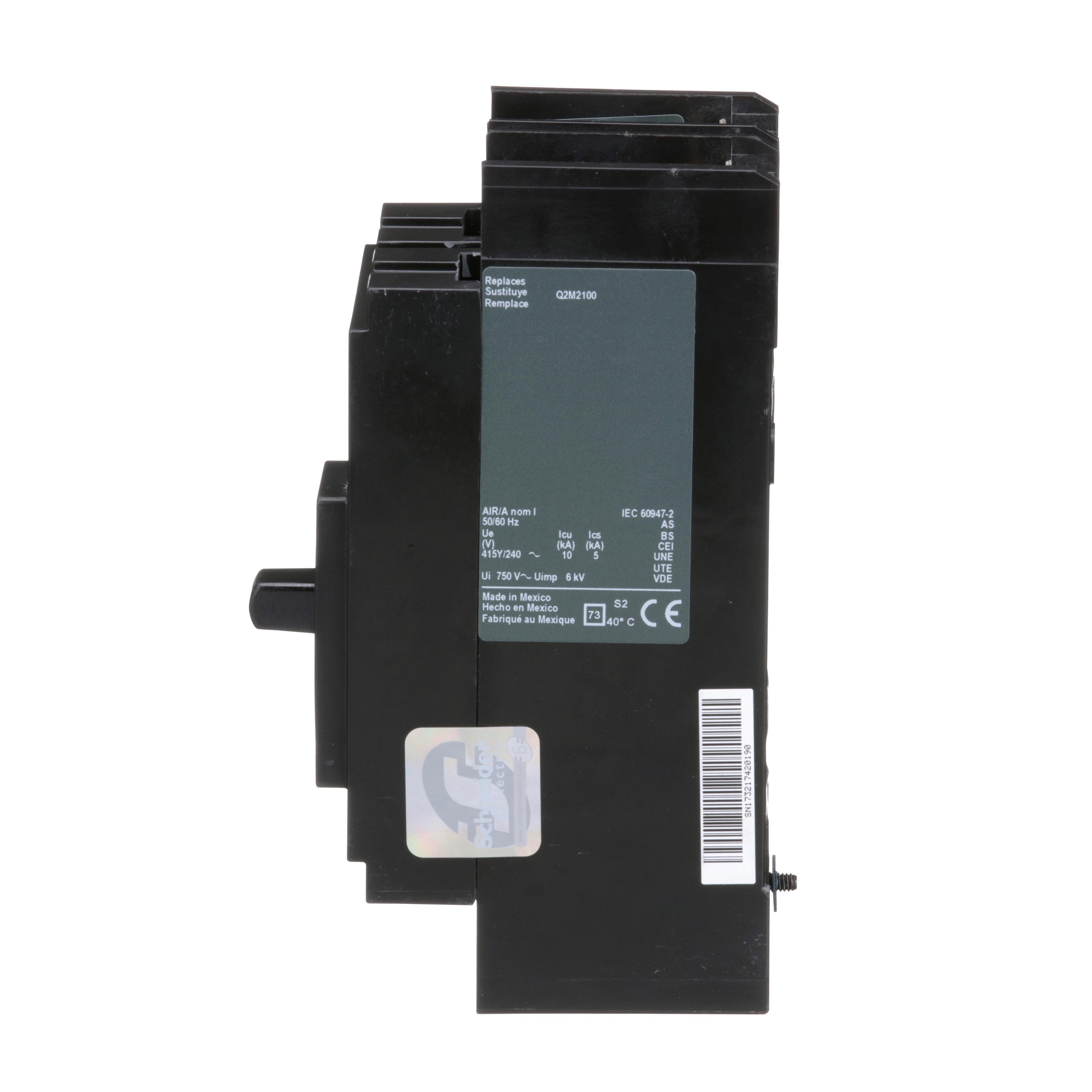

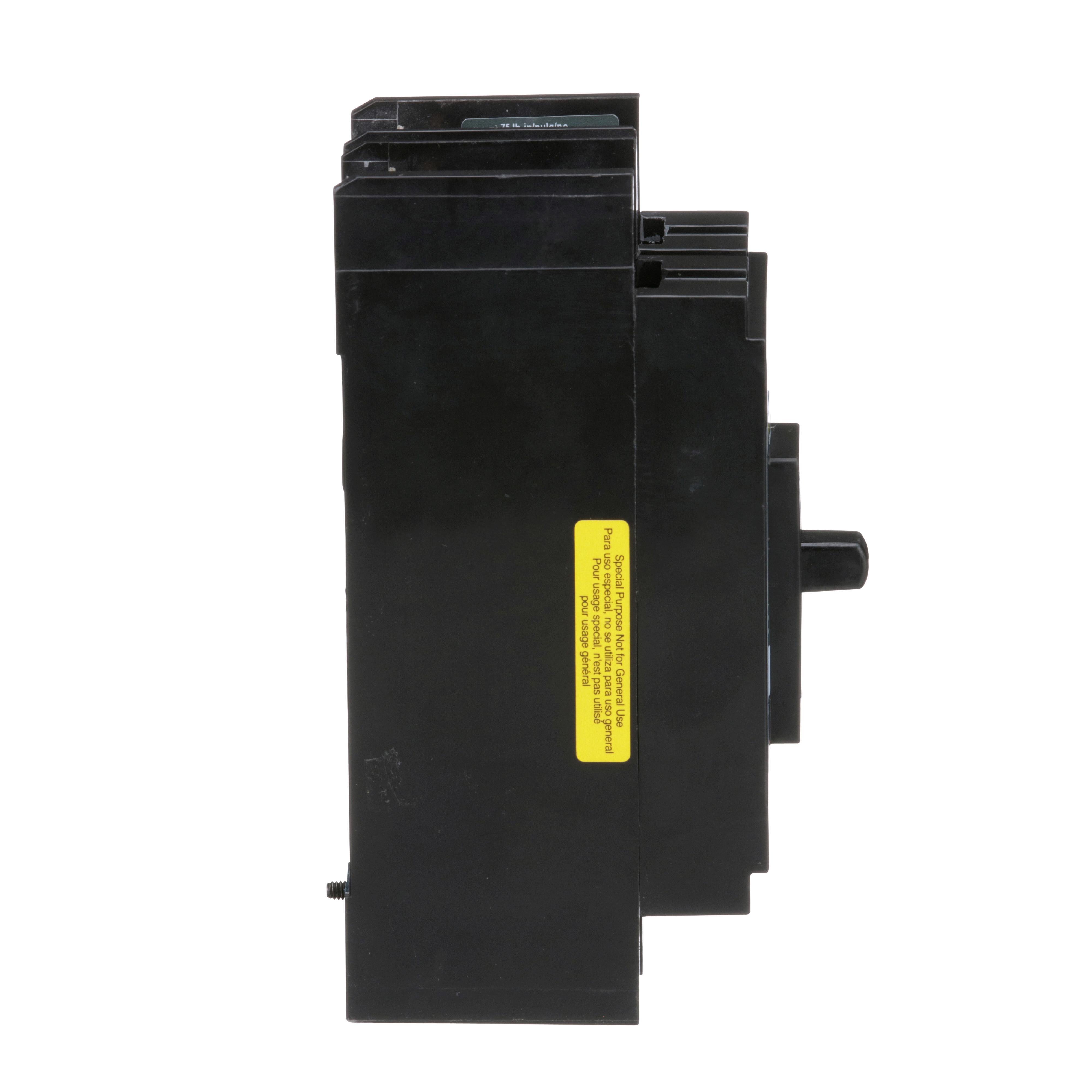

Picture of QBP22100TM - Circuit breaker, PowerPacT Q, 100A, 2 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QBP22100TM - Circuit breaker, PowerPacT Q, 100A, 2 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, bottom of panel
Picture of QBP22100TM - Circuit breaker, PowerPacT Q, 100A, 2 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QBP22100TM - Circuit breaker, PowerPacT Q, 100A, 2 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, bottom of panel
Picture of QBP22100TM - Circuit breaker, PowerPacT Q, 100A, 2 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QBP22100TM - Circuit breaker, PowerPacT Q, 100A, 2 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, bottom of panel
Picture of QBP22100TM - Circuit breaker, PowerPacT Q, 100A, 2 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QBP22100TM - Circuit breaker, PowerPacT Q, 100A, 2 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, bottom of panel
Square D

QBP22100TM - Circuit breaker, PowerPacT Q, 100A, 2 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%, bottom of panel

Item Code: 40800
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QBP22100TM

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has terminal nuts on the line side and lugs on the load side. It has studs on line end with nuts and washers. This PowerPacT Q, 100A, 2 pole, circuit breaker has an interrupting rating of 10kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Specifications

Weight

3.26lb

Height

6.47mm

Width

6.04mm

Length

9.91mm

Depth

3.93mm

AD All Features

Available in 2 or 3 pole design

AD Application

For metering breakers

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER MLD CASE CKT 240VAC 100A 10KA 2

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Overcurrent protection and switching on AC systems

AD Item Features 03

Common accessories across the range

AD Item Features 04

Confidence and power reliability

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

9.9100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

3.2600

AD Package Weight UOM

LB

AD Package Width

6.0400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=BUG4UOLSYCs

Brand

Square D

Category

2 POLE STANDARD TRIP BOLT-ON CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

104

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

1200 to 2400

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type QBP

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

4 AWG to 300 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

6.47 in H x 3 in W x 3.93 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA AB1

Spec 5 Attribute

Frame

Spec 5 Attribute Value

Q

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

10

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

2

Spec 9 Attribute

Series

Spec 9 Attribute Value

QBP
