Square D

QC816D400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass

Category Residential Meter Mains

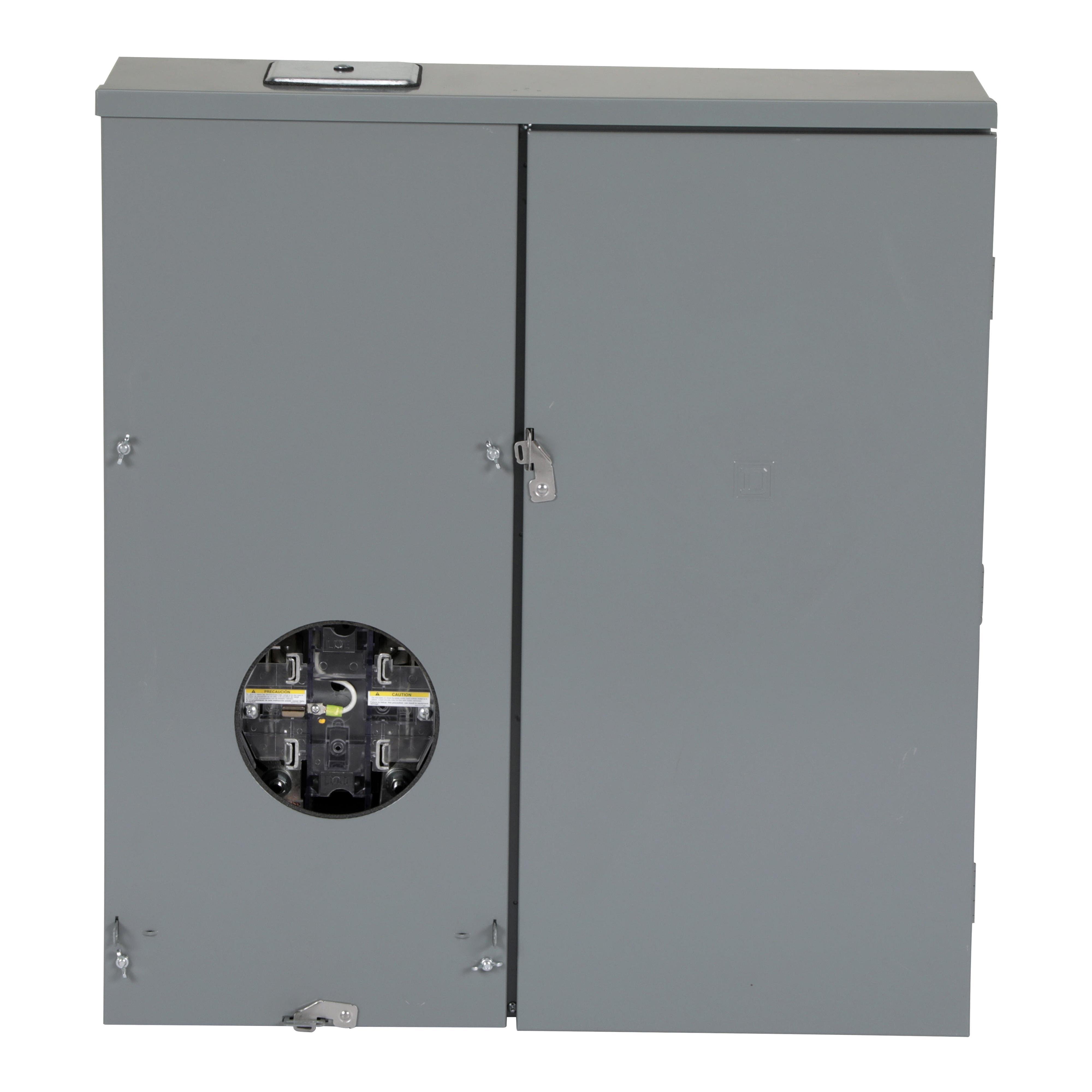

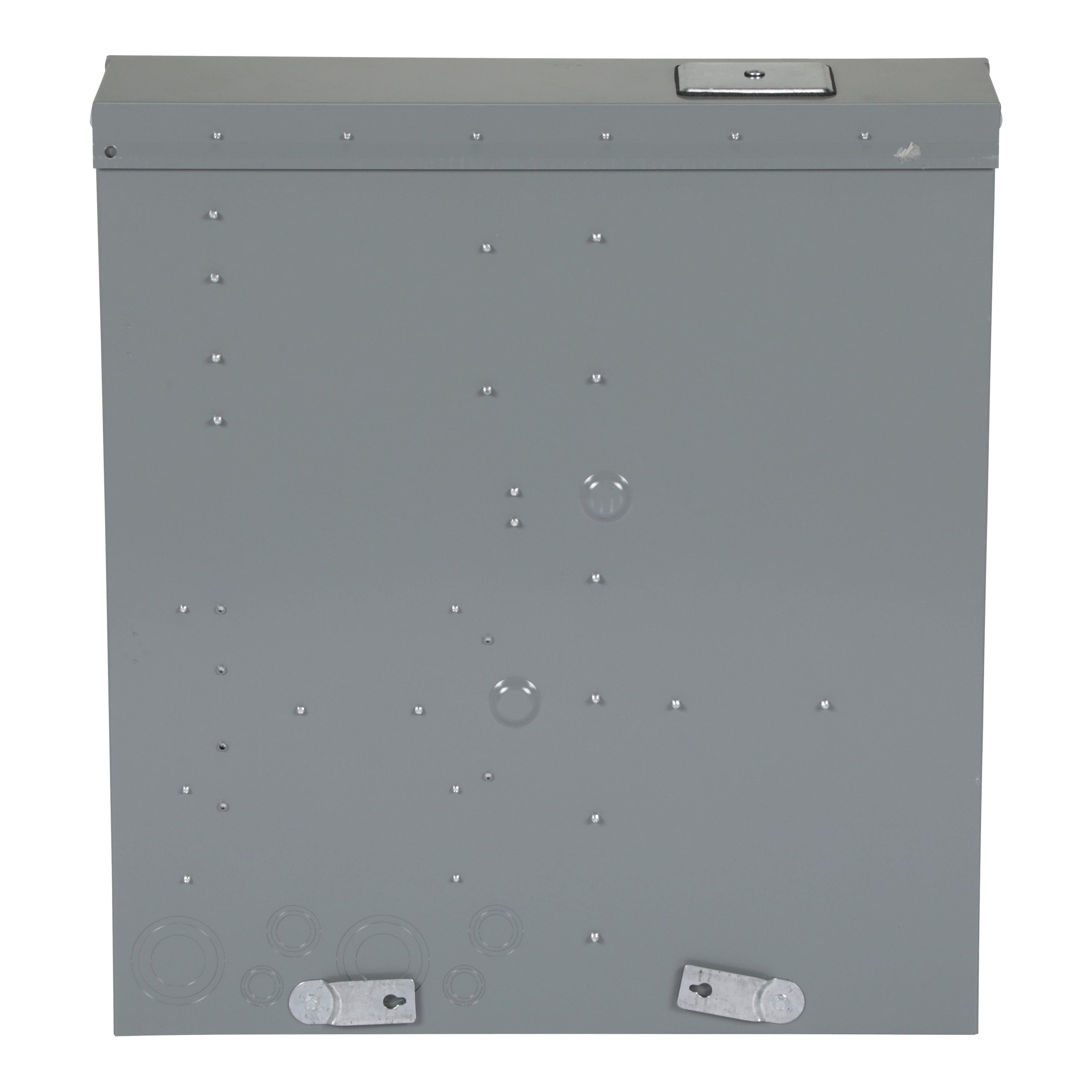

Picture of QC816D400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass Picture of QC816D400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass
Picture of QC816D400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass Picture of QC816D400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass
Picture of QC816D400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass Picture of QC816D400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass
Square D

QC816D400SL - Meter mains, QO, CSED, ringless socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 with lever bypass

Item Code: 1212909
Category Residential Meter Mains
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QC816D400SL

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ringless type, class 320 socket with lever bypass, and combination overhead/underground feed. With a current rating of 400A, this product has a short circuit current rating of 22kA. This unit is supplied with factory installed QOM2100VH main breaker. Dual main service disconnects with feedthru lugs option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.

Specifications

Weight

76.84

Height

7.9

Width

28.03

Length

30.41

AD All Features

Compatible with QO bolt on mount breakers

AD Application

For government housing, For the field installation of the service disconnect, For contractors and installers

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Circuit breaker 1) 200 A 240 V AC

AD Invoice Description

MTR SKT MTR M COMBO 400A

AD Item Features 01

Compatible with QO bolt on mount breakers

AD Item Features 02

5-jaw lever-bypass ringless meter socket

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

8-spaces, 16 circuits

AD Item Features 05

NEMA type 3R enclosure for outdoor use

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.9000

AD Package Height UOM

IN

AD Package Length

30.4100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

9251.2000

AD Package Volume UOM

cu-in

AD Package Weight

76.8400

AD Package Weight UOM

LB

AD Package Width

28.0300

AD Package Width UOM

IN

Brand

Square D

Category

RESIDENTIAL METER MAINS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

400

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

32.68 in H x 28.27 in W x 7.91 in D

Spec 3 Attribute

Feed Type

Spec 3 Attribute Value

Overhead/Underground

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

Surface

Spec 5 Attribute

Series

Spec 5 Attribute Value

QO Series

Spec 6 Attribute

Wire Size

Spec 6 Attribute UOM

kcmil

Spec 6 Attribute Value

AWG 4 to 600,1/0 to 350
