Square D

QDA32070 - Circuit breaker, PowerPacT Q, 70A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, ABC

Category Miscellaneous

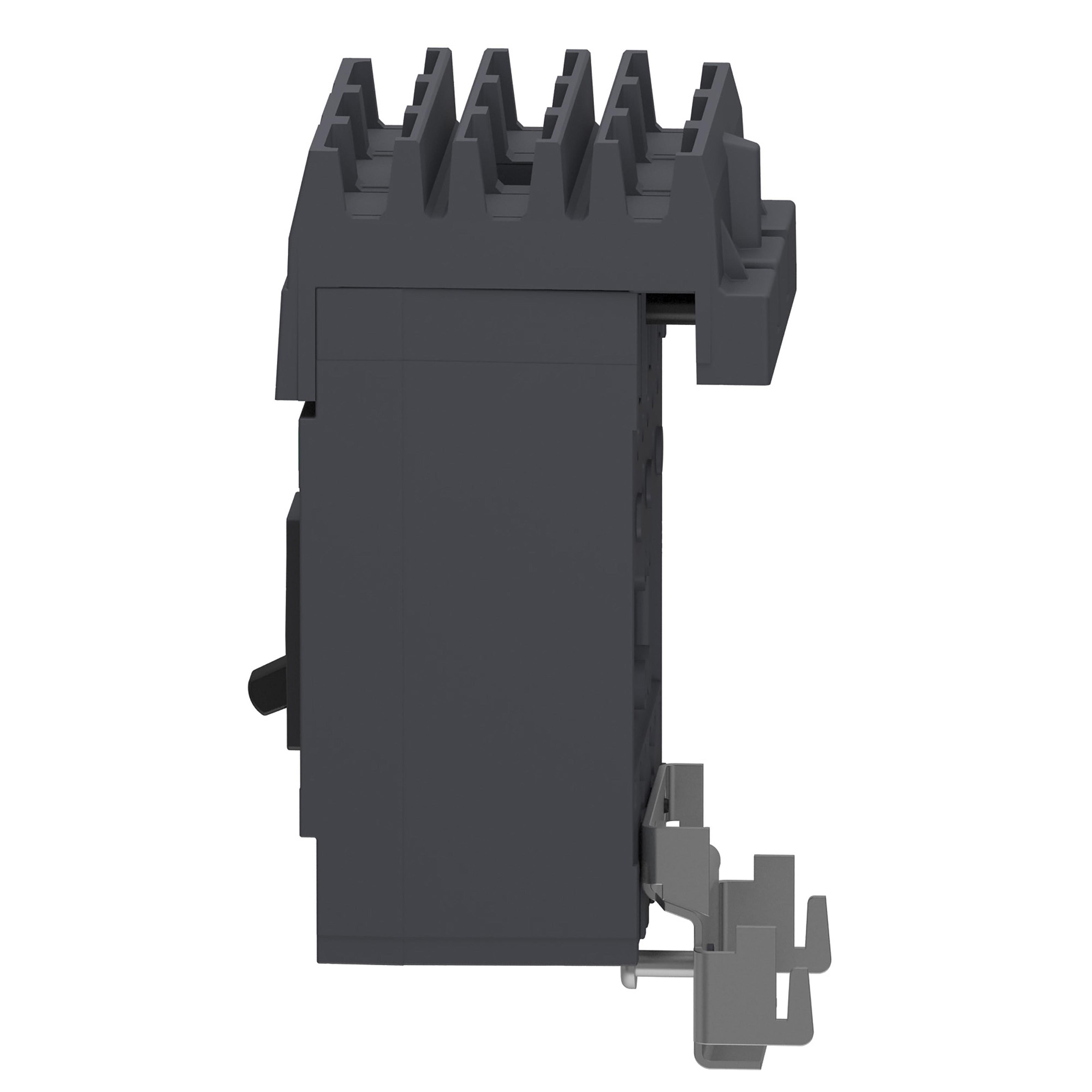

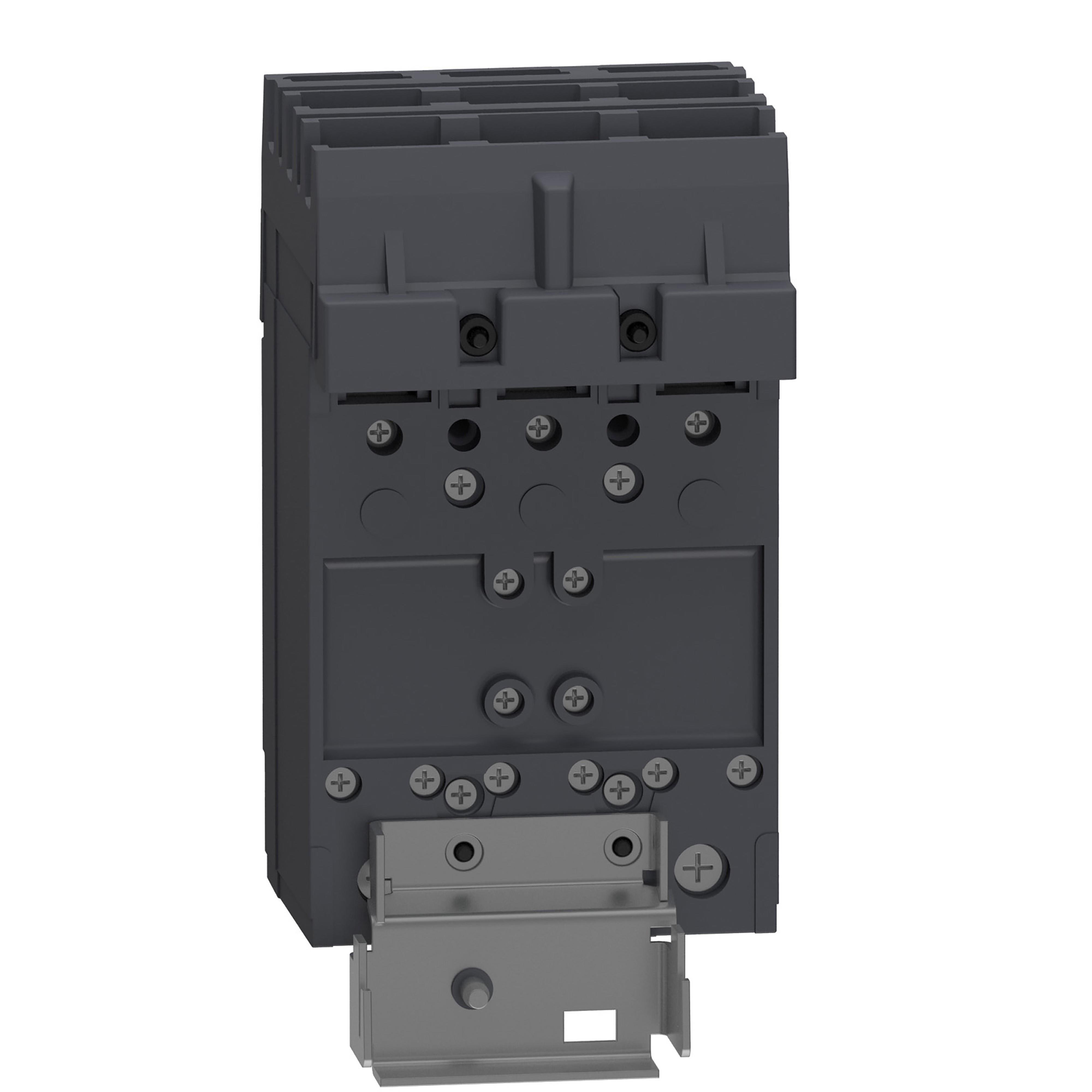

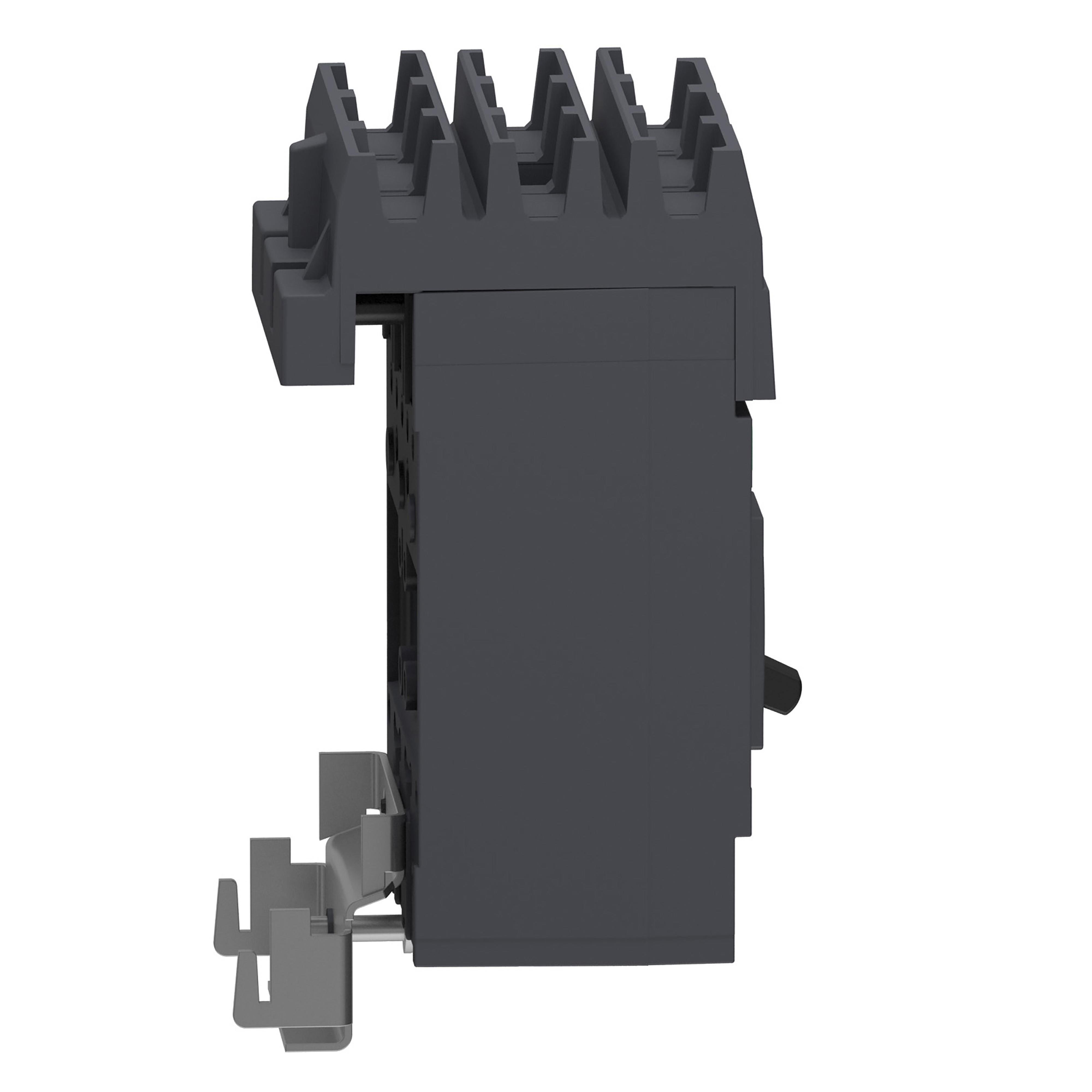

Picture of QDA32070 - Circuit breaker, PowerPacT Q, 70A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, ABC Picture of QDA32070 - Circuit breaker, PowerPacT Q, 70A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
Picture of QDA32070 - Circuit breaker, PowerPacT Q, 70A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, ABC Picture of QDA32070 - Circuit breaker, PowerPacT Q, 70A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
Picture of QDA32070 - Circuit breaker, PowerPacT Q, 70A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, ABC Picture of QDA32070 - Circuit breaker, PowerPacT Q, 70A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
Picture of QDA32070 - Circuit breaker, PowerPacT Q, 70A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, ABC Picture of QDA32070 - Circuit breaker, PowerPacT Q, 70A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
Square D

QDA32070 - Circuit breaker, PowerPacT Q, 70A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, ABC

Item Code: 597082
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QDA32070

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 70A, 3 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Specifications

Weight

6.64

Width

7.43

Length

12.2

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/qba32070/qba32070.spin

AD All Features

Available in 2 or 3 pole design

AD Alternative Part Number

9638382

AD Application

For switching on AC systems and providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901475835

AD Gtin

00785901475835

AD IDEA Index ID

9638382

AD Invoice Description

BREAKER CKT CASE MLD 240VAC 70A 25KA 3 Q

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Common accessories across the range

AD Item Features 03

Confidence and power reliability

AD Keywords

I-Line PowerPact QDA32070 Type QD Molded Case Circuit Breaker, 240 V AC, 70 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; QDA32070 ; QDA32070 ; 785901475835 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

12.2000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

6.6400

AD Package Weight UOM

LB

AD Package Width

7.4300

AD Package Width UOM

IN

AD Part Number Keywords

QDA32070 ; 9638382 ; 785901475835 ; 78590147583 ; 00785901475835 ; 0785901475835

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

104

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

1000 to 1800

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type QD

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

4 AWG to 300 kcmil Al/Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

70

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

I/ON End Shroud

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

6.47 in H x 4.5 in W x 3.93 in D

Spec 5 Attribute

Frame

Spec 5 Attribute Value

Q

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

25

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
