Square D

QDL32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%

Category Thermal Magnetic Trip Molded Case Circuit Breakers

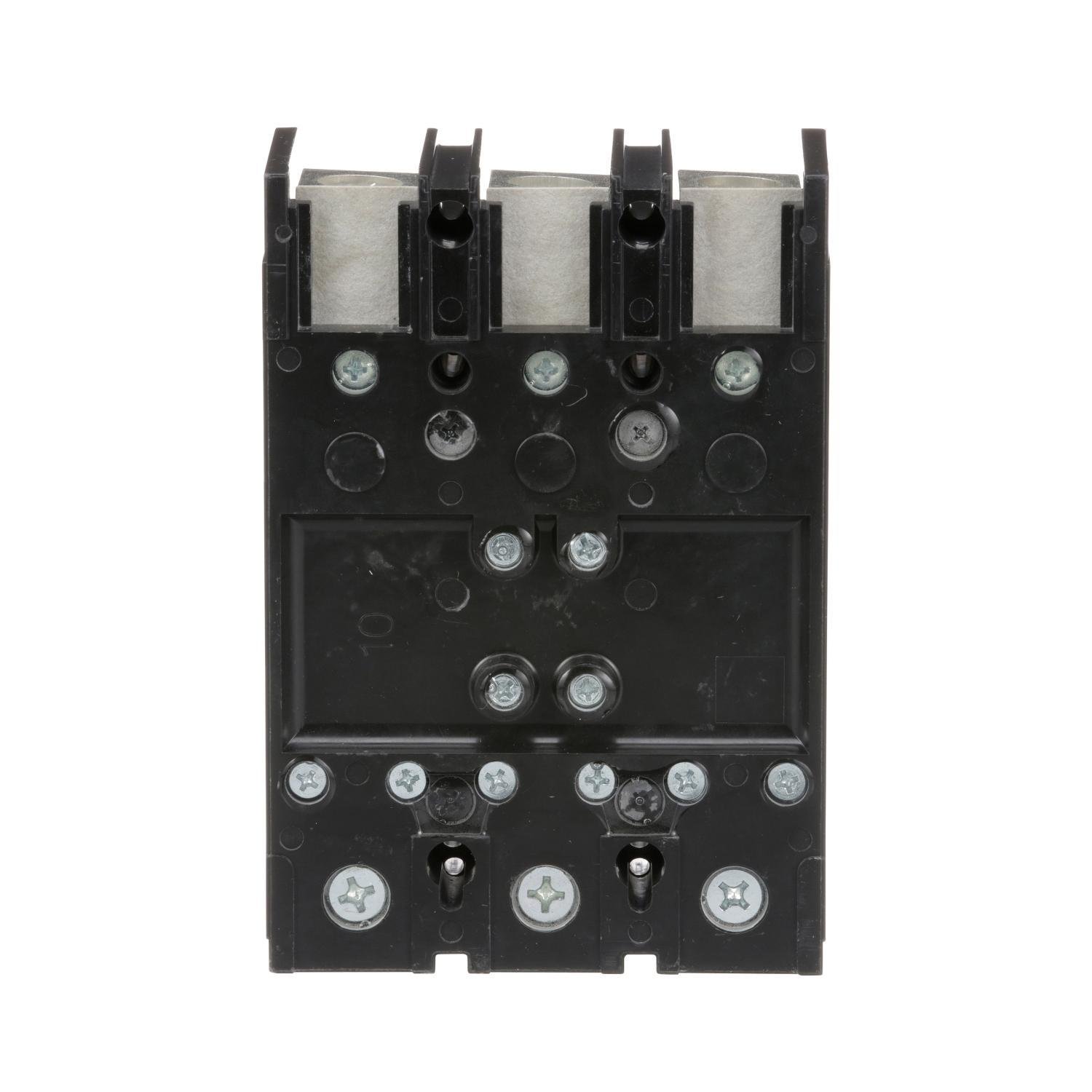

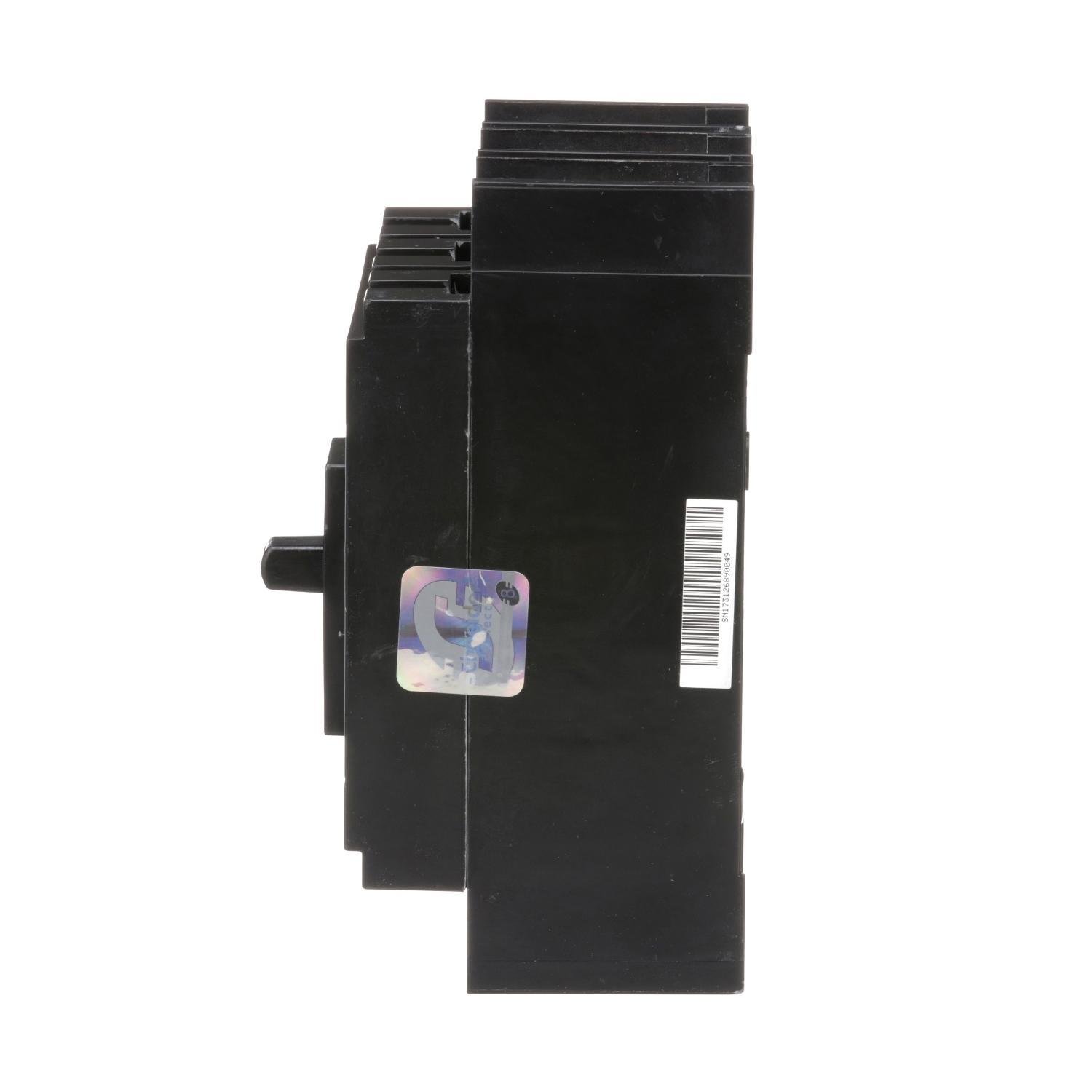

Picture of QDL32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%
Square D

QDL32100 - Circuit breaker, PowerPacT Q, 100A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%

Item Code: 33249
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QDL32100

Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 100A, 3 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Specifications

Weight

4.8lb

Height

6.47mm

Width

6.04mm

Length

9.71mm

Depth

3.93mm

Amperage Rating

100 A

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Connection Type

Line/Load Lug

Dimensions

4.5 in W x 3.93 in D x 6.47 in H

Enclosure Type

NEMA AB1

Frame

Q

Frequency Rating

50/60 Hz

Interrupt Rating

25 kA

Number Of Poles

3

Phase

3

Temperature Rating

-13 to 158 deg f

Trip Range

1200 to 2400 A

Trip Type

Thermal Magnetic

Voltage Rating

240 V AC

Wire Size

4 AWG to 300 kcmil Al/Cu
