Square D

QDL32175 - Circuit breaker, PowerPacT Q, 175A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%

Category Miscellaneous

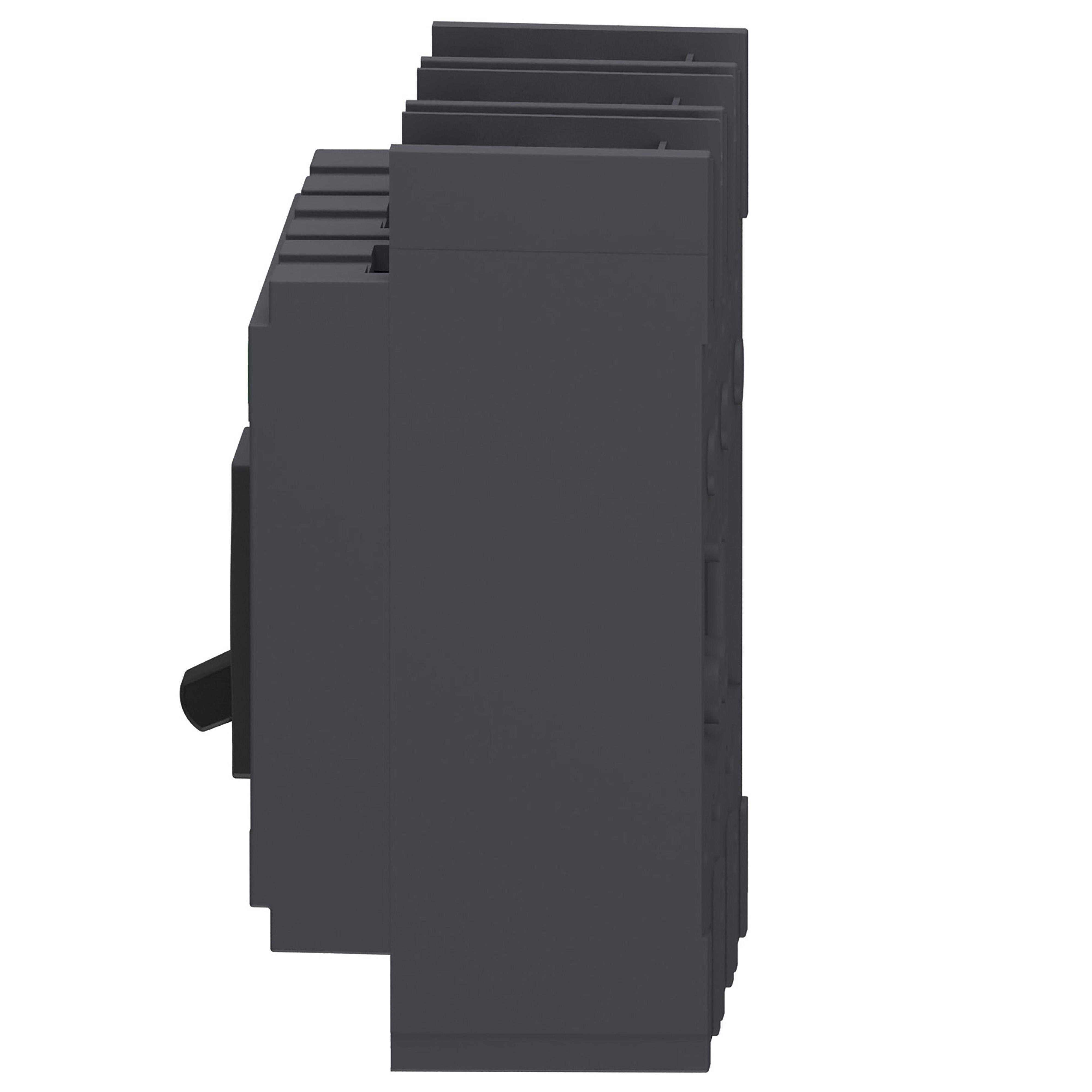

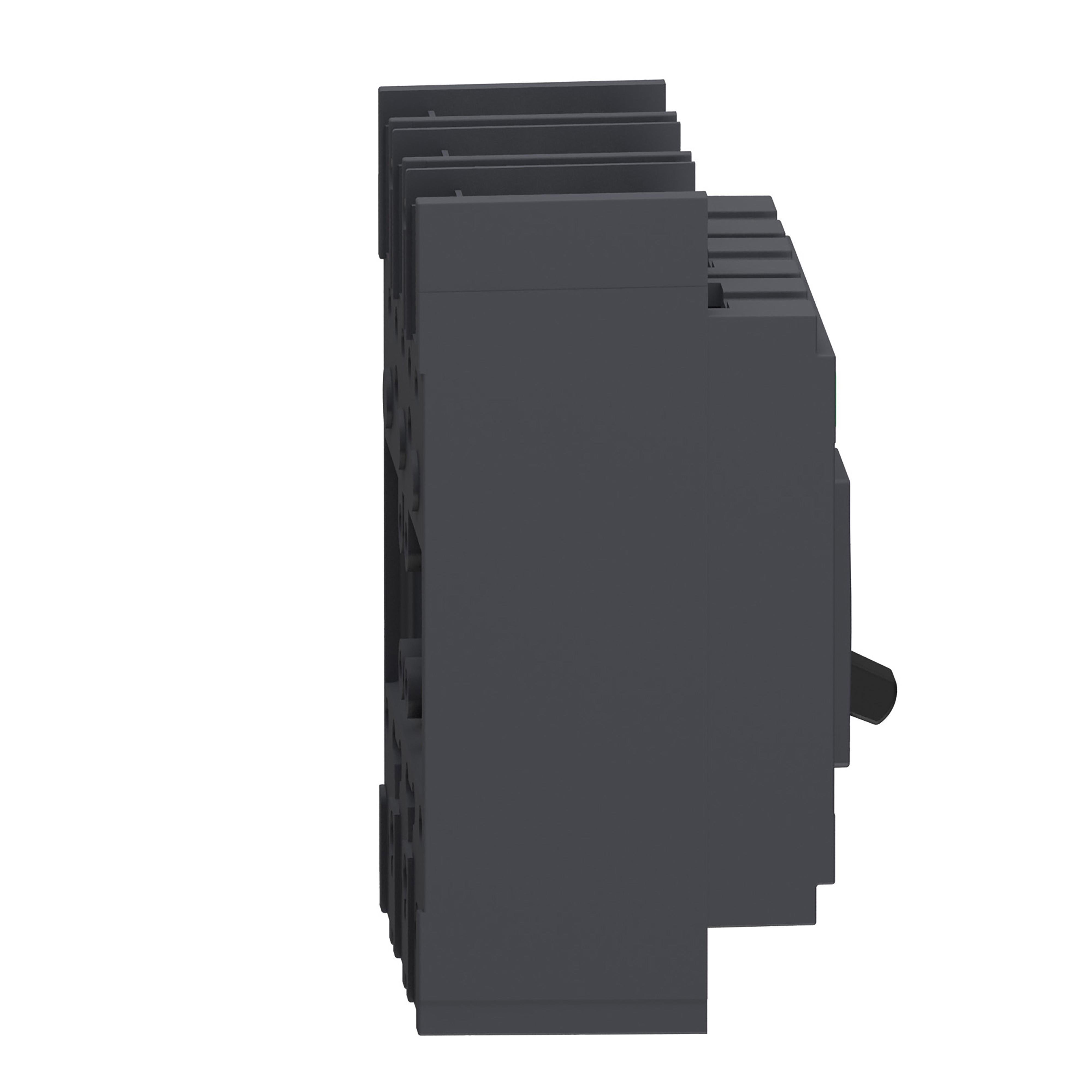

Picture of QDL32175 - Circuit breaker, PowerPacT Q, 175A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80% Picture of QDL32175 - Circuit breaker, PowerPacT Q, 175A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%
Picture of QDL32175 - Circuit breaker, PowerPacT Q, 175A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80% Picture of QDL32175 - Circuit breaker, PowerPacT Q, 175A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%
Picture of QDL32175 - Circuit breaker, PowerPacT Q, 175A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80% Picture of QDL32175 - Circuit breaker, PowerPacT Q, 175A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%
Square D

QDL32175 - Circuit breaker, PowerPacT Q, 175A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%

Item Code: 543470
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QDL32175

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 175A, 3 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Specifications

Weight

4.73

Height

6.2

Width

6.12

Length

9.79

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/qbl32070/qbl32070.spin

AD All Features

Available in 2 or 3 pole design

AD Alternative Part Number

8080856

AD Application

For switching on AC systems and providing overload and short circuit protection applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901523062

AD Gtin

00785901523062

AD IDEA Index ID

8080856

AD Invoice Description

BREAKER CKT CASE MLD 240VAC 175A 25KA

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Common accessories across the range

AD Item Features 03

Confidence and power reliability

AD Keywords

PowerPact Q QDL32175 Type QD Molded Case Circuit Breaker, 240 V AC, 175 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; QDL32175 ; QDL32175 ; 785901523062 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.2000

AD Package Height UOM

IN

AD Package Length

9.7900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

360.8400

AD Package Volume UOM

cu-in

AD Package Weight

4.7300

AD Package Weight UOM

LB

AD Package Width

6.1200

AD Package Width UOM

IN

AD Part Number Keywords

QDL32175 ; 8080856 ; 785901523062 ; 78590152306 ; 00785901523062 ; 0785901523062

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

104

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

A

Spec 12 Attribute Value

1200 to 2400

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Thermal Magnetic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type QD

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

240

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

4 AWG to 300 kcmil

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

175

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

3.93 in L x 4.5 in W x 6.47 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

QD

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

25

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Unit

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
