Square D

QDP22150TM - Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel

Category Miscellaneous

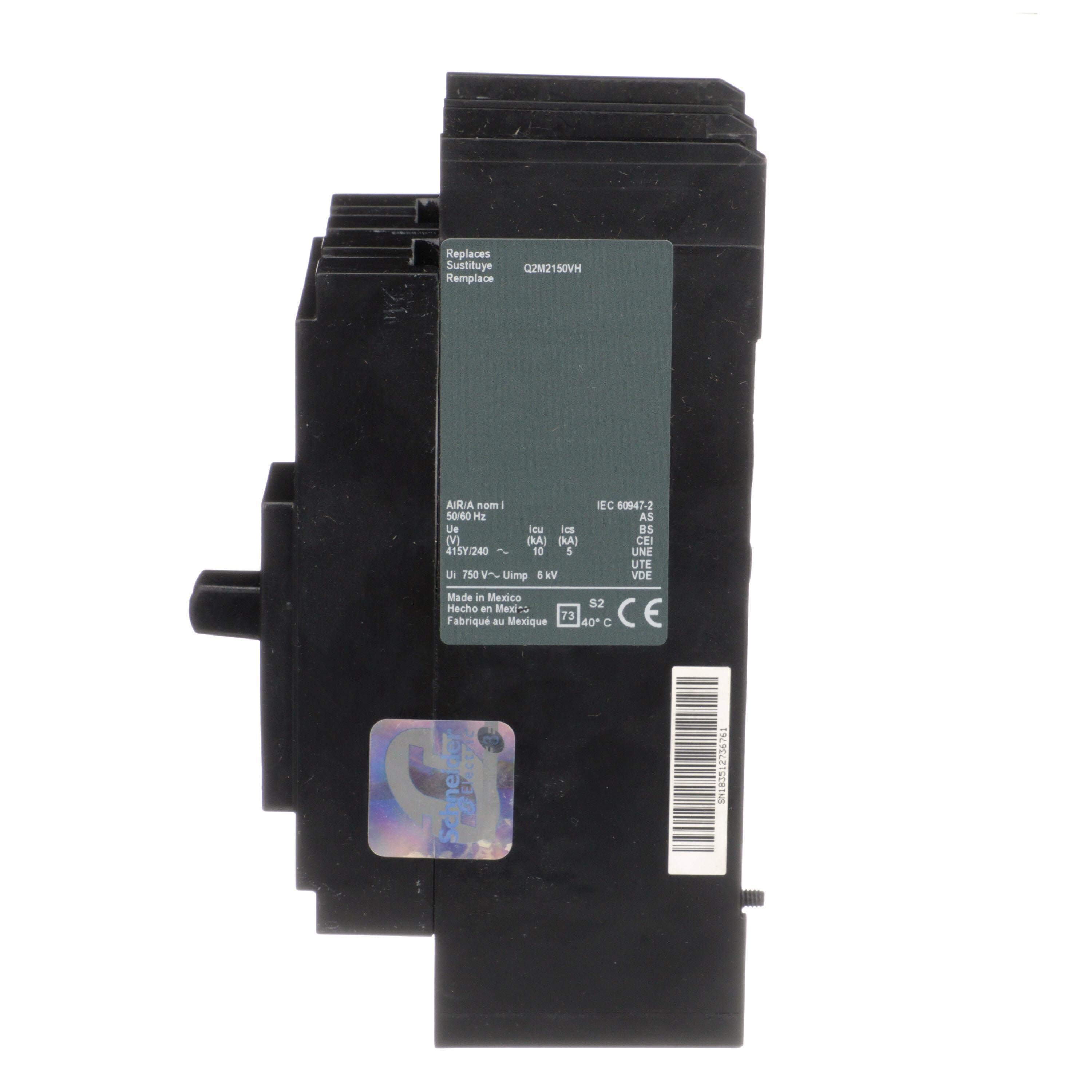

Picture of QDP22150TM - Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QDP22150TM - Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel

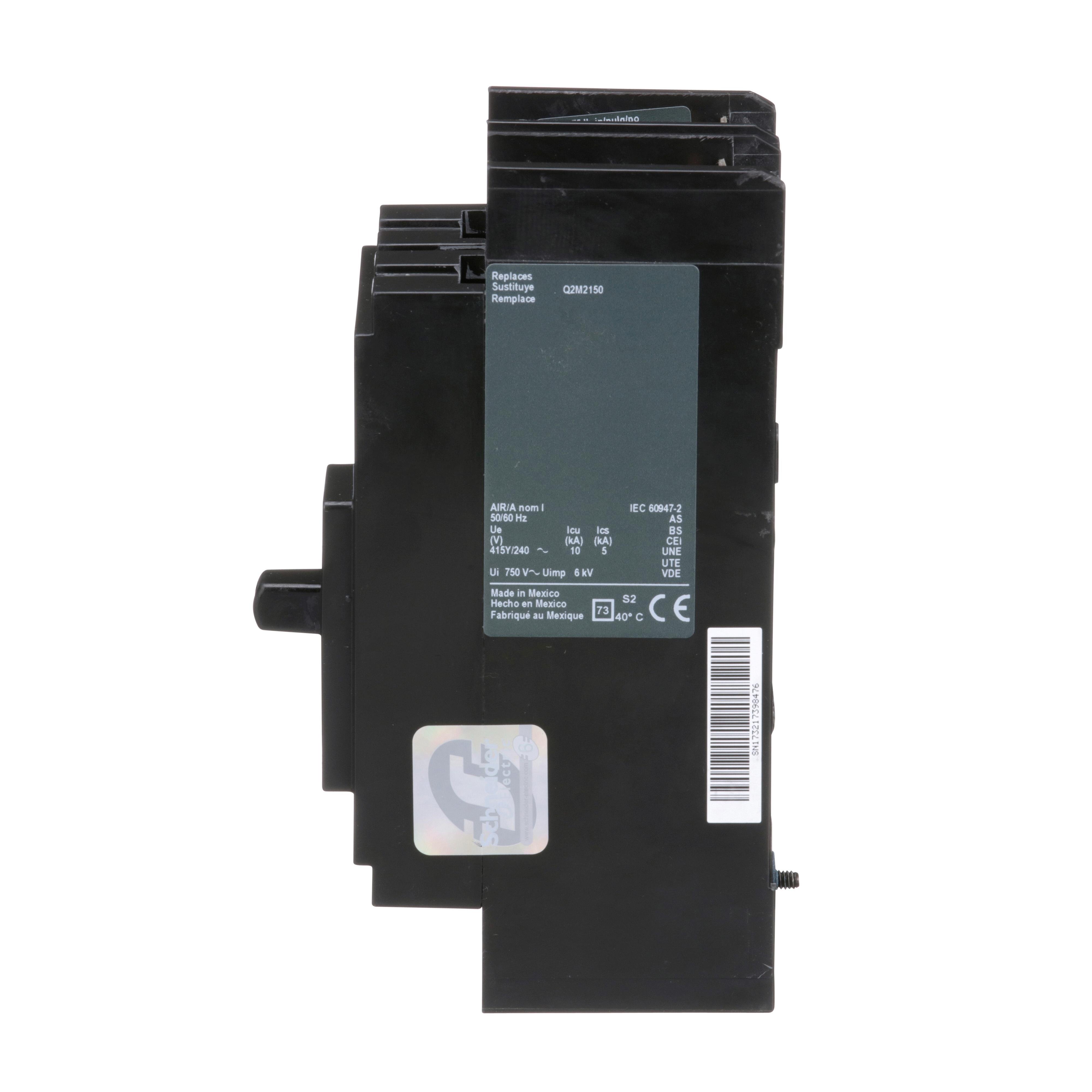

Picture of QDP22150TM - Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QDP22150TM - Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel

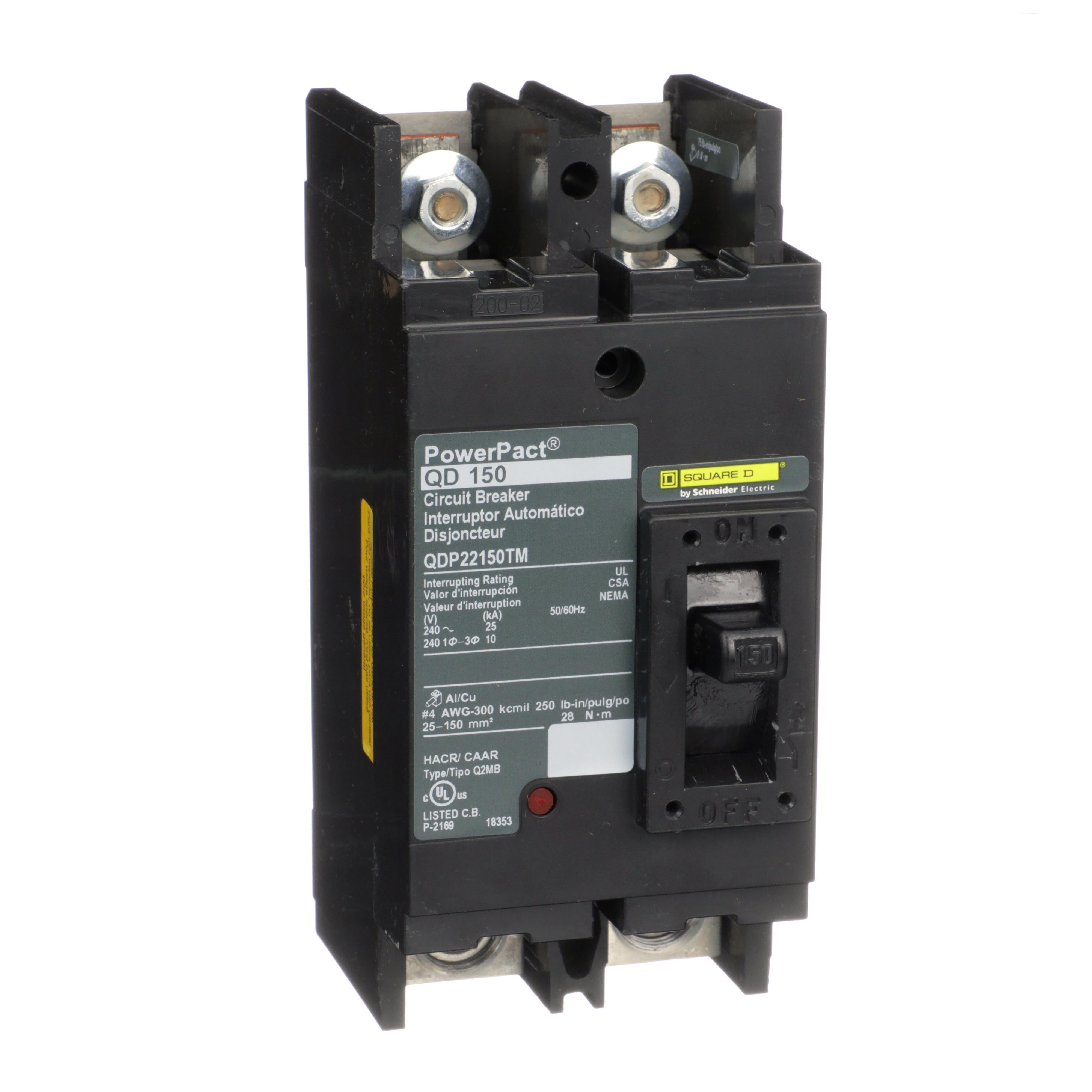

Picture of QDP22150TM - Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QDP22150TM - Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel
Picture of QDP22150TM - Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QDP22150TM - Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel

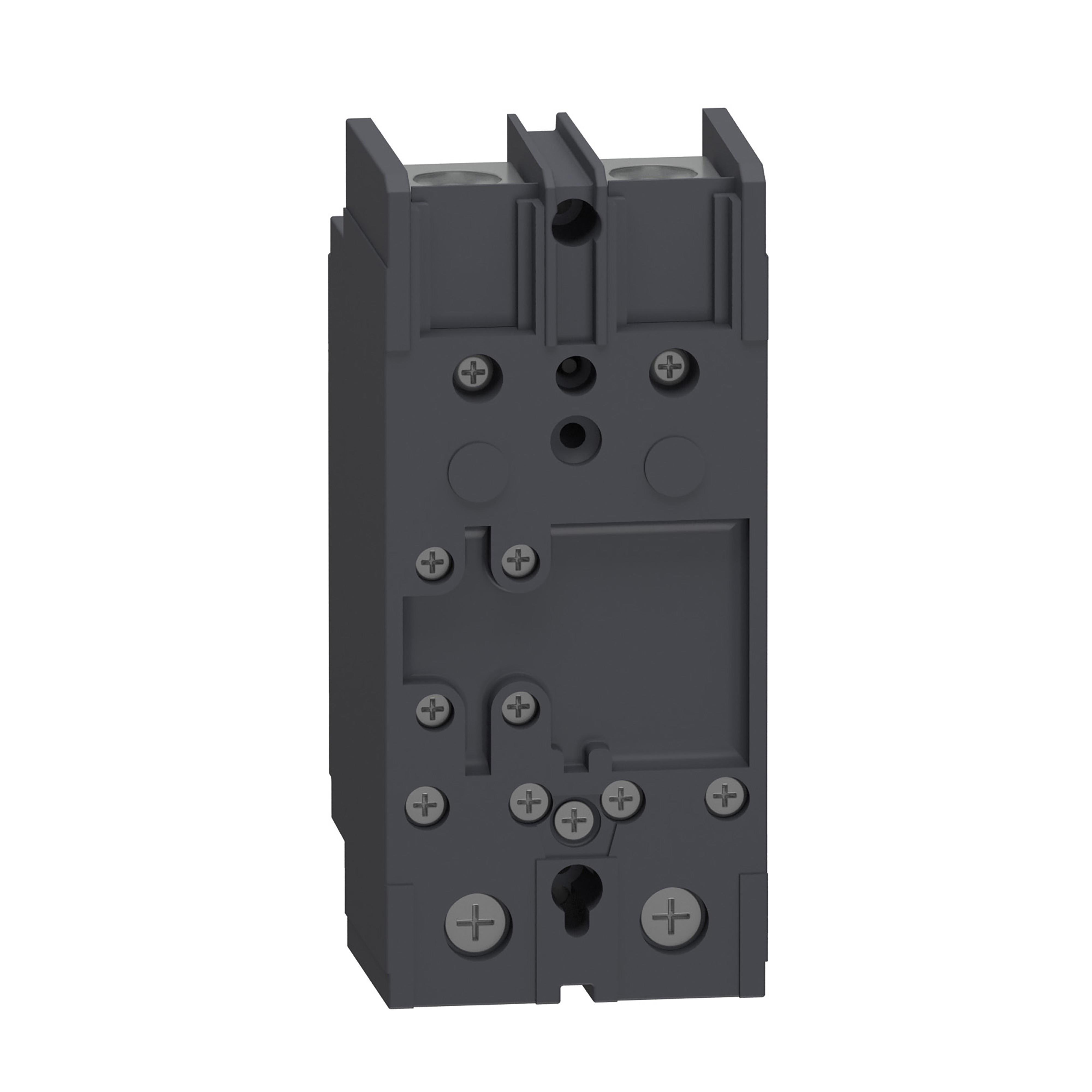

Picture of QDP22150TM - Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QDP22150TM - Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel
Square D

QDP22150TM - Circuit breaker, PowerPacT Q, 150A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel

Item Code: 1700125
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QDP22150TM

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has terminal nuts on the line side and lugs on the load side. It has studs on line end with nuts and washers. This PowerPacT Q, 150A, 2 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Specifications

Weight

3.24

Height

5.5

Width

6.84

Length

8.12

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/qbf22100ts/qbf22100ts.spin

AD All Features

Available in 2 or 3 pole design

AD Alternative Part Number

8128909

AD Application

Metering Breakers, Overcurrent Protection and Switching on AC Systems

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD Document Caption 3

Technical Bulletin

AD EAN

0785901662396

AD Gtin

00785901662396

AD IDEA Index ID

8128909

AD Invoice Description

BREAKER MLD CASE CKT 240VAC 150A 25KA 2

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Common accessories across the range

AD Item Features 03

Confidence and power reliability

AD Keywords

PowerPact Q QDP22150TM Type QDP Molded Case Circuit Breaker, 240 V AC, 150 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; QDP22150TM ; QDP22150TM ; 785901662396 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.5000

AD Package Height UOM

IN

AD Package Length

8.1200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

311.1900

AD Package Volume UOM

cu-in

AD Package Weight

3.2400

AD Package Weight UOM

LB

AD Package Width

6.8400

AD Package Width UOM

IN

AD Part Number Keywords

QDP22150TM ; 8128909 ; 785901662396 ; 78590166239 ; 00785901662396 ; 0785901662396

Brand

Square D

Category

Miscellaneous

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

104

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

1200 to 2400

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type QDP

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

4 AWG to 300 kcmil Aluminum/Copper

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

150

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

O/OFF End Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

3 in W x 3.93 in D x 6.47 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

D

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

25

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

2

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
