Square D

QDP22200TM - Circuit breaker, PowerPacT Q, 200A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel

Category Thermal Magnetic Trip Molded Case Circuit Breakers

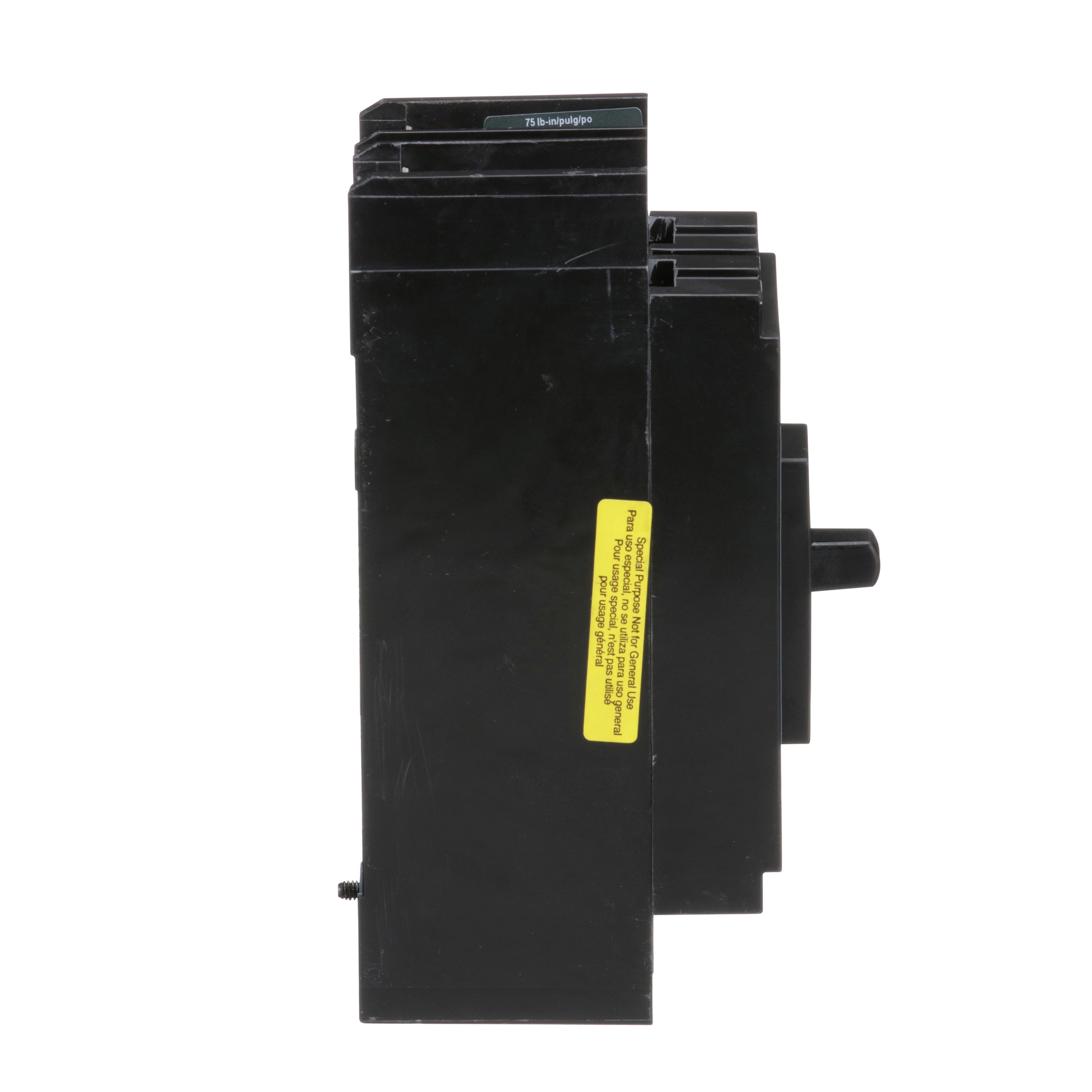

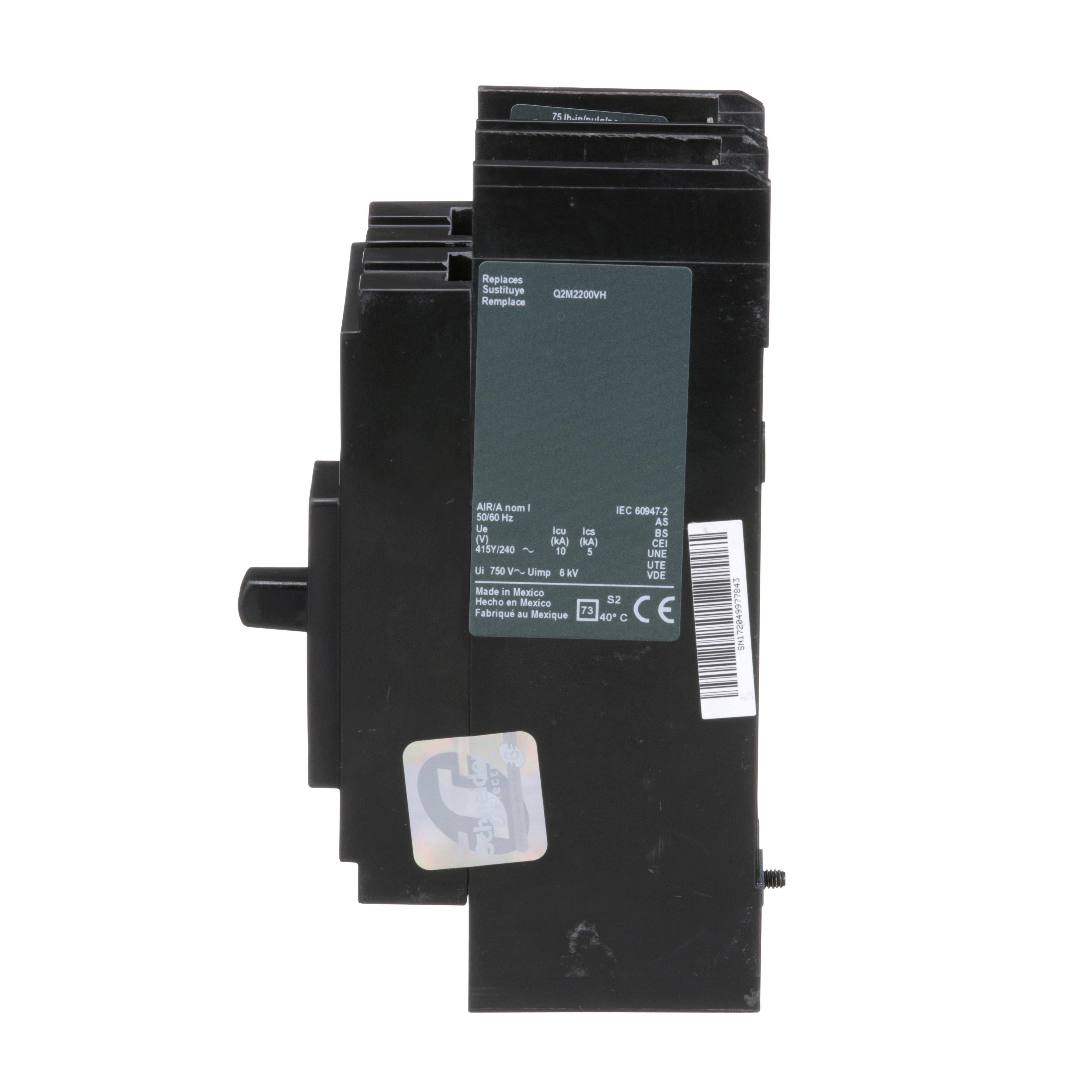

Picture of QDP22200TM - Circuit breaker, PowerPacT Q, 200A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel
Square D

QDP22200TM - Circuit breaker, PowerPacT Q, 200A, 2 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%, bottom of panel

Item Code: 33251
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QDP22200TM

Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has terminal nuts on the line side and lugs on the load side. It has studs on line end with nuts and washers. This PowerPacT Q, 200A, 2 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Specifications

Weight

3.28lb

Height

6.47mm

Width

6.93mm

Length

9.91mm

Depth

3.93mm

Amperage Rating

200 A

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Connection Type

Load Lug

Dimensions

3 in W x 3.93 in D x 6.47 in H

Frame

D

Frequency Rating

50/60 Hz

Interrupt Rating

25 kA

Mounting Type

Bolted-On

Number Of Poles

2

Series

QDP

Trip Range

1200 to 2400 A

Trip Type

Thermal Magnetic

Type

Type QDP

Voltage Rating

240 V AC

Wire Size

4 AWG to 300 kcmil
