Square D

QGA221252 - Circuit breaker, PowerPacT Q, 125A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC

Category Miscellaneous

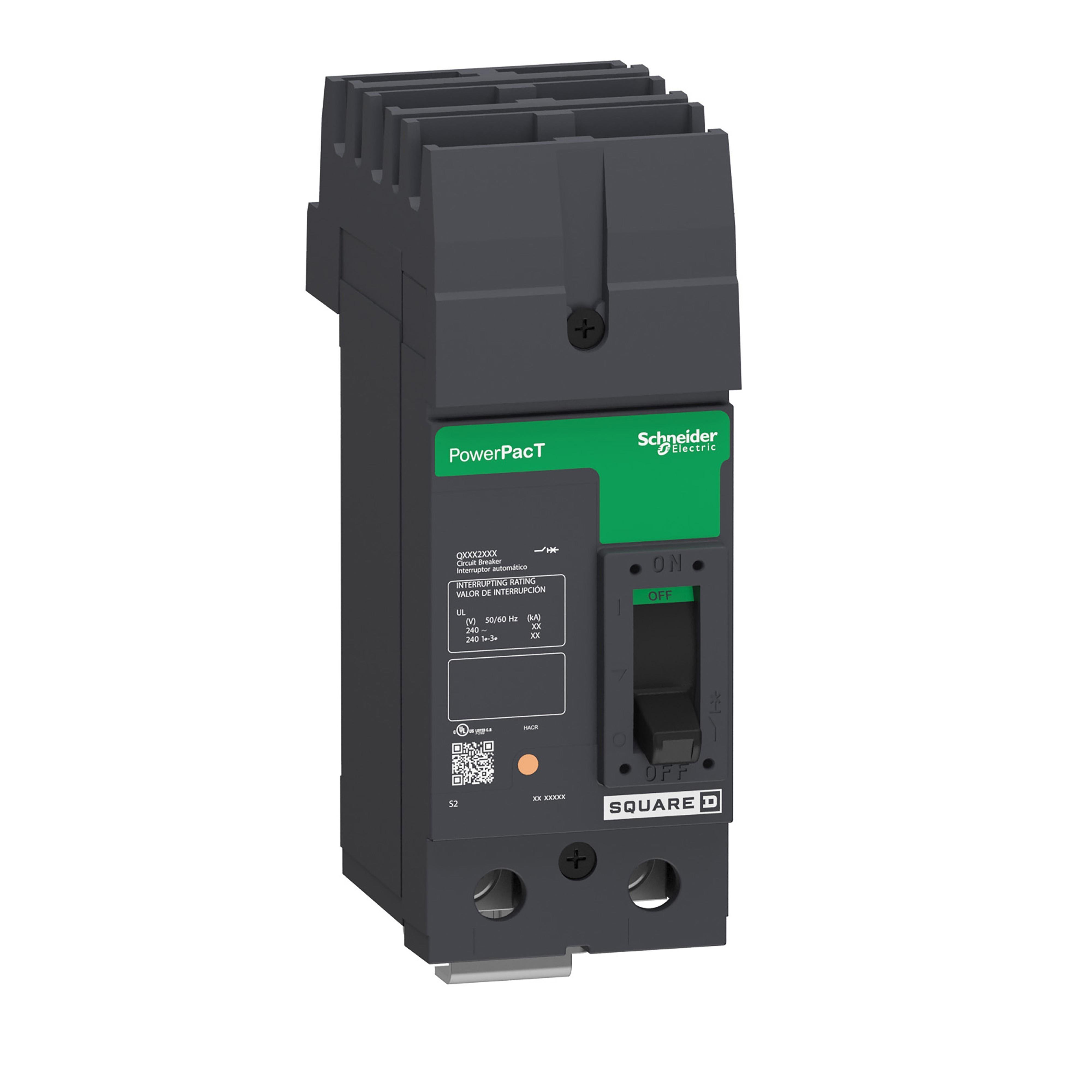

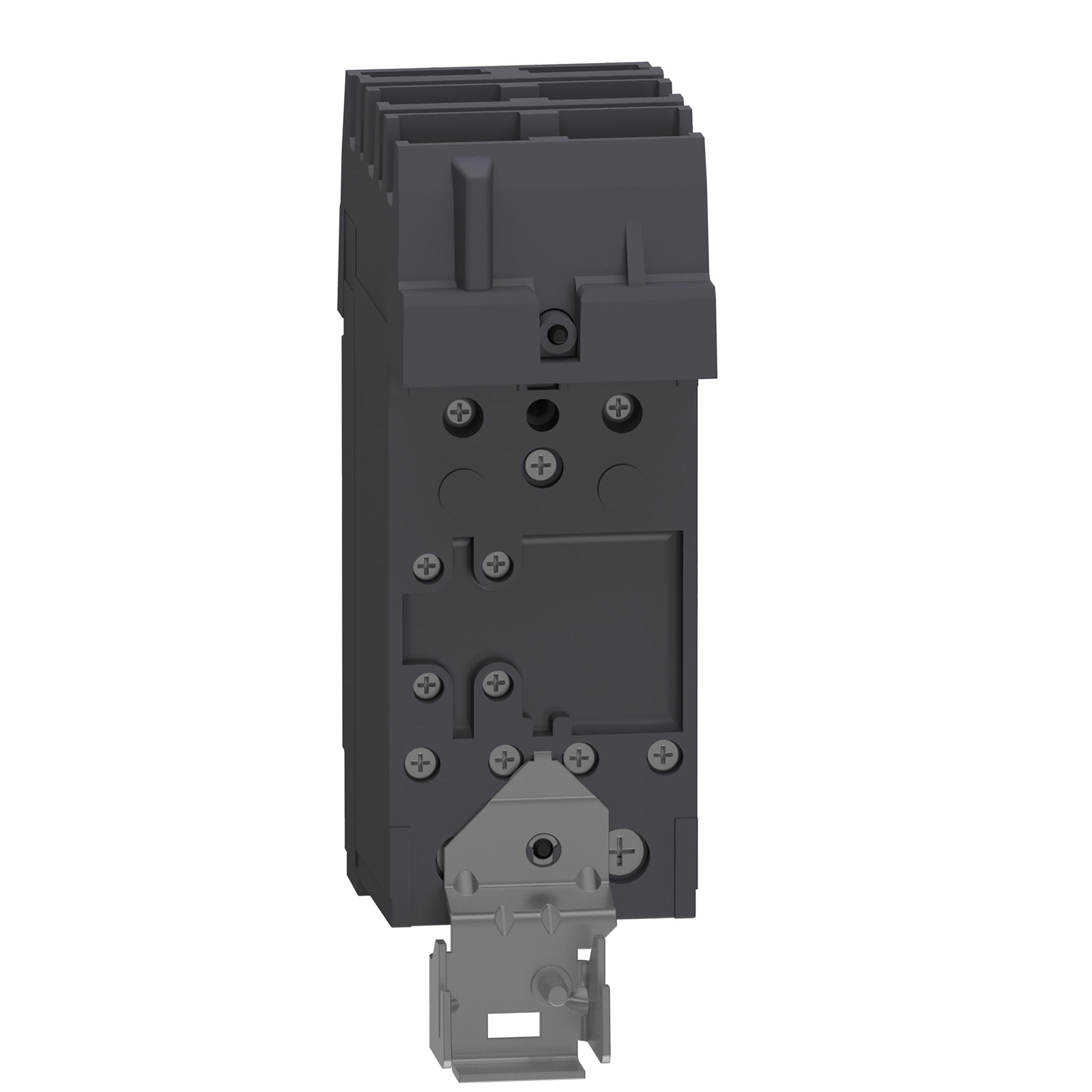

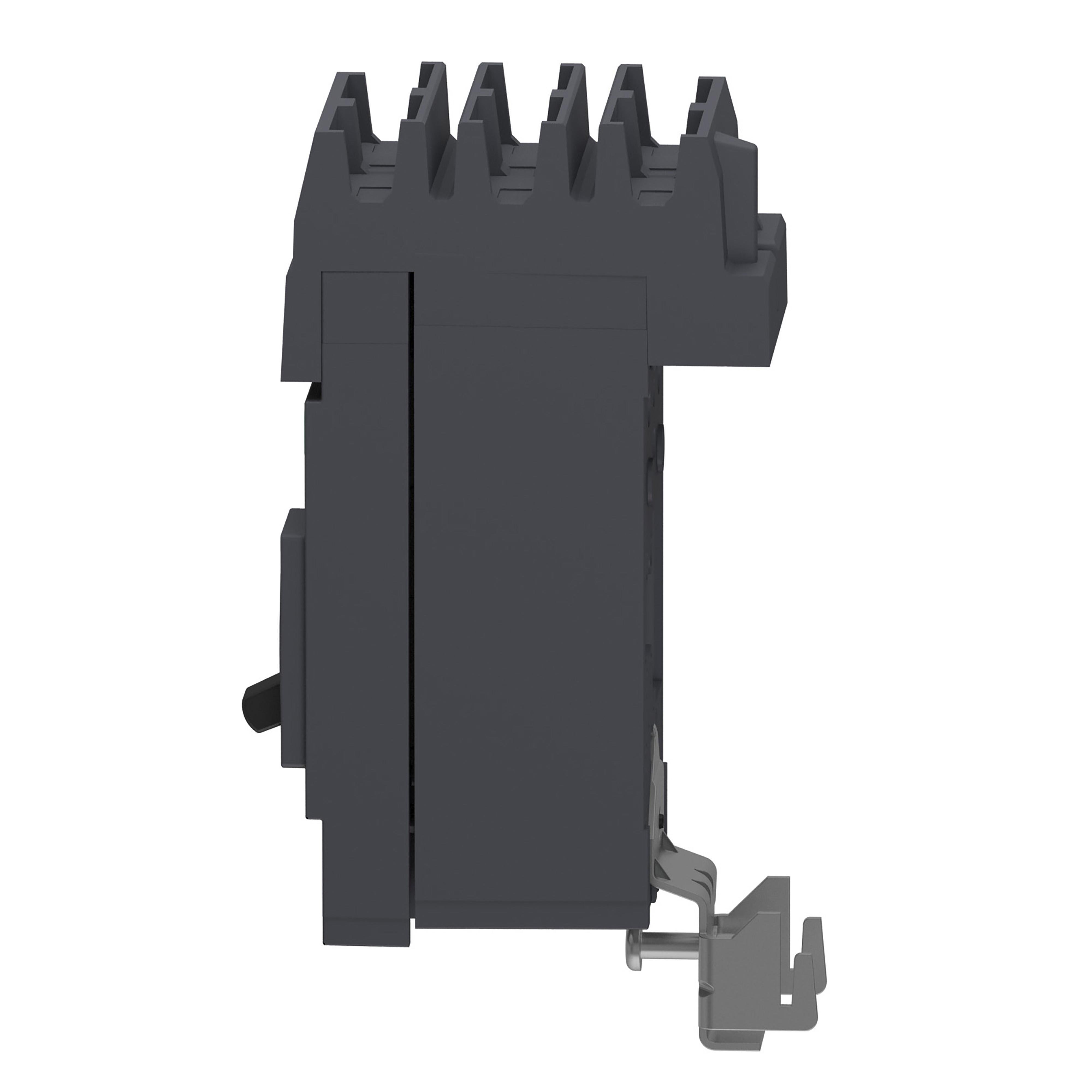

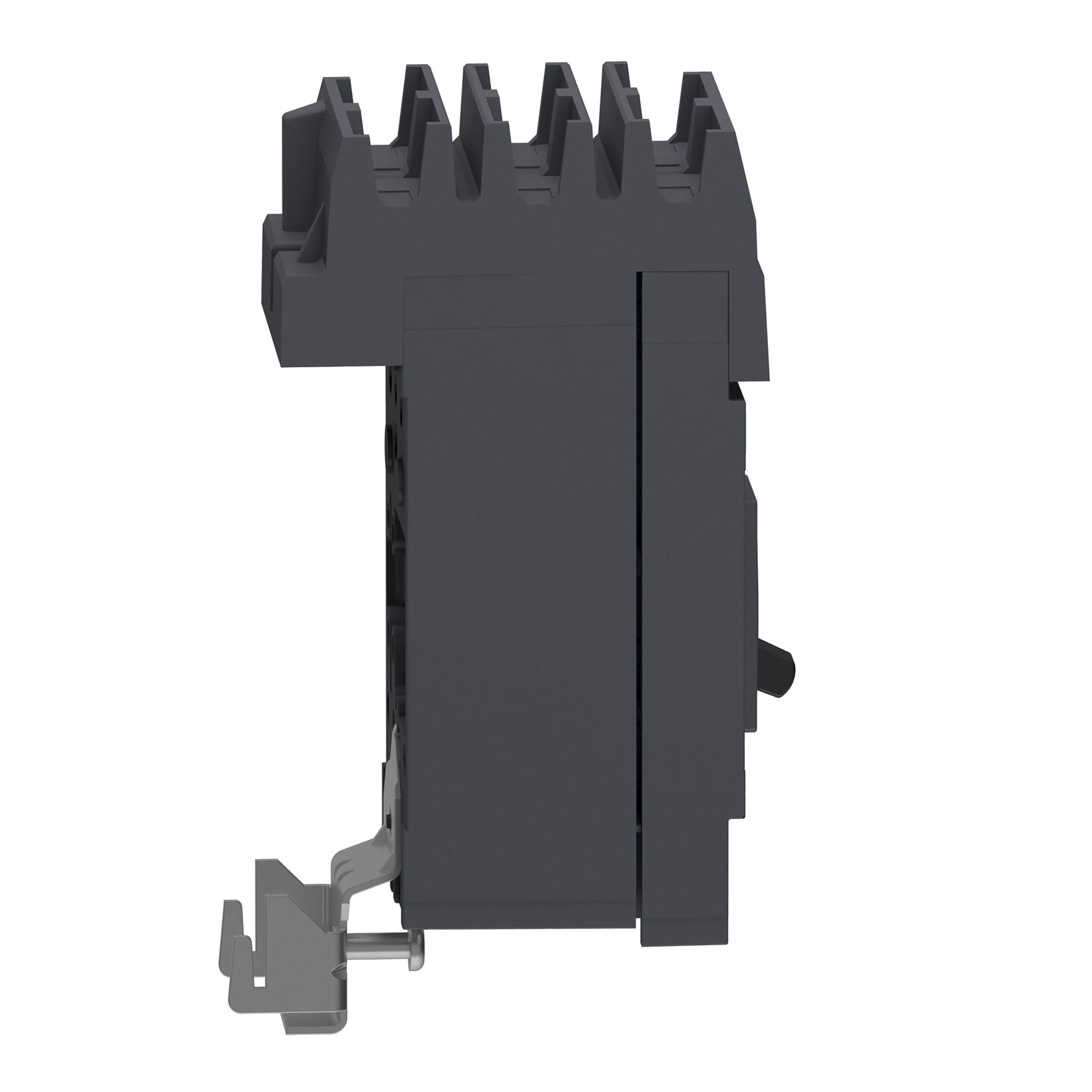

Picture of QGA221252 - Circuit breaker, PowerPacT Q, 125A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC Picture of QGA221252 - Circuit breaker, PowerPacT Q, 125A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC
Picture of QGA221252 - Circuit breaker, PowerPacT Q, 125A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC Picture of QGA221252 - Circuit breaker, PowerPacT Q, 125A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC
Picture of QGA221252 - Circuit breaker, PowerPacT Q, 125A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC Picture of QGA221252 - Circuit breaker, PowerPacT Q, 125A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC
Picture of QGA221252 - Circuit breaker, PowerPacT Q, 125A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC Picture of QGA221252 - Circuit breaker, PowerPacT Q, 125A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC
Picture of QGA221252 - Circuit breaker, PowerPacT Q, 125A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC Picture of QGA221252 - Circuit breaker, PowerPacT Q, 125A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC
Square D

QGA221252 - Circuit breaker, PowerPacT Q, 125A, 2 pole, 240VAC, 65kA, I-Line, thermal magnetic, 80%, AC

Item Code: 566770
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QGA221252

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 125A, 2 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Specifications

Weight

4.66

Height

4.7

Width

7.73

Length

12.38

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/qba220702/qba220702.spin

AD All Features

Available in 2 or 3 pole design

AD Alternative Part Number

8115809

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901631989

AD Gtin

00785901631989

AD IDEA Index ID

8115809

AD Invoice Description

BREAKER CKT CASE MLD 240VAC 125A 65KA

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Common accessories across the range

AD Item Features 03

Confidence and power reliability

AD Keywords

I-Line PowerPact Q QGA221252 Type QG Molded Case Circuit Breaker, 240 V AC, 125 A, 65 kA Interrupt, 2 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; QGA221252 ; QGA221252 ; 785901631989 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.7000

AD Package Height UOM

IN

AD Package Length

12.3800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

458.2500

AD Package Volume UOM

cu-in

AD Package Weight

4.6600

AD Package Weight UOM

LB

AD Package Width

7.7300

AD Package Width UOM

IN

AD Part Number Keywords

QGA221252 ; 8115809 ; 785901631989 ; 78590163198 ; 00785901631989 ; 0785901631989

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

104

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

1200 to 2400

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type QG

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

4 AWG to 300 kcmil Al/Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

125

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

I/ON End Shroud

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

3.93 in L x 3 in W x 6.47 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

Q

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

65

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

2

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
