Square D

QGL22090 - Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%

Category Thermal Magnetic Trip Molded Case Circuit Breakers

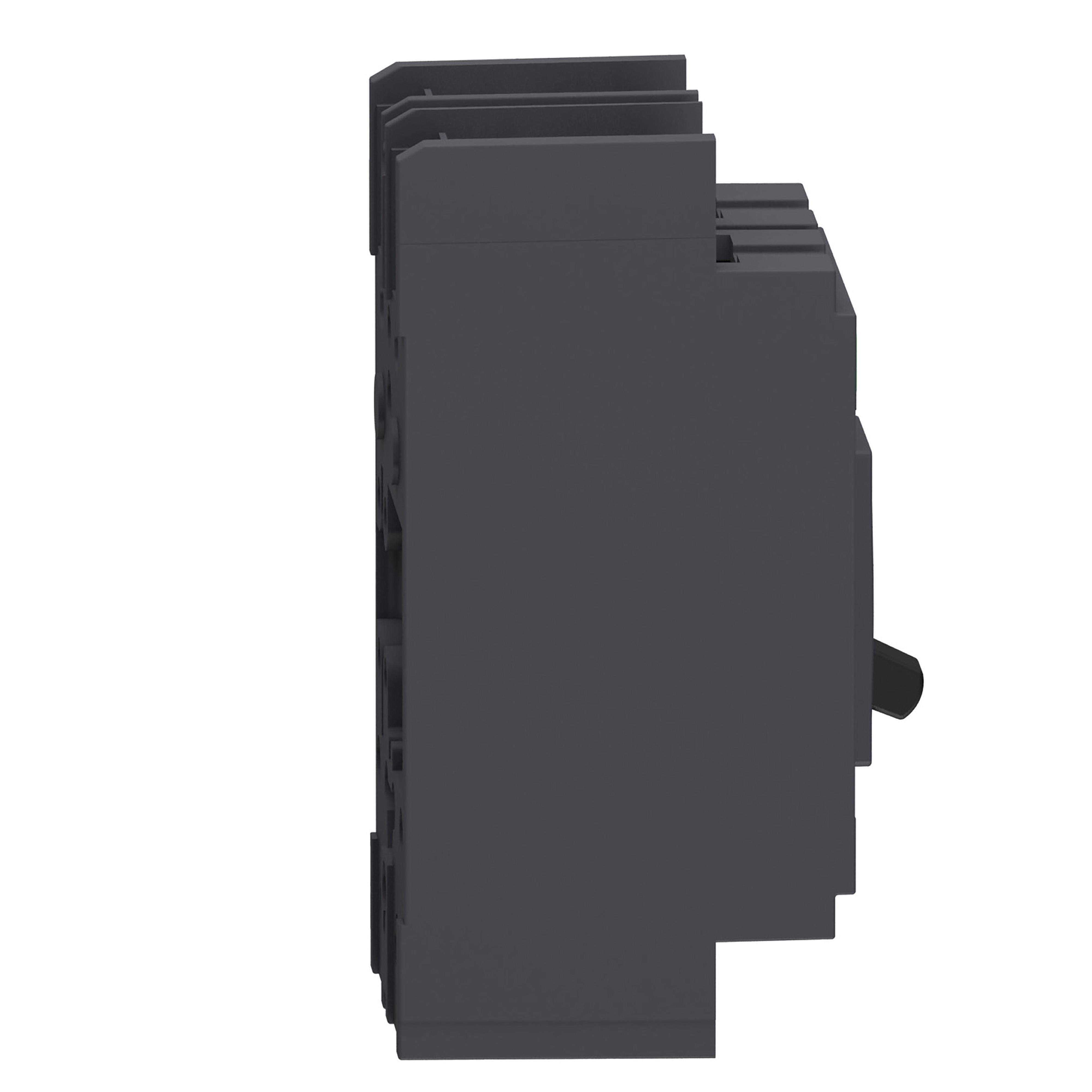

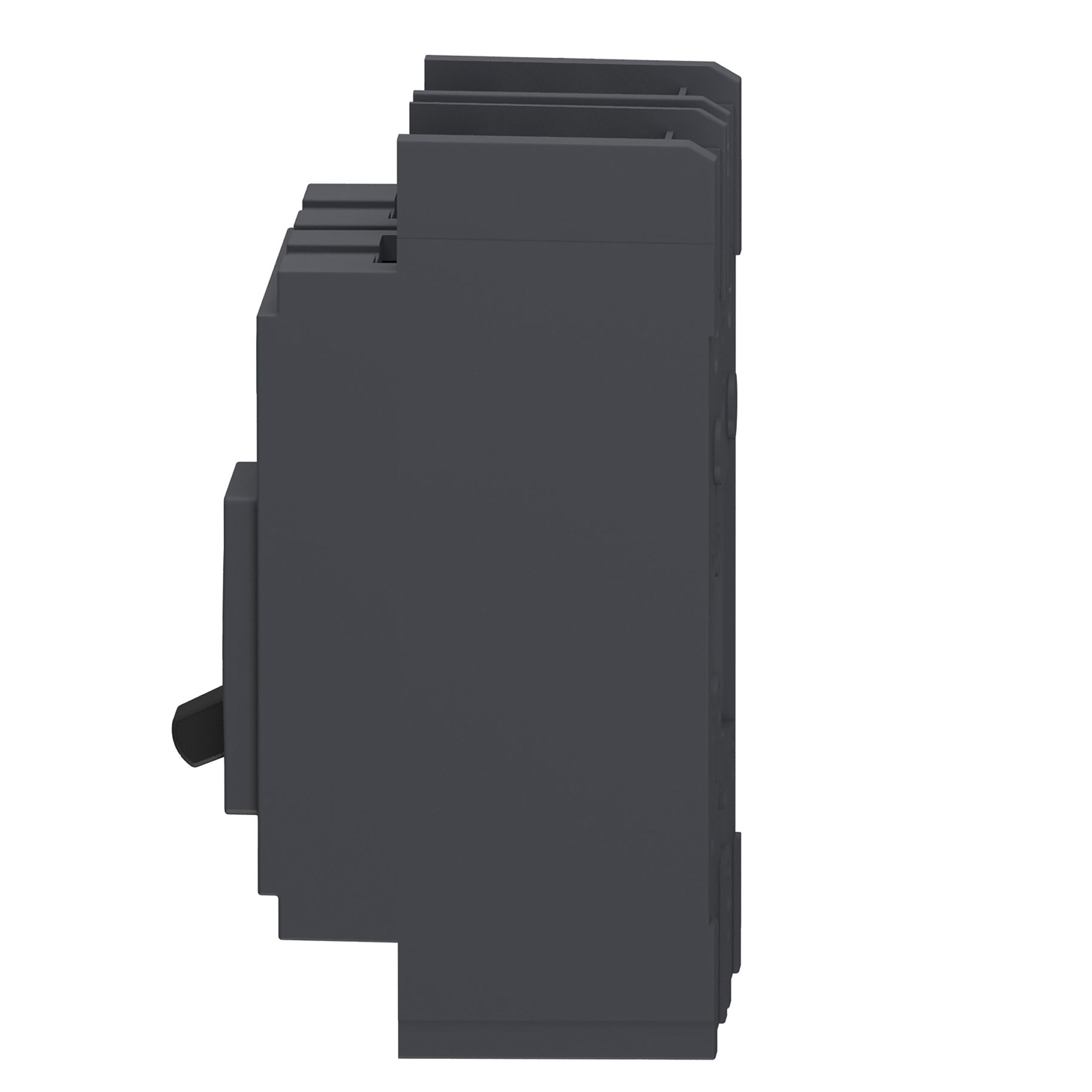

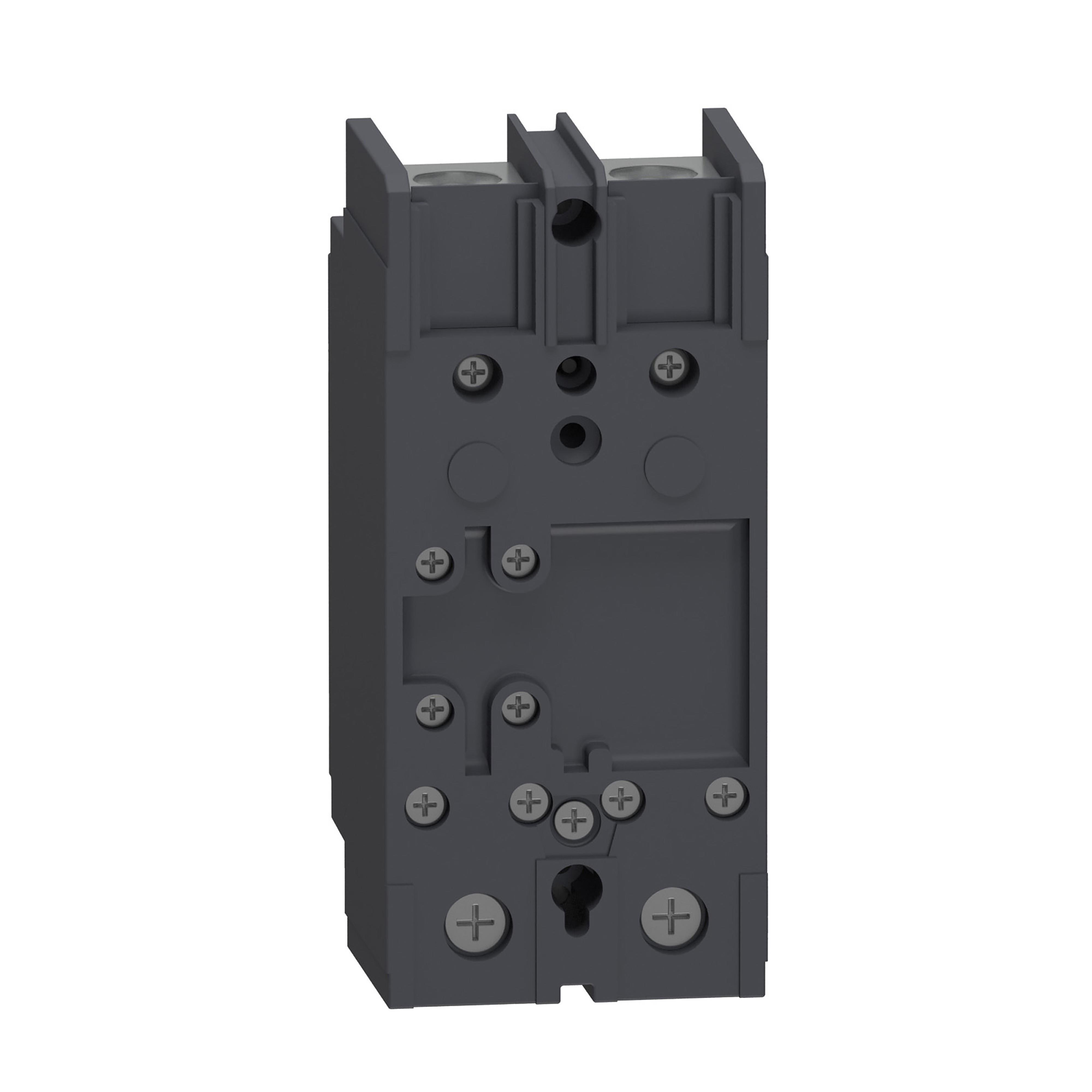

Picture of QGL22090 - Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, lugs, thermal magnetic, 80% Picture of QGL22090 - Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%
Picture of QGL22090 - Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, lugs, thermal magnetic, 80% Picture of QGL22090 - Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%
Picture of QGL22090 - Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, lugs, thermal magnetic, 80% Picture of QGL22090 - Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%
Picture of QGL22090 - Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, lugs, thermal magnetic, 80% Picture of QGL22090 - Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%
Picture of QGL22090 - Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, lugs, thermal magnetic, 80% Picture of QGL22090 - Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%
Square D

QGL22090 - Circuit breaker, PowerPacT Q, 90A, 2 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%

Item Code: 994564
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QGL22090

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides. This PowerPacT Q, 90A, 2 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Specifications

Weight

4

AD All Features

Available in 2 or 3 pole design

AD Application

OEM Commercial, Industrial Markets, Overcurrent Protection and Switching on AC Systems

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT CASE MLD 240VAC 90A 65KA 2 Q

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Common accessories across the range

AD Item Features 03

Confidence and power reliability

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

AD Package Weight

4.0000

AD Package Weight UOM

LB

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

1

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute Value

-13 to 158 deg F, 104 deg F

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

A

Spec 12 Attribute Value

1000 to 1800

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Thermal Magnetic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type QG 80% Rated

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

240

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

4 AWG to 300 kcmil Al/Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

90

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

6.47 in H x 3 in W x 3.93 in D

Spec 5 Attribute

Frame

Spec 5 Attribute Value

Q

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

65

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Unit

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

2
