Square D

QGP32200TM - Circuit breaker, PowerPacT Q, 200A, 3 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%, bottom of panel

Category Miscellaneous

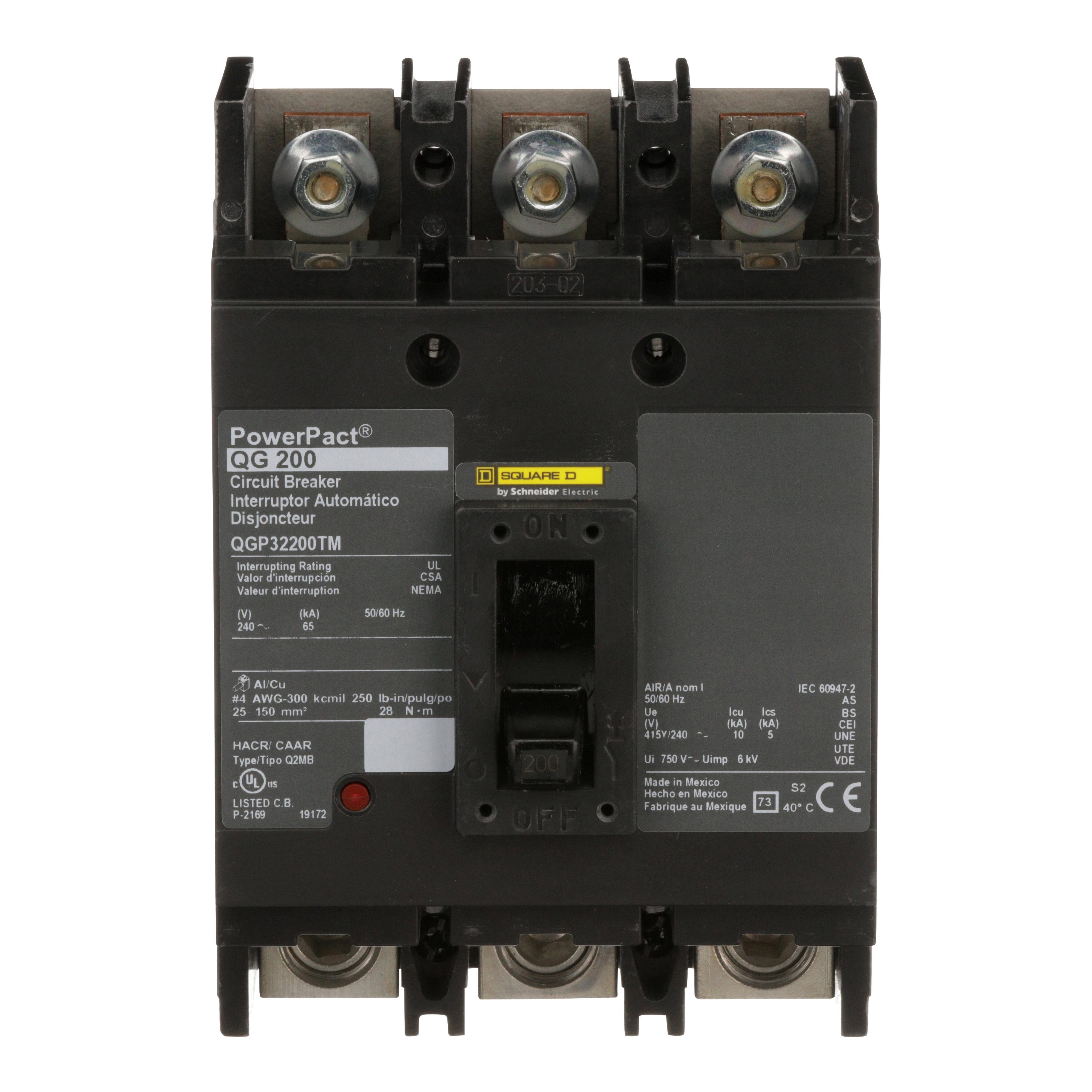

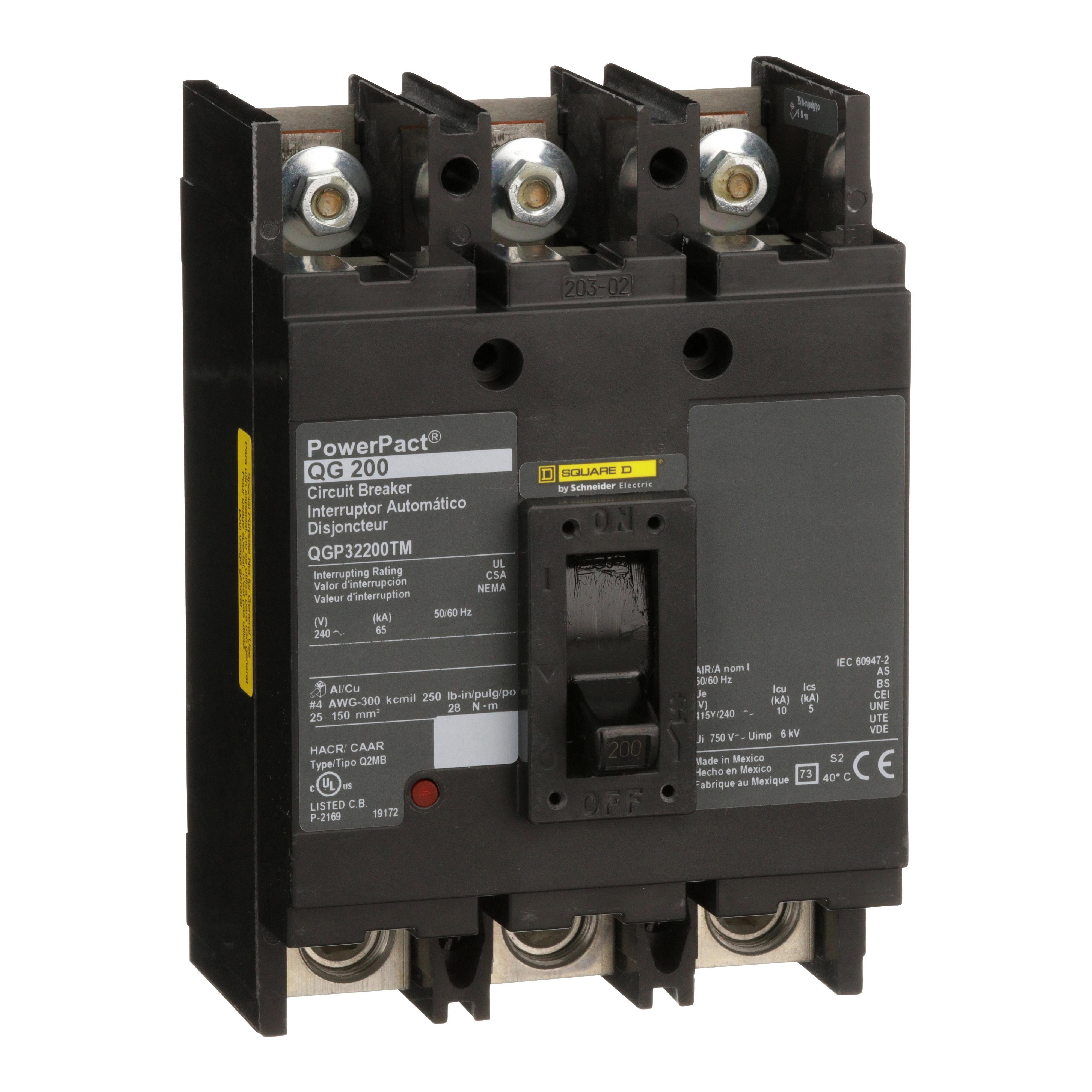

Picture of QGP32200TM - Circuit breaker, PowerPacT Q, 200A, 3 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QGP32200TM - Circuit breaker, PowerPacT Q, 200A, 3 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%, bottom of panel

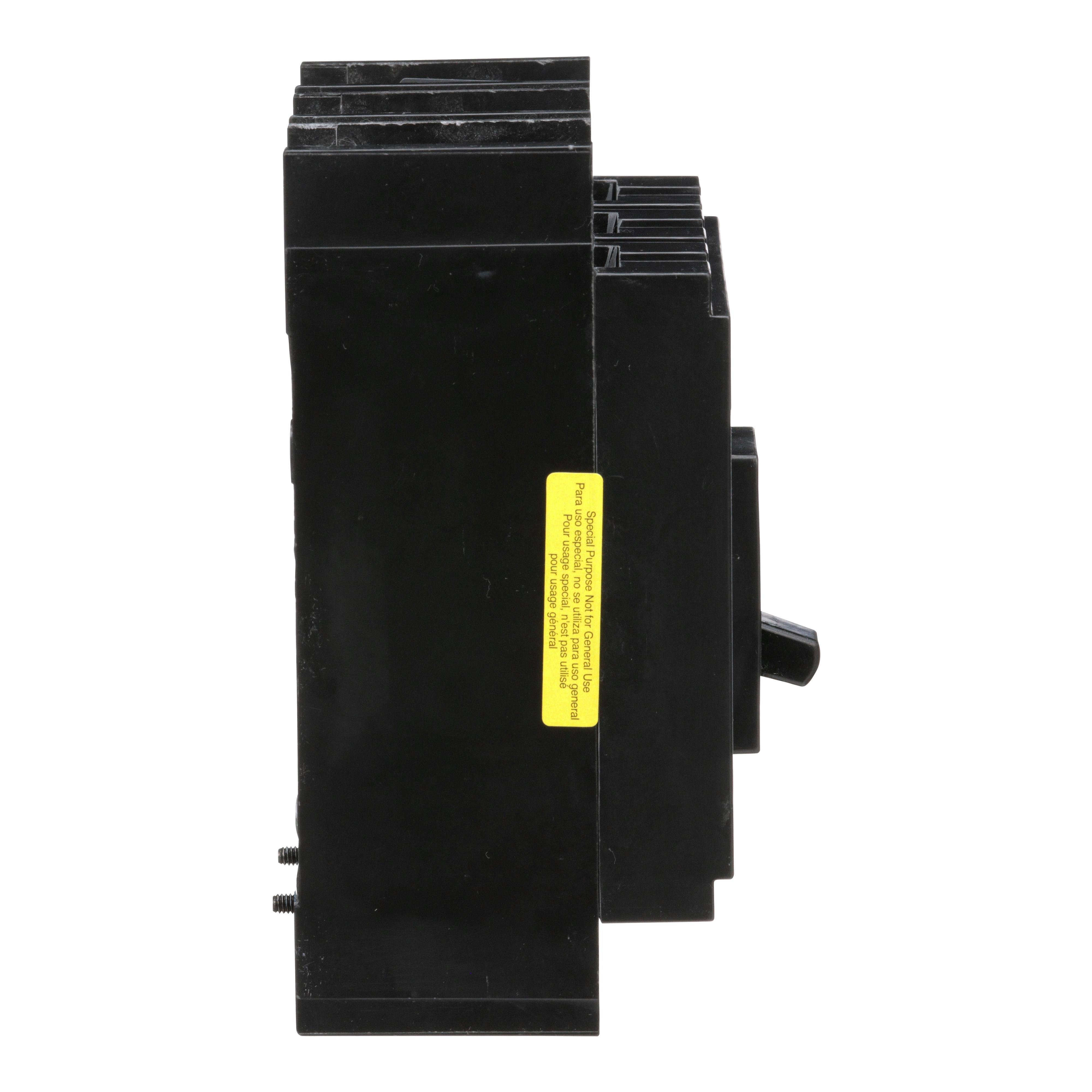

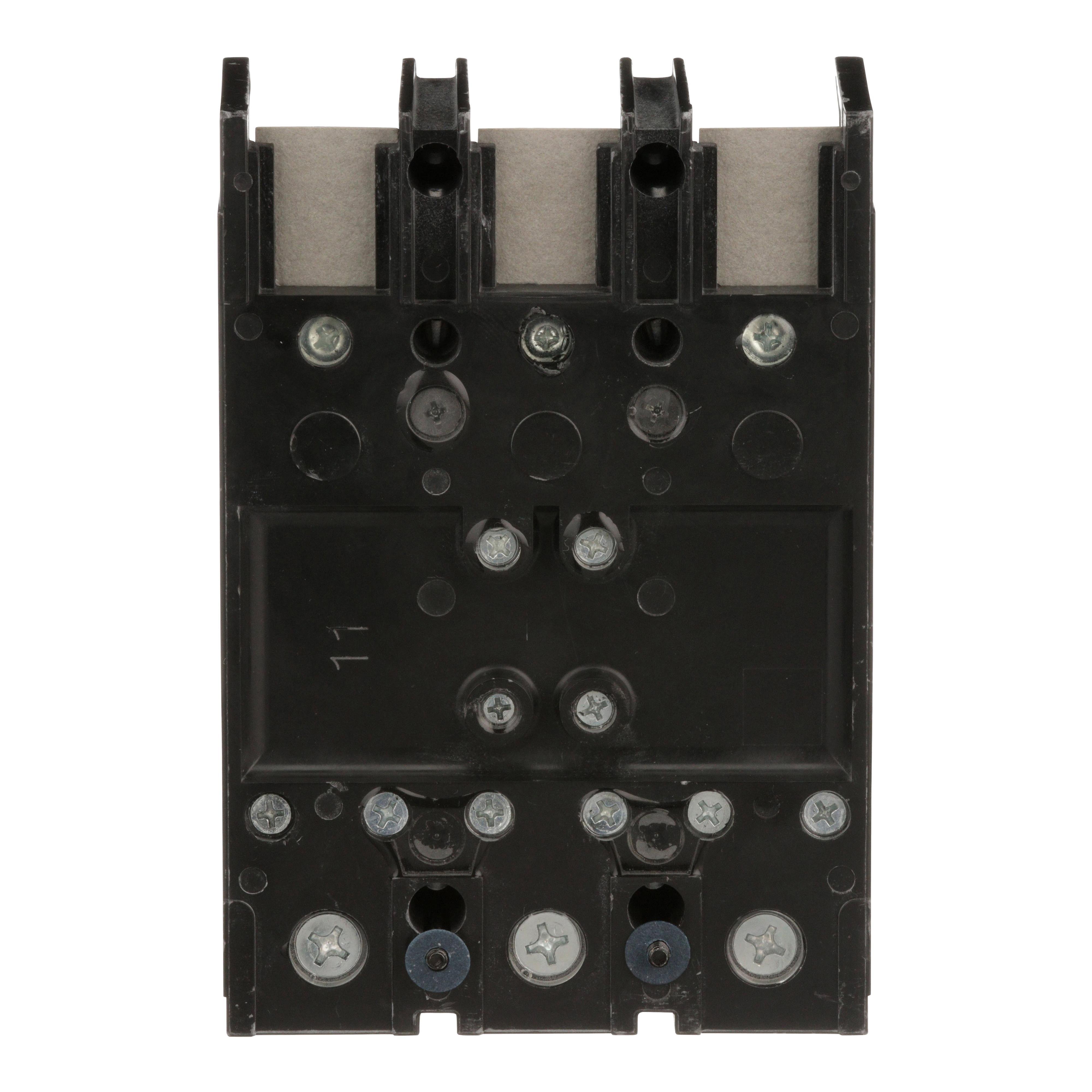

Picture of QGP32200TM - Circuit breaker, PowerPacT Q, 200A, 3 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QGP32200TM - Circuit breaker, PowerPacT Q, 200A, 3 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%, bottom of panel
Picture of QGP32200TM - Circuit breaker, PowerPacT Q, 200A, 3 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QGP32200TM - Circuit breaker, PowerPacT Q, 200A, 3 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%, bottom of panel
Picture of QGP32200TM - Circuit breaker, PowerPacT Q, 200A, 3 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%, bottom of panel Picture of QGP32200TM - Circuit breaker, PowerPacT Q, 200A, 3 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%, bottom of panel
Square D

QGP32200TM - Circuit breaker, PowerPacT Q, 200A, 3 pole, 240VAC, 65kA, lugs, thermal magnetic, 80%, bottom of panel

Item Code: 331589
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QGP32200TM

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has terminal nuts on the line side and lugs on the load side. It has studs on line end with nuts and washers. This PowerPacT Q, 200A, 3 pole, circuit breaker has an interrupting rating of 65kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.

Specifications

Weight

4.58

Width

6.12

Length

9.71

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/qbl32070/qbl32070.spin

AD All Features

Available in 2 or 3 pole design

AD Alternative Part Number

9260824

AD Application

For metering breakers, overcurrent protection and switching on AC systems applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901434061

AD Gtin

00785901434061

AD IDEA Index ID

9260824

AD Invoice Description

BREAKER CKT CASE MLD 240VAC 200A 65KA

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Common accessories across the range

AD Item Features 03

Confidence and power reliability

AD Keywords

PowerPact Q QGP32200TM Type QG Molded Case Circuit Breaker, 240 V AC, 200 A, 65 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; QGP32200TM ; QGP32200TM ; 785901434061 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

9.7100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

4.5800

AD Package Weight UOM

LB

AD Package Width

6.1200

AD Package Width UOM

IN

AD Part Number Keywords

QGP32200TM ; 9260824 ; 785901434061 ; 78590143406 ; 00785901434061 ; 0785901434061

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

104

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

A

Spec 12 Attribute Value

1200 to 2400

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Thermal Magnetic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type QG

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

240

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

4 AWG to 300 kcmil Al/Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

200

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

ON/OFF End Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

3.93 in L x 4.5 in W x 6.47 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

Q

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

65

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Unit

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
