Square D

QMB362TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 60A, 3 pole, 6in, twin switch unit

Category Miscellaneous

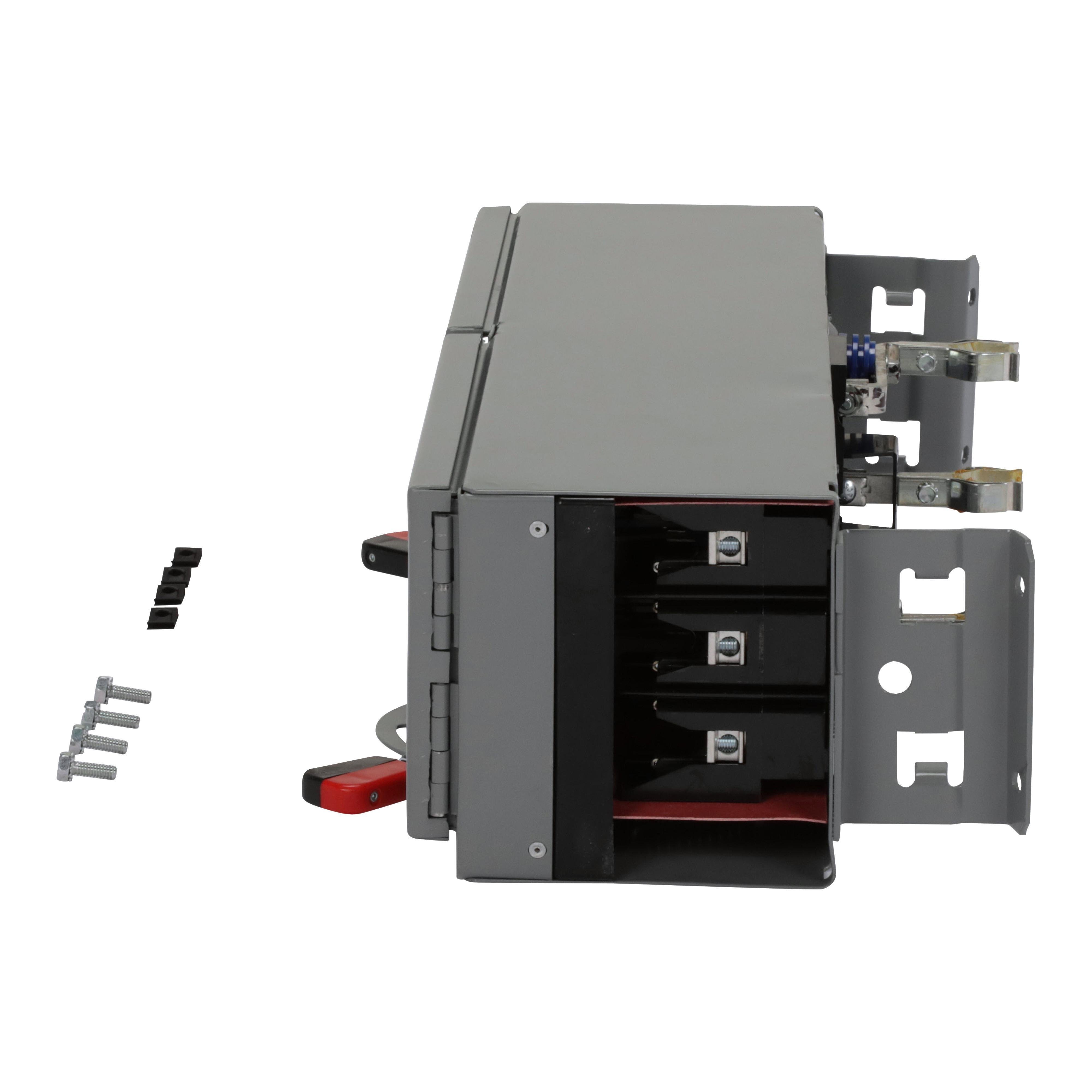

Picture of QMB362TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 60A, 3 pole, 6in, twin switch unit Picture of QMB362TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 60A, 3 pole, 6in, twin switch unit
Picture of QMB362TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 60A, 3 pole, 6in, twin switch unit Picture of QMB362TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 60A, 3 pole, 6in, twin switch unit
Picture of QMB362TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 60A, 3 pole, 6in, twin switch unit Picture of QMB362TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 60A, 3 pole, 6in, twin switch unit
Square D

QMB362TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 60A, 3 pole, 6in, twin switch unit

Item Code: 33263
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QMB362TW

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D offers a fusible panelboard called a QMB panelboard which is perfect for use when specifications or electrical codes called for a fusible panelboard. QMB family offers a unbeatable performance, time-saving installation features and its reliabilty make it the product of choice for large commercial and industrial applications. QMB fusible panelboards are designed, manufactured, tested for AC and DC systems and meet UL, CSA standards and satisfy NEC codes. This is a QMB fusible disconnect is a 3-pole device rated at 60A and has a voltage of 600 VAC. This device cover two modules and uses a class R fuse and has a height of 4.5 inches tall.

Specifications

Weight

23.12

Width

12.68

Length

23.28

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QMB362TW/QMB362TW.spin

AD Alternative Part Number

8162446

AD Application

For panelboards and switchboards to provide a means for disconnecting a load from its source, open and close a circuit and to provide overcurrent and short circuit protection applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901765769

AD Gtin

00785901765769

AD IDEA Index ID

8162446

AD Invoice Description

UNIT SW BR 600VAC 60A 50HP 3 200KA STL

AD Item Features 01

Positive lock-off means with provisions for three 3/8 in shackle padlocks

AD Item Features 02

Dual cover interlock

AD Item Features 03

Red and black operating handle and large ON/OFF nameplate clearly identifies the position of the switch blades

AD Item Features 04

Hasp on the switch door latch mechanism to lock the switch door

AD Item Features 05

Mounting brackets are permanently attached to the switch enclosure

AD Item Features 06

Provides positive identification of the position of the switch blades

AD Item Features 07

Convenient aid for removing fuses

AD Item Features 08

Accepts either copper or aluminum wire

AD Keywords

QMB362TW Fusible Twin Branch Switch Unit, 600 VAC, 60 A, 50 hp Power Rating, 3 Poles, 200 kA Interrupt ; Schneider Electric ; Square D ; QMB362TW ; QMB362TW ; 785901765769 ; Distribution Panelboards

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

23.2800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

23.1200

AD Package Weight UOM

LB

AD Package Width

12.6800

AD Package Width UOM

IN

AD Part Number Keywords

QMB362TW ; 8162446 ; 785901765769 ; 78590176576 ; 00785901765769 ; 0785901765769

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

60

Spec 10 Attribute

Type

Spec 10 Attribute Value

Fusible Twin

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

600

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

152 mm H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 1

Spec 4 Attribute

Housing Material

Spec 4 Attribute Value

Steel

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

200

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Surface/Panel

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

HP

Spec 8 Attribute Value

50

Spec 9 Attribute

Series

Spec 9 Attribute Value

QMB
