Square D

QMB363TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 100A, 3 pole, 7.5in, twin switch unit

Category Miscellaneous

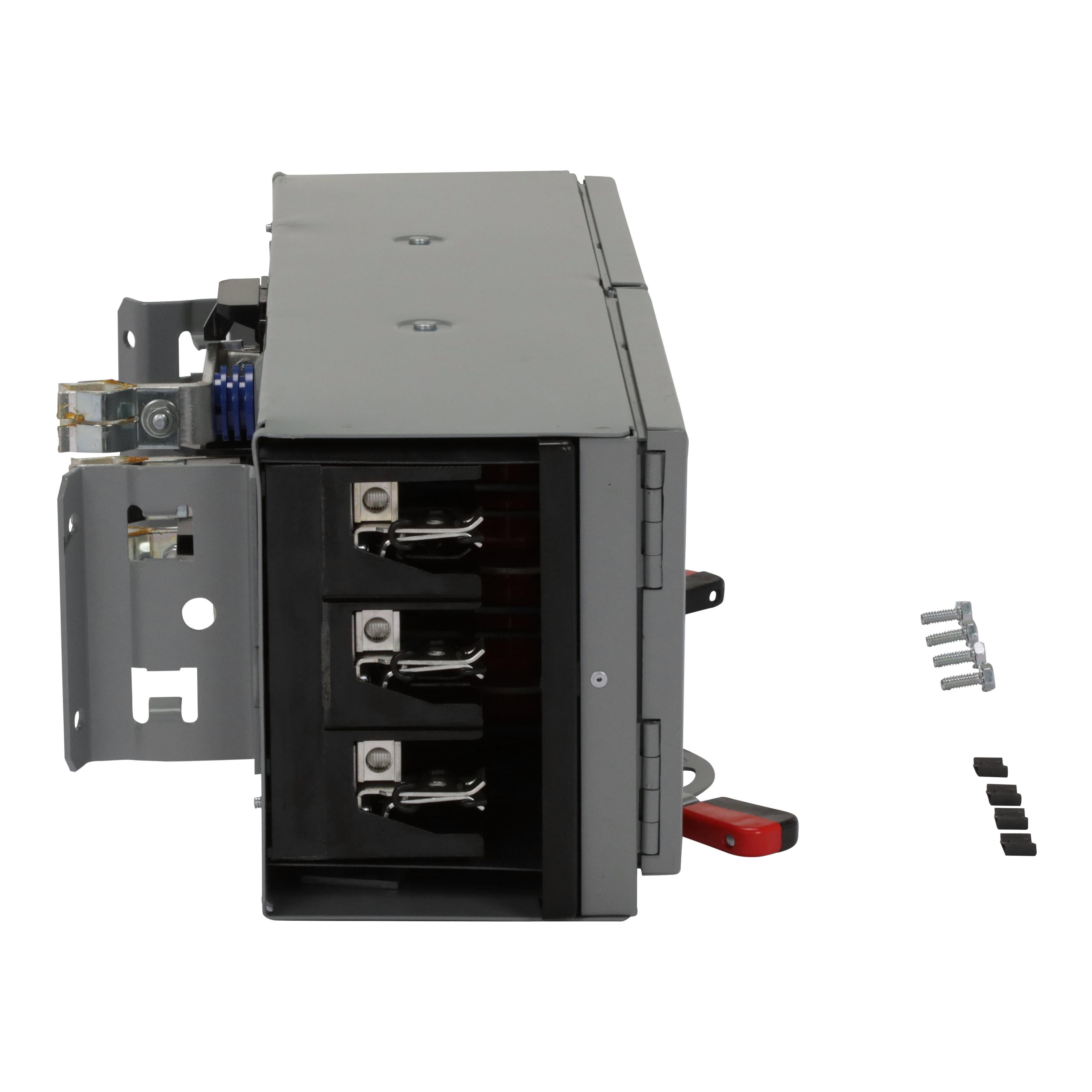

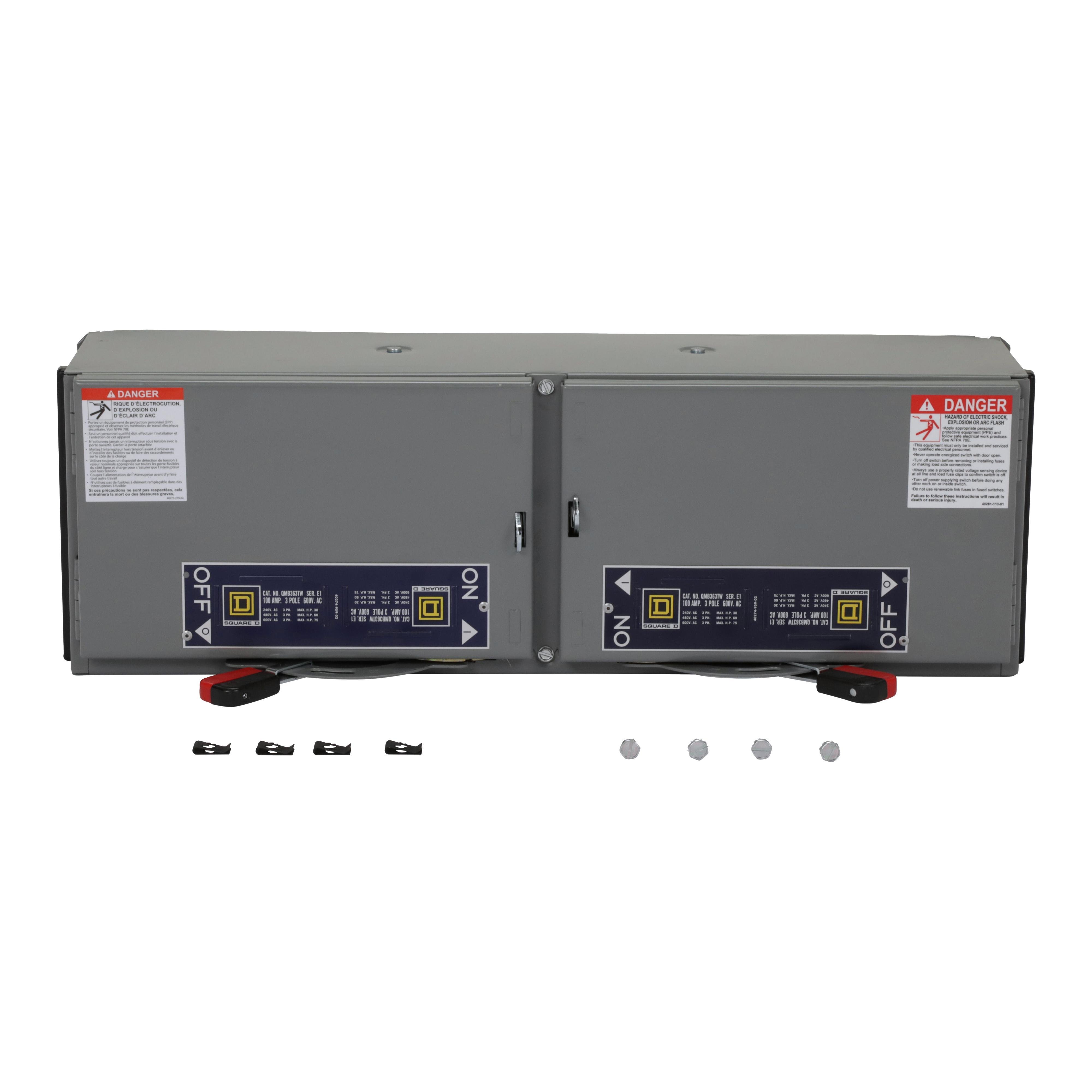

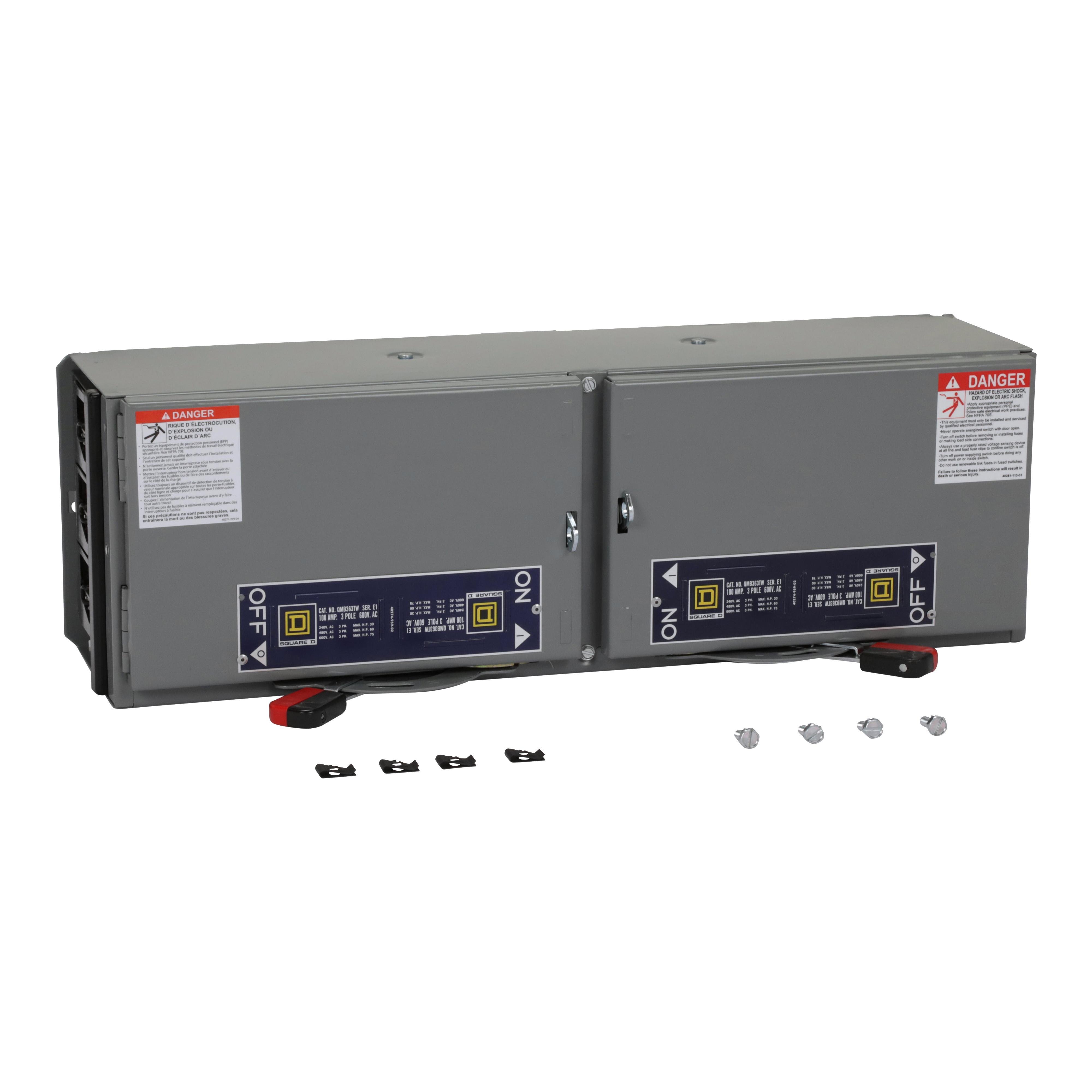

Picture of QMB363TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 100A, 3 pole, 7.5in, twin switch unit Picture of QMB363TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 100A, 3 pole, 7.5in, twin switch unit
Picture of QMB363TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 100A, 3 pole, 7.5in, twin switch unit Picture of QMB363TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 100A, 3 pole, 7.5in, twin switch unit
Picture of QMB363TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 100A, 3 pole, 7.5in, twin switch unit Picture of QMB363TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 100A, 3 pole, 7.5in, twin switch unit
Picture of QMB363TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 100A, 3 pole, 7.5in, twin switch unit Picture of QMB363TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 100A, 3 pole, 7.5in, twin switch unit
Square D

QMB363TW - Fuse switch disconnector, QMB fusible panelboards, 600VAC, max 100A, 3 pole, 7.5in, twin switch unit

Item Code: 33265
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QMB363TW

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Square D offers a fusible panelboard called a QMB panelboard which is perfect for use when specifications or electrical codes called for a fusible panelboard. QMB family offers a unbeatable performance, time-saving installation features and its reliabilty make it the product of choice for large commercial and industrial applications. QMB fusible panelboards are designed, manufactured, tested for AC and DC systems and meet UL, CSA standards and satisfy NEC codes. This is a QMB fusible disconnect is a 3-pole device rated at 100A and has a voltage of 600 VAC. This device cover two modules and uses a class R fuse and has a height of 7.5 inches tall.

Specifications

Weight

31.63

Height

8

Width

12.68

Length

24.77

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QMB363TW/QMB363TW.spin

AD Alternative Part Number

8162708

AD Application

Panelboard and Switchboard Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901766148

AD Gtin

00785901766148

AD IDEA Index ID

8162708

AD Invoice Description

SWITCH DISC PANELBOARD 600VAC 100A 30HP

AD Keywords

QMB363TW QMB Fusible Twin Disconnect Switch, 600 VAC, 100 A, 30 hp, 3PST Contact, 3 Poles ; Square D ; QMB363TW ; 8162708 ; 785901766148 ; Panel Board Disconnects

AD Manufacturer (Description)

Schneider Electric

AD Package Height

8.0000

AD Package Height UOM

IN

AD Package Length

24.7700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

31.6300

AD Package Weight UOM

LB

AD Package Width

12.6800

AD Package Width UOM

IN

AD Part Number Keywords

QMB363TW ; 8162708 ; 785901766148 ; 78590176614 ; 00785901766148 ; 0785901766148

AD Video Links

https://www.youtube.com/watch?v=v447iaT6DE4

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Type

Spec 10 Attribute Value

Fusible Twin

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

600

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

3PST

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

7.52 in H

Spec 4 Attribute

HORSEPOWER

Spec 4 Attribute UOM

HP

Spec 4 Attribute Value

30

Spec 5 Attribute

Material

Spec 5 Attribute Value

Steel

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Surface/Panel

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

Series

Spec 8 Attribute Value

QMB

Spec 9 Attribute

Short Circuit Current Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

200
