Square D™

QO112L200PGRB - Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar

Category Miscellaneous

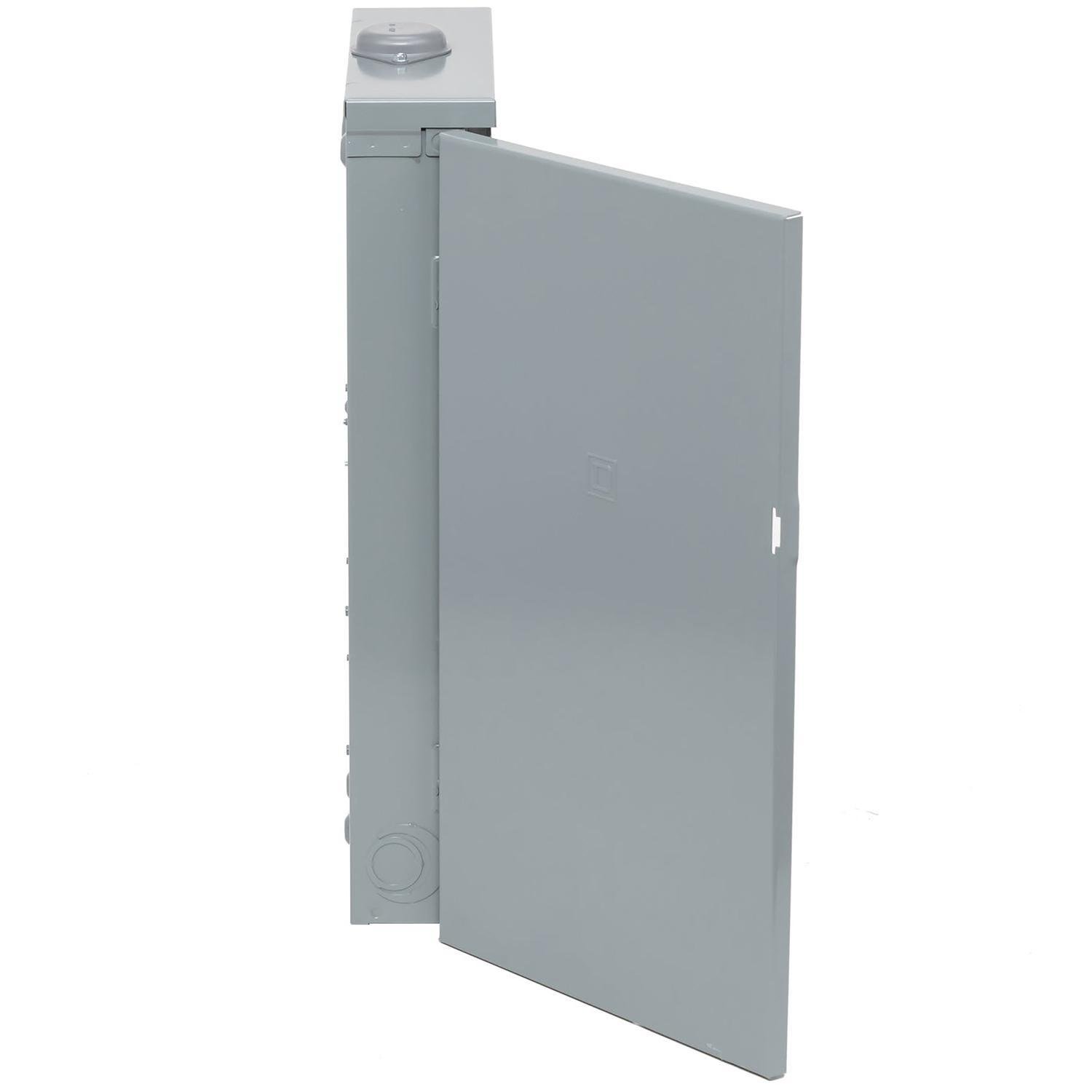

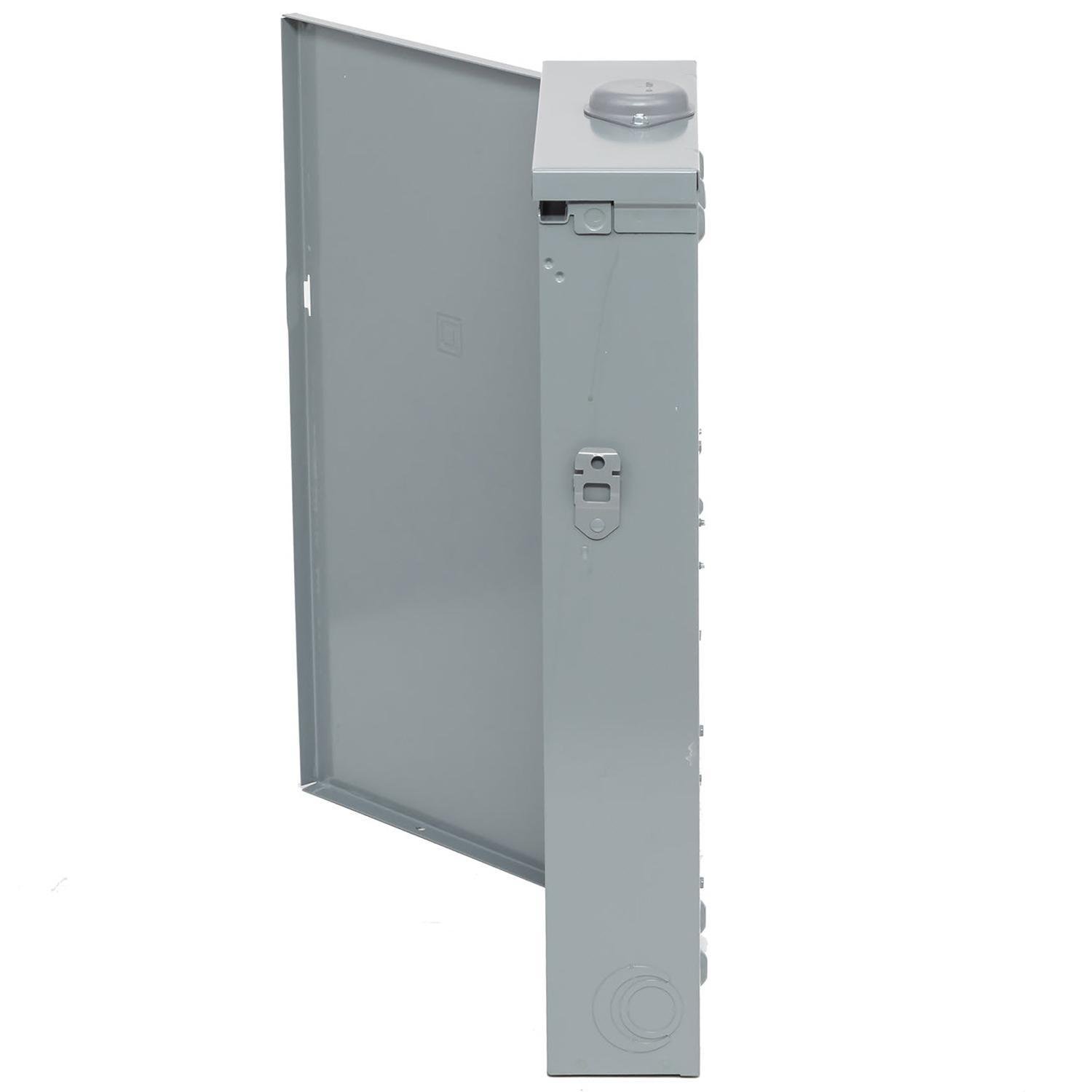

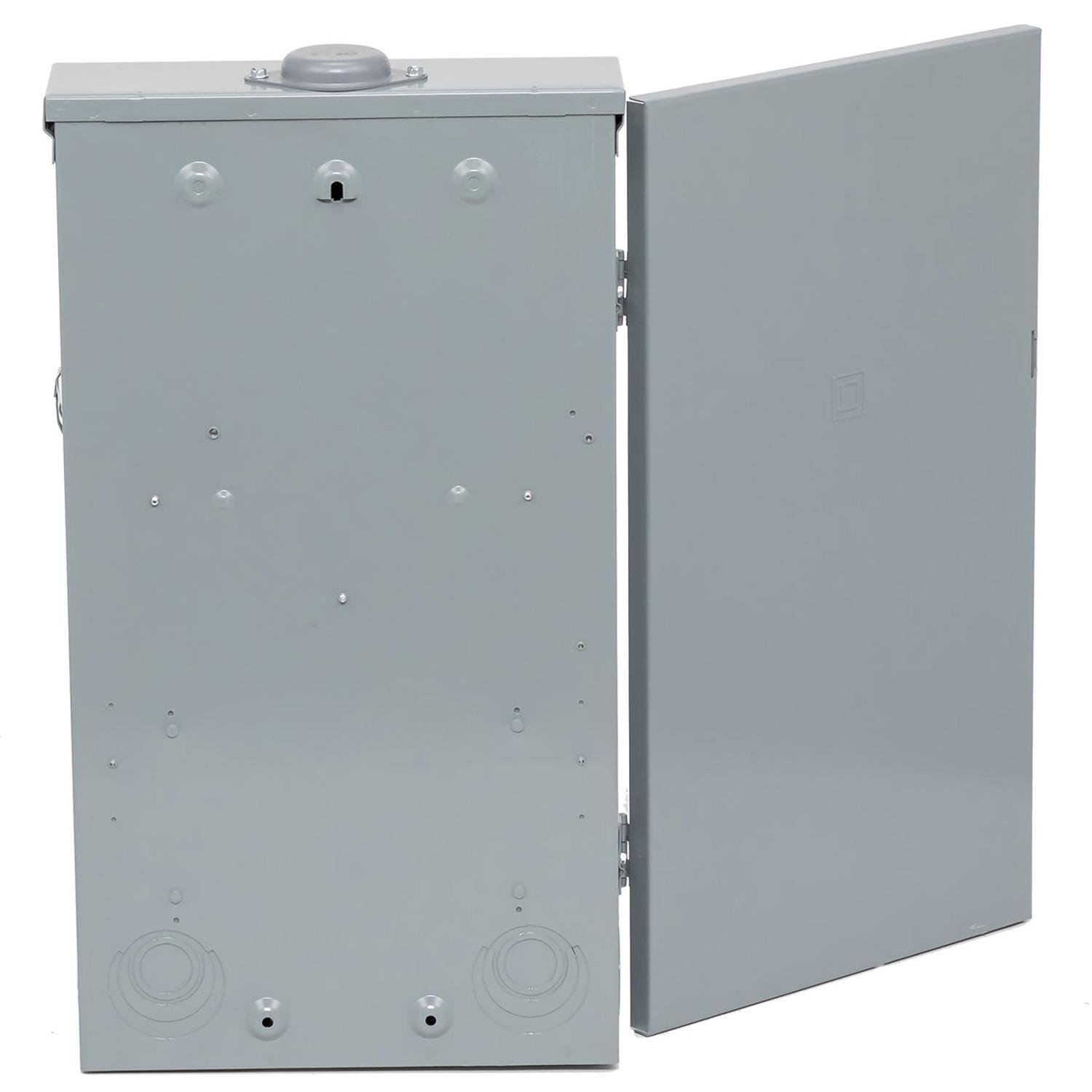

Picture of QO112L200PGRB - Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO112L200PGRB - Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar
Picture of QO112L200PGRB - Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO112L200PGRB - Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar
Picture of QO112L200PGRB - Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO112L200PGRB - Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar
Picture of QO112L200PGRB - Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO112L200PGRB - Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar
Picture of QO112L200PGRB - Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO112L200PGRB - Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar
Square D™

QO112L200PGRB - Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar

Item Code: 1069657
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO112L200PGRB

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 12 spaces and 24 circuits. This system provides 200A convertible amin lugs in a NEMA 3R enclosure. It also includes plug on neutral, ground bar, and is UL rated.

Specifications

Weight

27.38

Height

5

Width

14.62

Length

25.78

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/qo112l200pgrb/qo112l200pgrb.spin

AD All Features

Provides superior performance and durability

AD Alternative Part Number

14859568

AD Application

For QO plug-on circuit breaker and QO plug-on neutral circuit breaker

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Owners/User Manual

AD Gtin

00785901594703

AD IDEA Index ID

14859568

AD Invoice Description

CENTER LOAD LUG MAIN CONVERTIBLE 200A 3W

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Item Features 05

Ground bar

AD Keywords

QO112L200PGRB 1-Phase Convertible Main Lug Load Center, 120/240 V, 200 A, 3 W Power Rating, 1 Poles ; Schneider Electric ; Square D ; QO112L200PGRB ; QO112L200PGRB ; 785901594703 ; Single Phase Convertible Load Centers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.0000

AD Package Height UOM

IN

AD Package Length

25.7800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2156.0000

AD Package Volume UOM

cu-in

AD Package Weight

27.3800

AD Package Weight UOM

LB

AD Package Width

14.6200

AD Package Width UOM

IN

AD Part Number Keywords

QO112L200PGRB ; 14859568 ; 785901594703 ; 78590159470 ; 00785901594703

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

14.75 in W x 4.52 in D x 26.04 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Number of Circuits

Spec 4 Attribute Value

24

Spec 5 Attribute

Number Of Poles

Spec 5 Attribute Value

1

Spec 6 Attribute

Number of Spaces

Spec 6 Attribute Value

12

Spec 7 Attribute

Power Rating

Spec 7 Attribute UOM

W

Spec 7 Attribute Value

3

Spec 8 Attribute

Type

Spec 8 Attribute Value

1-Phase

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V

Spec 9 Attribute Value

120/240

Square D™
