Square D

QO115 - Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in

Category Plug-In Circuit Breakers

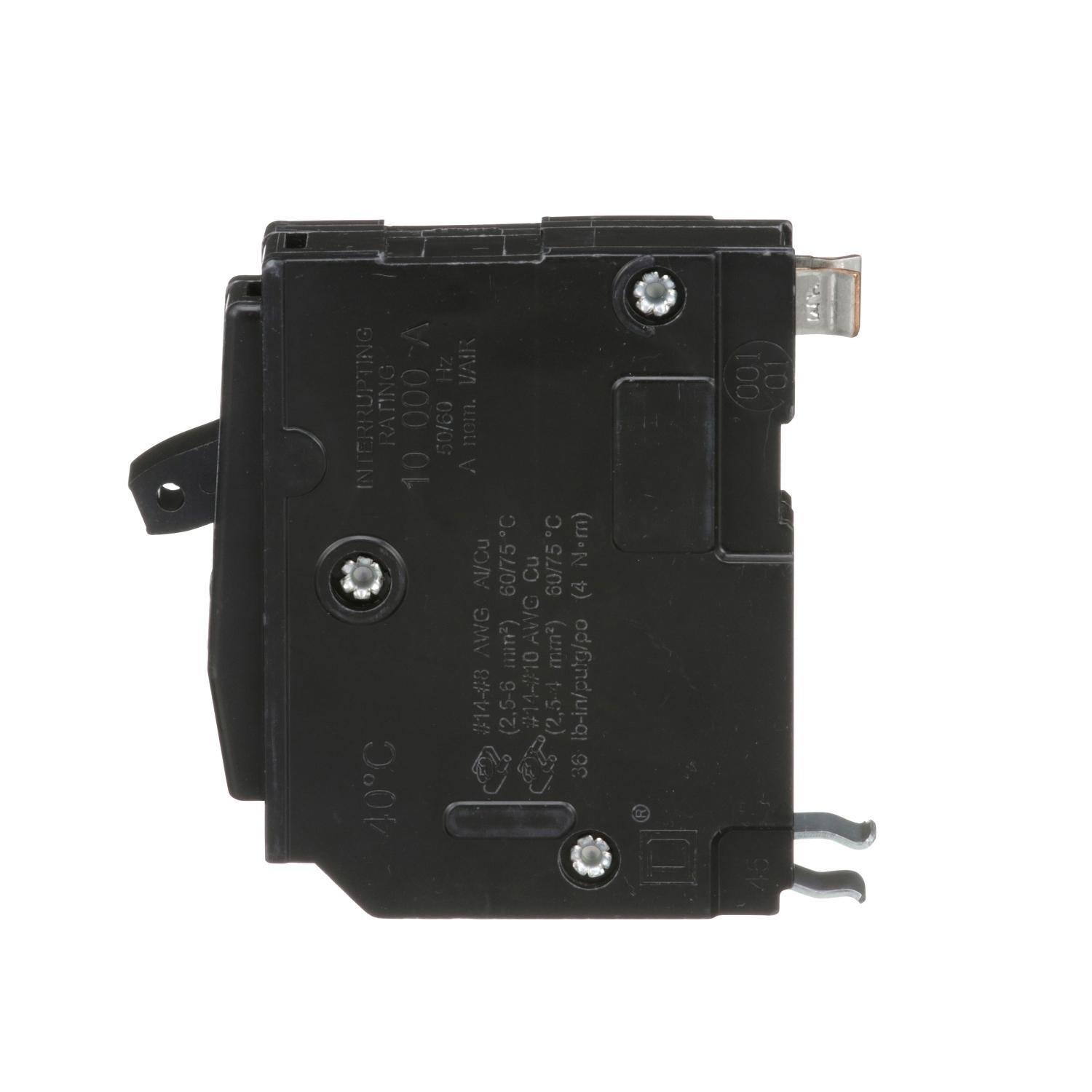

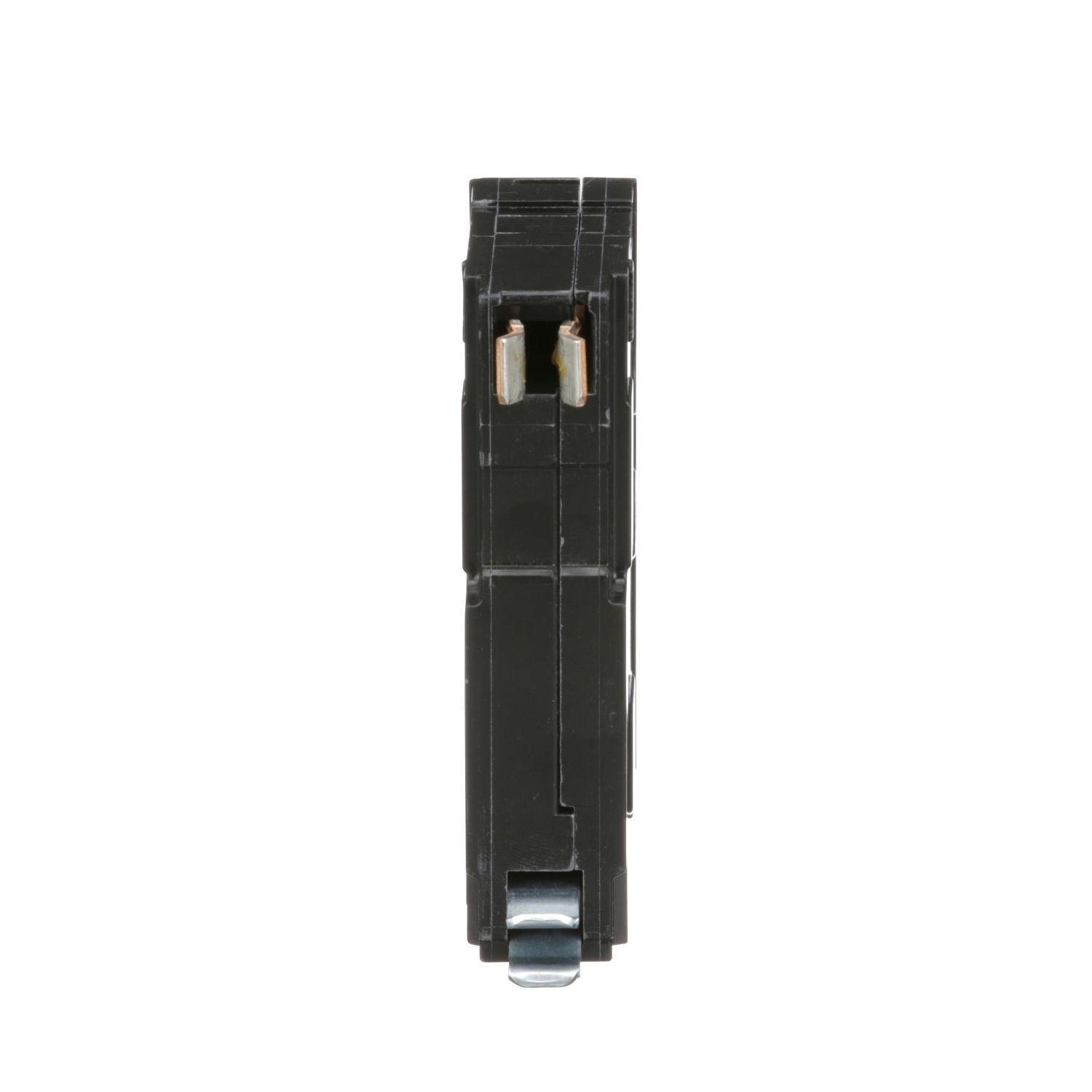

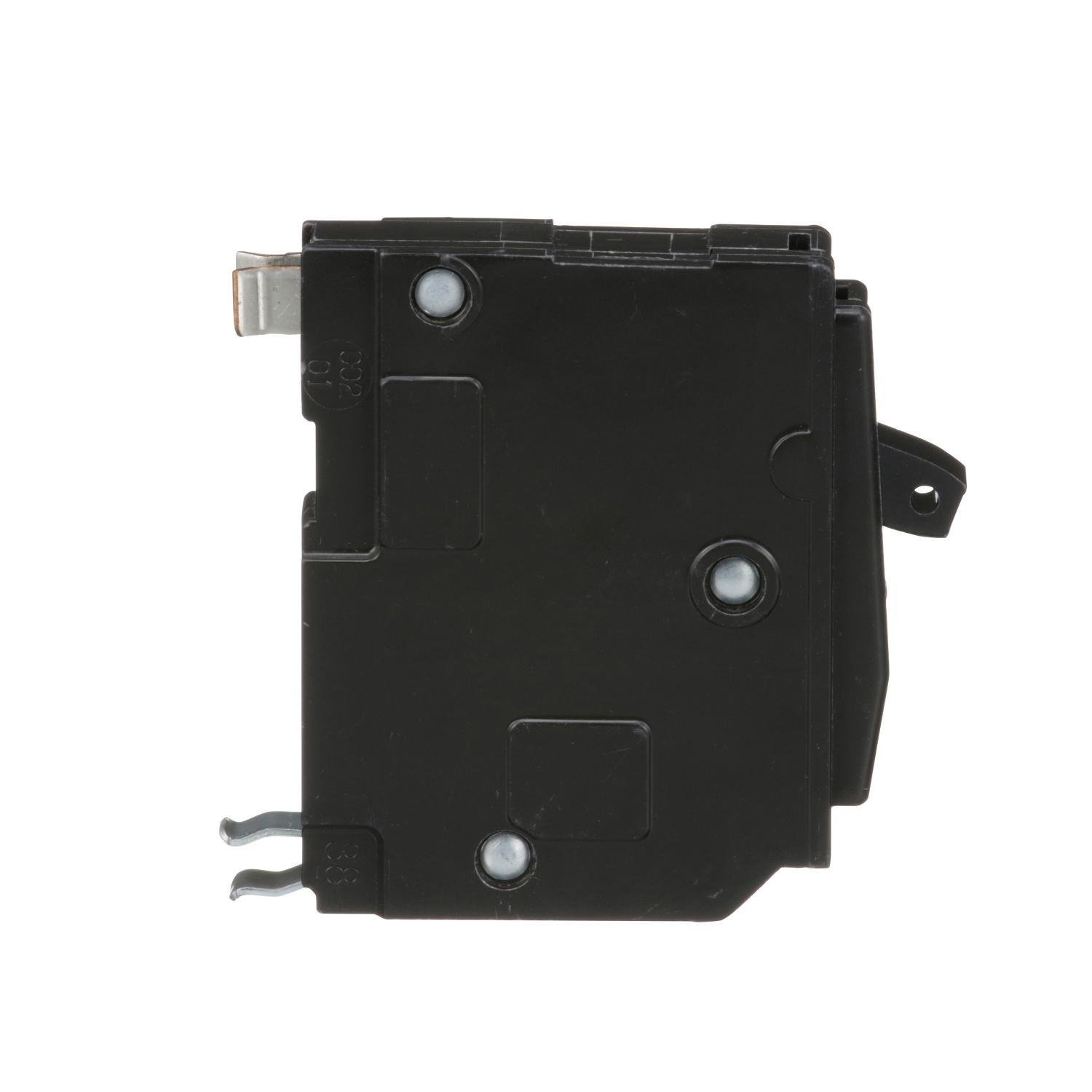

Picture of QO115 - Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in Picture of QO115 - Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in
Picture of QO115 - Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in Picture of QO115 - Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in
Picture of QO115 - Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in Picture of QO115 - Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in
Picture of QO115 - Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in Picture of QO115 - Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in
Picture of QO115 - Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in Picture of QO115 - Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in
Square D

QO115 - Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in

Item Code: 18520
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO115

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Purchasing Quantities

EACH

1

BOX

10

CASE

100

Specifications

Weight

0.27lb

Height

76mm

Width

3mm

Length

3.28mm

Depth

74mm

AD All Features

Reliable and durable

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

IE

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 15A 10KA

AD Item Features 01

Reliable and durable

AD Item Features 02

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 03

Simple design and clear instructions for quick setup

AD Item Features 04

Time-saving diagnostics with touch of a button

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.2800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2700

AD Package Weight UOM

LB

AD Package Width

3.0000

AD Package Width UOM

IN

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

40

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

Standard

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120/240

Spec 14 Attribute

Wire Size

Spec 14 Attribute UOM

AWG

Spec 14 Attribute Value

14 to 8

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Pressure Plate

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

3 in H x 0.75 in W x 2.91 in D

Spec 4 Attribute

Frame

Spec 4 Attribute Value

QO

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

10

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Plug-On

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

1

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
