Square D

QO115AFI - Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, ARC fault, pigtail

Category Miscellaneous

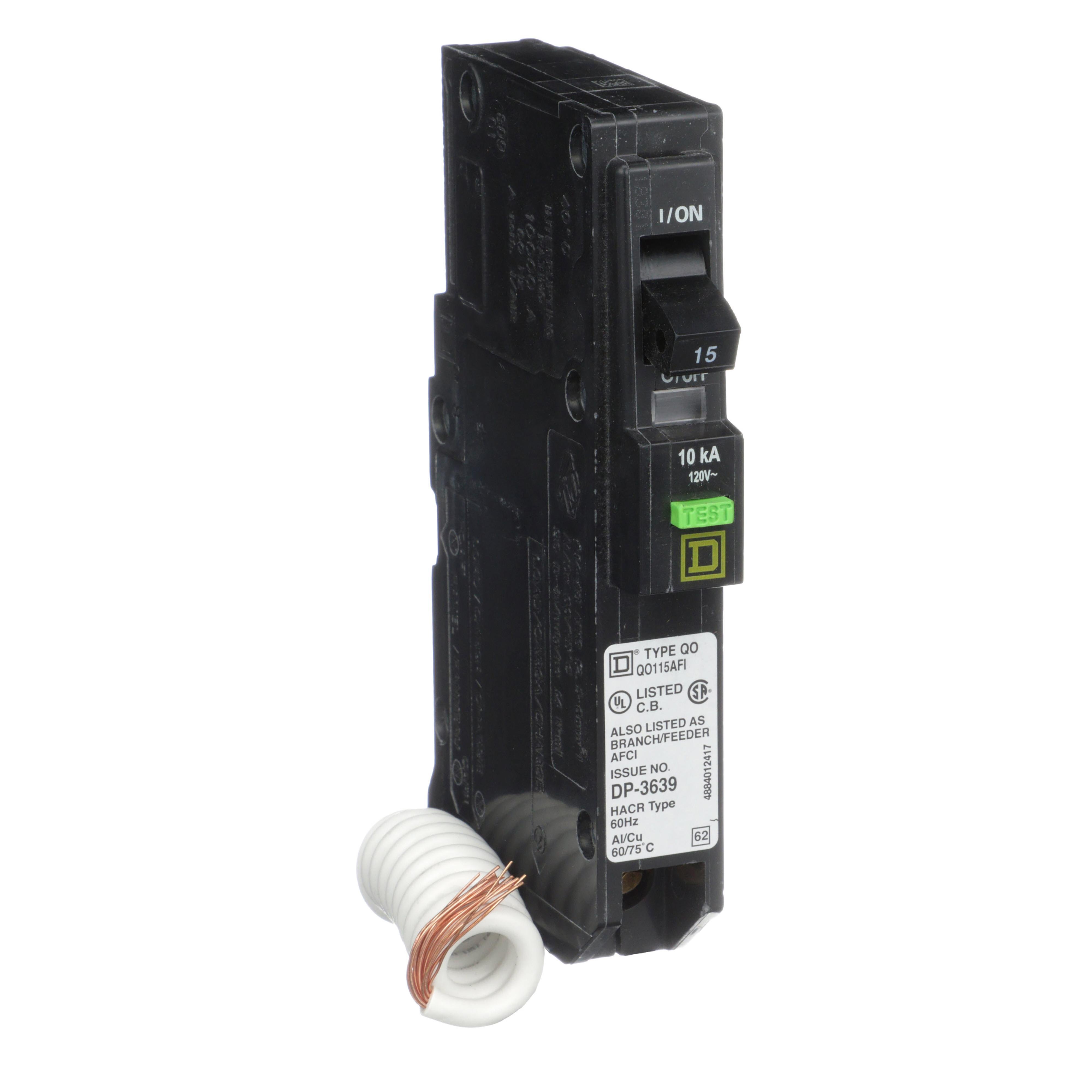

Picture of QO115AFI - Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, ARC fault, pigtail
Square D

QO115AFI - Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, ARC fault, pigtail

Item Code: 18521
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO115AFI

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes an arc fault interrupt with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

0.6

Height

1.3

Width

3.86

Length

5.45

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO115AFI/QO115AFI.spin

AD Alternative Part Number

8128473

AD Application

For providing overload and short circuit protection designed to detect arc faults

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901301295

AD Gtin

00785901301295

AD IDEA Index ID

8128473

AD Invoice Description

BREAKER CKT FLT ARC MINTR COMBINATION 1

AD Item Features 01

An arc fault circuit breaker opens the circuit and stops the arcing and high intensity heat before a fire is likely to ignite

AD Item Features 02

Special microprocessor based arc identification to differentiate necessary operational arcs (associated with loads such as electric motors, switches and receptacles) from actual arc faults which can cause damage and fires

AD Item Features 03

Differentiate true arc faults from chopped wave-forms associated with switched mode power supplies on electrical appliances, computers and lamp dimmers

AD Item Features 04

Visi-Trip® trip indicator

AD Item Features 05

14 to 8 AWG Cu, 12 to 8 AWG Al wire

AD Keywords

QO QO115AFI Combination Miniature Arc Fault Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip ; Schneider Electric ; Square D ; QO115AFI ; QO115AFI ; 785901301295 ; Arc-Fault Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.3000

AD Package Height UOM

IN

AD Package Length

5.4500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

27.8900

AD Package Volume UOM

cu-in

AD Package Weight

0.6000

AD Package Weight UOM

LB

AD Package Width

3.8600

AD Package Width UOM

IN

AD Part Number Keywords

QO115AFI ; 8128473 ; 785901301295 ; 78590130129 ; 00785901301295 ; 0785901301295

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

120

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

12 to 8 AWG, 14 to 8 AWG

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Pressure Plate

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.91 in L x 0.75 in W x 4.75 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-On

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

104
