Square D

QO115PAFGF - [TAA] Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral

Category NEMA Combination Starters

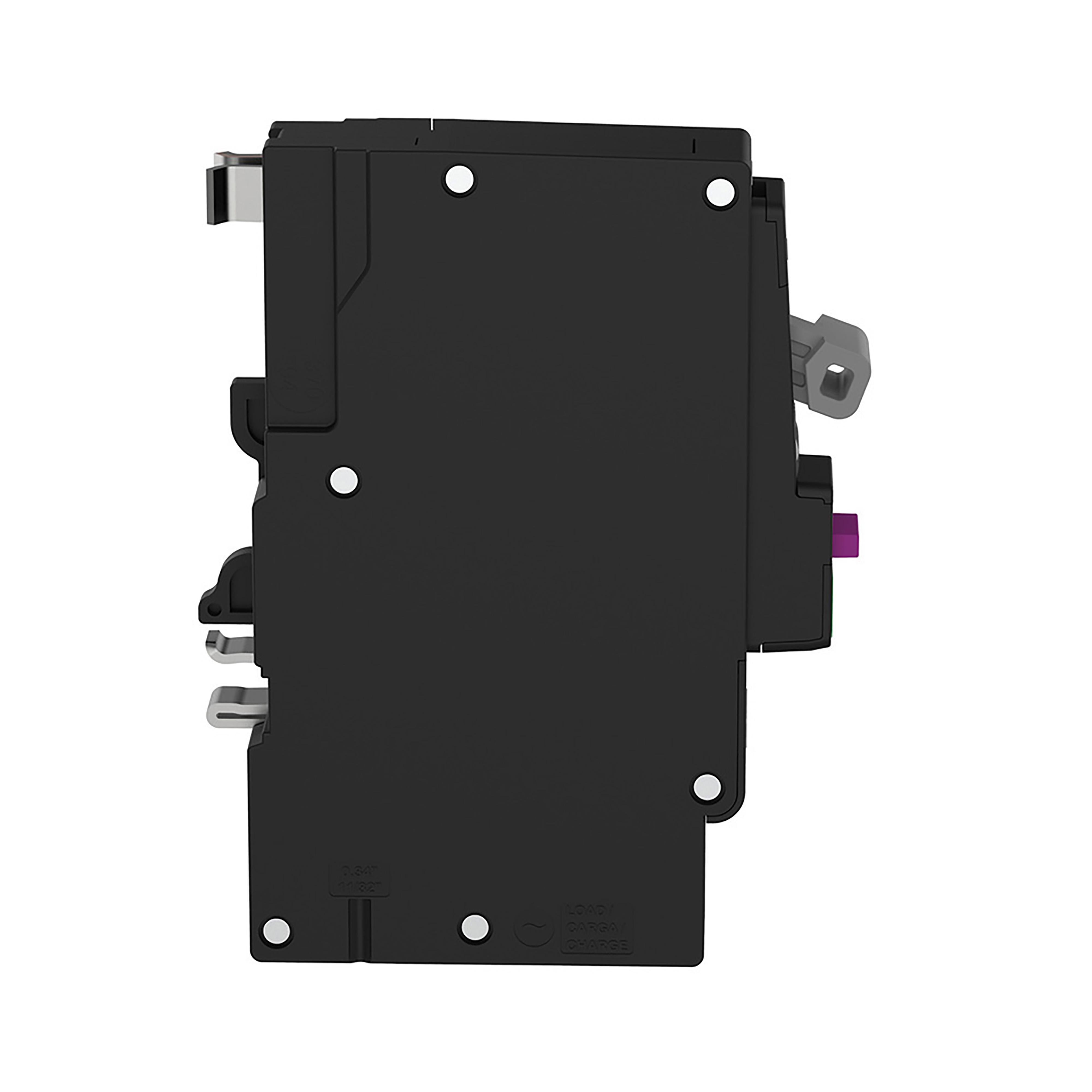

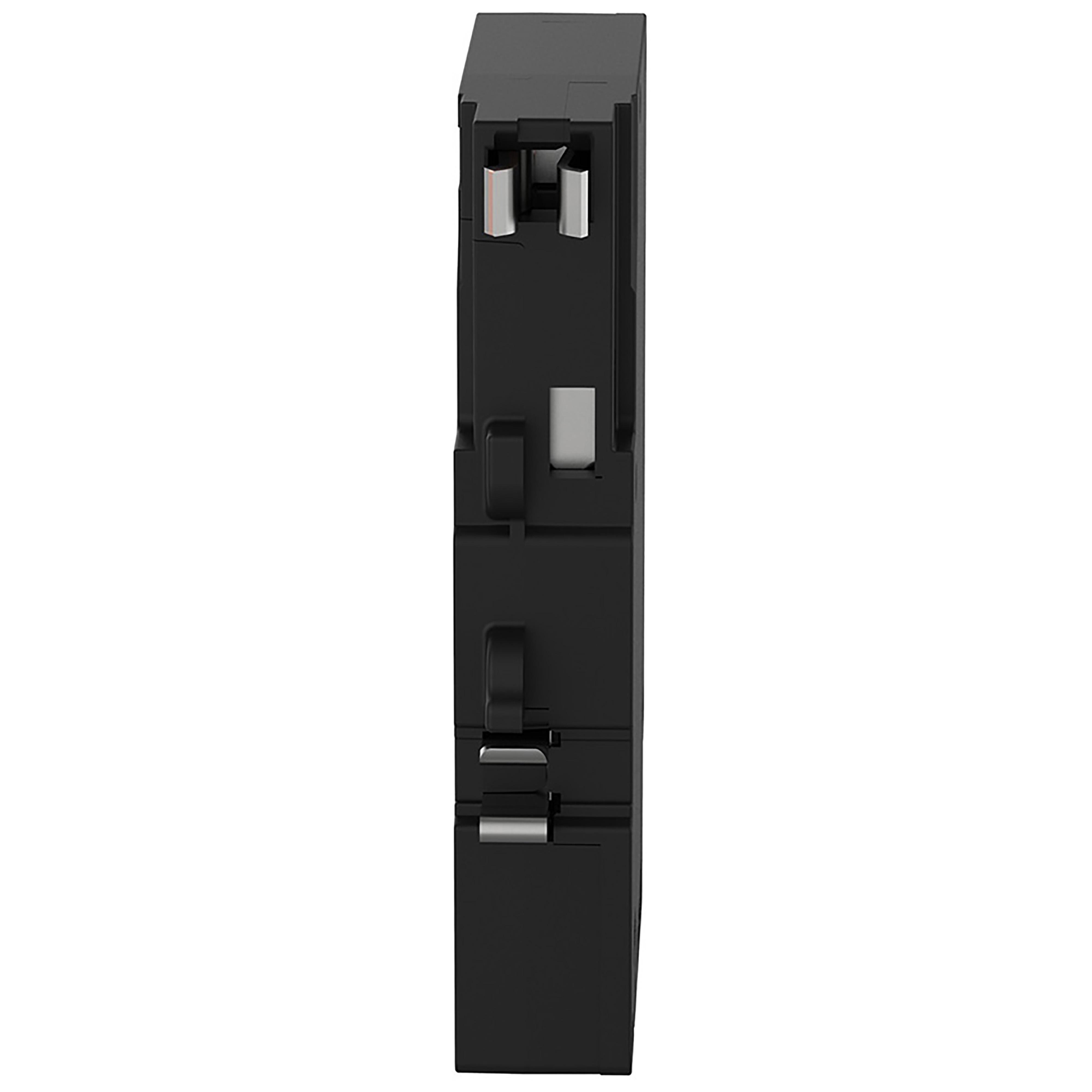

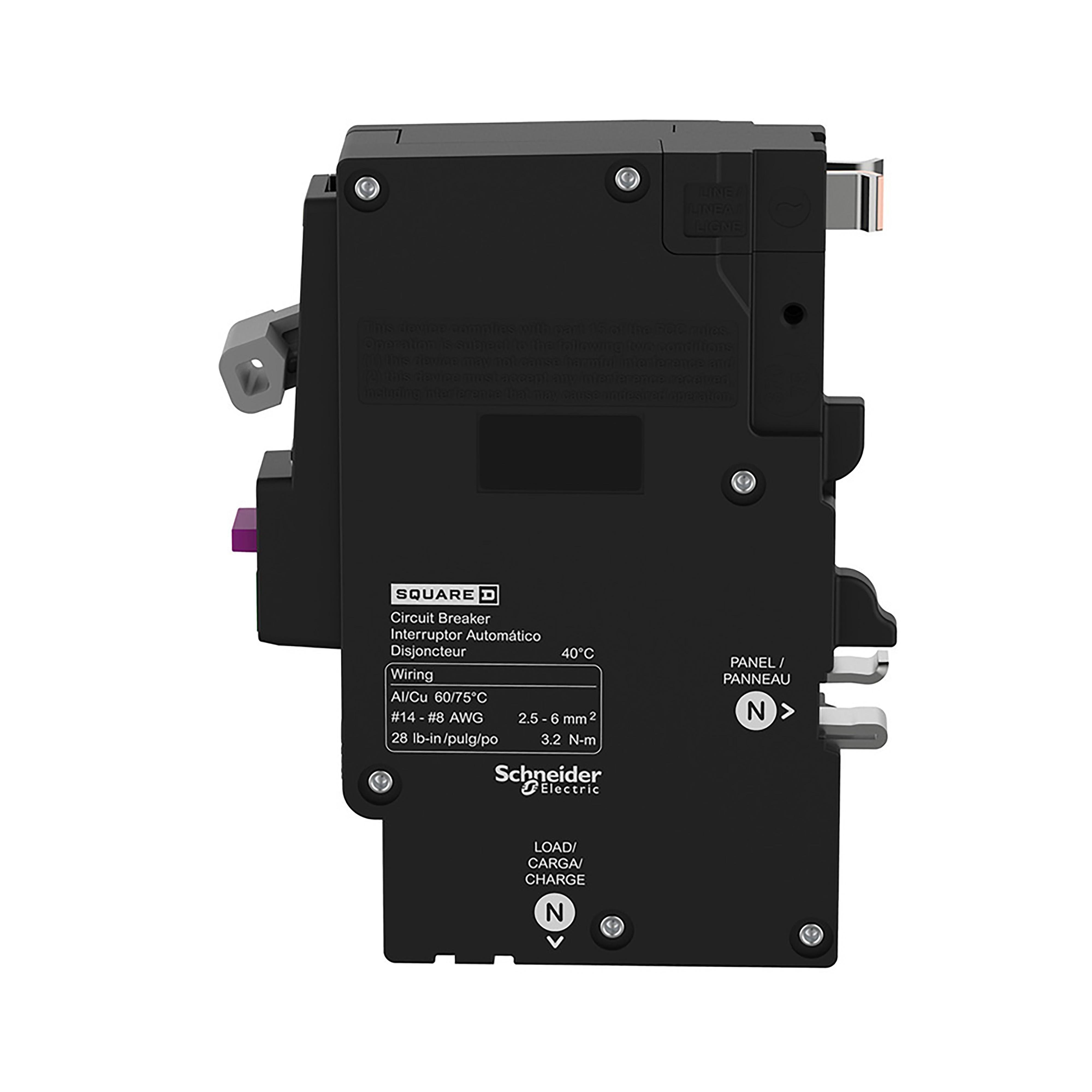

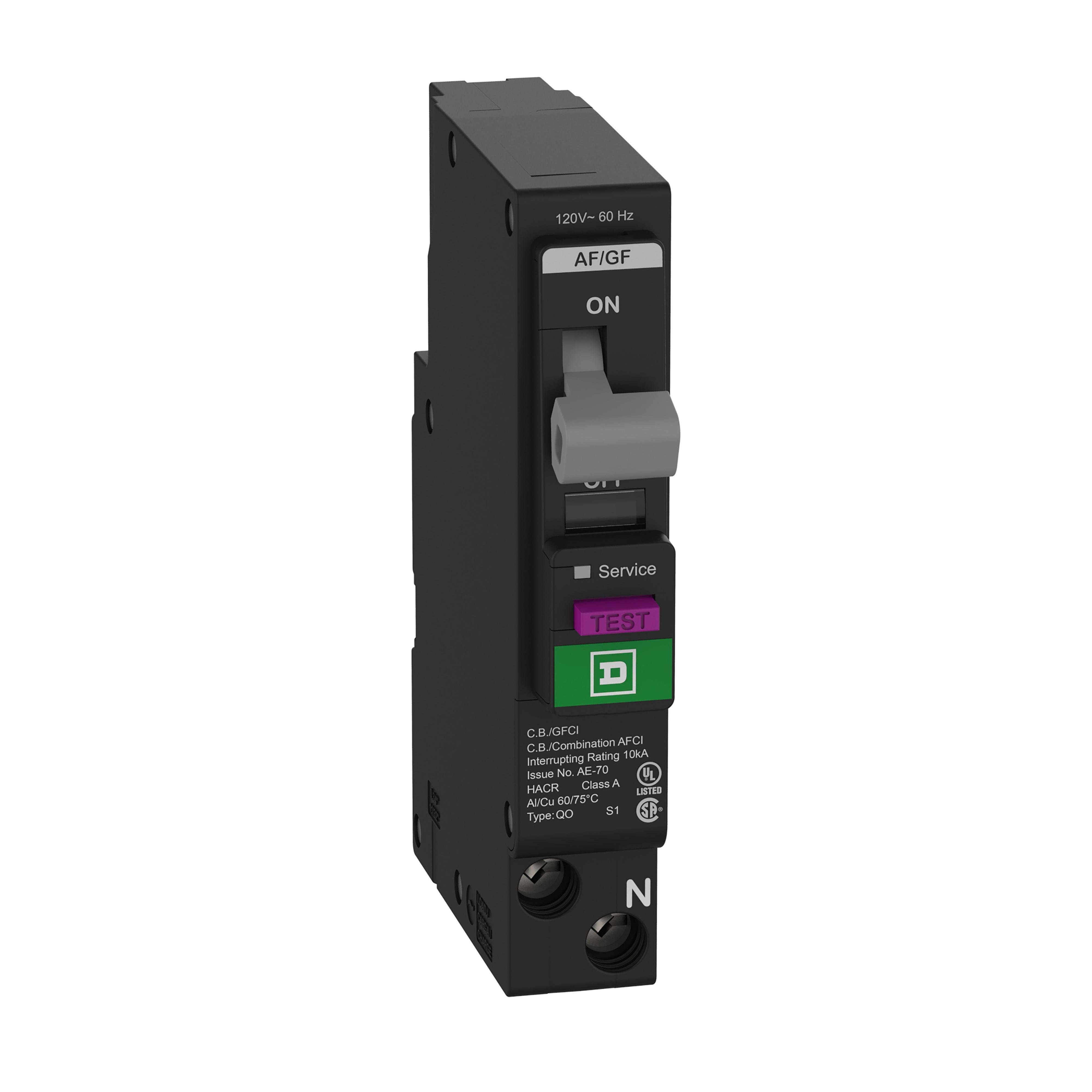

Picture of QO115PAFGF - [TAA] Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral Picture of QO115PAFGF - [TAA] Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral
Picture of QO115PAFGF - [TAA] Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral Picture of QO115PAFGF - [TAA] Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral
Picture of QO115PAFGF - [TAA] Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral Picture of QO115PAFGF - [TAA] Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral
Picture of QO115PAFGF - [TAA] Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral Picture of QO115PAFGF - [TAA] Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral
Picture of QO115PAFGF - [TAA] Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral Picture of QO115PAFGF - [TAA] Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral
Square D

QO115PAFGF - [TAA] Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, plug in, combo ARC fault, 6mA grd fault A, plug on neutral

Item Code: 1125706
Category NEMA Combination Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO115PAFGF

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a dual function feature with plug on neutral. This provides combination arc fault and ground fault protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

0.41lb

Height

4.13mm

Width

3.9mm

Length

4.17mm

Depth

69.08mm

AD All Features

Provides superior circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

MINTR CKT BRKR 120VAC 15A 10KA AT 120VAC

AD Item Features 01

Provides superior circuit protection

AD Item Features 02

Reliable and durable

AD Item Features 03

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 04

Simple design and clear instructions for quick setup

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.1300

AD Package Height UOM

IN

AD Package Length

4.1700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4100

AD Package Weight UOM

LB

AD Package Width

3.9000

AD Package Width UOM

IN

Brand

Square D

Category

NEMA COMBINATION STARTERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

104

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

Combination ARC And Ground Fault

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

14 to 8 AWG Copper, 12 to 8 AWG Aluminium

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

15

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Pressure Plate

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

4.10 in H x 0.75 in W x 2.72 in D

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50, 60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute Value

10 kA at 120 VAC

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Plug-On

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

1

Spec 9 Attribute

Series

Spec 9 Attribute Value

QO Series
