Schneider Electric

QO116L125PGRB - Load center, QO, 1 phase, 16 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar

Category Miscellaneous

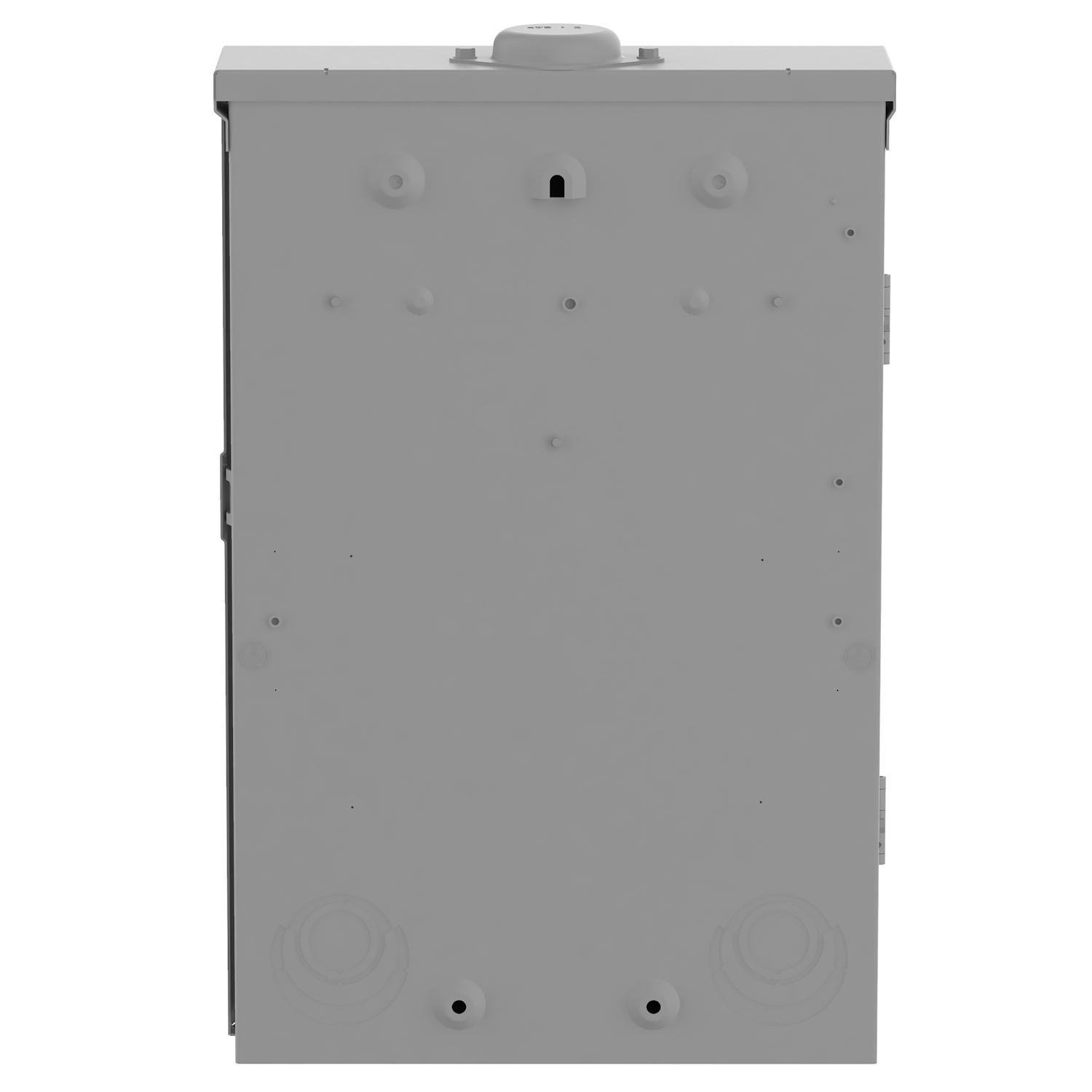

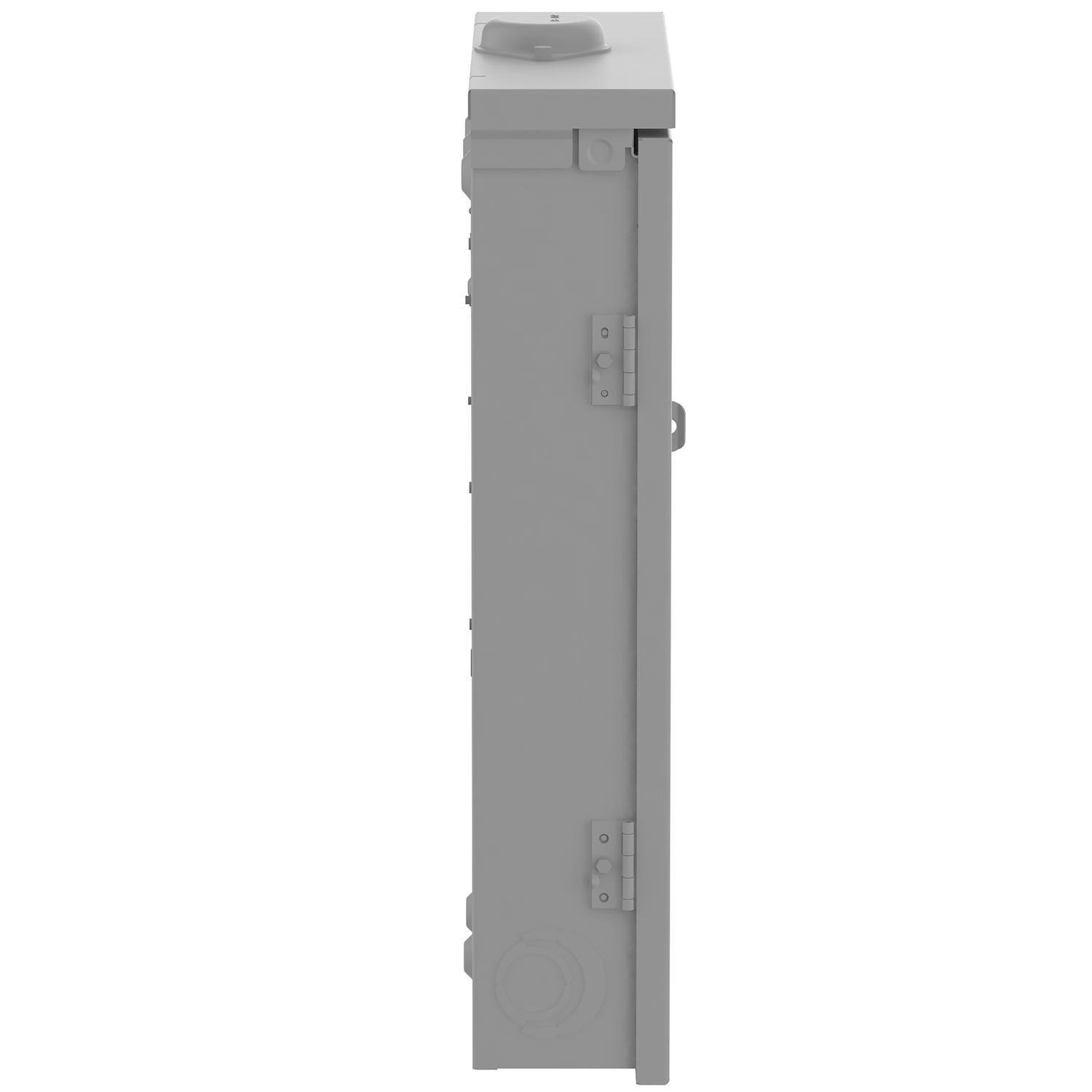

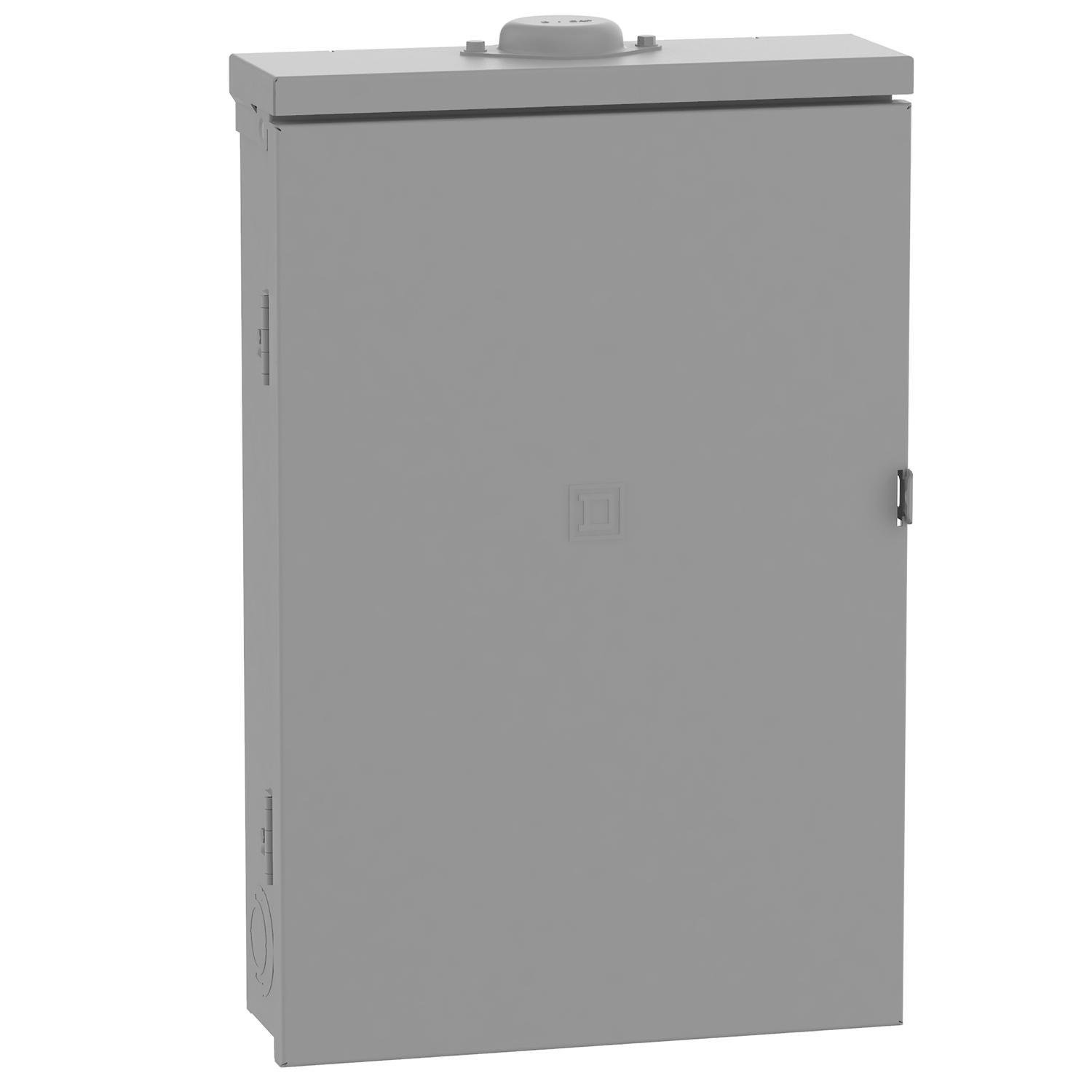

Picture of QO116L125PGRB - Load center, QO, 1 phase, 16 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO116L125PGRB - Load center, QO, 1 phase, 16 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar
Picture of QO116L125PGRB - Load center, QO, 1 phase, 16 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO116L125PGRB - Load center, QO, 1 phase, 16 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar
Picture of QO116L125PGRB - Load center, QO, 1 phase, 16 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO116L125PGRB - Load center, QO, 1 phase, 16 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar
Picture of QO116L125PGRB - Load center, QO, 1 phase, 16 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO116L125PGRB - Load center, QO, 1 phase, 16 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar
Schneider Electric

QO116L125PGRB - Load center, QO, 1 phase, 16 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar

Item Code: 1089913
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO116L125PGRB

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 16 spaces and 24 circuits. This system provides 125A convertible main lugs in a NEMA 3R enclosure. It also includes plug on neutral, ground bar, and is UL rated.

Specifications

Weight

14.97

Height

5

Width

14.62

Length

21.84

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/qo116l125pgrb/qo116l125pgrb.spin

AD All Features

Provides superior performance and durability

AD Alternative Part Number

14859572

AD Application

For QO™ plug-on neutral circuit breaker and indoor applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Owners/User Manual

AD Gtin

00785901604815

AD IDEA Index ID

14859572

AD Includes

Field Installed Ground Bar and Rainproof B-Hub with Generator Receptacle

AD Invoice Description

LOAD CENTER NEUT LUG MAIN CONVERTIBLE 16

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Keywords

Square D QO QO116L125PGRB 1-Phase 3-Wire Rainproof Convertible Main Lug Neutral Load Center, 120/240 V AC, 125 A, 65 kA Interrupt ; Schneider Electric ; QO116L125PGRB ; QO116L125PGRB ; 785901604815 ; Single Phase Convertible Load Centers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.0000

AD Package Height UOM

IN

AD Package Length

21.8400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1920.0000

AD Package Volume UOM

cu-in

AD Package Weight

14.9700

AD Package Weight UOM

LB

AD Package Width

14.6200

AD Package Width UOM

IN

AD Part Number Keywords

QO116L125PGRB ; 14859572 ; 785901604815 ; 78590160481 ; 00785901604815

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

120/240

Spec 11 Attribute

Wire Size

Spec 11 Attribute Value

6 to 2/0 AWG Al/Cu

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Plug-On

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

14.75 in W x 4.52 in D x 22.06 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

65

Spec 7 Attribute

Number of Circuits

Spec 7 Attribute Value

16

Spec 8 Attribute

Number of Spaces

Spec 8 Attribute Value

16

Spec 9 Attribute

Type

Spec 9 Attribute Value

1-Phase 3-Wire Rainproof
