Square D

QO120DF - [TAA] Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, dual function, pigtail

Category Plug-In Circuit Breakers

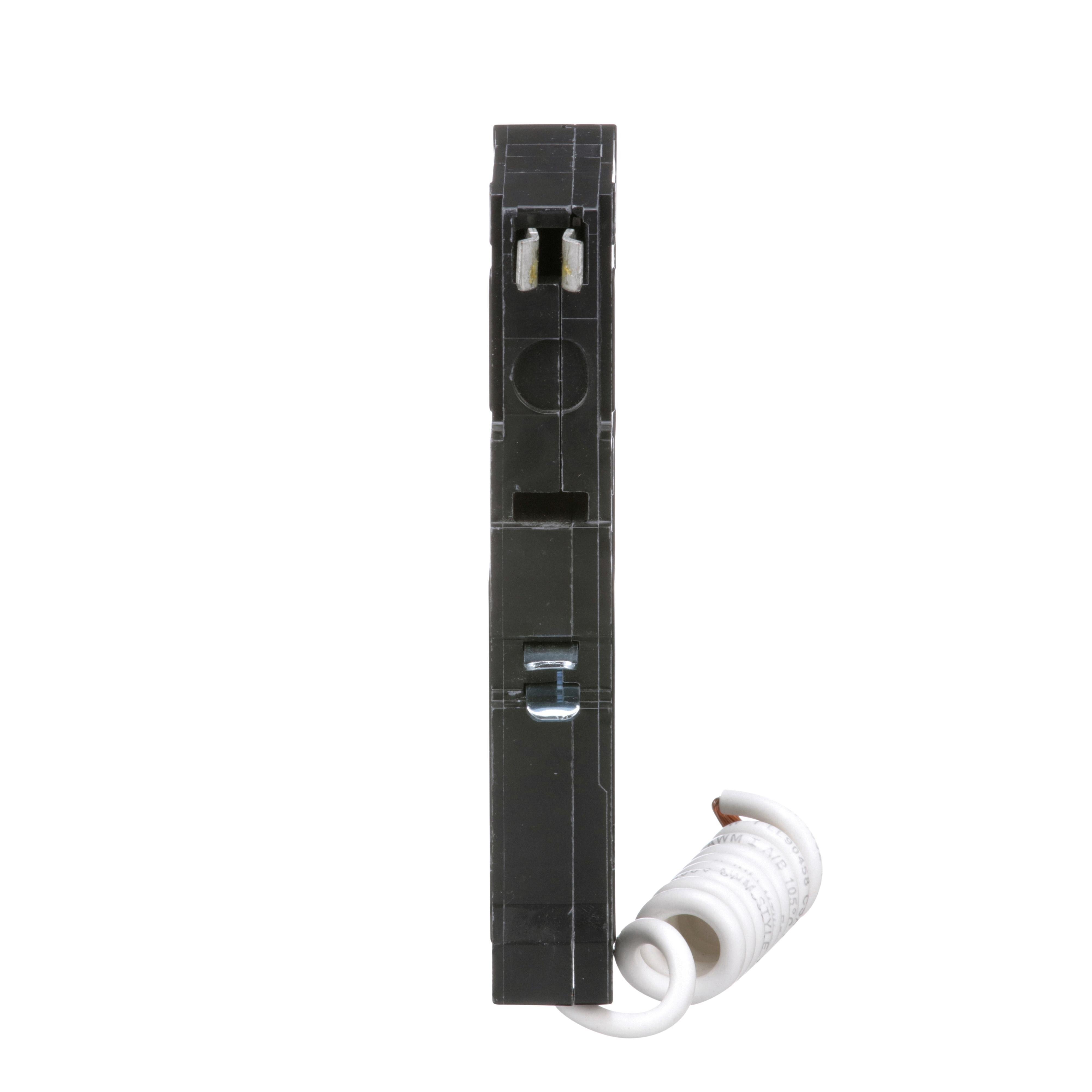

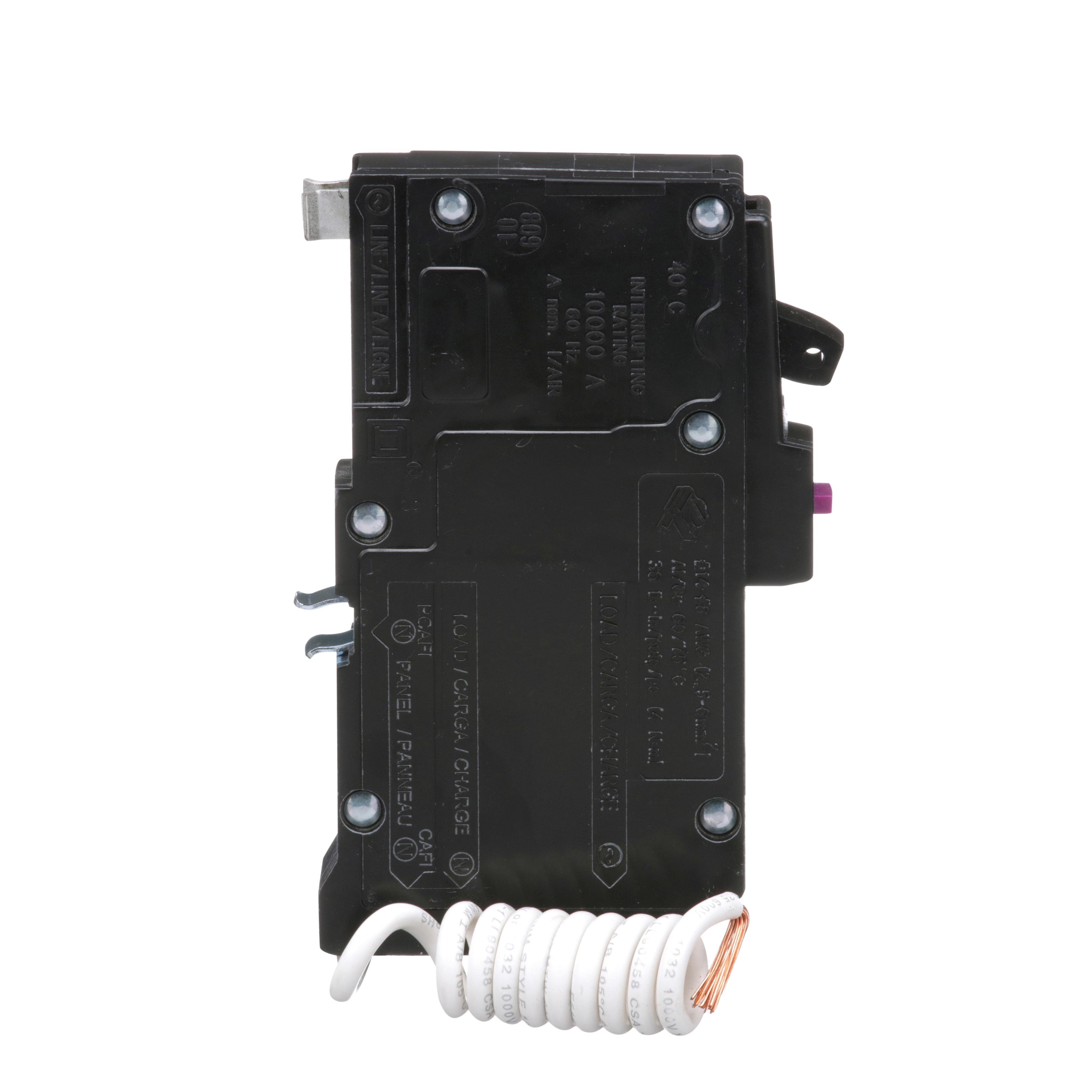

Picture of QO120DF - [TAA] Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, dual function, pigtail Picture of QO120DF - [TAA] Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, dual function, pigtail

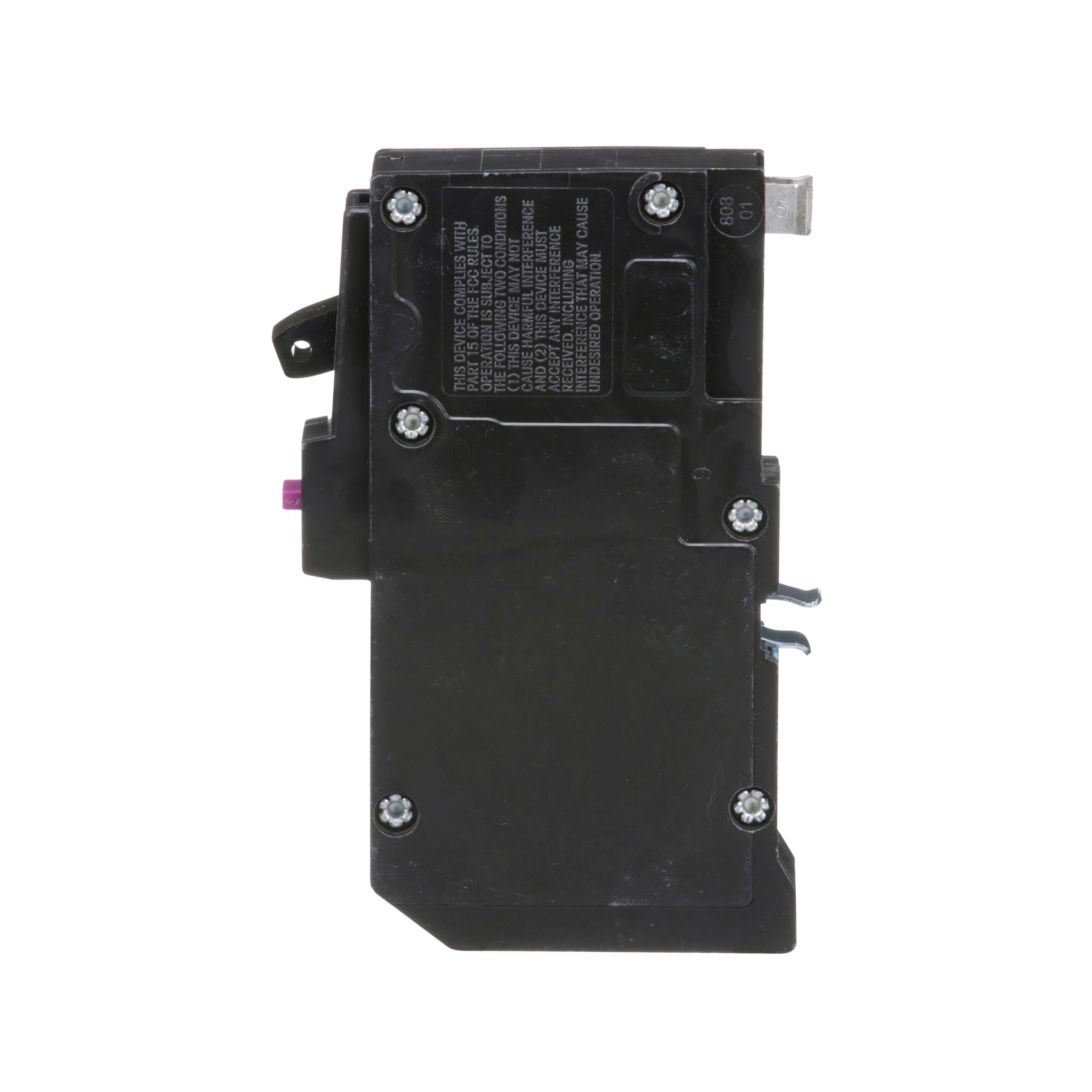

Picture of QO120DF - [TAA] Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, dual function, pigtail Picture of QO120DF - [TAA] Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, dual function, pigtail
Picture of QO120DF - [TAA] Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, dual function, pigtail Picture of QO120DF - [TAA] Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, dual function, pigtail
Picture of QO120DF - [TAA] Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, dual function, pigtail Picture of QO120DF - [TAA] Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, dual function, pigtail
Square D

QO120DF - [TAA] Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, plug in, dual function, pigtail

Item Code: 874278
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO120DF

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a dual function feature with pigtail. This provides combination arc fault and ground fault protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

0.6lb

Height

121mm

Width

3.96mm

Length

5.45mm

Depth

74mm

AD All Features

Reliable and durable

AD Application

For providing overload and short circuit protection, plus arc fault and ground fault protection in a single device

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER CKT MINTR COMBINATION 120VAC 20A

AD Item Features 01

Reliable and durable

AD Item Features 02

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 03

Simple design and clear instructions for quick setup

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

5.4500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.6000

AD Package Weight UOM

LB

AD Package Width

3.9600

AD Package Width UOM

IN

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Dual Function

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

14 to 8

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Pressure Plate

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.91 in L x 0.75 in W x 4.75 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

40
