Square D

QO120HID - Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, plug in, high density discharge

Category Plug-In Circuit Breakers

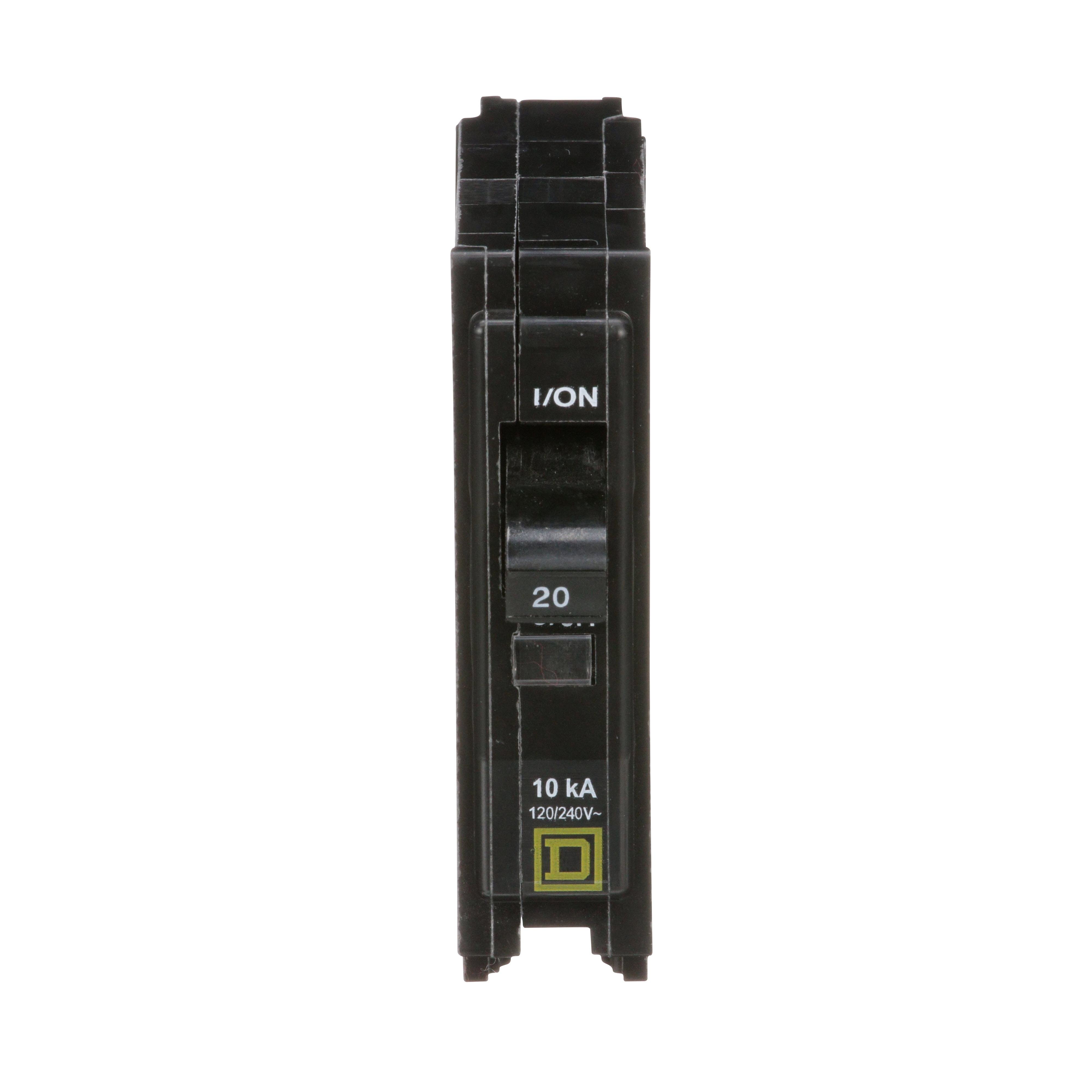

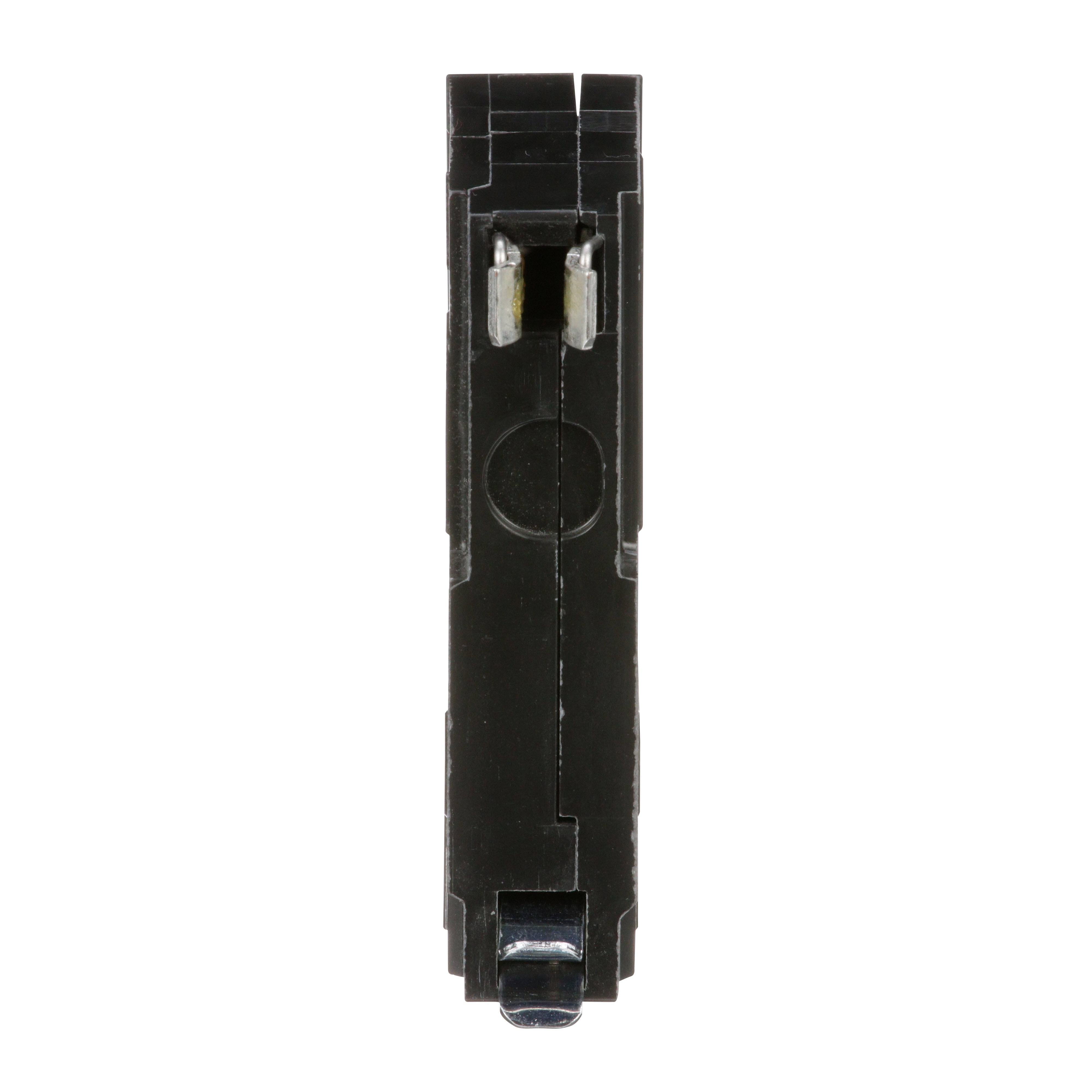

Picture of QO120HID - Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, plug in, high density discharge Picture of QO120HID - Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, plug in, high density discharge
Picture of QO120HID - Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, plug in, high density discharge Picture of QO120HID - Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, plug in, high density discharge
Picture of QO120HID - Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, plug in, high density discharge Picture of QO120HID - Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, plug in, high density discharge
Picture of QO120HID - Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, plug in, high density discharge Picture of QO120HID - Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, plug in, high density discharge
Square D

QO120HID - Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, plug in, high density discharge

Item Code: 45565
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO120HID

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product has a high density discharge feature. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

0.28lb

Height

3mm

Width

0.79mm

Length

3.27mm

Depth

74mm

AD All Features

Reliable and durable

AD Application

For providing overload, short circuit protection and circuits feeding fluorescent, other high intensity discharge lighting systems applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 20A 50/60HZ

AD Item Features 01

Reliable and durable

AD Item Features 02

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 03

Simple design and clear instructions for quick setup

AD Item Features 04

Time-saving diagnostics with touch of a button

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.0000

AD Package Height UOM

IN

AD Package Length

3.2700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

7.9200

AD Package Volume UOM

cu-in

AD Package Weight

0.2800

AD Package Weight UOM

LB

AD Package Width

0.7900

AD Package Width UOM

IN

Brand

Square D

Category

PLUG-IN CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type QO

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

14 to 8

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Pressure Plate

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.91 in L x 0.75 in W x 3 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

40
