Schneider Electric

QO120VHPDF - Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 22kA, dual function, plug on neutral, plug in mount

Category 1 POLE STANDARD TRIP PLUG-IN CIRCUIT BREAKERS

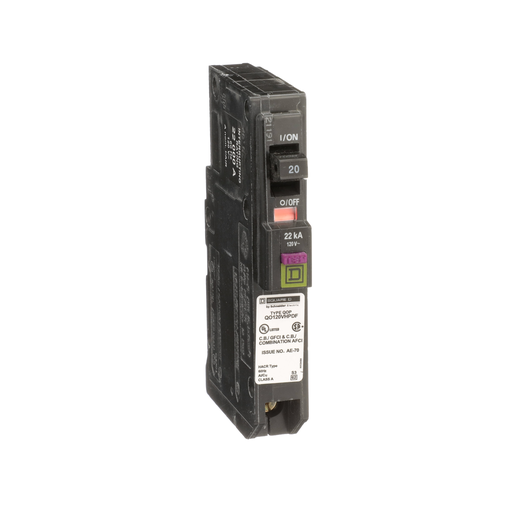

Picture of QO120VHPDF - Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 22kA, dual function, plug on neutral, plug in mount
Schneider Electric

QO120VHPDF - Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 22kA, dual function, plug on neutral, plug in mount

Item Code: 875520
Category 1 POLE STANDARD TRIP PLUG-IN CIRCUIT BREAKERS
Manufacturer Ref QO120VHPDF
Login for Pricing & Availability
Add to Favorites
Compare

Fetching product details


Description

QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 22kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a dual function feature with plug on neutral. This provides combination arc fault and ground fault protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

  • Brand : Square D
  • Category : 1 POLE STANDARD TRIP PLUG-IN CIRCUIT BREAKERS
  • Certifications : UL Listed
  • Circuit Breaker Type : Combination ARC-fault And Ground Fault
  • Country of Origin : MX
  • Depth : 74 millimeters
  • Height : 121 millimeters
  • Line Rated Current : 20 Amperes
  • Manufacturer ID : 123
  • Manufacturer Logo : https://media.distributordatasolutions.com/ManufacturerLogos/Schneider+Electric/_sized/primary_logo-large.png
  • Manufacturer Part Number : QO120VHPDF
  • Mounting Type : Plug-In
  • Net Weight : 0.113 kilograms
  • Order Minimum : 1
  • Width : 19 millimeters
