Square D

QO124L125PGRB - Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar

Category Load Centers & Accessories

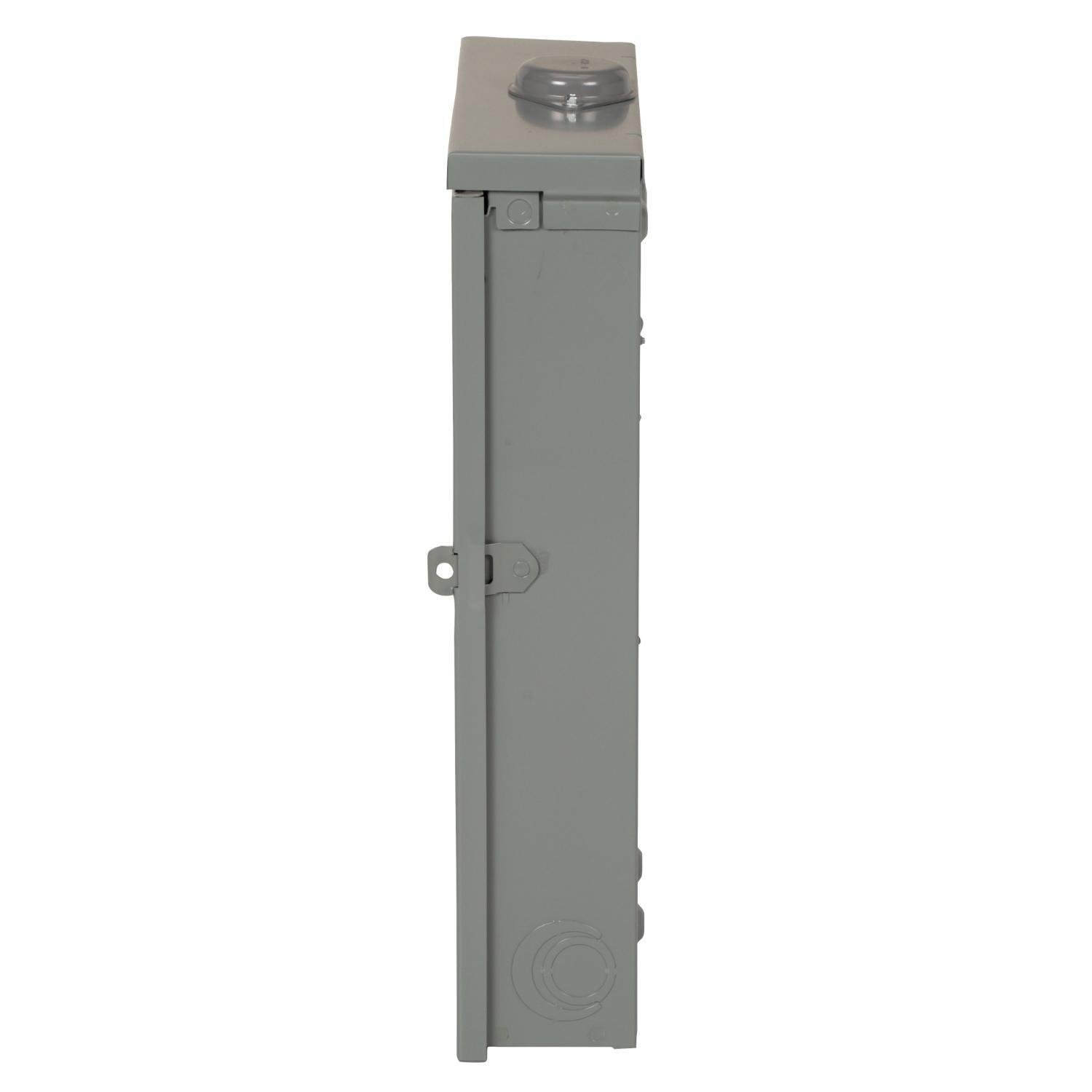

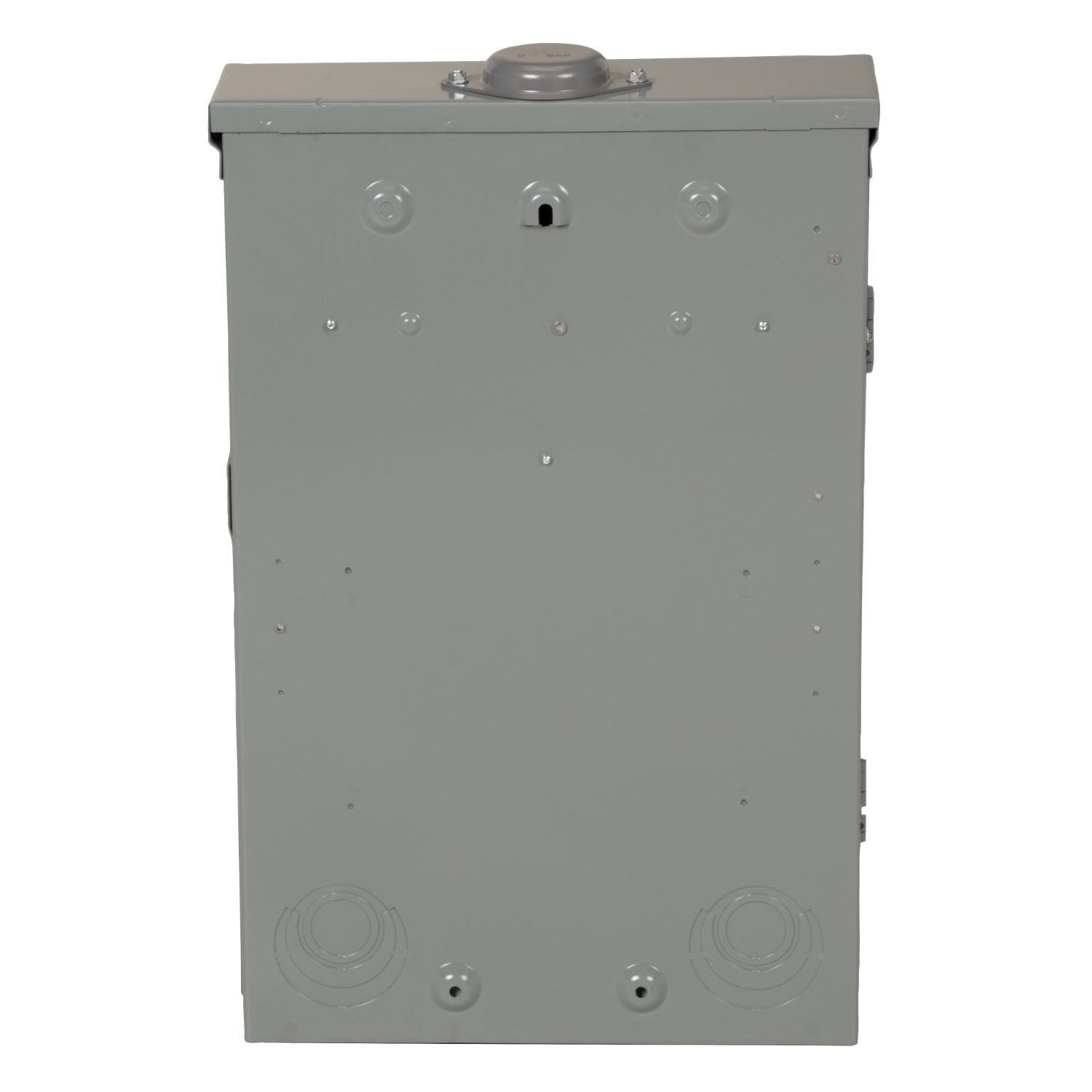

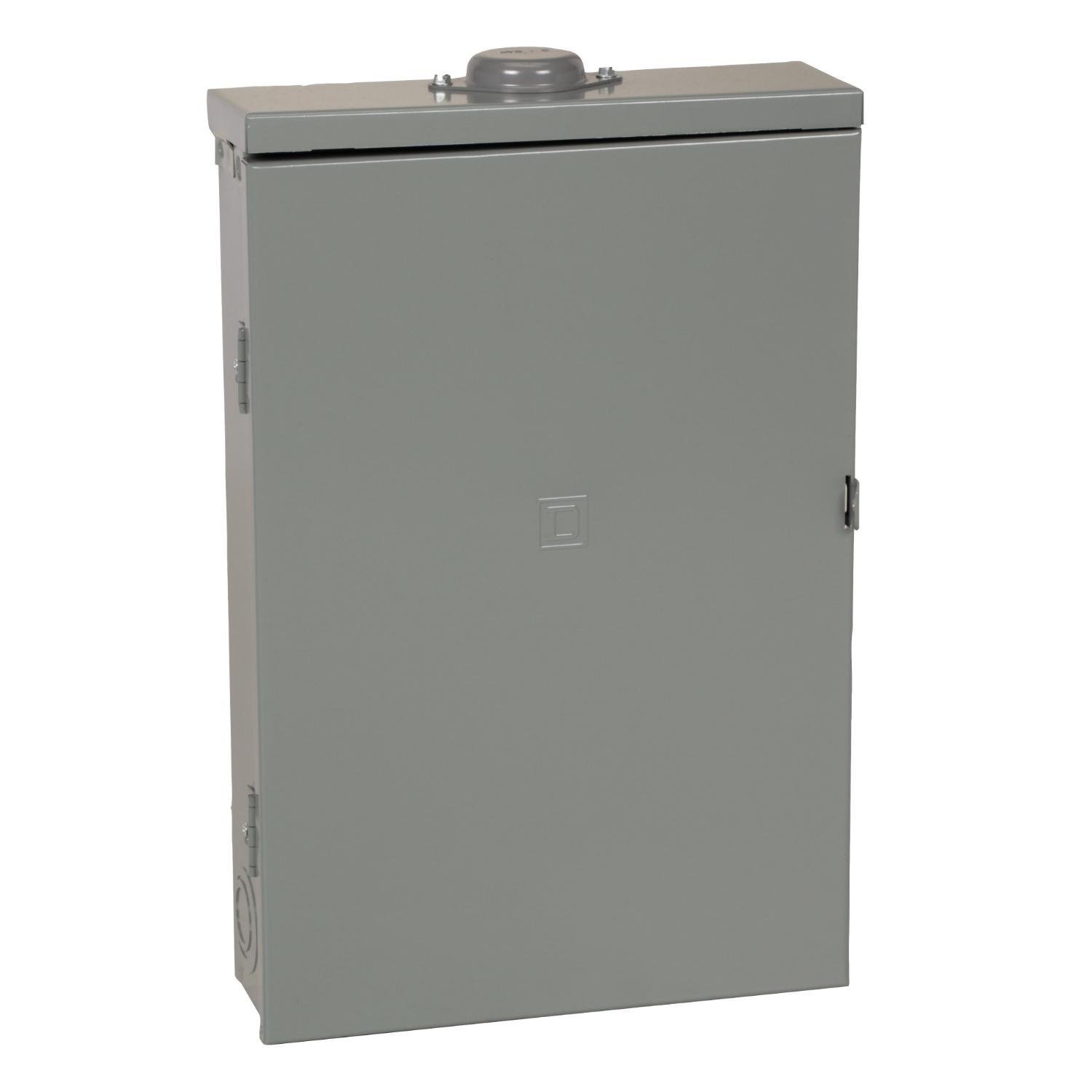

Picture of QO124L125PGRB - Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO124L125PGRB - Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar
Picture of QO124L125PGRB - Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO124L125PGRB - Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar
Picture of QO124L125PGRB - Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO124L125PGRB - Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar
Picture of QO124L125PGRB - Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar Picture of QO124L125PGRB - Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar
Square D

QO124L125PGRB - Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar

Item Code: 950161
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO124L125PGRB

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 34 circuits. This system provides 125A convertible main lugs in a NEMA 3R enclosure. It also includes plug on neutral, ground bar, and is UL rated.

Specifications

Weight

24.24lb

Height

560mm

Width

15.35mm

Length

23.77mm

AD All Features

Provides superior performance and durability

AD Application

For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

Field Installed Grounding Bar

AD Invoice Description

CENTER LOAD LUG MAIN 240VAC 125A 1 65KA

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

23.7700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

24.2400

AD Package Weight UOM

LB

AD Package Width

15.3500

AD Package Width UOM

IN

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

24

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

1

Spec 12 Attribute

Number of Spaces

Spec 12 Attribute Value

24

Spec 13 Attribute

Type

Spec 13 Attribute Value

1-Phase Convertible Neutral

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

6 to 2/0 AWG Aluminum/Copper

Spec 16 Attribute

Wiring Configuration

Spec 16 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

22.06 in H x 14.75 in W x 4.52 in D

Spec 4 Attribute

Enclosure Box Size

Spec 4 Attribute Value

4R

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 3R

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Galvannealed Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

65

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Plug-On
