Square D

QO125 - Mini circuit breaker, QO, 25A, 1 pole, 120/240VAC, 10kA, plug in

Category Plug-In Circuit Breakers

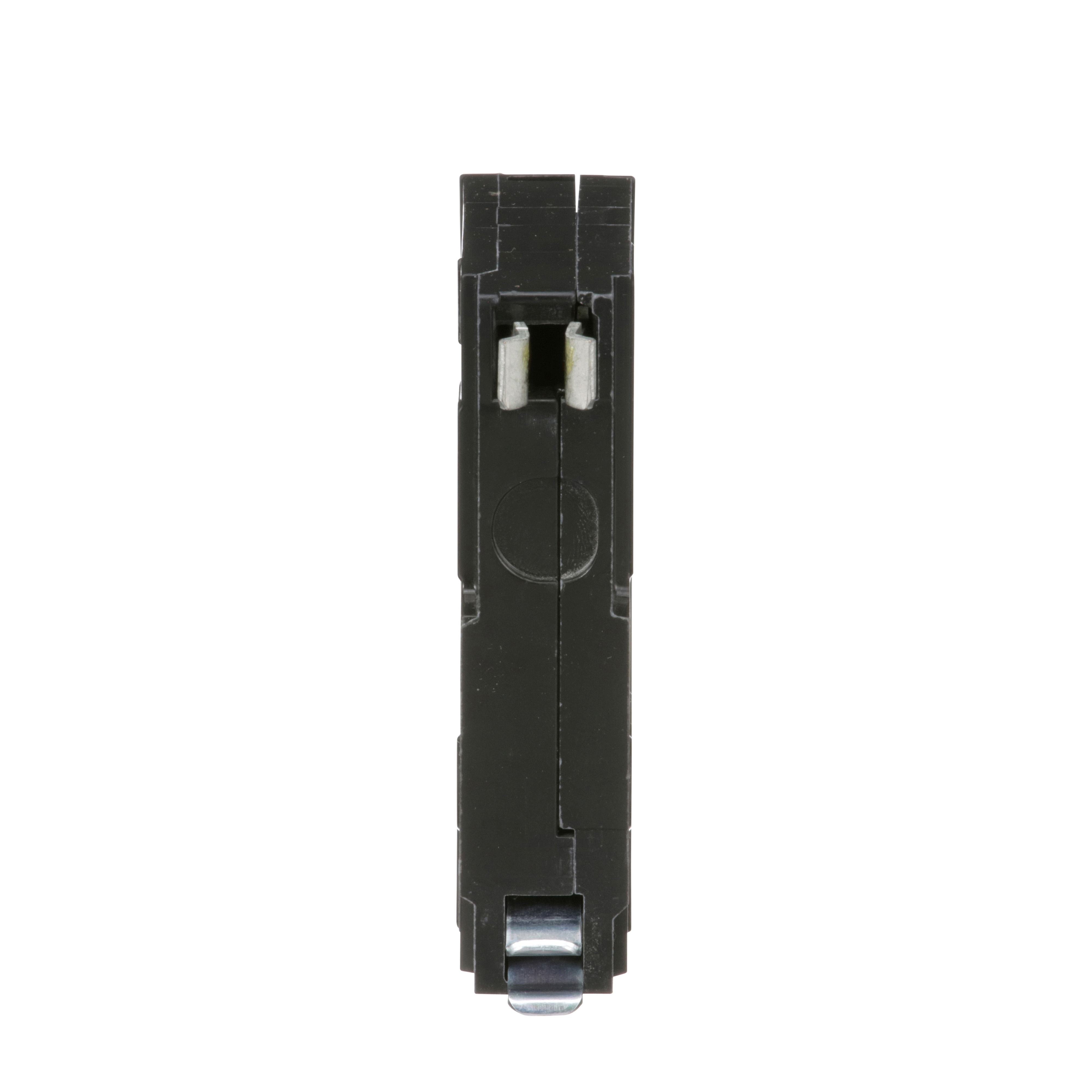

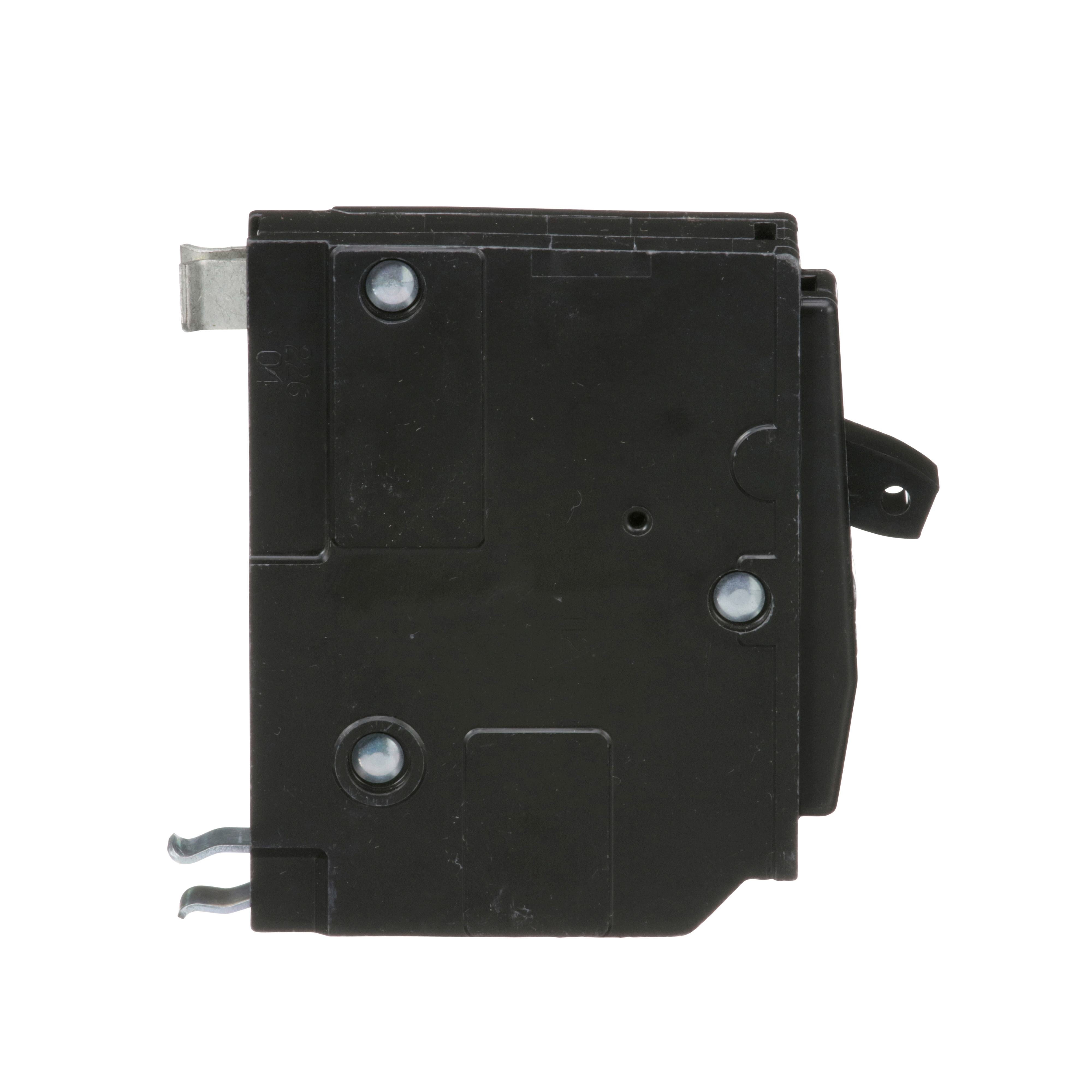

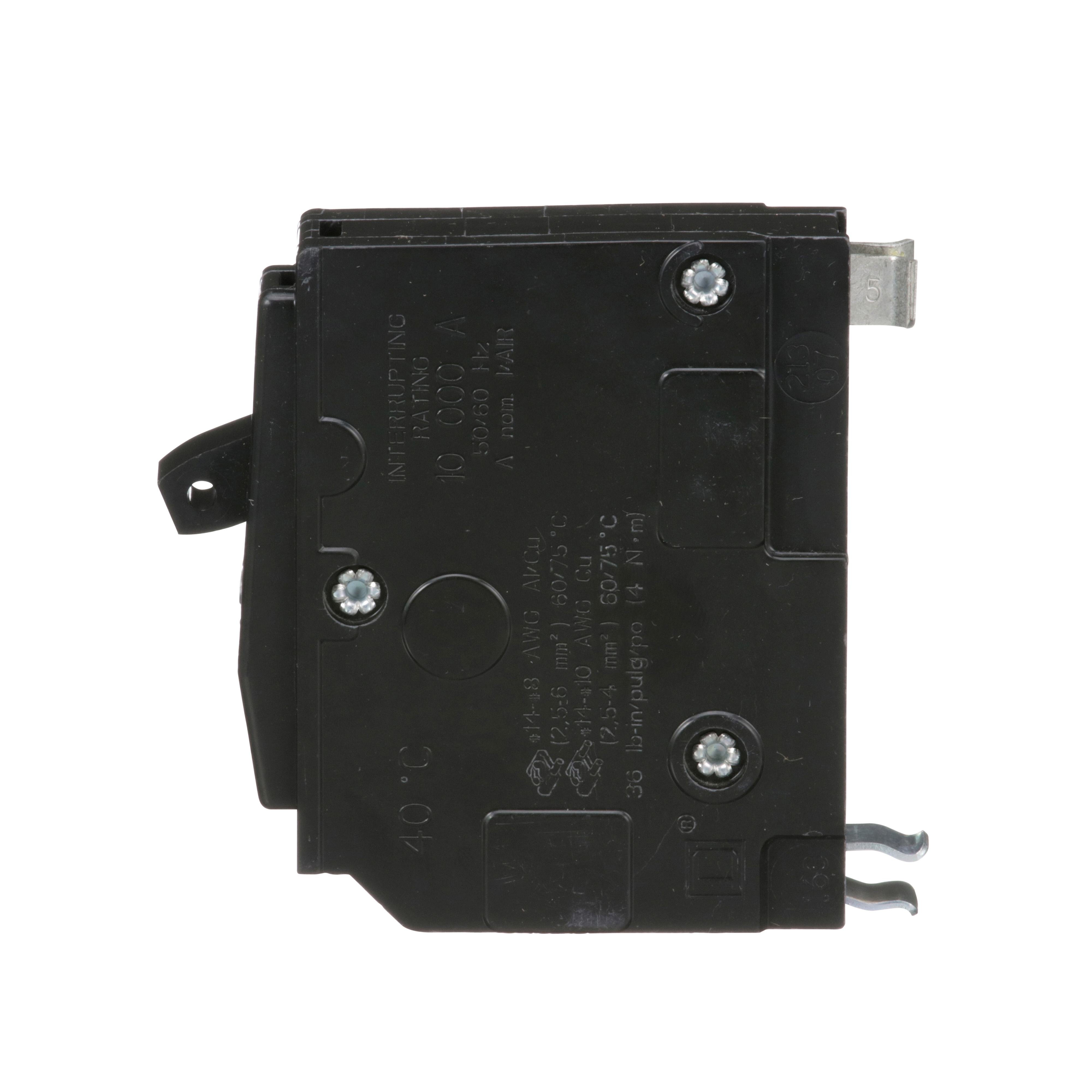

Picture of QO125 - Mini circuit breaker, QO, 25A, 1 pole, 120/240VAC, 10kA, plug in
Square D

QO125 - Mini circuit breaker, QO, 25A, 1 pole, 120/240VAC, 10kA, plug in

Item Code: 18534
Category Plug-In Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO125
Login for Pricing & Availability
Add to Favorites
Compare

Fetching product details


Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 25A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Purchasing Quantities

EACH

1

BOX

10

Specifications

  • Brand : Square D
  • Category : PLUG-IN CIRCUIT BREAKERS
  • Country of Origin : MEX
  • Manufacturer Part Number : QO125
  • Net Weight : 0.122 kilograms
  • Warranty Length : 18 Months
