Square D

QO130L200PG - Load center, QO, 1 phase, 30 spaces, 40 circuits, 200A convertible main lugs, PoN, NEMA1, gnd bar

Category Load Centers & Accessories

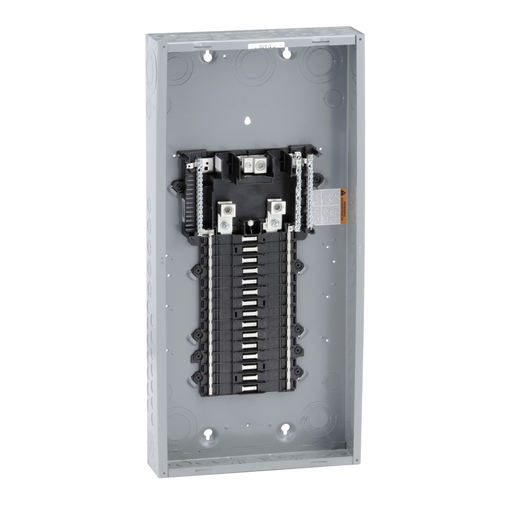

Picture of QO130L200PG - Load center, QO, 1 phase, 30 spaces, 40 circuits, 200A convertible main lugs, PoN, NEMA1, gnd bar
Square D

QO130L200PG - Load center, QO, 1 phase, 30 spaces, 40 circuits, 200A convertible main lugs, PoN, NEMA1, gnd bar

Item Code: 866611
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO130L200PG

Instruction Installation Manual
Owners User Manual
RoHS
Specification Sheet
Warranty Information
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 30 spaces and 30 circuits. This system provides 200A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, and is UL rated.

Specifications

Weight

16.96lb

Height

758mm

Width

14.66mm

Length

30.71mm

Amperage Rating

200 A

Brand

Square D

Breaker Mounting

Panel

Breaker Type

QO

Category

Load Centers & Accessories

Dimensions

14.25 in W x 3.75 in D x 29.86 in H

Enclosure Box Size

9

Enclosure Type

NEMA 1

Frequency Rating

50/60 Hz

Housing Material

Steel

Interrupt Rating

65 kA

Mounting Type

Plug-On

Number of Circuits

30

Number Of Poles

1

Number of Spaces

30

Type

1-Phase Convertible Neutral

Voltage Rating

120/240 V AC

Wire Size

6 AWG to 250 KCMIL

Wiring Configuration

3-Wire
