Square D

QO130M200P - Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1

Category Load Centers & Accessories

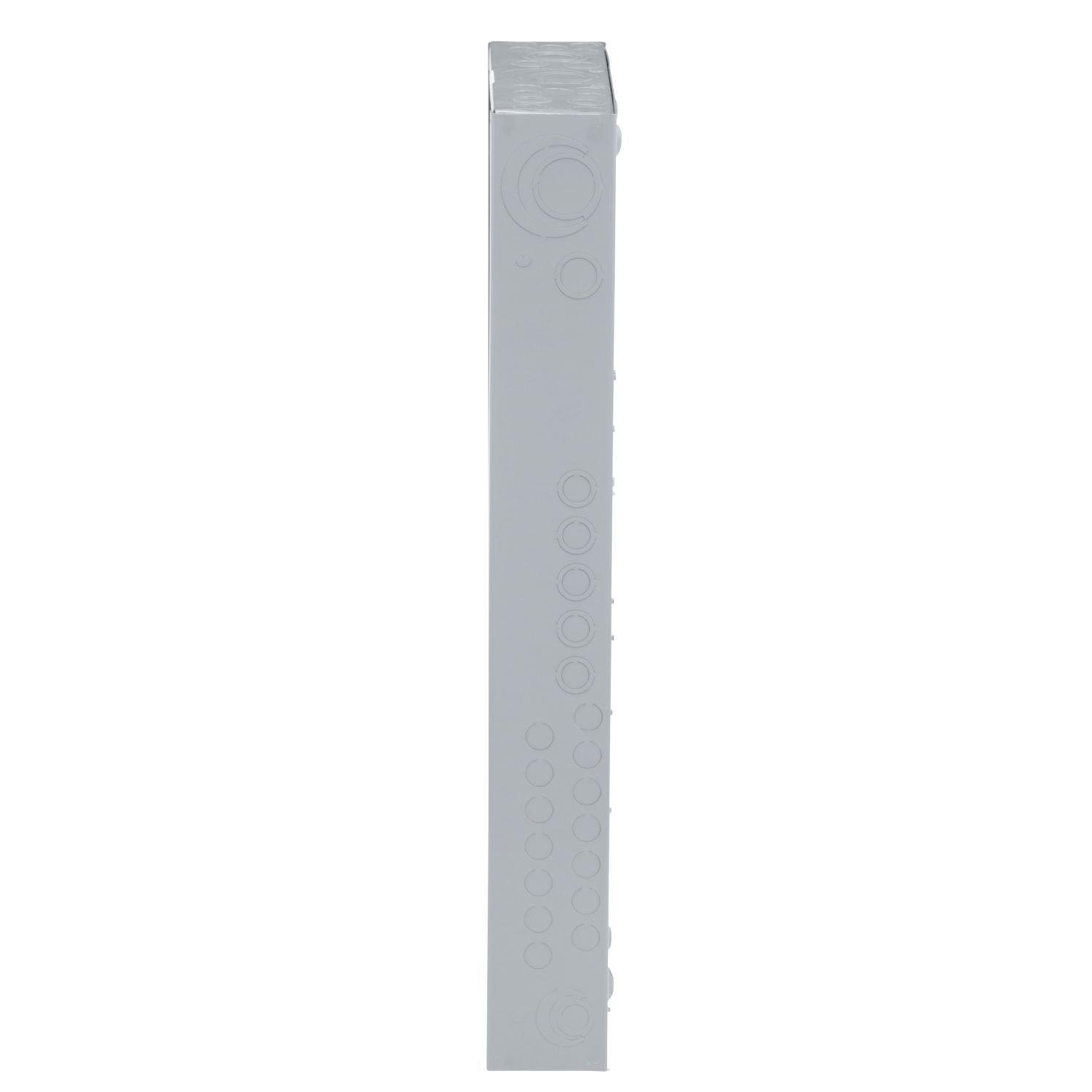

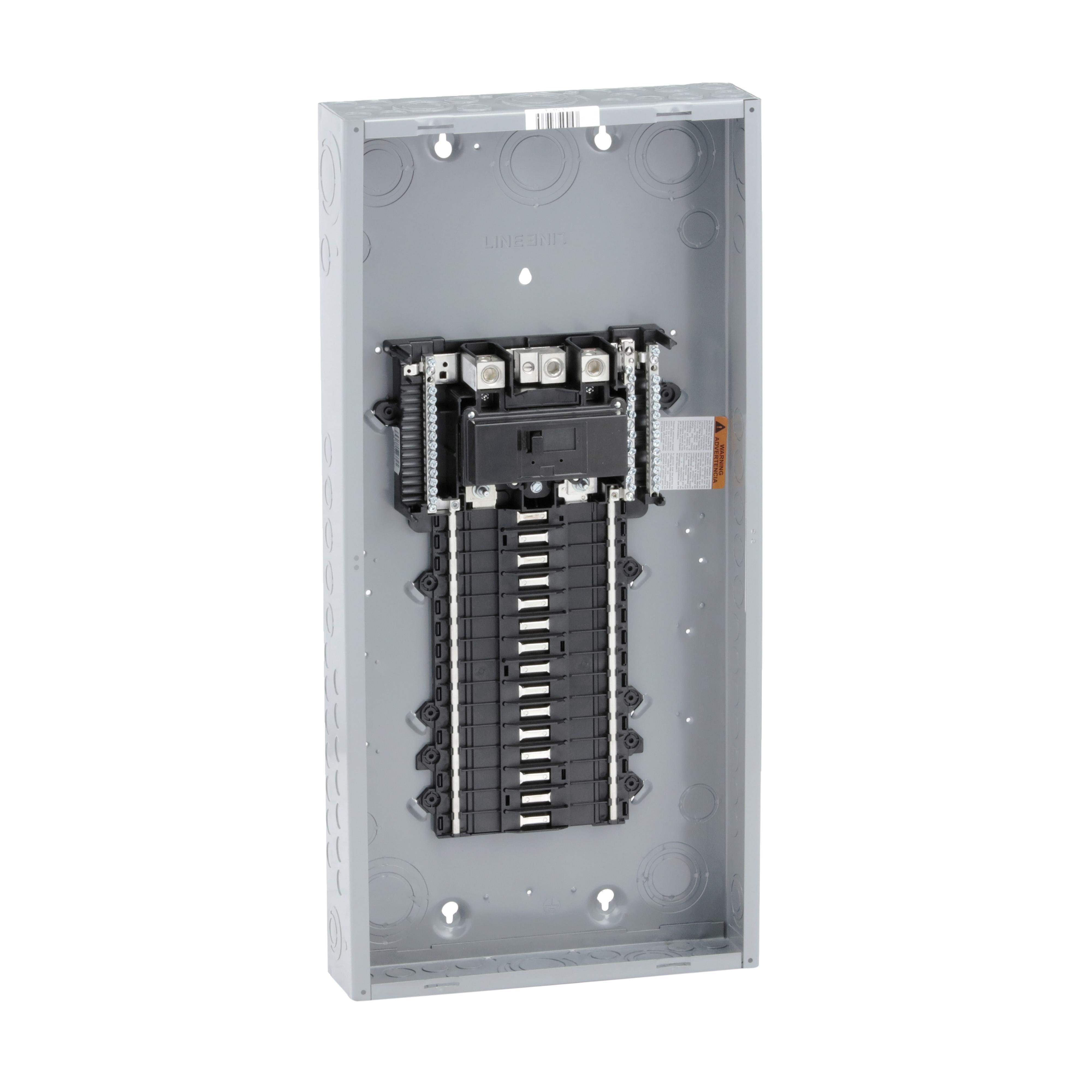

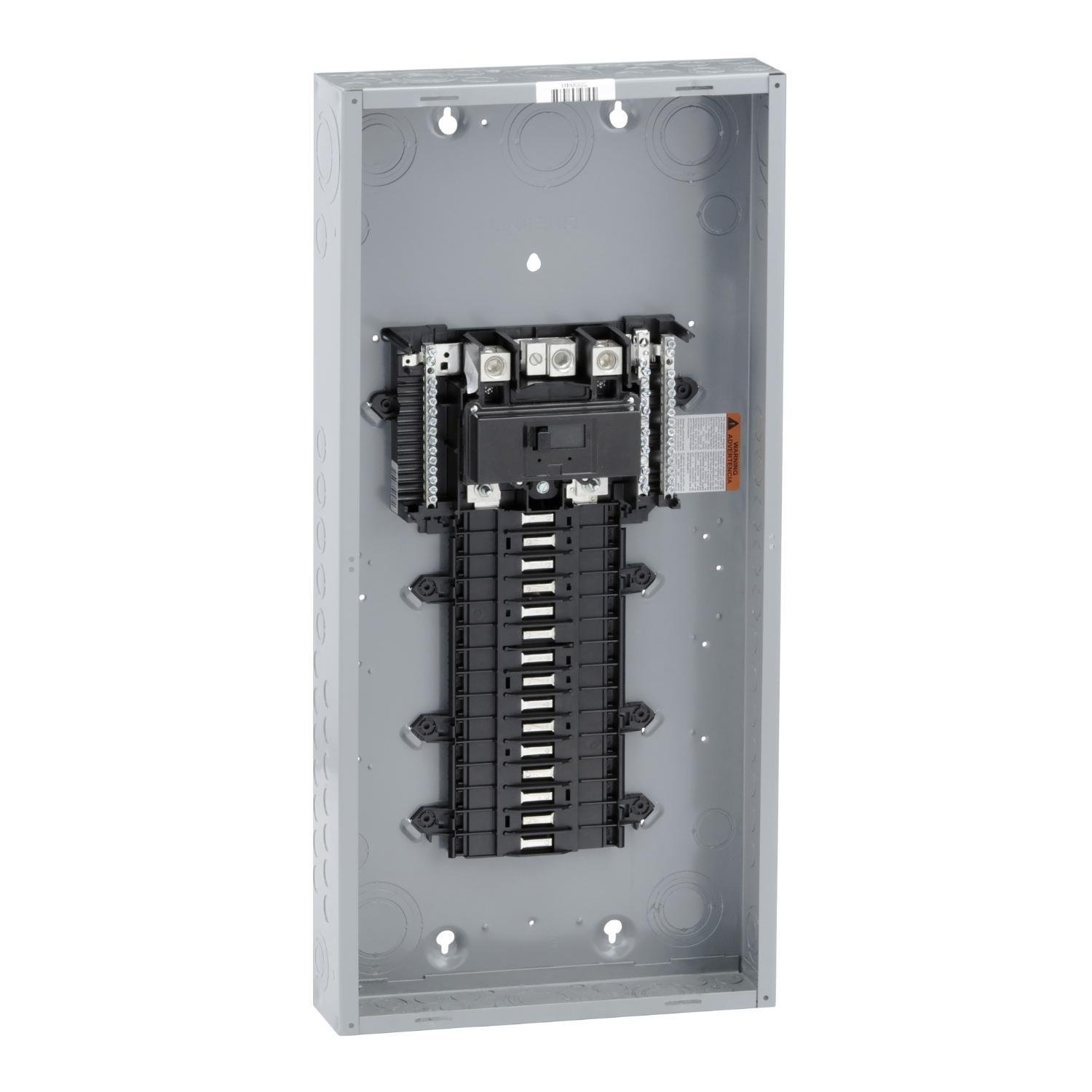

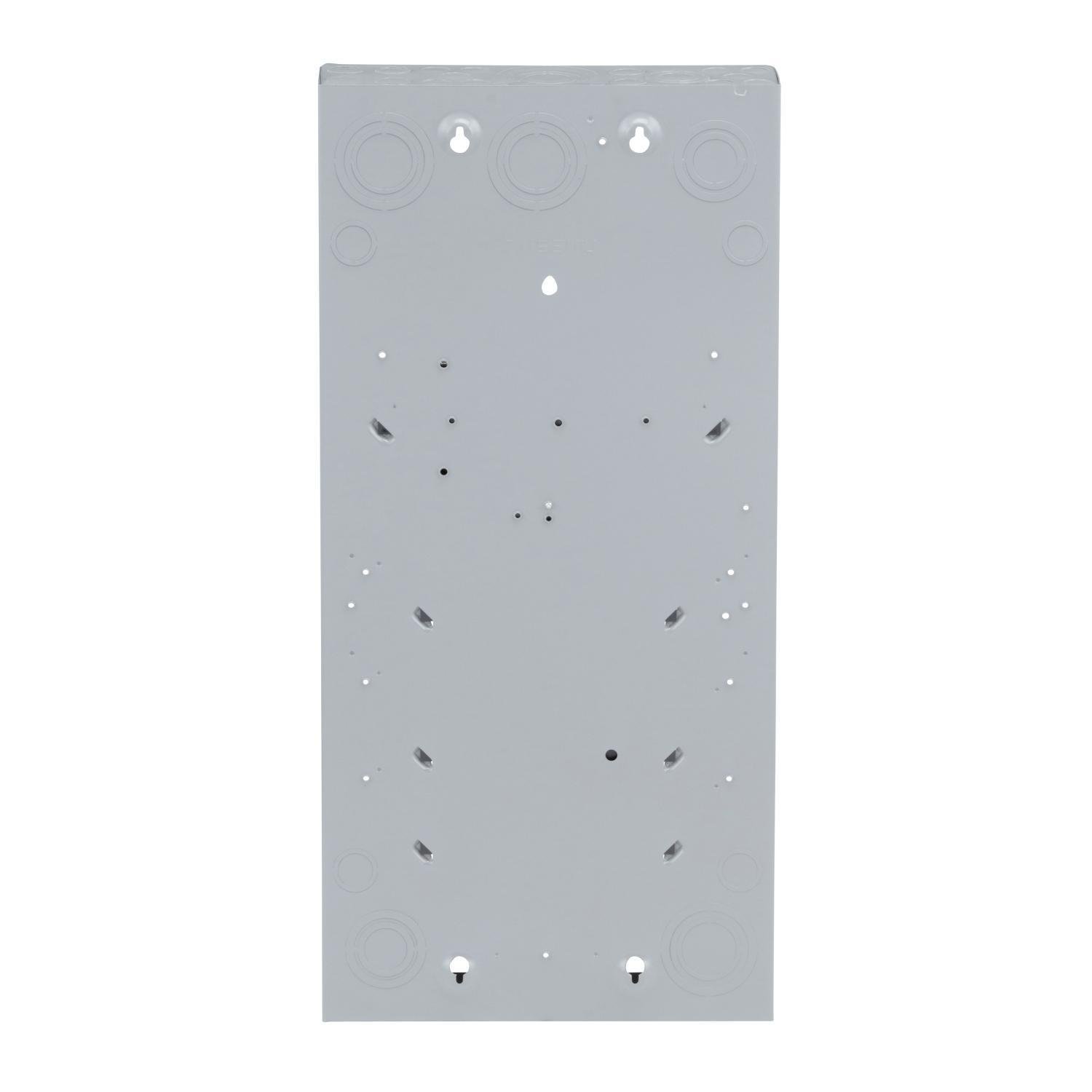

Picture of QO130M200P - Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1 Picture of QO130M200P - Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1
Picture of QO130M200P - Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1 Picture of QO130M200P - Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1
Picture of QO130M200P - Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1 Picture of QO130M200P - Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1
Picture of QO130M200P - Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1 Picture of QO130M200P - Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1
Picture of QO130M200P - Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1 Picture of QO130M200P - Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1
Square D

QO130M200P - Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main breaker, PoN, NEMA1

Item Code: 866615
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO130M200P

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 30 spaces and 30 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. This product is UL rated. Can be easily installed.

Specifications

Weight

18.61lb

Height

758mm

Width

14.86mm

Length

30.71mm

AD All Features

Provides superior performance and durability

AD Application

For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

CENTER LOAD BRKR MAIN 120/240VAC 200A

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

30.7100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

18.6100

AD Package Weight UOM

LB

AD Package Width

14.8600

AD Package Width UOM

IN

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Plug-On

Spec 11 Attribute

Number of Circuits

Spec 11 Attribute Value

30

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

1

Spec 13 Attribute

Number of Spaces

Spec 13 Attribute Value

30

Spec 14 Attribute

Type

Spec 14 Attribute Value

1-Phase Convertible Neutral

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

120/240

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

4 AWG to 250 kcmil

Spec 17 Attribute

Wiring Configuration

Spec 17 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

QOM2

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.25 in W x 3.75 in D x 29.86 in H

Spec 5 Attribute

Enclosure Box Size

Spec 5 Attribute Value

9

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Housing Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

22
