Square D

QO154L225PG - Load center, QO, 1 phase, 54 spaces, 64 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar

Category Load Centers & Accessories

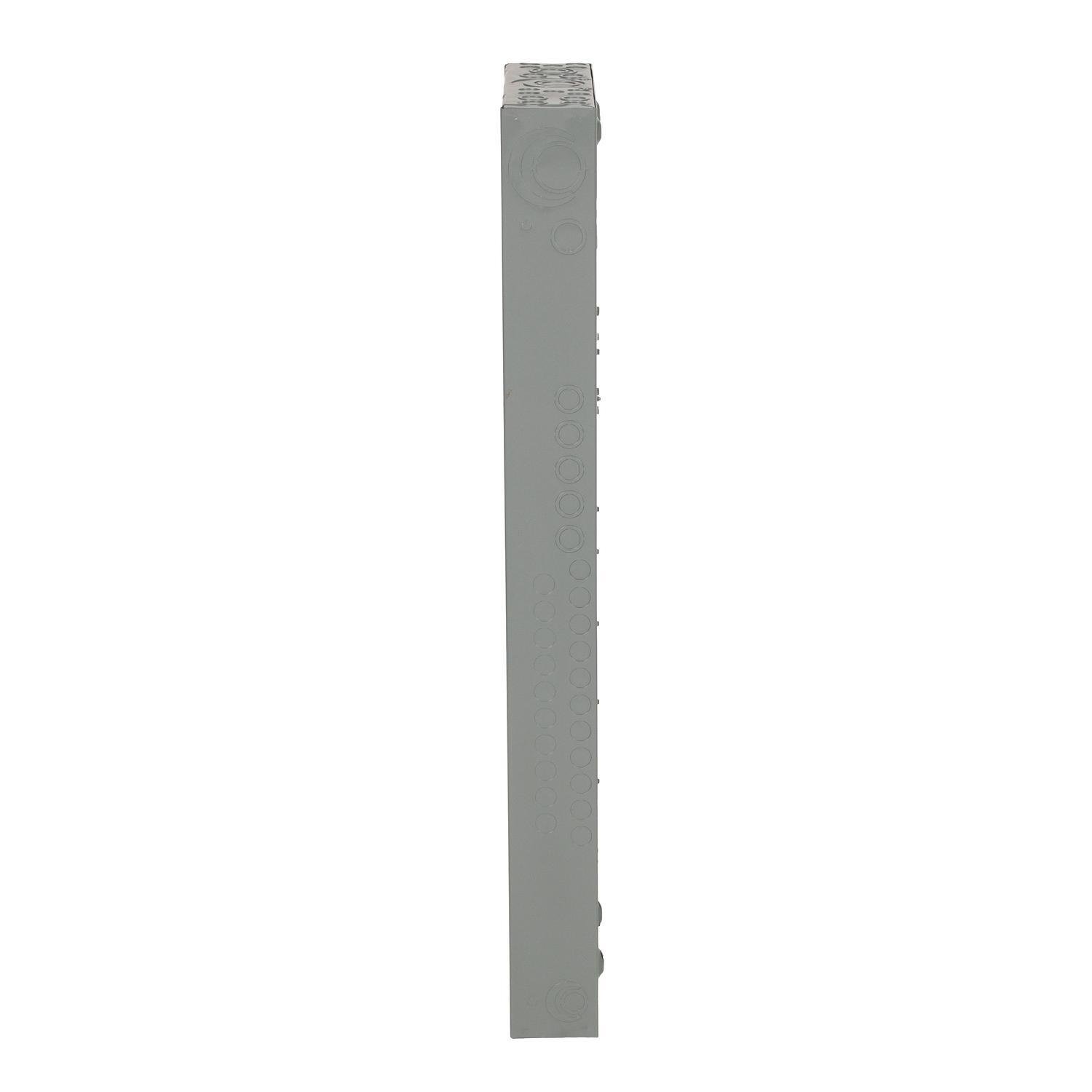

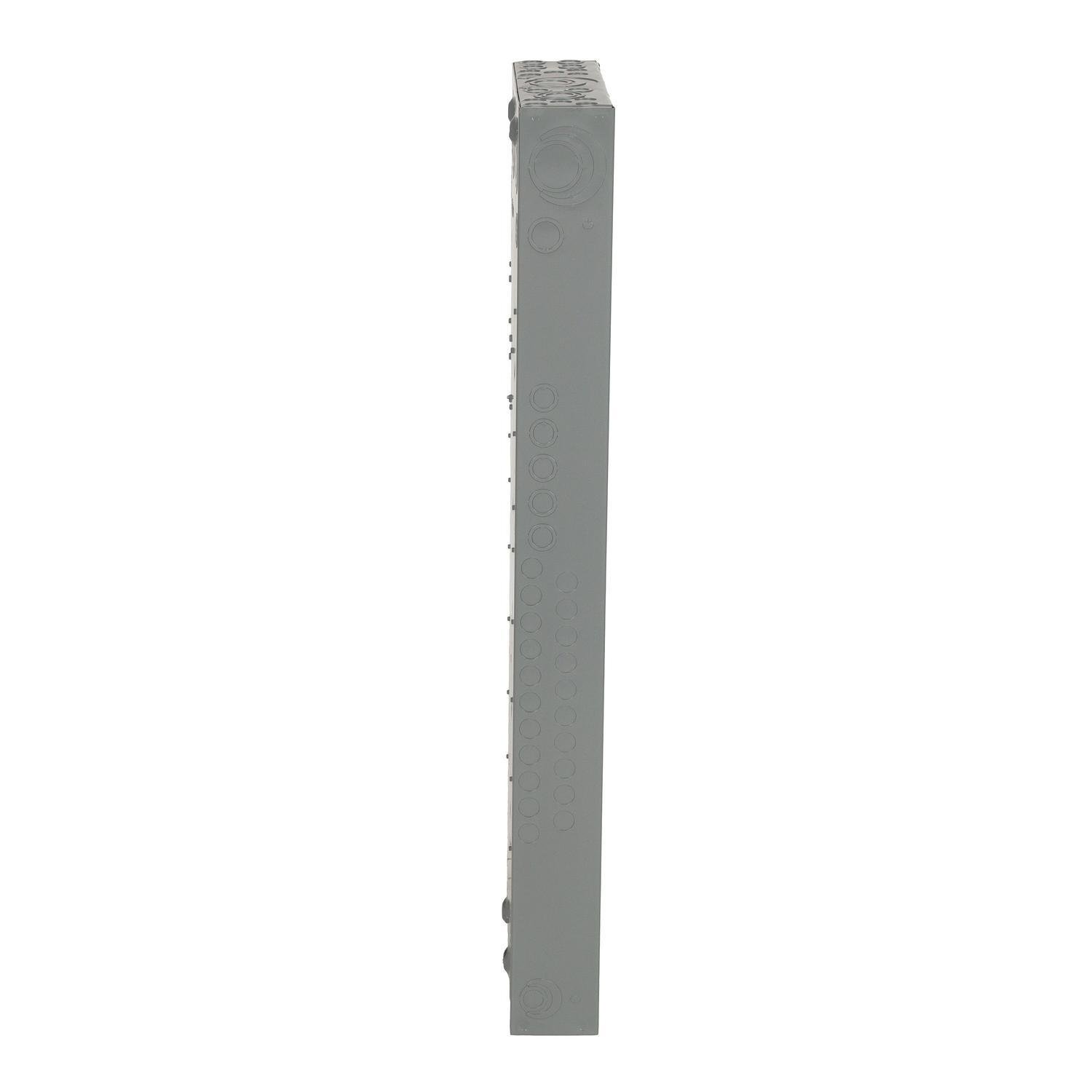

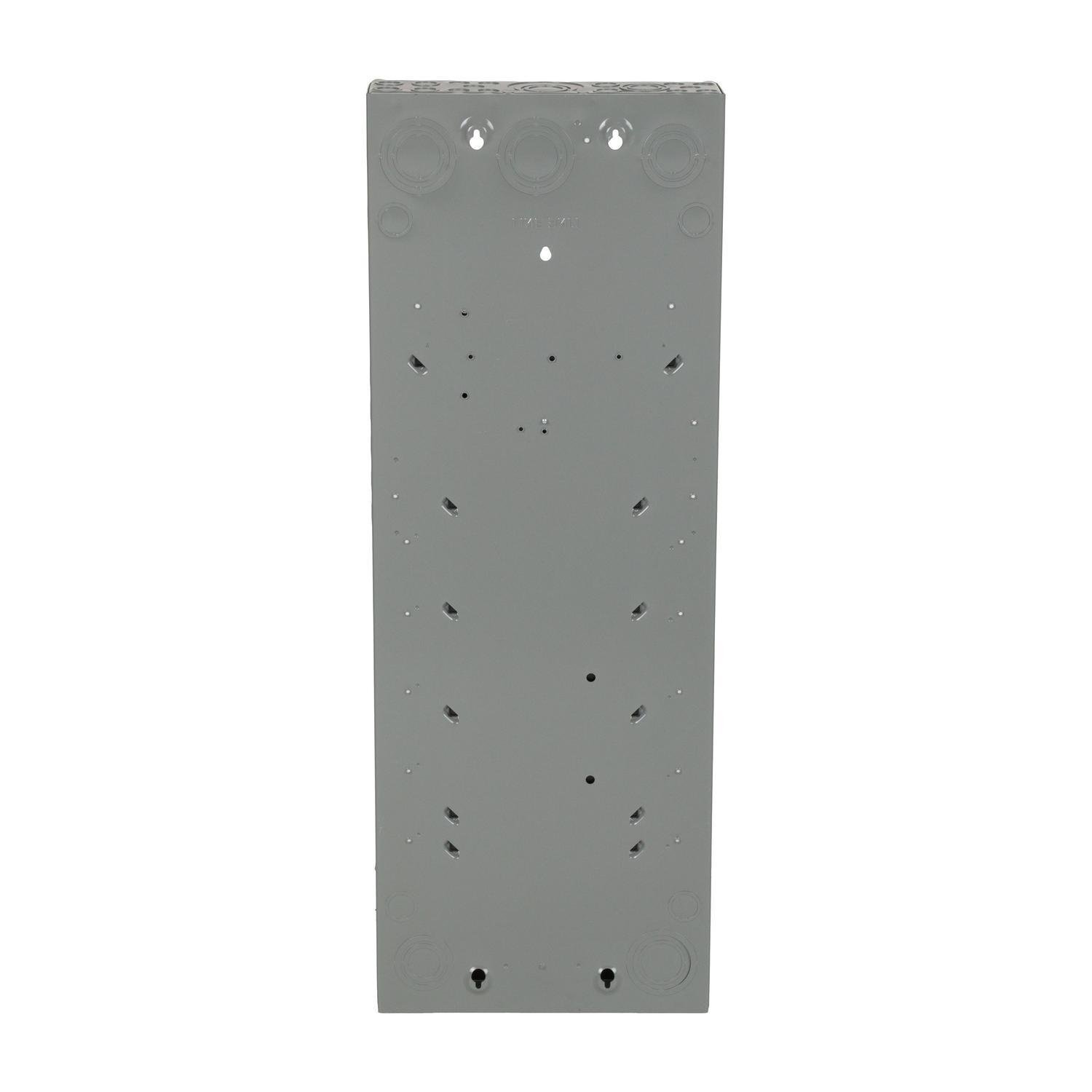

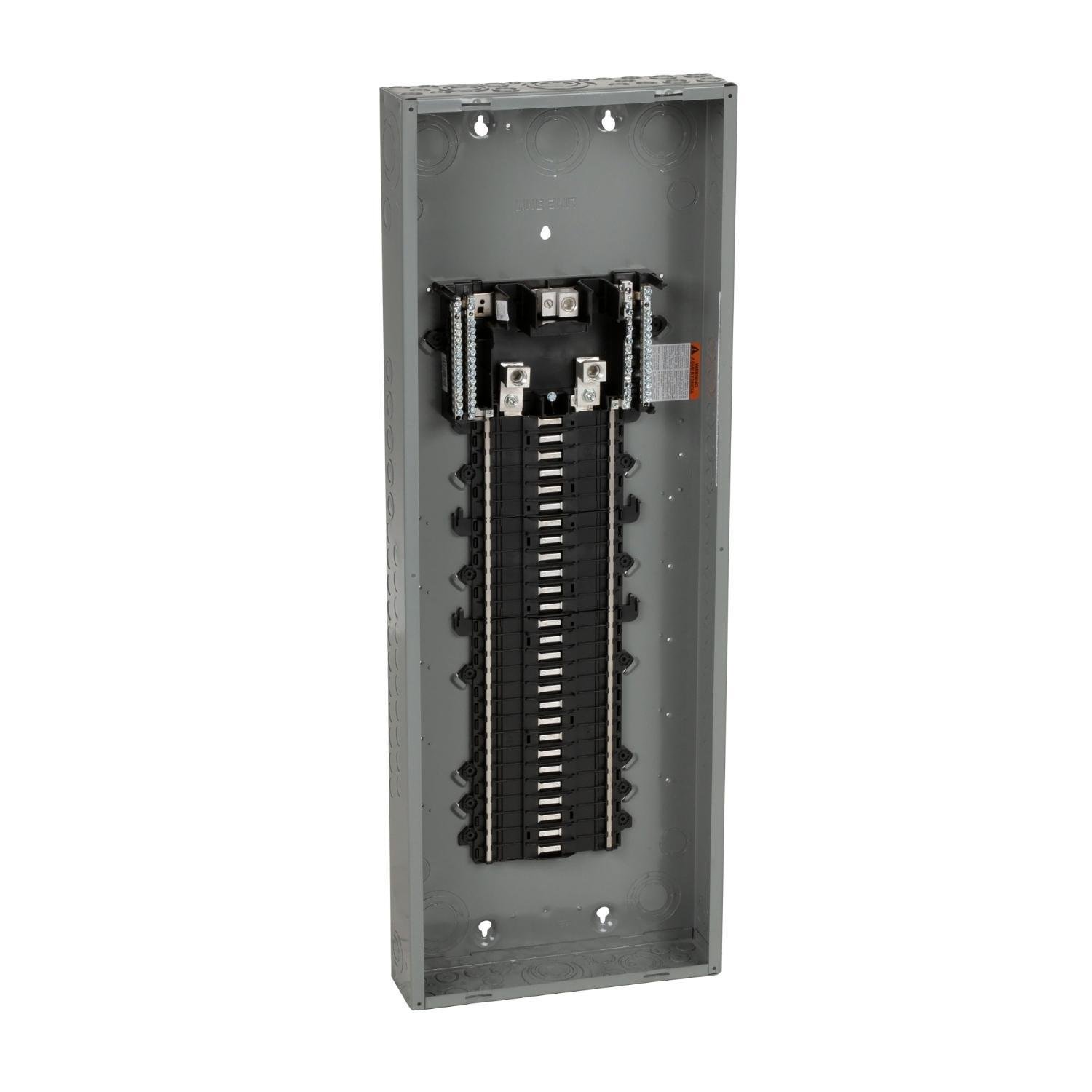

Picture of QO154L225PG - Load center, QO, 1 phase, 54 spaces, 64 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar Picture of QO154L225PG - Load center, QO, 1 phase, 54 spaces, 64 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar
Picture of QO154L225PG - Load center, QO, 1 phase, 54 spaces, 64 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar Picture of QO154L225PG - Load center, QO, 1 phase, 54 spaces, 64 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar
Picture of QO154L225PG - Load center, QO, 1 phase, 54 spaces, 64 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar Picture of QO154L225PG - Load center, QO, 1 phase, 54 spaces, 64 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar
Picture of QO154L225PG - Load center, QO, 1 phase, 54 spaces, 64 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar Picture of QO154L225PG - Load center, QO, 1 phase, 54 spaces, 64 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar
Picture of QO154L225PG - Load center, QO, 1 phase, 54 spaces, 64 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar Picture of QO154L225PG - Load center, QO, 1 phase, 54 spaces, 64 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar
Square D

QO154L225PG - Load center, QO, 1 phase, 54 spaces, 64 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar

Item Code: 849993
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO154L225PG

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 54 spaces and 64 circuits. This system provides 225A convertible mai lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, and is UL rated.

Specifications

Weight

21.73lb

Height

4.2mm

Width

14.66mm

Length

40.22mm

AD All Features

Provides superior performance and durability

AD Application

For residential, commercial and industrial requirements to protect electrical systems, equipment and people

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

Field Installed Grounding Bar

AD Invoice Description

LOADCENTER MAIN LUG 240VAC 225A 1 65KA

AD Item Features 01

Provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Faster installation using PoN breakers that connect directly

AD Item Features 04

50% more terminations for clutter-free wiring

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.2000

AD Package Height UOM

IN

AD Package Length

40.2200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2465.0600

AD Package Volume UOM

cu-in

AD Package Weight

21.7300

AD Package Weight UOM

LB

AD Package Width

14.6600

AD Package Width UOM

IN

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

225

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Plug-On

Spec 11 Attribute

Number of Circuits

Spec 11 Attribute Value

42

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

1

Spec 13 Attribute

Number of Spaces

Spec 13 Attribute Value

54

Spec 14 Attribute

Type

Spec 14 Attribute Value

1-Phase Convertible Neutral

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

240

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

6 AWG to 300 kcmil

Spec 17 Attribute

Wiring Configuration

Spec 17 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

QO

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.25 in W x 3.75 in D x 39.37 in H

Spec 5 Attribute

Enclosure Box Size

Spec 5 Attribute Value

12

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Housing Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

65
