Square D

QO1816M150FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, NEMA3R, feedthru lugs

Category Load Centers & Accessories

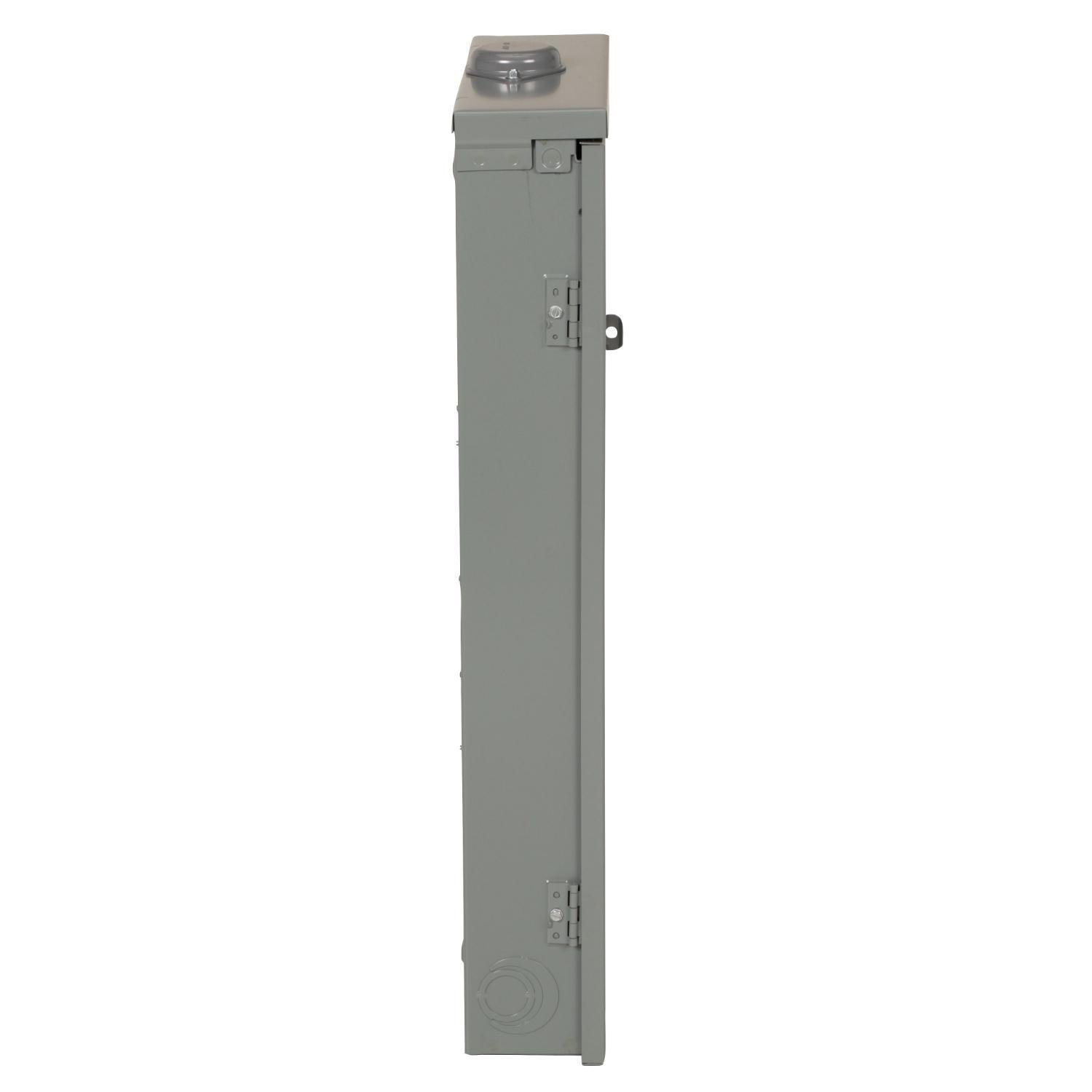

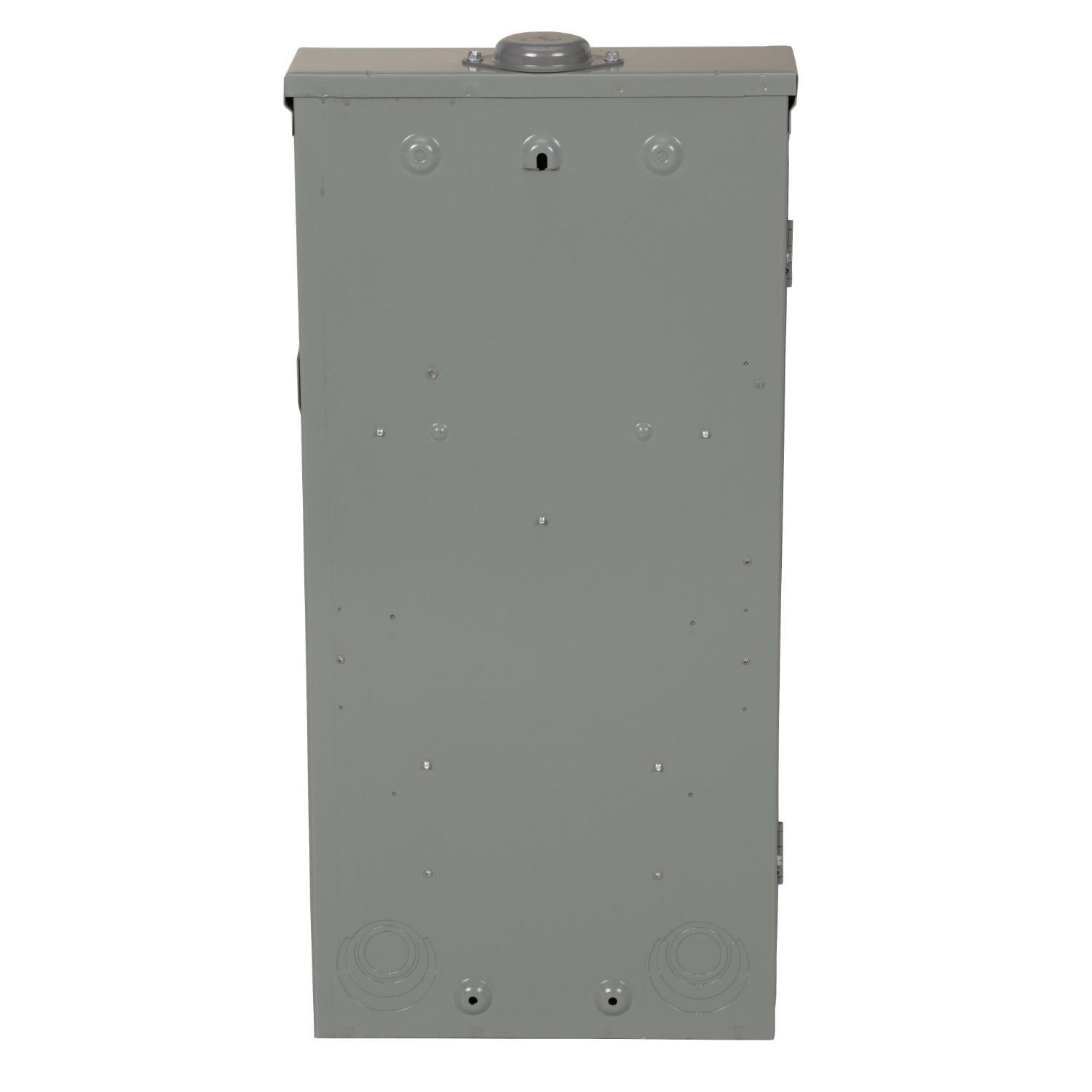

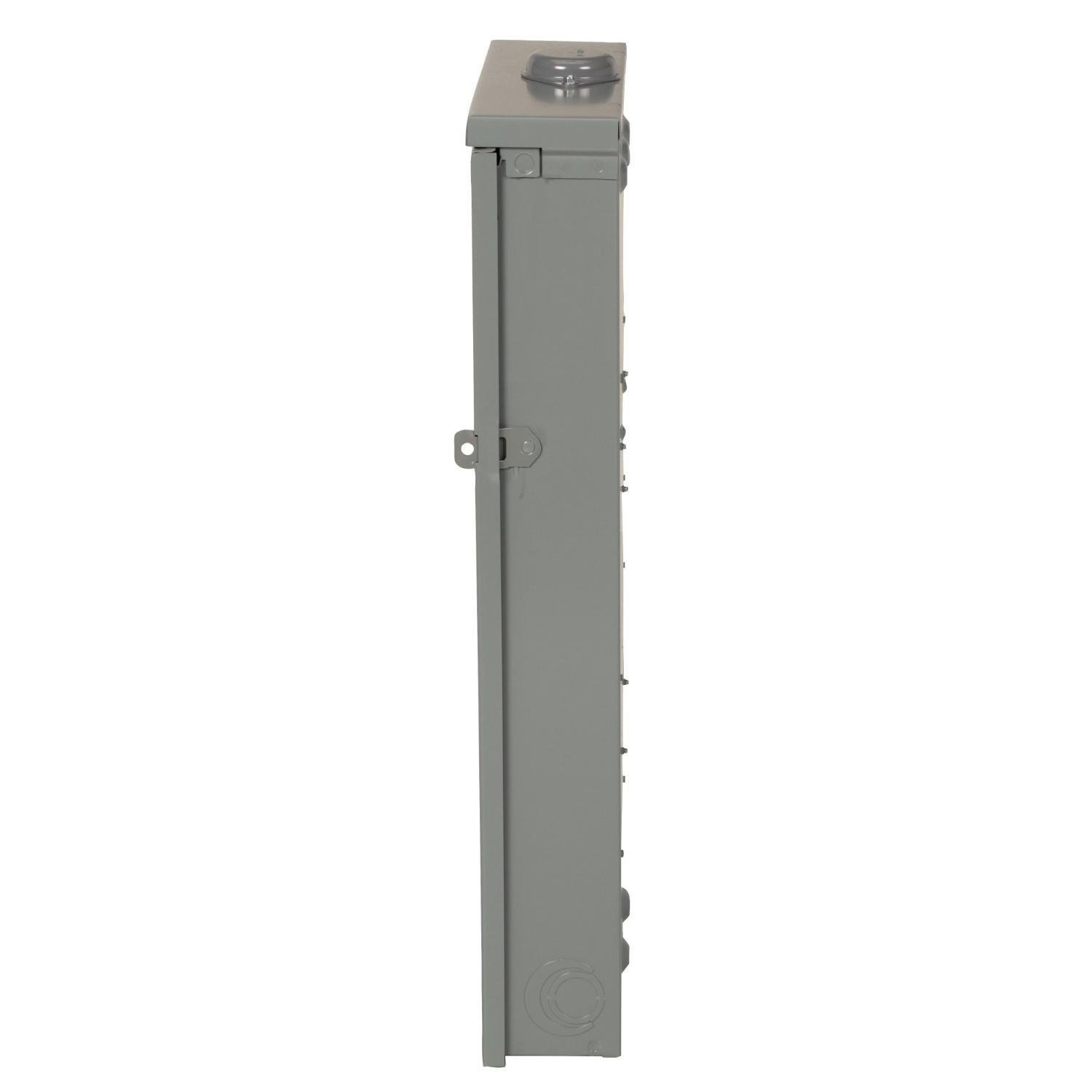

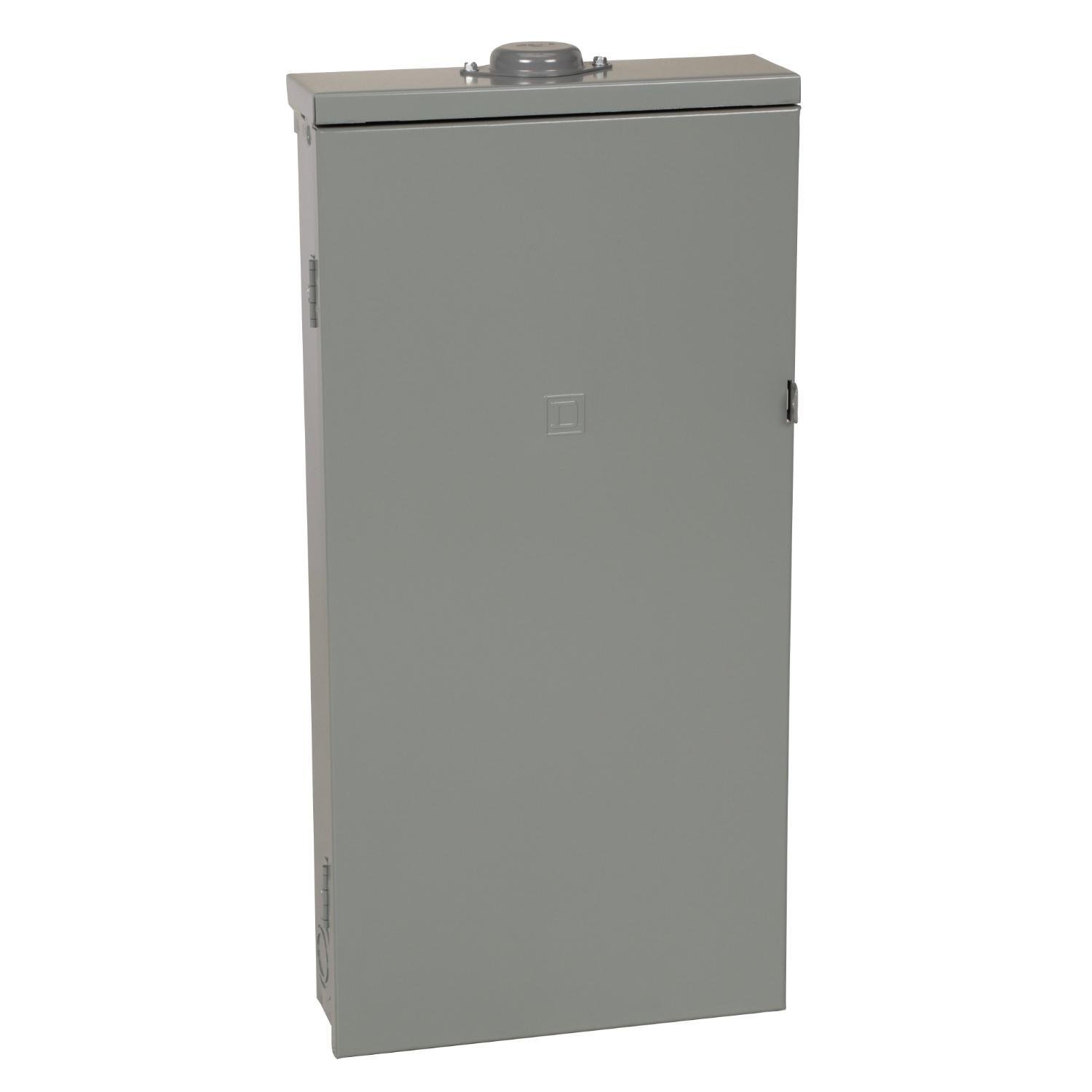

Picture of QO1816M150FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, NEMA3R, feedthru lugs Picture of QO1816M150FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, NEMA3R, feedthru lugs
Picture of QO1816M150FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, NEMA3R, feedthru lugs Picture of QO1816M150FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, NEMA3R, feedthru lugs
Picture of QO1816M150FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, NEMA3R, feedthru lugs Picture of QO1816M150FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, NEMA3R, feedthru lugs
Picture of QO1816M150FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, NEMA3R, feedthru lugs Picture of QO1816M150FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, NEMA3R, feedthru lugs
Picture of QO1816M150FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, NEMA3R, feedthru lugs Picture of QO1816M150FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, NEMA3R, feedthru lugs
Square D

QO1816M150FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 150A convertible main breaker, NEMA3R, feedthru lugs

Item Code: 776193
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO1816M150FTRB

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides a 150A convertible main breaker in a NEMA 3R enclosure. It also includes feed thru lugs and is UL rated.

Specifications

Weight

32.88

Width

15.35

Length

31.7

AD All Features

QO Load center provides superior performance and durability

AD Application

For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

Feed Through Lugs and Rainproof Cover

AD Invoice Description

LOADCENTER MAIN BRKR 120/240VAC 150A 1 8

AD Item Features 01

QO Load center provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Compatible with any Square D QO Circuit Breaker

AD Item Features 04

The fully distributed neutral bar allows for QO plug-on neutral circuit breakers in any space

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

31.7000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

32.8800

AD Package Weight UOM

LB

AD Package Width

15.3500

AD Package Width UOM

IN

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

150

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

16

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

1

Spec 12 Attribute

Number of Spaces

Spec 12 Attribute Value

8

Spec 13 Attribute

Type

Spec 13 Attribute Value

1-Phase Convertible

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

120/240

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

4 to 4/0 AWG Aluminum/Copper, 4 AWG to 250 kcmil

Spec 16 Attribute

Wiring Configuration

Spec 16 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

QO

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.75 in W x 4.52 in D x 29.86 in H

Spec 5 Attribute

Enclosure Box Size

Spec 5 Attribute Value

6r

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 3R

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Housing Material

Spec 8 Attribute Value

Galvanized Steel

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

22
