Square D

QO1816M200FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 200A convertible main breaker, NEMA3R, feedthru lugs

Category Miscellaneous

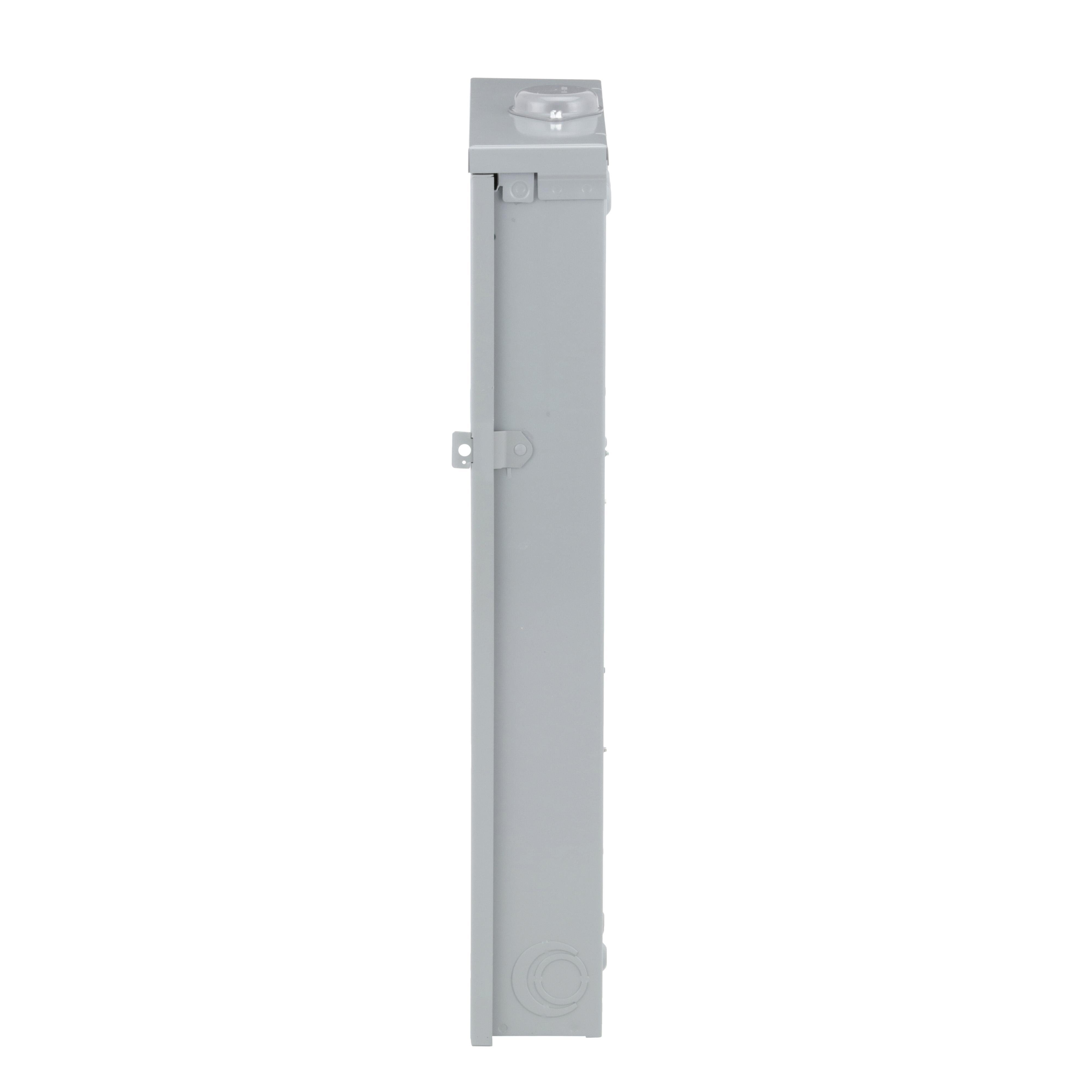

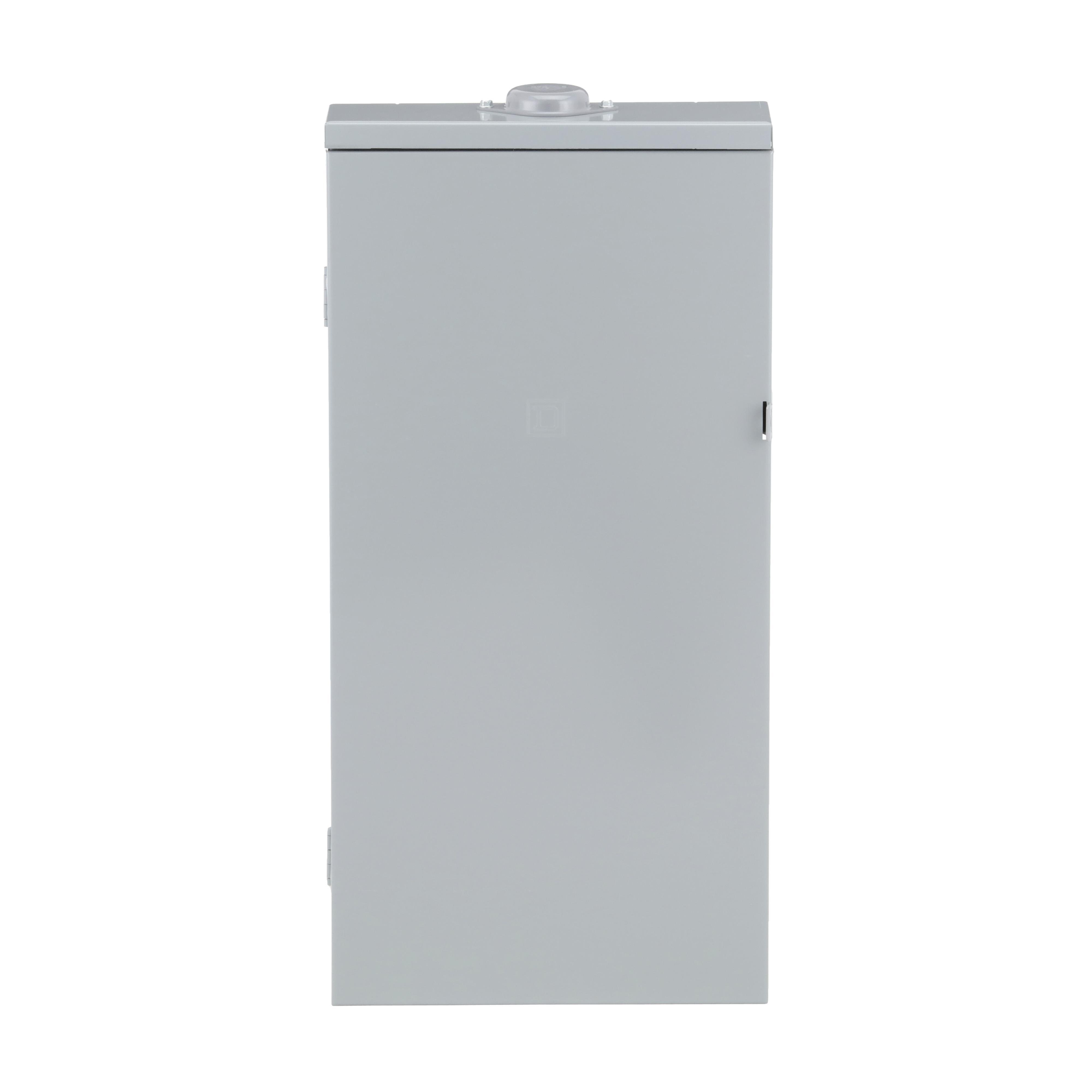

Picture of QO1816M200FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 200A convertible main breaker, NEMA3R, feedthru lugs Picture of QO1816M200FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 200A convertible main breaker, NEMA3R, feedthru lugs
Picture of QO1816M200FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 200A convertible main breaker, NEMA3R, feedthru lugs Picture of QO1816M200FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 200A convertible main breaker, NEMA3R, feedthru lugs
Picture of QO1816M200FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 200A convertible main breaker, NEMA3R, feedthru lugs Picture of QO1816M200FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 200A convertible main breaker, NEMA3R, feedthru lugs
Square D

QO1816M200FTRB - Load center, QO, 1 phase, 8 spaces, 16 circuits, 200A convertible main breaker, NEMA3R, feedthru lugs

Item Code: 1106993
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO1816M200FTRB

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides a 200A convertible main breaker in a NEMA 3R enclosure. It also includes feed thru lugs, and is UL rated.

Specifications

Weight

32.03

Width

4.75

Length

15.35

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO1816M200FTRB/QO1816M200FTRB.spin

AD All Features

QO Load center provides superior performance and durability

AD Alternative Part Number

8069870

AD Application

For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Technical Bulletin

AD EAN

0785901868187

AD Gtin

00785901868187

AD IDEA Index ID

8069870

AD Includes

Rainproof Cover

AD Invoice Description

LOADCENTER MAIN BRKR 120/240VAC 200A 1 8

AD Item Features 01

QO Load center provides superior performance and durability

AD Item Features 02

Straight in wiring saves wire, labor, and time

AD Item Features 03

Compatible with any Square D QO Circuit Breaker

AD Item Features 04

The fully distributed neutral bar allows for QO plug-on neutral circuit breakers in any space

AD Keywords

QO QO1816M200FTRB 1-ph Convertible Main Breaker Loadcenter, 120/240 V AC, 200 A, 1 Pole, 22 kA Interrupt ; Schneider Electric ; Square D ; QO1816M200FTRB ; QO1816M200FTRB ; 785901868187 ; Single Phase Convertible Load Centers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

15.3500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

32.0300

AD Package Weight UOM

LB

AD Package Width

4.7500

AD Package Width UOM

IN

AD Part Number Keywords

QO1816M200FTRB ; 8069870 ; 785901868187 ; 78590186818 ; 00785901868187 ; 0785901868187

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

16

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

1

Spec 12 Attribute

Number of Spaces

Spec 12 Attribute Value

8

Spec 13 Attribute

Type

Spec 13 Attribute Value

1-ph Convertible

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

120/240

Spec 15 Attribute

Wire Size

Spec 15 Attribute UOM

AWG

Spec 15 Attribute Value

4 to 4/0

Spec 16 Attribute

Wiring Configuration

Spec 16 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

QO

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.75 in W x 4.52 in D x 29.86 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 3R

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Galvanized Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

22

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Bolt-on
