Square D

QO2175SB - Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1

Category Receptacles & Surge Protectors

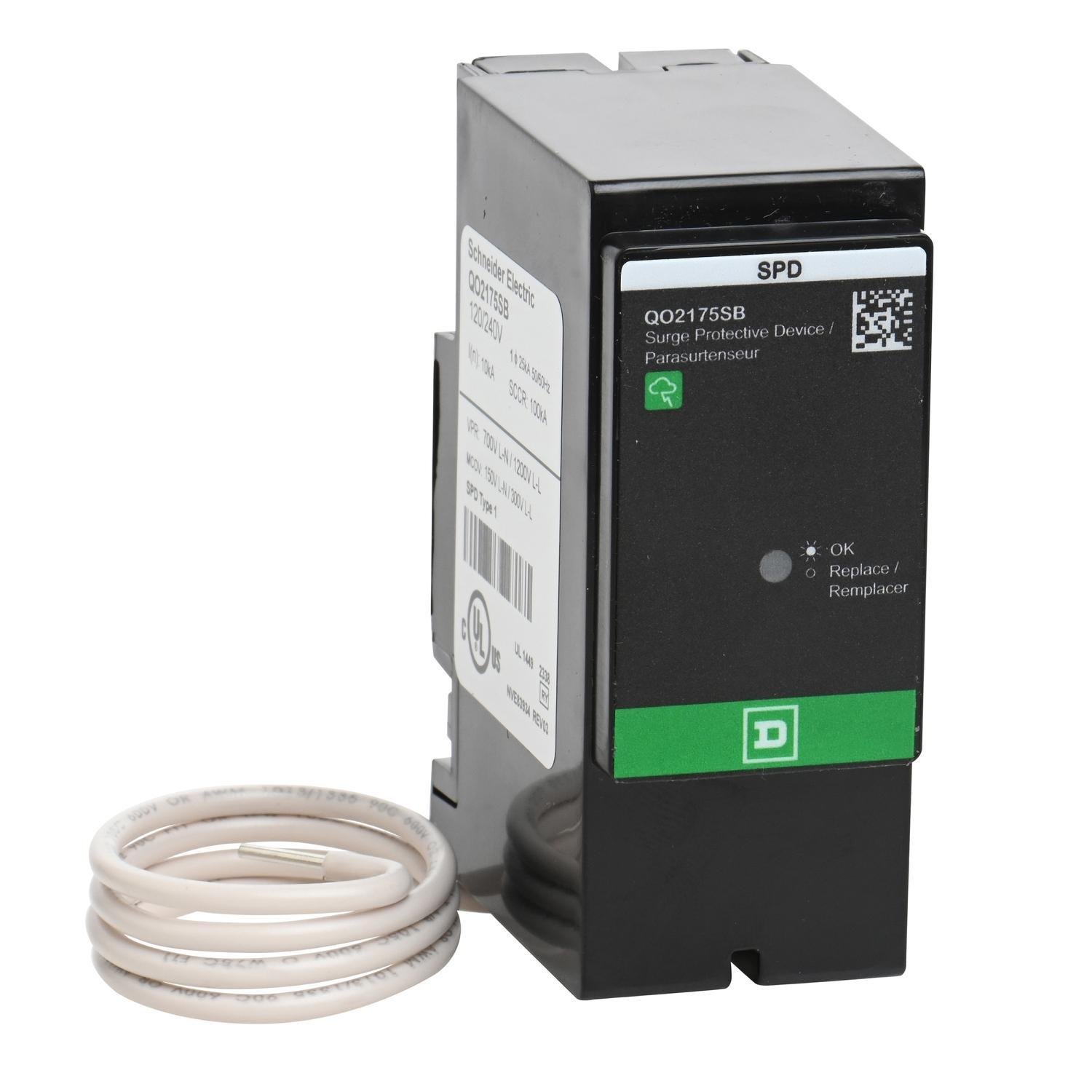

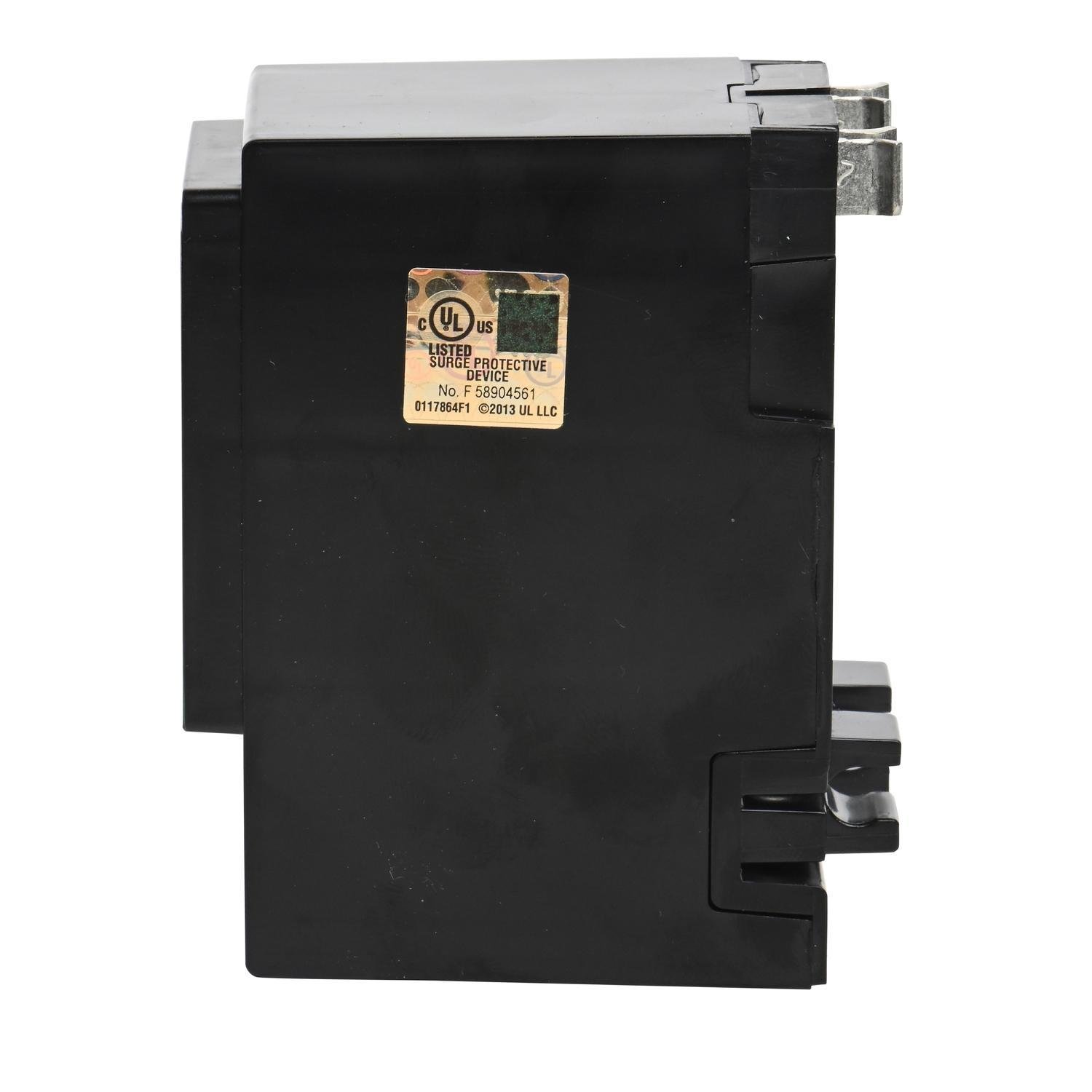

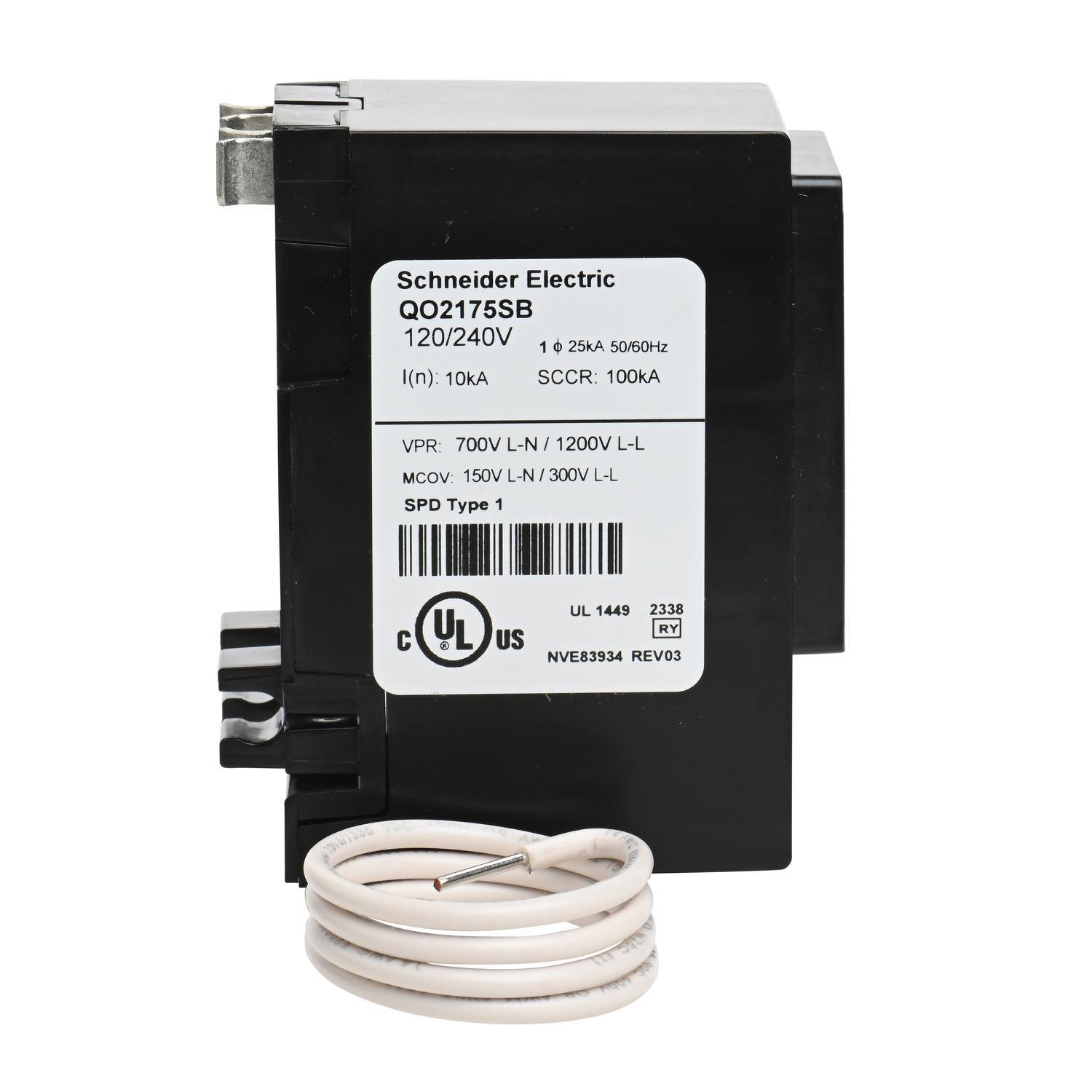

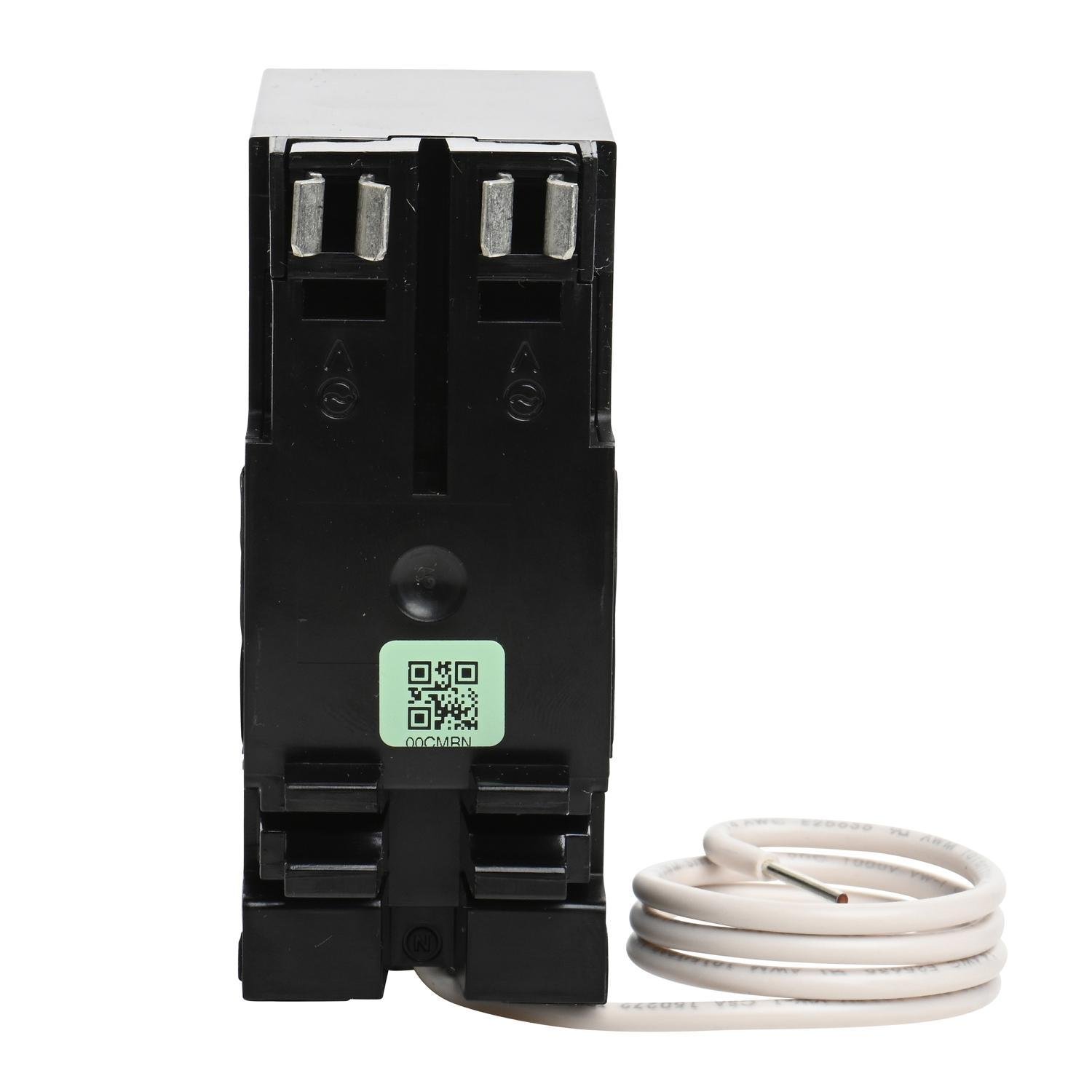

Picture of QO2175SB - Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1 Picture of QO2175SB - Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
Picture of QO2175SB - Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1 Picture of QO2175SB - Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
Picture of QO2175SB - Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1 Picture of QO2175SB - Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
Picture of QO2175SB - Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1 Picture of QO2175SB - Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
Picture of QO2175SB - Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1 Picture of QO2175SB - Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
Square D

QO2175SB - Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1

Item Code: 18568
Category Receptacles & Surge Protectors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO2175SB

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. This Surgebreaker is a secondary surge arrestor for QO load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 1 indoor rating. This secondary surge protector is rated at 10 kA and has a SCCR of 25 kA. It has a plug on design and requires two pole positions. The LED indicator indicates operational status. The QO Surgebreaker is CSA certified ans UL listed

Specifications

Weight

0.65lb

Height

1.7mm

Width

2.97mm

Length

5.45mm

Depth

2.6mm

AD All Features

Use for QO residential load centers and CSEDs

AD Application

For load center and service entrance equipment applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

LED Status indicator

AD Invoice Description

ARRESTER SRG 175VAC 22KA 2 50/60HZ 3 5KA

AD Item Features 01

Use for QO residential load centers and CSEDs

AD Item Features 02

Quick plug on for easy installation

AD Item Features 03

Directly connected to the equipment bus for short lead lengths

AD Item Features 04

Single phase rated for 25 kA surge current

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.7000

AD Package Height UOM

IN

AD Package Length

5.4500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

28.0500

AD Package Volume UOM

cu-in

AD Package Weight

0.6500

AD Package Weight UOM

LB

AD Package Width

2.9700

AD Package Width UOM

IN

Brand

Square D

Category

RECEPTACLES & SURGE PROTECTORS

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

3.66 in L x 1.48 in W x 2.55 in H

Spec 10 Attribute

Type

Spec 10 Attribute Value

Secondary

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

175

Spec 2 Attribute

Frequency Rating

Spec 2 Attribute UOM

HZ

Spec 2 Attribute Value

50/60

Spec 3 Attribute

Material

Spec 3 Attribute Value

Plastic

Spec 4 Attribute

Modes of Protection

Spec 4 Attribute Value

L-N/L-L

Spec 5 Attribute

Nominal Discharge Current

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

5

Spec 6 Attribute

Number Of Poles

Spec 6 Attribute Value

2

Spec 7 Attribute

Number Of Wires

Spec 7 Attribute Value

3

Spec 8 Attribute

Peak Surge Current

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

22.5

Spec 9 Attribute

Short Circuit Current Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

22
