Square D

QO220EPD - Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA]

Category Miscellaneous

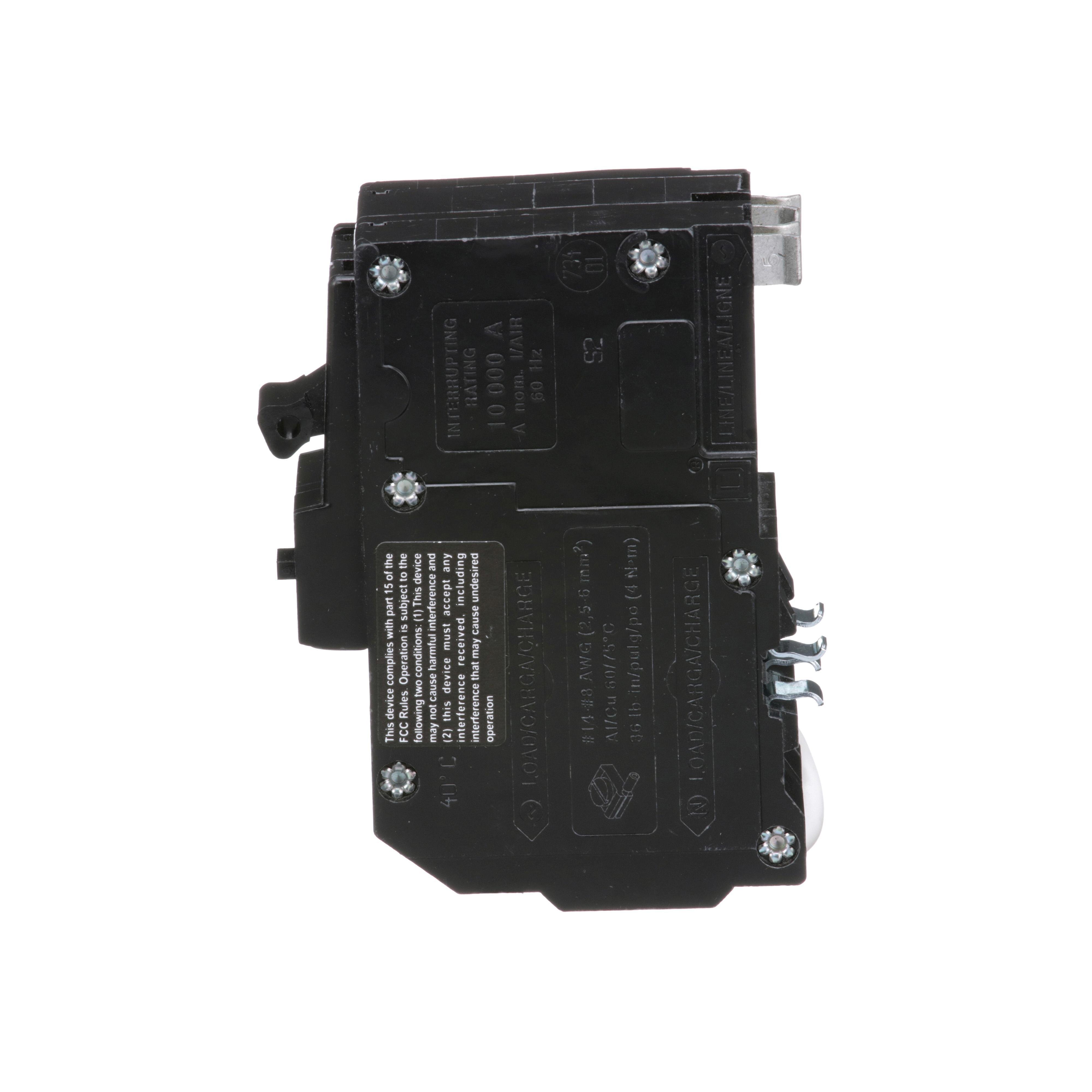

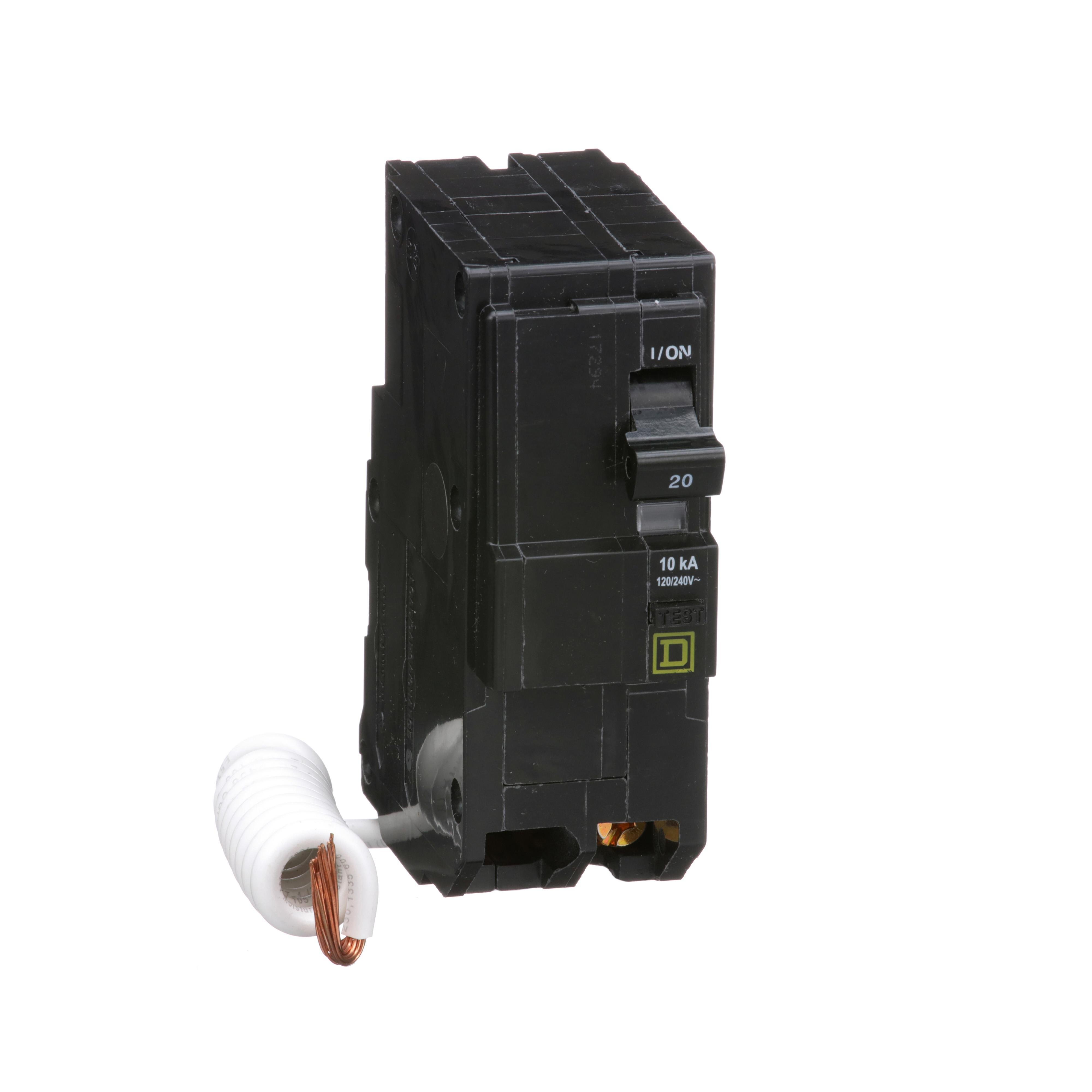

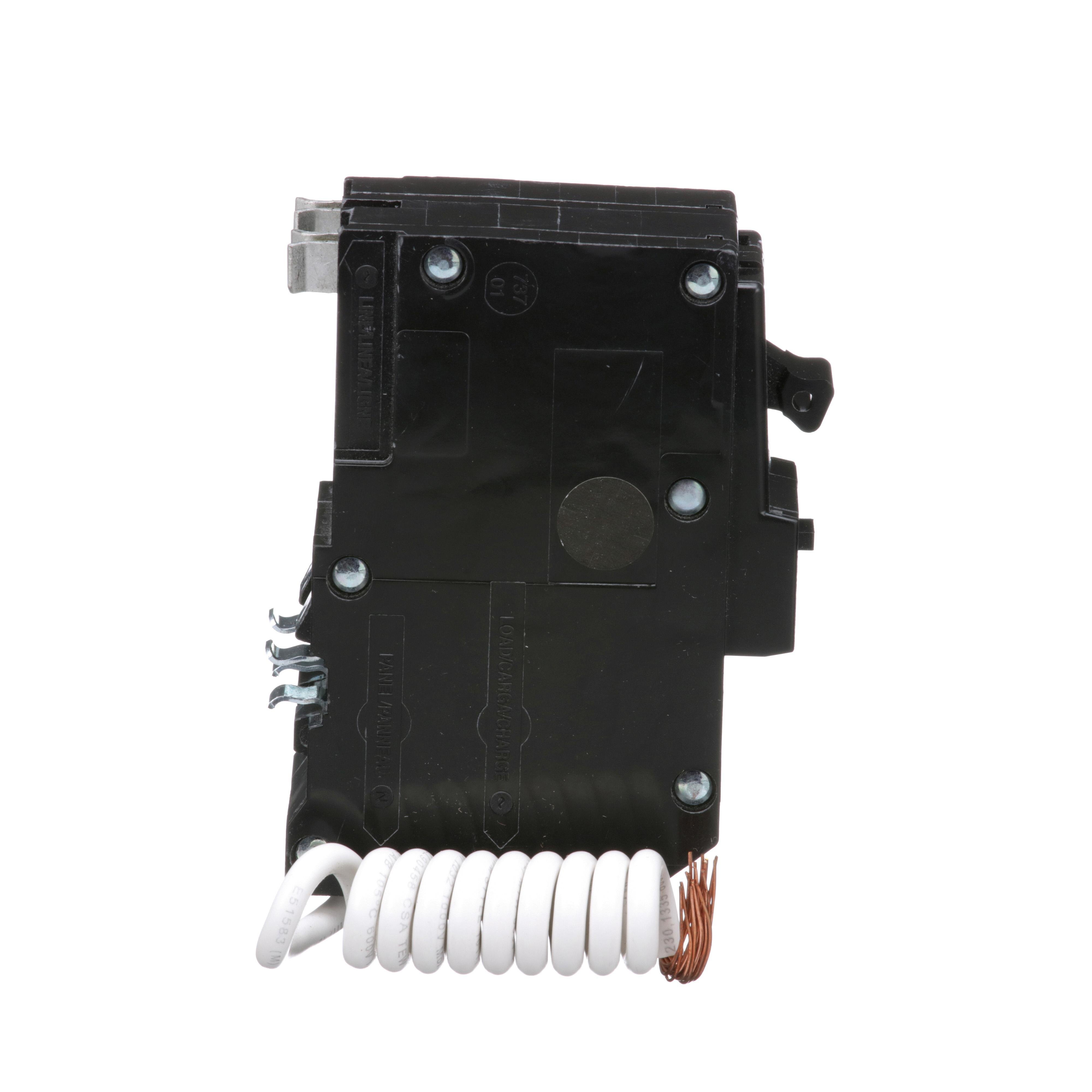

Picture of QO220EPD - Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA] Picture of QO220EPD - Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA]
Picture of QO220EPD - Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA] Picture of QO220EPD - Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA]
Picture of QO220EPD - Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA] Picture of QO220EPD - Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA]
Picture of QO220EPD - Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA] Picture of QO220EPD - Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA]
Square D

QO220EPD - Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, 30mA grd fault B [TAA]

Item Code: 33298
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO220EPD

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

0.94

Height

2.2

Width

5.45

Length

2.38

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO220EPD/QO220EPD.spin

AD All Features

Reliable and durable

AD Alternative Part Number

8035626

AD Application

For providing overload, short circuit protection and 30 mA class B ground fault protection for equipment

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Warranty Information

AD Document Caption 3

Specification Sheet

AD Document Caption 4

Owners/User Manual

AD Document Caption 5

Full Engineering Drawing

AD EAN

0785901120742

AD Gtin

00785901120742

AD IDEA Index ID

8035626

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 20A 10KA 2

AD Item Features 01

Reliable and durable

AD Item Features 02

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 03

Simple design and clear instructions for quick setup

AD Keywords

QO Qwik-Gard QO220EPD Class B Ground Fault Miniature Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; QO220EPD ; QO220EPD ; 785901120742 ; Ground-Fault Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.2000

AD Package Height UOM

IN

AD Package Length

2.3800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

40.8100

AD Package Volume UOM

cu-in

AD Package Weight

0.9400

AD Package Weight UOM

LB

AD Package Width

5.4500

AD Package Width UOM

IN

AD Part Number Keywords

QO220EPD ; 8035626 ; 785901120742 ; 78590112074 ; 00785901120742 ; 0785901120742

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Class B Ground Fault

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

12 to 8 AWG, 14 to 8 AWG

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Pressure Plate

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.91 in L x 1.5 in W x 4.12 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-On

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

104
