Square D

QO2301021 - Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt

Category Miscellaneous

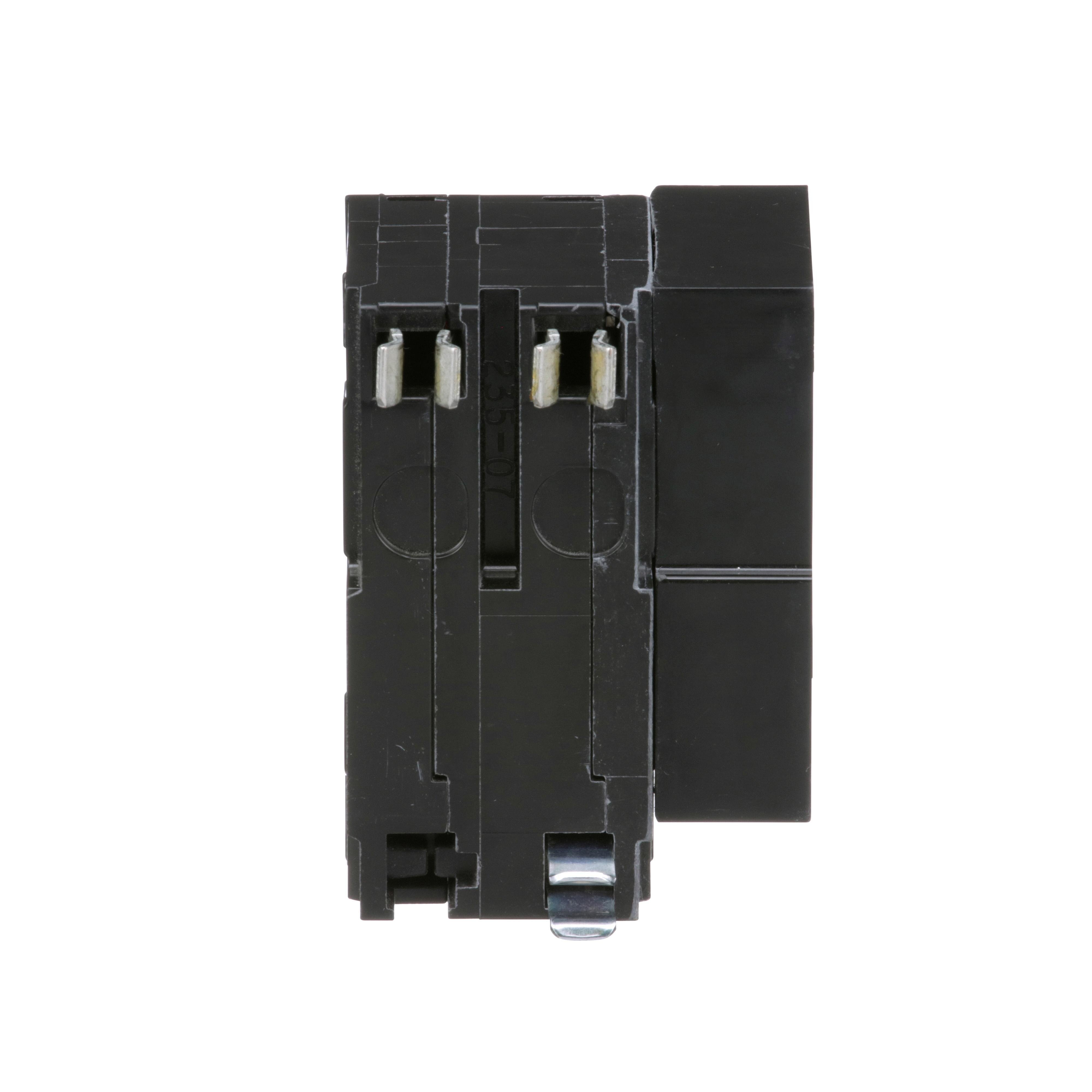

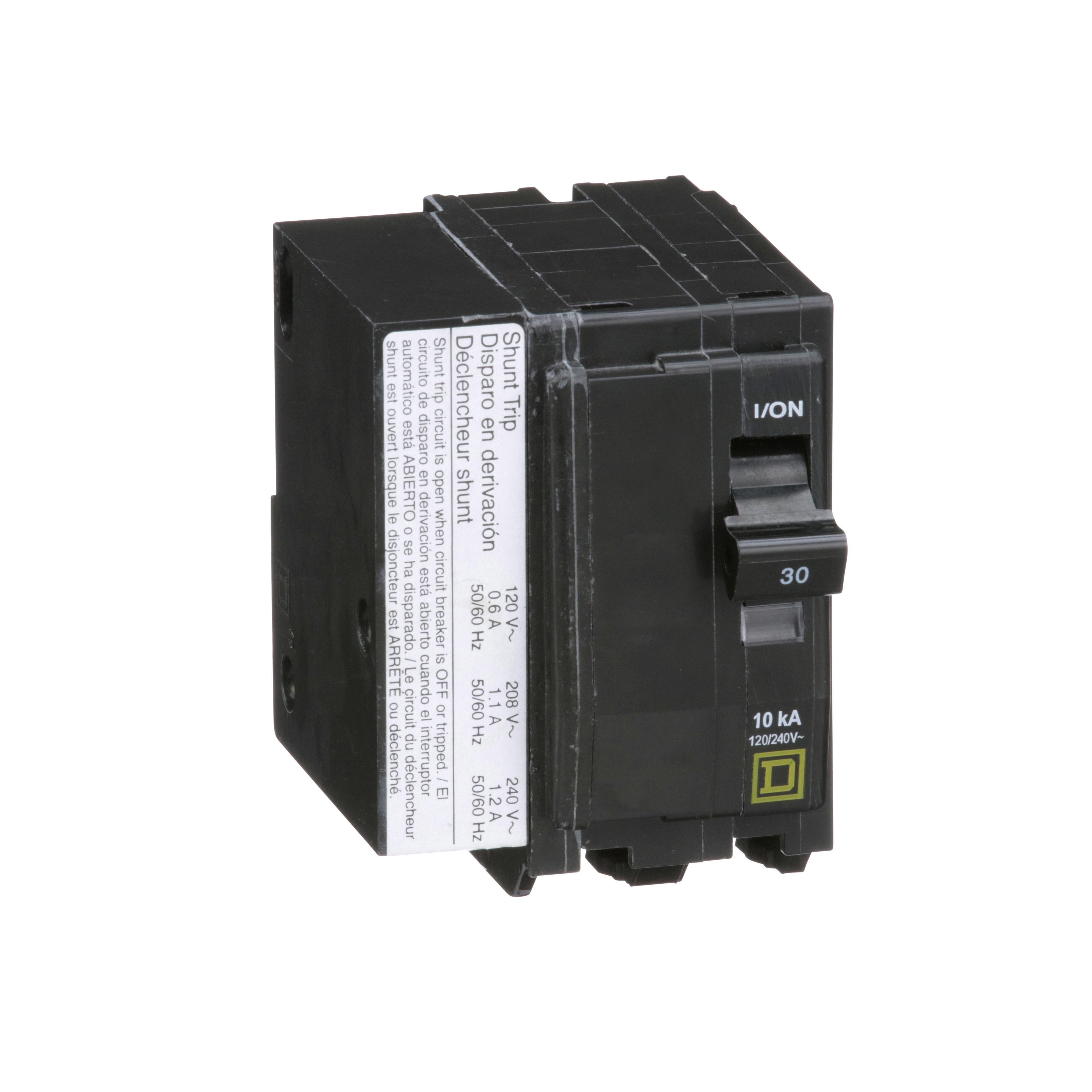

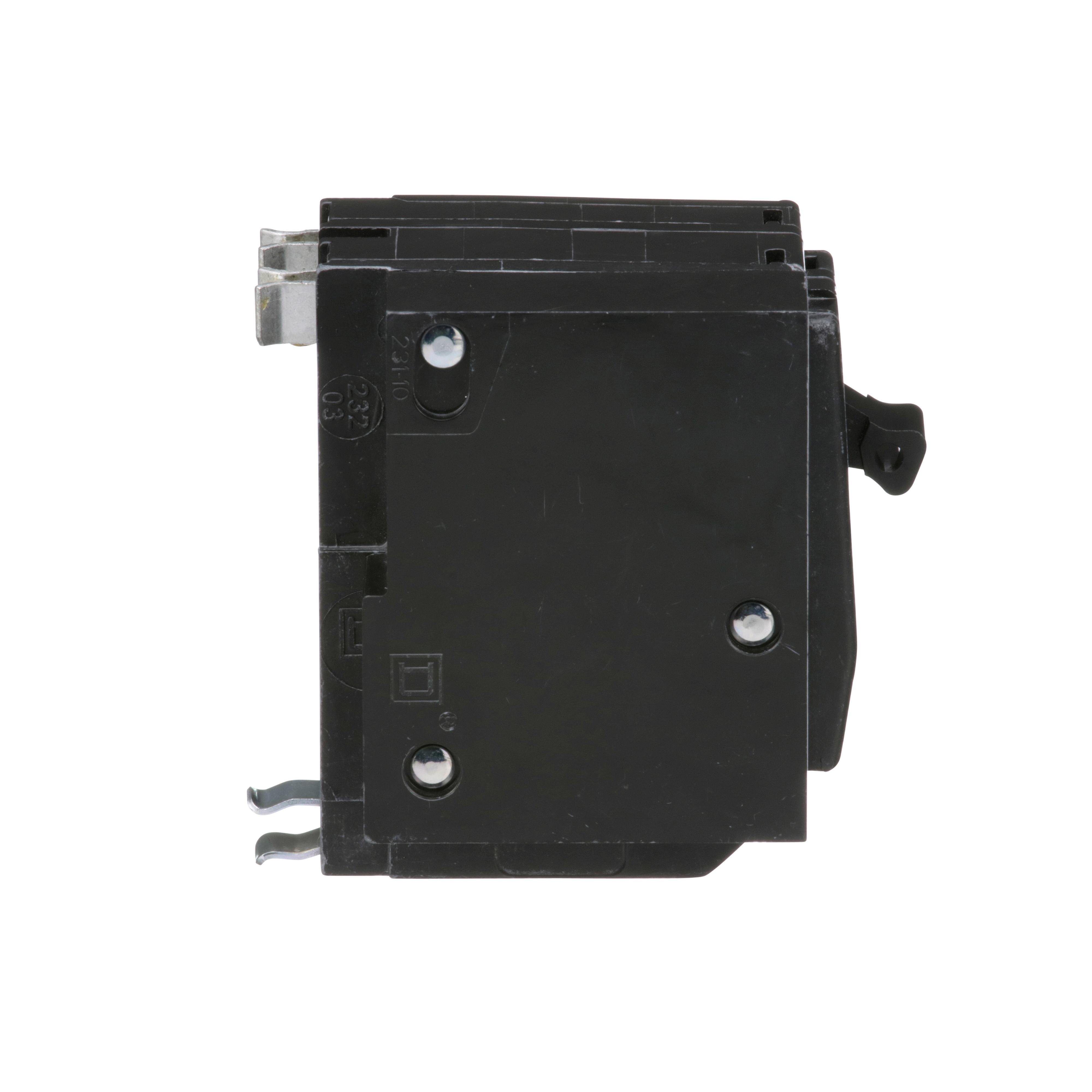

Picture of QO2301021 - Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt Picture of QO2301021 - Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt
Picture of QO2301021 - Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt Picture of QO2301021 - Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt
Picture of QO2301021 - Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt Picture of QO2301021 - Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt
Picture of QO2301021 - Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt Picture of QO2301021 - Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt
Picture of QO2301021 - Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt Picture of QO2301021 - Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt
Square D

QO2301021 - Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, plug in, AC shunt

Item Code: 33300
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref QO2301021

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Specifications

Weight

0.9

Height

3.2

Width

3.57

Length

4.75

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/QO2301021/QO2301021.spin

AD All Features

Reliable and durable

AD Alternative Part Number

8070590

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901493952

AD Gtin

00785901493952

AD IDEA Index ID

8070590

AD Invoice Description

BREAKER CKT MINTR 120/240VAC 30A 50/60HZ

AD Item Features 01

Reliable and durable

AD Item Features 02

Plug-on neutral design and shorter footprint for faster installs

AD Item Features 03

Simple design and clear instructions for quick setup

AD Item Features 04

Time-saving diagnostics with touch of a button

AD Keywords

QO QO2301021 Standard Miniature Circuit Breaker, 120/240 V AC, 30 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; QO2301021 ; QO2301021 ; 785901493952 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.2000

AD Package Height UOM

IN

AD Package Length

4.7500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

55.3000

AD Package Volume UOM

cu-in

AD Package Weight

0.9000

AD Package Weight UOM

LB

AD Package Width

3.5700

AD Package Width UOM

IN

AD Part Number Keywords

QO2301021 ; 8070590 ; 785901493952 ; 78590149395 ; 00785901493952 ; 0785901493952

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Standard

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

14 to 8

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Pressure Plate

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

2.91 in L x 2.25 in W x 3 in H

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

10

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Plug-In

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

40
